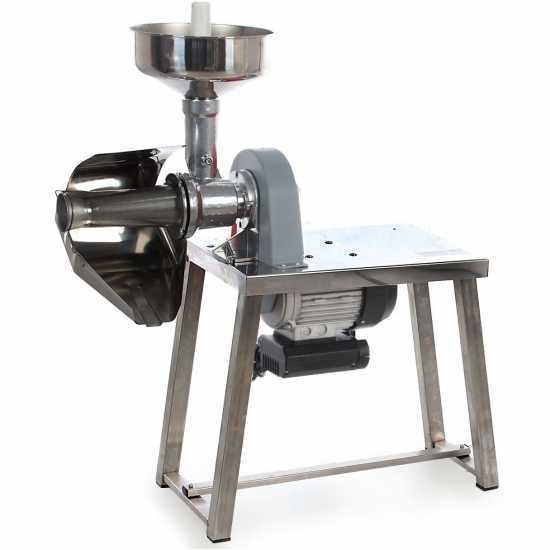

AE-SM5 INOX Electric Motor Tomato Press wth Bench - 600 W - 1 HP

Description

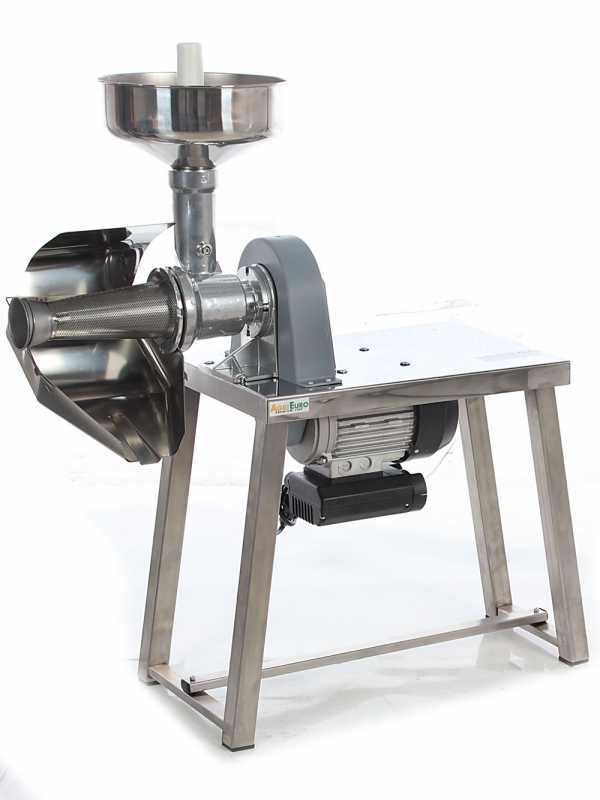

AE-SM5 - 1 Hp INOX Heavy-duty Built-in bench Tomato Press

The heavy-duty AE-SM5 - 1 Hp INOX sauce maker turns tomatoes into “passata” or tomato sauce. Designed for use on its built-in benchtop.

The tomato press bench is fully made of stainless steel to ensure the highest level of hygiene and ease of use.

The machine body and lock ring are made of food-grade polished die-cast aluminium. Other components such as the hopper, chute, screen (filter) and chute shield are made entirely of stainless steel. The protective cover is made of plastic.

Extremely easy to use. It can be disassembled completely and it is easy to wash.

Featuring a 230V powered electric asynchronous motor with a watertight switch. The heavy-duty AE-SM5 - 1 Hp INOX passata machine is compliant with the Machinery Directive 89/392. Suitable for all professionals thanks to its ability to process large amounts of tomatoes, with an hourly output of 370 Kg/h.

AE-SM5 INOX Electric Motor Tomato Press wth Bench - 600 W - 1 HP

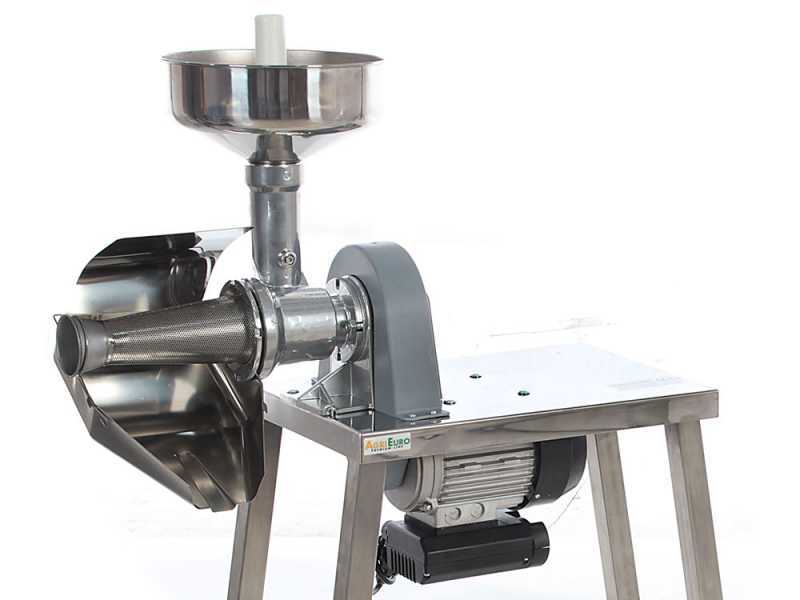

Motor and transmission

This machine is equipped with a 230V-powered, single-phase asynchronous motor. The motor develops a 1 Hp maximum power.

The F37 steel drive shaft is connected to a worm screw by means of a drive system that consists of a V-belt looping over a pair of pulleys.

The drive system also reduces the motor revolutions, thus optimizing the machine performances.

The motor is equipped with a watertight switch.

Focus on the worktop pulley

Focus on the transmission system shield

WARNING: this product is made entirely with food-safe materials, however its internal components do not undergo cleaning before it gets distributed. When you start using it, we recommend crushing 2 kg of tomatoes and throwing them out afterwards to ensure the inside of the machine is perfectly clean and remove any debris deriving from the manufacturing process (tiny plastic fragments, metal or tin).

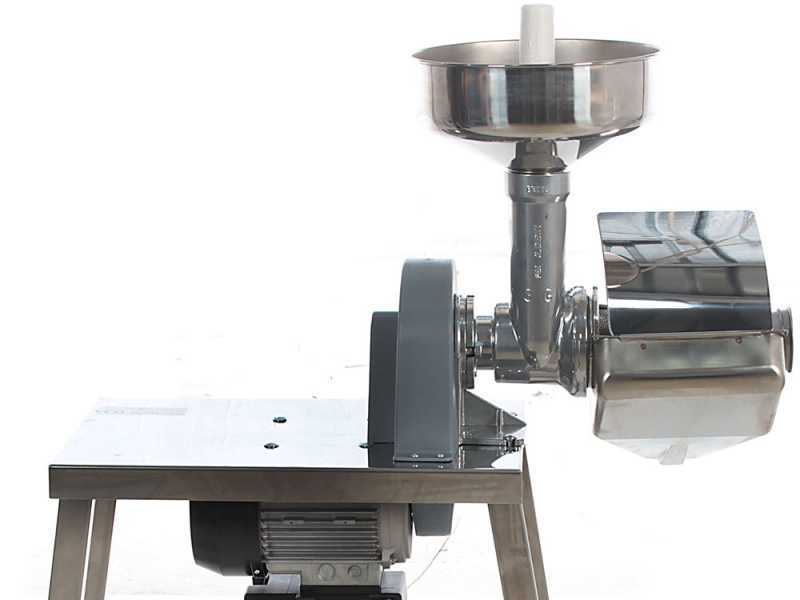

Machine body and components structure

This tomato press model is called AE-SM5 - 1 Hp INOX because some of its main components are made of food-safe stainless steel. The machine body and the lock ring are made by moulding UNI 50 die-cast aluminium.

stainless steel filter (screen): 22 cm length

Stainless steel hopper. Hopper diameter: 27 cm

Stainless steel chute and chute shield

The pestle is made of food-grade copolymer polypropylene.

The worm screw is made of food-safe acetal resin.

50 cm tall steel work top. Overall dimensions: 49x34x50 cm (LxWxH).

The steel work top is foldable and easy to store.
