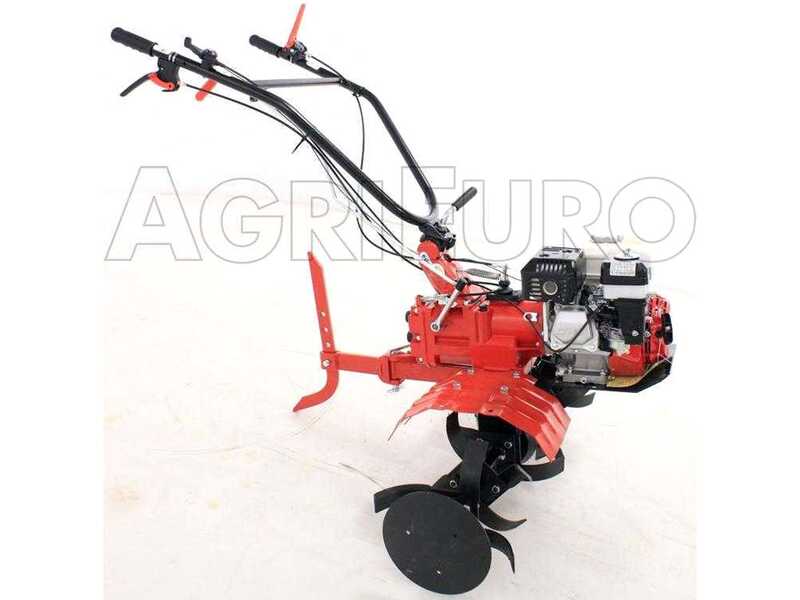

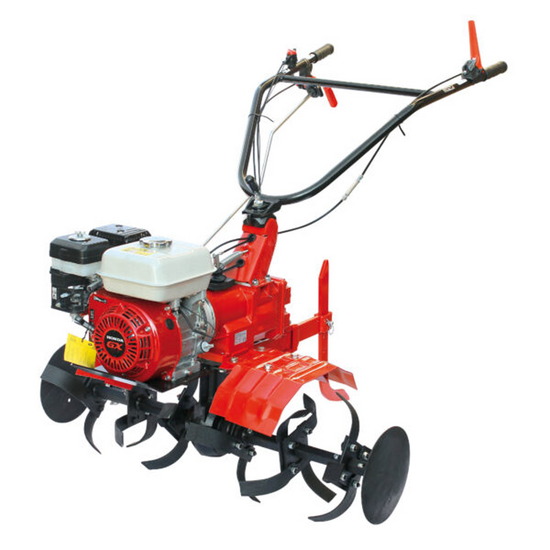

Agri 102 Garden Tiller with 95 cm Tiller - Honda GX 200 Petrol Engine 6.5 HP - 3+1 Gears

This is a classic garden tiller model equipped with a powerful Honda GX engine and a traditional sturdy gearbox in oil bath equipped with 3 forward gears and a reverse gear.

The AgriEuro Agri 102 is a garden tiller suitable for heavy-duty intense work on even hard and untilled soil.

The machine weighs 100 Kg, which is a definite plus as the weight helps with ground penetration.

This model is intended for large-sized land to till or hard ground or with the presence of small stones (where a smaller-sized, more lightweight garden tiller or equipped with a less sturdy transmission, such as belt-driven models would not be able to work as effectively).

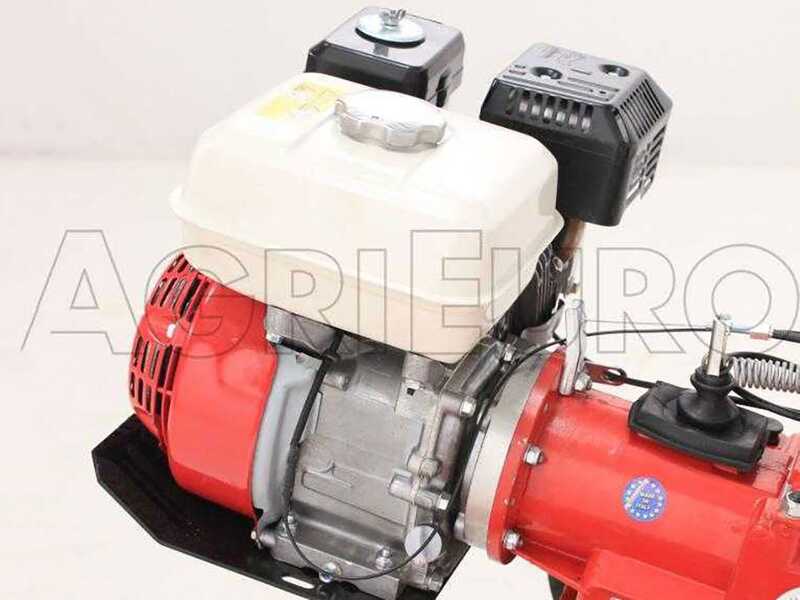

The Honda GX 200 is a professional and powerful engine of the latest generation equipped with OHV technology.

Features:

The Honda “GX” series is highly professional and was developed for heavy-duty jobs in building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

The HONDA engines of the GX series stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

The Honda "GX" series is highly professional and has been developed for heavy-duty work in the field of construction, agriculture, generators, welders etc. It is characterised by great durability and reliability.

Many other machines on the market are fitted with the Honda "GC" series, which has been developed for more limited domestic work and is more cost-effective.

GX series

GC SERIES

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.7 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

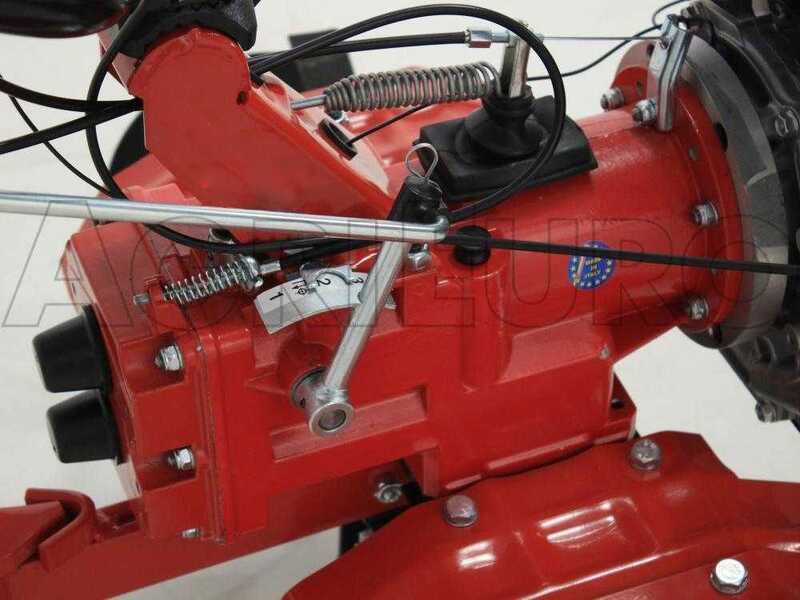

The gearbox fitted to this garden tiller is undoubtedly one of the best 3+1 gearboxes on the global market for garden tiller models of this category.

Its main features are:

• Overall size and sturdiness, also visually detectable
• Upper gear tempering
• Precise gear shifting engagement
• Accuracy in gear manufacturing

It features 3 forward gears and 1 reverse gear, which can be engaged by means of the lever on the control panel.

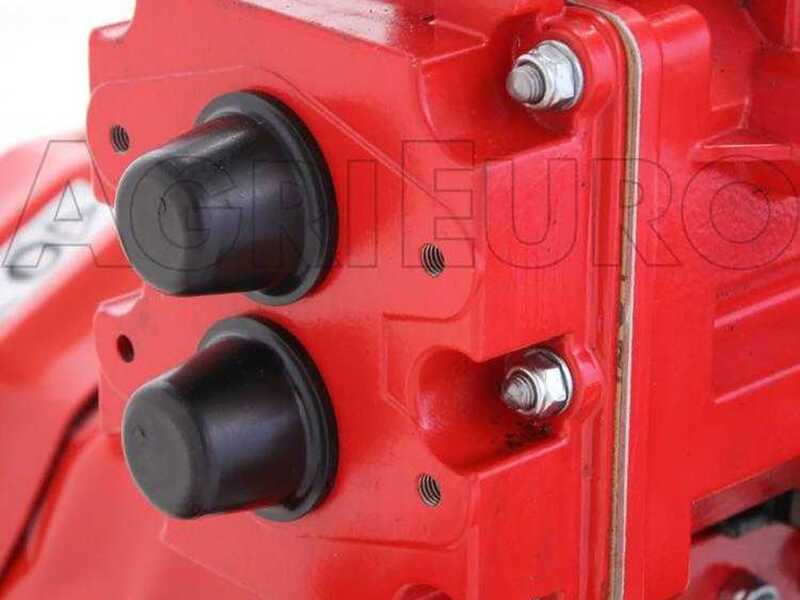

The power take-offs are easily accessible, located directly at the rear of the machine. Just remove the rubber stoppers to make them ready to work.

Normalised power take-off
(which is always rotating, even when the transmission is in the neutral position; this setting is ideal to operate additional equipment that can be attached to the power take-off)

Gearbox power take-off (useful for towing operations, for example by attaching a trolley with tracked wheels to the garden tiller, although it will not be compliant with the current road regulations)

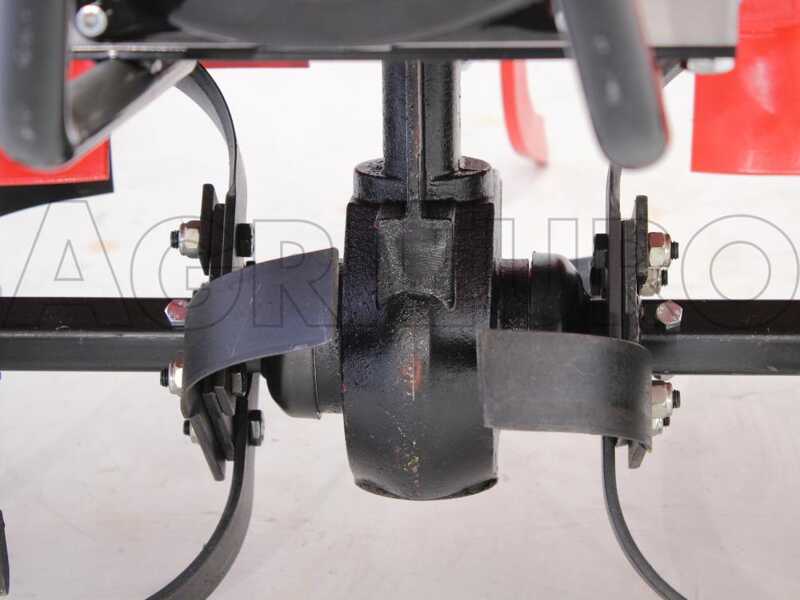

The transmission is among the sturdiest on the market.

Made with pinion and crown in oil bath.

Equipped with a quick inspection and repair opening.

WARNING!

Attention! Check that the gearbox oil is at the correct level before starting the machine.

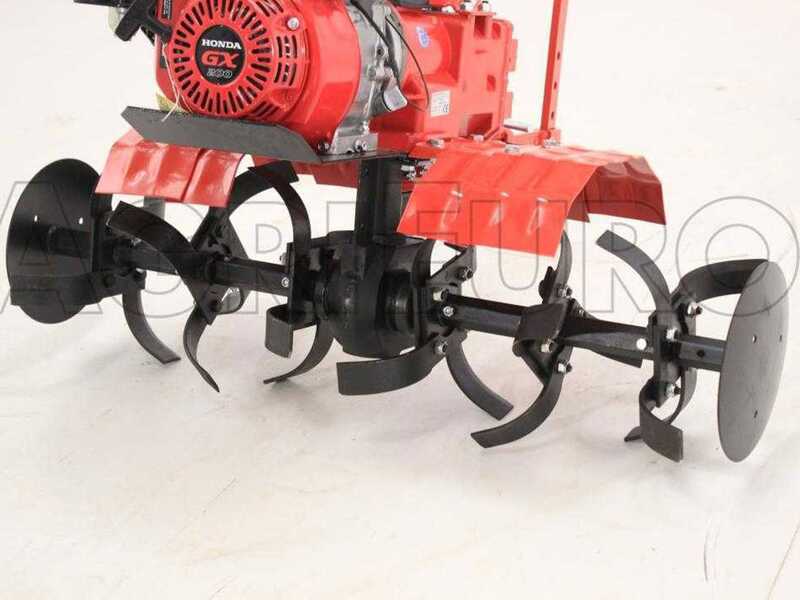

Sturdy tine mounted on a hexagonal-shaped central shaft, and provided with six elements with 4 steel rotary hoes each.

Tine working width: 95 cm

Hexagonal shaft diameter: 27 mm.

The tine mounted on this garden tiller can be easily adjusted. Just remove the 2 most external elements and insert the suitable external crop protection discs to get a reduced working width of 65 cm.

It is also possible to purchase additional tine extensions to get a larger cutting width than the basic configuration of 95 cm and reach up to
125 cm of length with crop protection discs mounted.

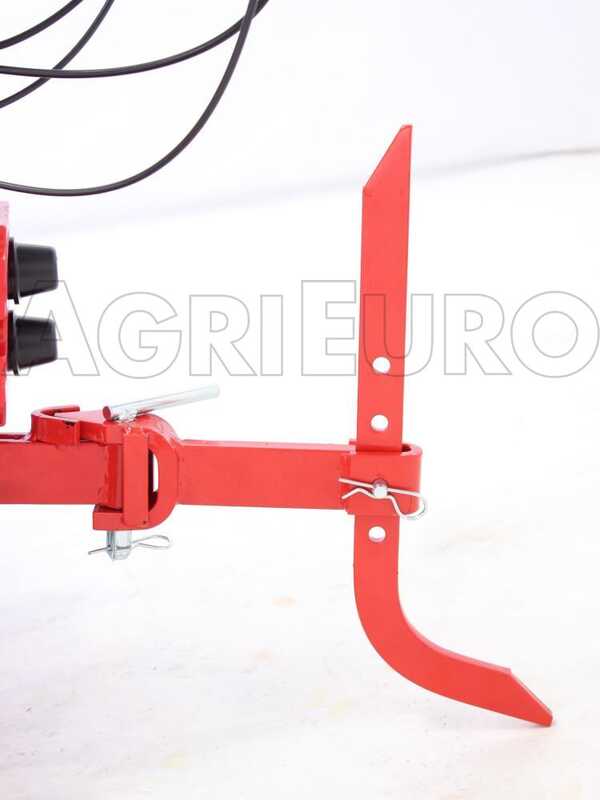

The rear stake can be adjustable in height and can be positioned in rotating or fixed position.

The picture shows the stake mounted in standard position.

It can, for example, be assembled in the reverse position (with the bend turned to the front), to till harder or uncultivated ground.

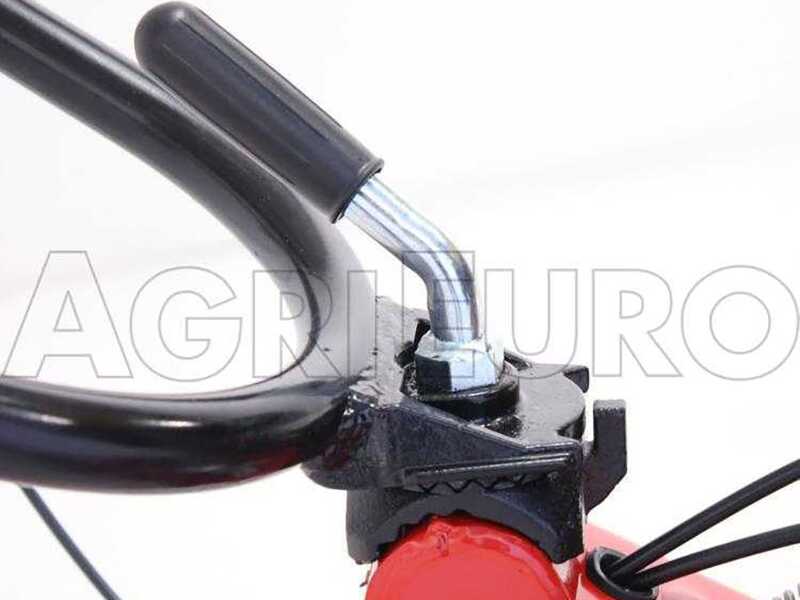

The steering handles are height and laterally adjustable thanks to the double special adjusting lever made of cast steel.

The controls are divided into:

• Upper red lever: this is the clutch lever which operates the machine according to the selected gear
• Lower black lever on the right: engages the reverse gear
• Throttle lever
