Description

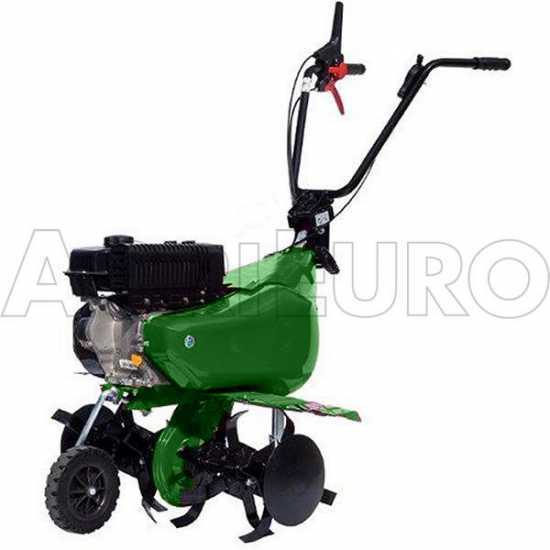

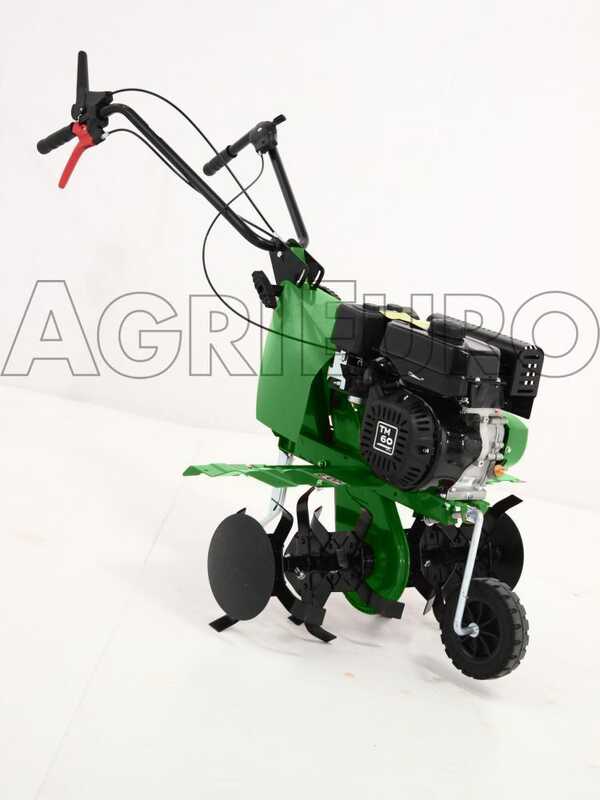

AgriEuro AGRI 5 Garden Tiller

The AGRI 5 AgriEuro garden tiller is a medium-sized machine for hobby use that mounts a TM 60 petrol engine with OHV technology,, exceptionally effective in low to medium intensity agricultural work, and for tilling work on medium-sized surfaces.

Versatile, sturdy and powerful, perfect for quickly preparing the seedbed, making finely crushed and well-ventilated soil soft and ready for cultivation. On medium-compact soils, the tines mounted on this garden tiller are intended to work deeply into the ground in a easy, quick and comfortable way.

The sturdy mechanics, power and elasticity of the engine allows to operate it on medium-sized surfaces, even on unploughed lawns.

Agri 5 Garden Tiller with 75 cm Tiller - Loncin TM 60 Petrol OHV Engine - 1+1 Gears

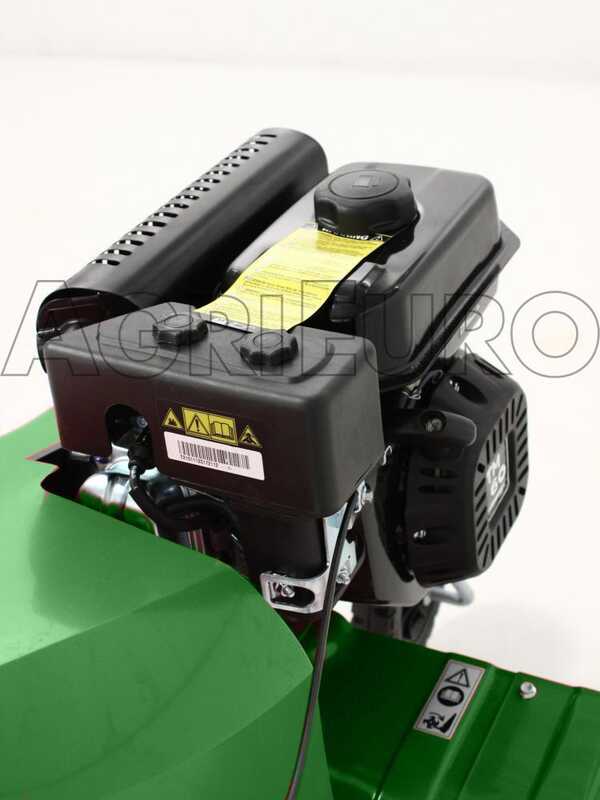

Loncin TM 60 engine

The Loncin TM 60 OHV is suitable for works where a certain amount of power is required, thanks to its 182 cc of cubic capacity.

Features:

Engine type:

Single cylinder 4-stroke - OHV

Cubic capacity

182 cm³

New generation 4-stroke engine (with over head valves “OHV”technology). It is much more efficient and features significant low consumption than other flathead engines on the market.

Nominal Power: 6 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.5 Hp
It corresponds to the real power delivered by the motor shaft. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Forward gear, transmission and side belt drive

Gears: 1 forward gear + 1 reverse gear adjustable by means of the controls on the steering handles.

Black lever for the forward gear, red lever for the reverse gear.

Robust oil-bath central chain drive.

Side belt drive protected by a sturdy openable housing.

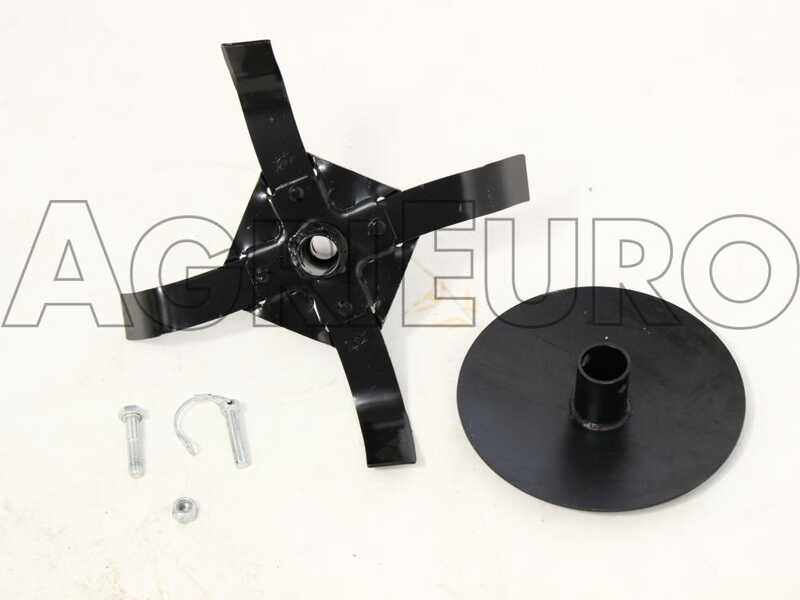

Tine with adjustable cutting width

Tine: 75 cm, with 6 rows of rotary hoes + side crop protection discs.

Easily adjustable to 50 cm.

The tiller adjustment is very easy: just need to insert or remove the most external element and place the crop protection disc.

The side protections are fixed by means of shaft locking pins and nut and bolt.

Additional features

Front transport wheel: to move around the machine, with the engine switched off, avoiding damage to delicate surfaces and floors.

Excellent for storing the garden tiller.

The wheel adjustment operation is extremely quick and easy.
Simply pull it out and turn it to the left to fix it in the raised position.
Once the wheel has been positioned, simply use the fastener to lock it in the "side" position.

Thanks to this system, the garden tiller can be set in its working mode.

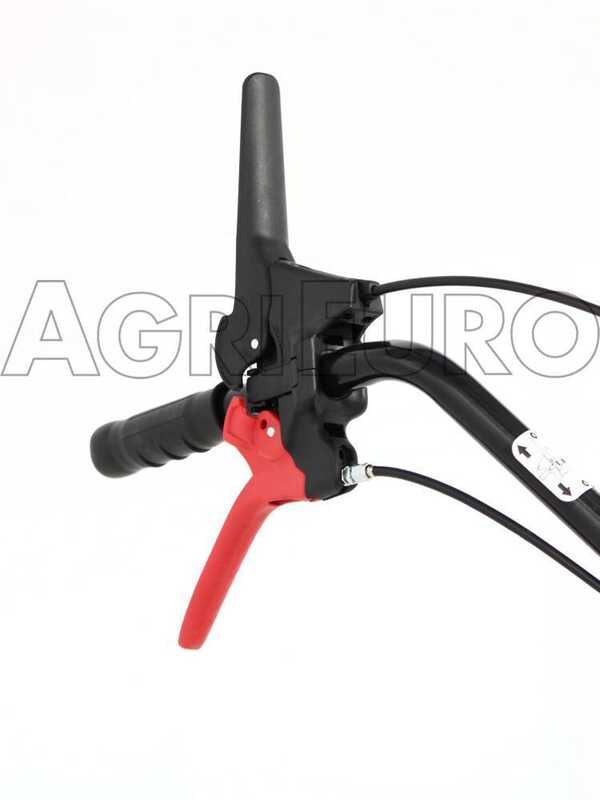

Focus on the steering handles (handlebars). All the main controls are placed in this area.

Black lever: it is the clutch lever that drives the tines and the machine’s movement.

Red lever: engages the reverse gear.

Focus on the throttle lever.

The adjustable rear stake is mounted on its its own axle. has been further reinforced, in order to optimise the sturdiness of the machine.

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

COMPLIMENTARY: professional storage cover

Essential for protecting your machine when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

Equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the machine.

Easy to fold and store in its package, requiring minimal space!

Standard equipment

Instructions manual included in the packaging.

The garden tiller is shipped in its original packaging.
