Agricultural subsoiler for tractor light series 140 - 5 elements

The AgriEuro Top Line Series 140 5-element subsoiler is a particularly robust agricultural machine designed to be hitched to the tractor by a three-point attachment. Once attached, allows the soil to be subsoiled or scarified. This tillage is essential to break up the compact layers of the soil, working at varying depths, without turning the soil as with ploughing.

Subsoiling is often combined with the use of a rotary tiller, but unlike the latter, it does not alter the lay of the land. On the contrary, it merely crumbles the soils, thereby improving the quality of the soil.

The advantages of this processing are manifold:

saves time by reducing the time required to work the soil by up to half compared to the rotary tiller;
preservation of soil organic matter and microorganisms, which are essential for fertility;
increased space available for the expansion of plant roots;
improvement of the drainage capacity of the soil, reducing water stagnation;
increased permeability and aeration of the soil, promoting healthy crops;
absence of the tillage sole that traditional ploughing tends to leave behind, thus improving soil structure in the long term.

This tillage is therefore an efficient solution for those seeking to optimise time and improve the agronomic characteristics of the soil without turning it over.

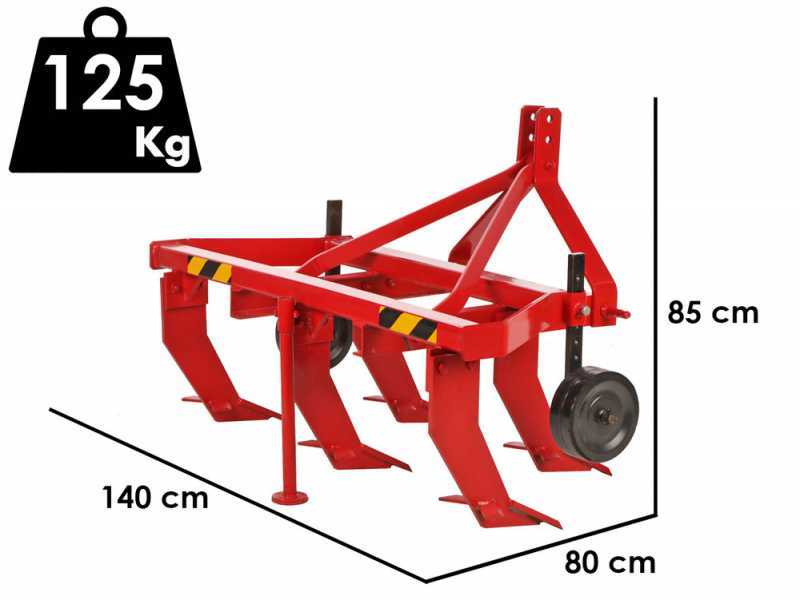

TECHNICAL DATA (brief overview):

Working width: 140 cm
Working depth: 25–30 cm
Weight: 125 Kg

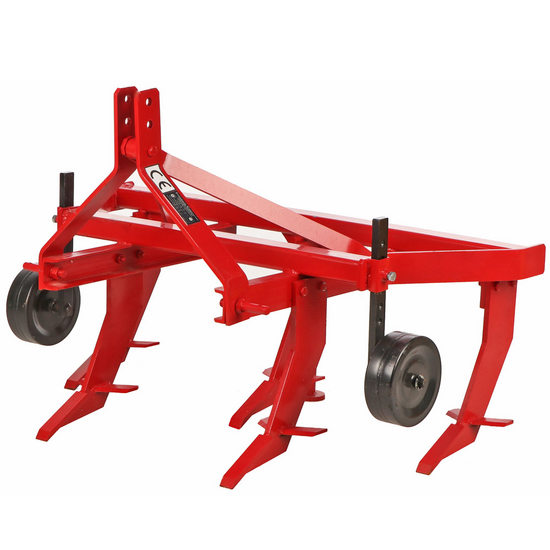

Agricultural subsoiler light series 140 - 5 elements - Steel wheels

Subsoiling

The driving force required for a subsoiler is generally less than that required for a plough. This makes it possible to operate on an area almost twice as large as the one that can be tilled with a tiller.

This agricultural subsoiler reaches a working depth of 25-30 cm, depending on the power of the tractor to which it is attached. It is attached to the tractor's three-point hitch and is operated by the hydraulic lift.

The ripper function is particularly effective with compact, dry soil, allowing it to be broken up effectively. Indeed, thanks to its action, the soil will be loosened on the surface and marked by a series of small furrows.

The tillage from the bottom up creates a certain amount of macro-porosity and crumbling in the soil, thus causing little or no change in the profile of the layers. In not very compact soils, the operation is in any case effective in breaking up clamps and improving water drainage.

This product consists of a sturdy supporting frame and 5 elements (or tines), shaped and inclined forward to facilitate effective soil penetration due to the tractor's rapid forward movement.

Main features

The agricultural subsoiler is made with robust shanks that guarantee strength and durability even in the most demanding operations.

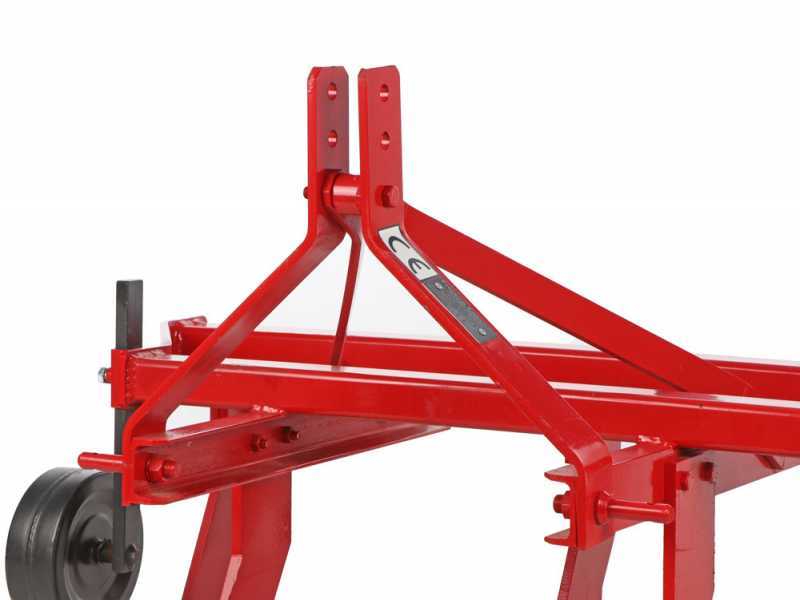

These stems are cleverly arranged on a tubular frame structured on two bars, which provides stability and robustness during use, ensuring optimal performance over time.

This subsoiler will be delivered complete with:

Pairs of adjustable iron wheels designed to allow precise control of the working depth, improving efficiency in the field.

The working width of this agricultural tool is 140 cm, with five elements to reach a working depth of 25 to 30 cm, making it ideal for tillage operations and preparing the soil for sowing.

Pin sizes
