AgriEuro CE 164 Tractor-mounted Flail Mower, Medium-light Series

Description

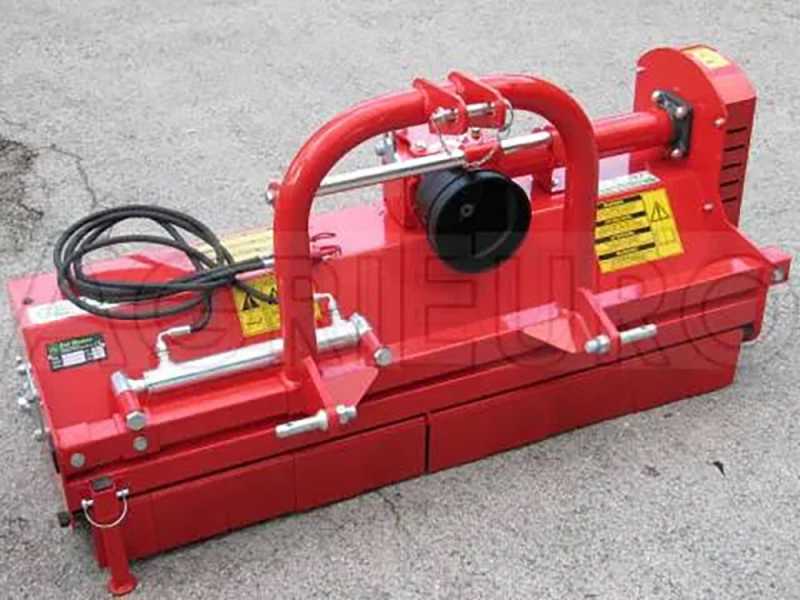

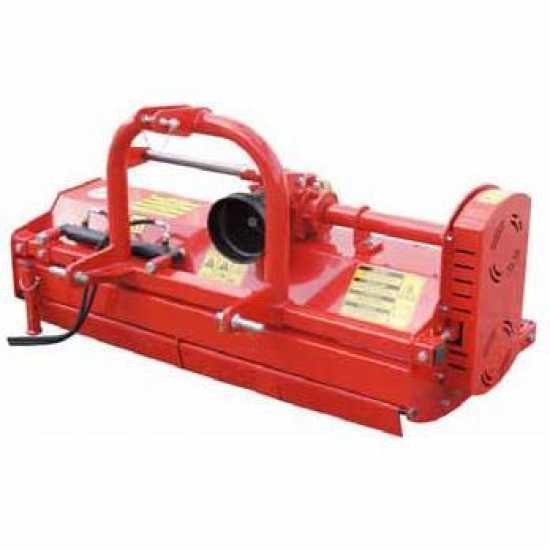

AgriEuro CE 164 tractor-mounted flail mower

The AGRIEURO CE series tractor-mounted flail mower with hydraulic shift features a medium/light body that can be used for shredding twigs, grass and small shrubs.

Standard features:
- Flail mower with hammer rotor (hammer flails);
- Hydraulic side shift;
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 2-belt drive with turnbuckle;
- Adjustable rear roller;
- CE-compliant safety guards;

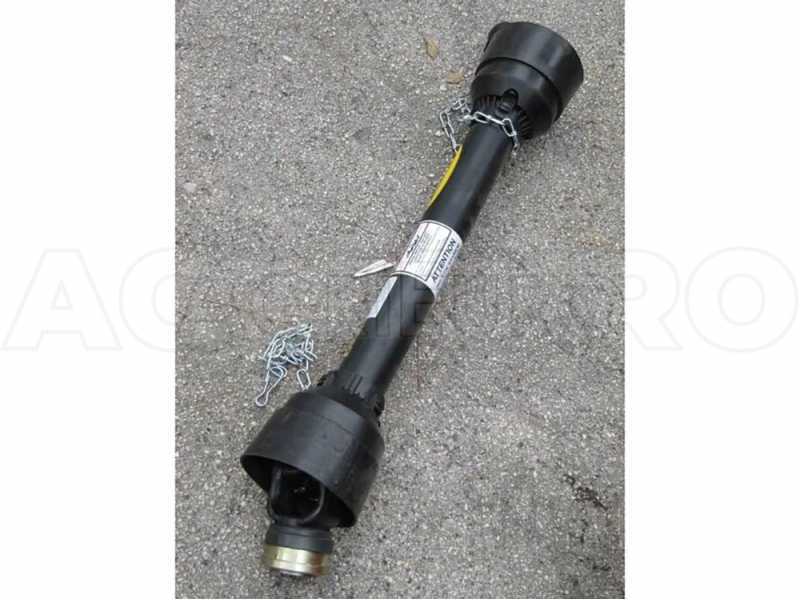

- Standard PTO shaft included.

Total width: 176 cm

Operating width: 164 cm

Weight: 290 Kg

Working height: 2 / 9 cm
Hydraulic side shift supplied as standard.

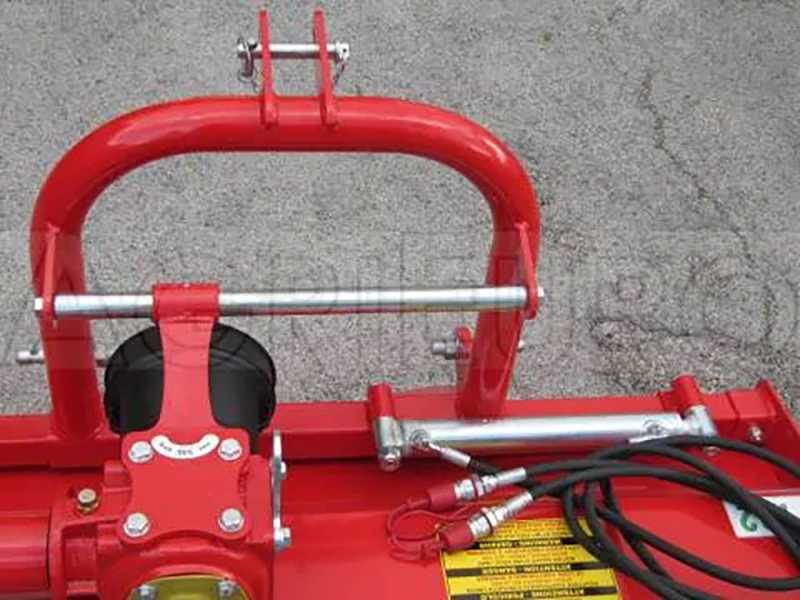

The 3-point hitch slides on a square shaped tube that runs the full width of the flail mower.

Focus on the sturdy piston that controls the hydraulic shift of this flail mower.

Focus on the additional reinforcement sliding device at the back of the 3-point hitch.

Hammers (hammer flails): No. 24

hammers (hammer flails) mounted on extremely sturdy supports welded to the rotor.

AgriEuro CE 164 Tractor-mounted Flail Mower, Medium-light Series

Flail mower features

The rear support roller is mounted on bearing supports and equipped with a scraper.

It is height adjustable.

Equipped with sturdy front flaps made of thick steel.

Side belt protective cover, equipped with several ventilation openings (for regular cooling)

2-Belt side drive.

Body thickness: 5 mm.

Easy tensioning system for the side drive belts by means of a special screw: simply tighten the screw a few turns to tension the belts.

The flail mower is equipped with a sturdy gearbox with gears in oil bath.

Also equipped with an additional rear PTO with reverse rotation.

*useful for those very old tractors equipped with a left PTO (which rotates in reverse).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO

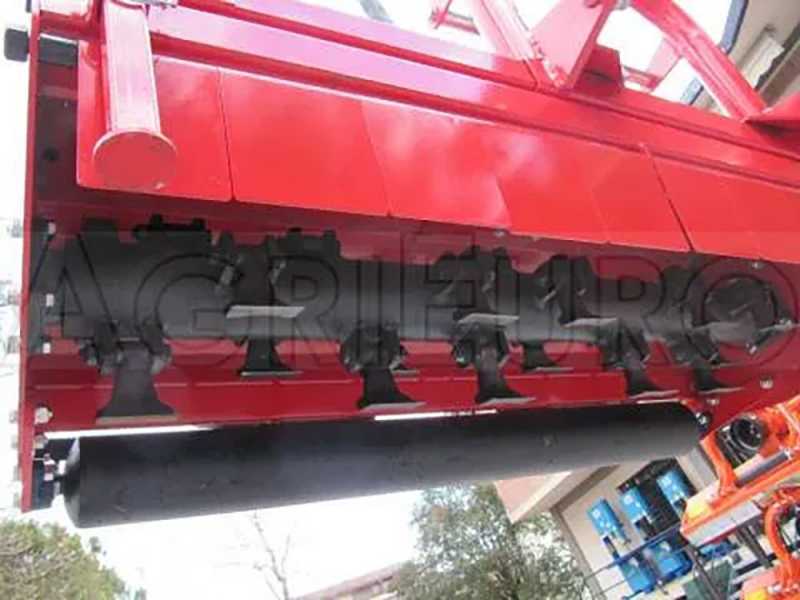

Cutting tools - hammer flails

No. of hammer flails fitted on standard equipment: 24

The hammers (hammer flails) are mounted on extremely sturdy supports welded to the rotor.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.
