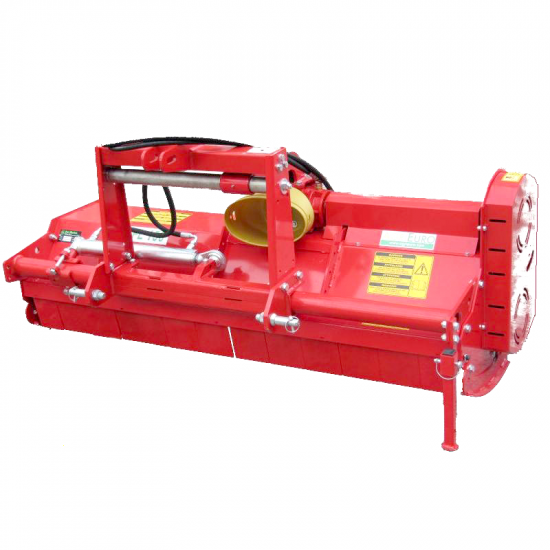

AgriEuro FL 138 Medium-series Flail Mower with Hydraulic Side Shift - Counterclockwise PTO (left-hand rotation)

Questions & Answers (2)
ID: 113098

EAN: 8000001118669

MPN: FL138MSHSX

9,1/10
After-sales assistance & Spare parts
AgriEuro FL 138 Medium-series Flail Mower with Hydraulic Side Shift - Counterclockwise PTO (left-hand rotation)
+40 sold
Tractor power
from 30 to 35 HP
Sturdiness/Series
Medium
Weight
260 Kg
Cutting width
138 cm
Shift
Hydraulic
Standard cutting tools
Hammer flails
Hammer flail weight
0.8 Kg
Cardan shaft
Yes
Manufacturing country
Italy
Product Features
Model:
FL 138
Mulcher type:
Standard rear mulcher
Tractor power:
from 30 to 35 HP
Sturdiness/Series:
Medium
Shift:
Hydraulic
Manual shift:
No
Hydraulic shift:
Yes
Hydraulic shift:
Fixed 3-point hitch:
No
Reversible three-point-hitch:
Yes
Cardan shaft rotation:
Manufacturing country:
Italy
Transmission data
Integrated free wheel device:
Yes
Cutting data
Cutting width:
138 cm
Wood diameter:
Up to 40 mm
No. of blades:
20
Standard cutting tools:
Hammer flails
Hammer flail weight:
0.8 Kg
Hammer flails:
Blades bolt diameter:
14 mm
Hammer width:
8.5 cm
Max. cutting height:
90 mm
Min. cutting height:
20 mm
Cutting width:
138 cm
Equipment
Collection bag:
No
Counter-blade:
Single row
Side drive belts:
3
Hydraulic Piston for moving:
Yes
Rear crampons (collecting rods):
No
Rear support roller:
Yes
Free gifts/extra features
Side skids:
Yes
Cardan included:
Yes
Cardan shaft:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
Width: 138 cm
Net weight:
260 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
85x155x85 cm
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
10 - 12 days from purchase
Free Shipping
€ 2.956,67
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

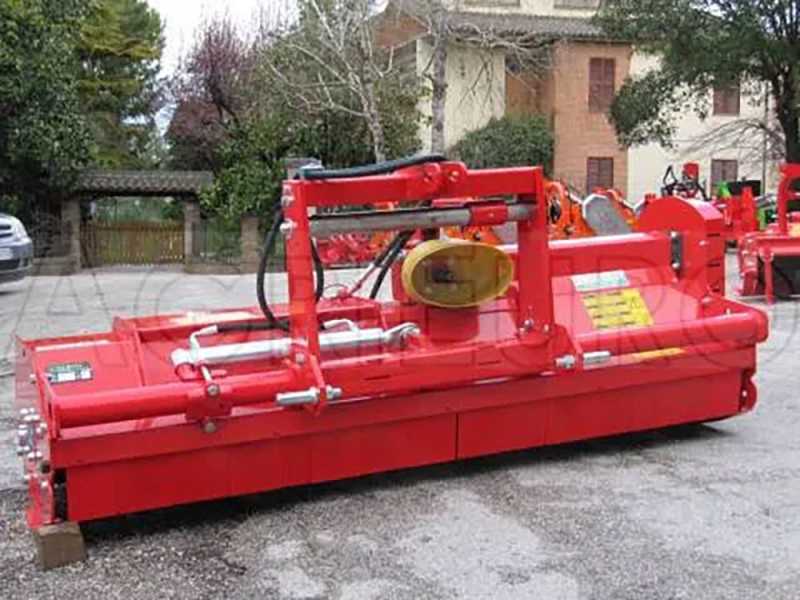

AgriEuro FL 138 tractor-mounted flail mower

CAUTION: THE MACHINE IS DESIGNED ONLY FOR THOSE TRACTORS HAVING A COUNTERWISE PTO (that rotates left).

The AgriEuro FL Series tractor-mounted flail mower with hydraulic shift features a medium-heavy structure that can be used for shredding medium-sized twigs, grass and shrubs on meadows, forests, orchards and uncultivated land.

----- MADE IN ITALY -----

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:

-
Flail mower with hammer rotor (hammer flails);
- Side hydraulic shift;
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 3-belt drive with turnbuckle;
- Adjustable rear roller;
- Pair of adjustable skids;
- CE-compliant safety guards;
- Standard PTO shaft included.

- Outer width: 150 cm
- Real working width: 138 cm
- Weight: 260 kg
- Hammer flails no.: 20
- Working height: 2 / 9 cm


Attention: this product is not available for prompt delivery but will be custom-made according to the order. Therefore, it is excluded from the Right of Withdrawal and the 30-day Return policy, as per Legislative Decree no. 206/2005, Article 59, paragraph 1, letter c.

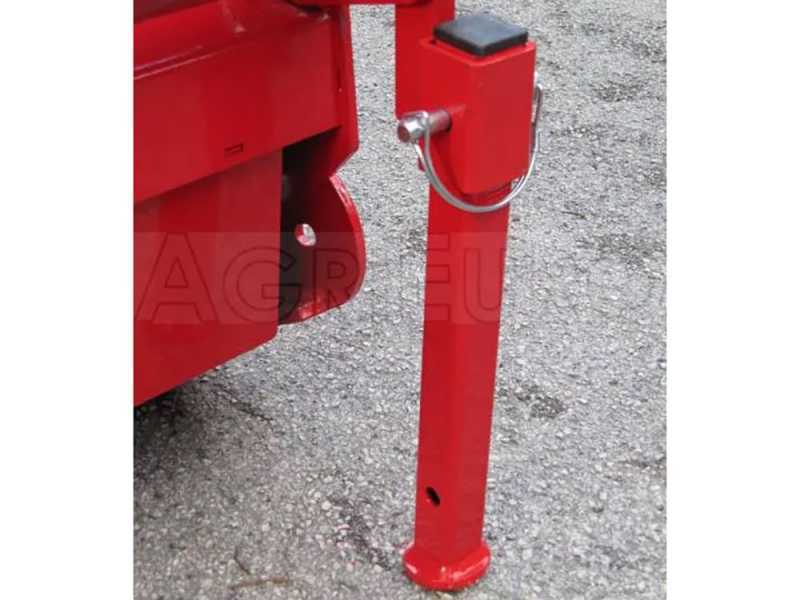

Machine features

Rear support roller mounted on bearing supports and equipped with a scraper bar.

It is height adjustable.

Pair of adjustable side skids supplied as standard.

Sturdy front flaps to protect the rotor from stones made of thick steel.

Side belt protective cover, equipped with several ventilation openings (for regular cooling).

3-belt side drive

The 3-point hitch slides on a sturdy tube that runs the full width of the flail mower.

Focus on the sturdy piston that controls the hydraulic shift of this flail mower.

Focus on the additional reinforcement sliding device at the back of the 3-point hitch.

Easy tensioning of the side drive belts by means of a proper screw.

The flail mower is equipped with a sturdy gearbox in oil-bath.

It is also equipped with an additional rear PTO with reverse rotation.

* Useful for those very old tractors equipped with a left PTO (which rotates in reverse).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

Cutting tools: hammer flails

No. of hammer flails fitted on standard equipment: 20

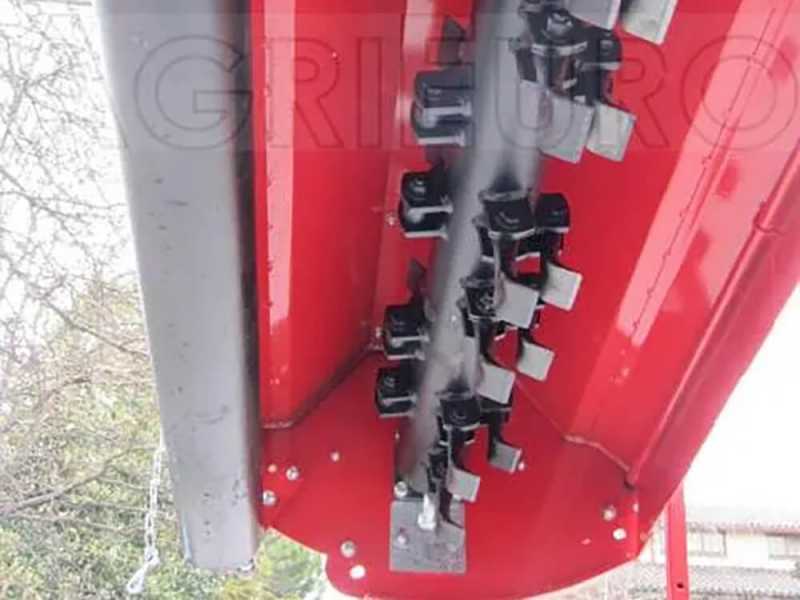

Focus on the hammers (hammer flails) mounted on extremely sturdy supports welded on the rotor.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

Free items & Standard equipment

Free items included

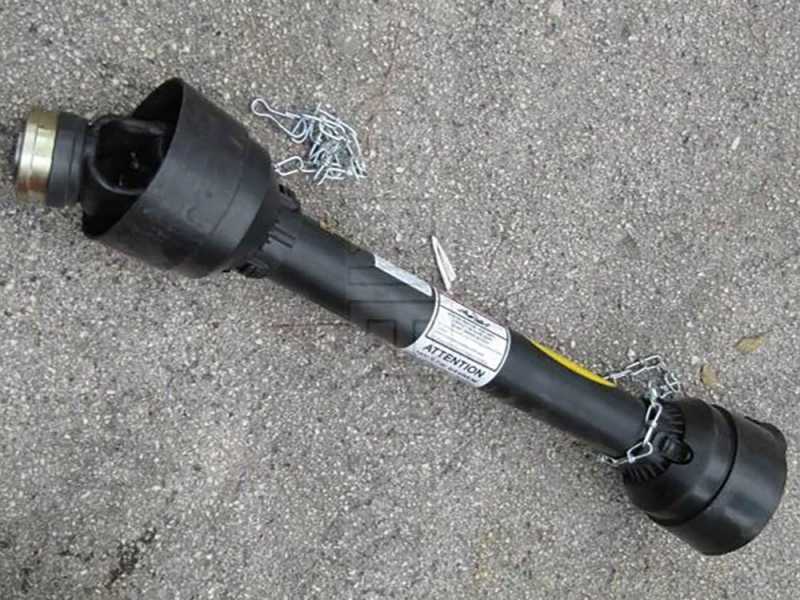

Standard cardan shaft to connect the machine to the tractor is inlcuded with the FL flail mower.
