Description

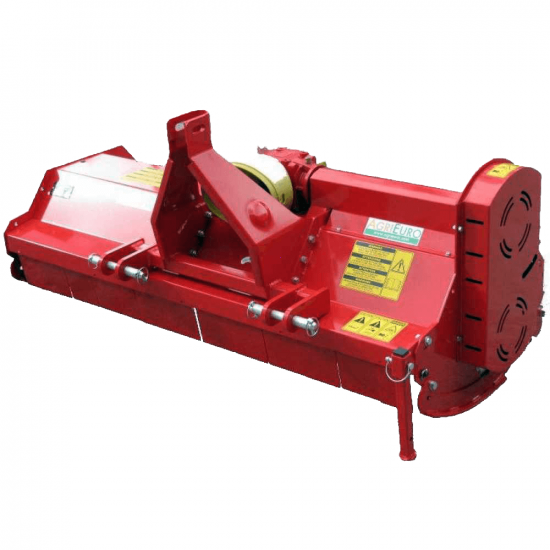

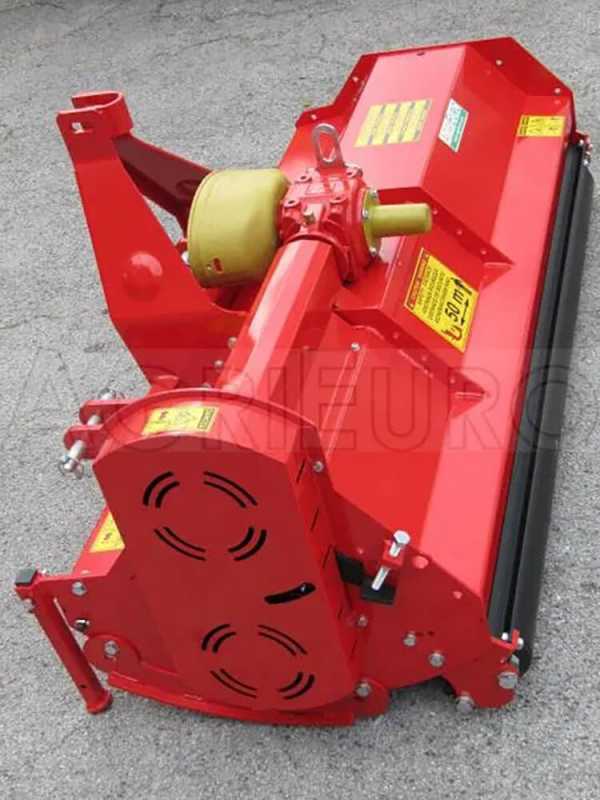

AgriEuro FL 164 tractor-mounted flail mower

The AgriEuro FL 164 tractor-mounted flail mower features a medium-heavy structure that can be used for shredding medium-sized twigs, grass and shrubs on meadows, forests, orchards and uncultivated land.

Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations. Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas. The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Standard features:
- Flail mower with hammer rotor (hammer flails);
- Electronic rotor balancing;
- Category I 3-point hitch;
- Sturdy gearbox in oil bath with built-in freewheel;
- Reverse gearbox (for connection to tractors with old left-hand PTOs)
- 3-belt drive with turnbuckle;
- Adjustable rear roller;
- Pair of adjustable skids;
- CE-compliant safety guards;
- Standard PTO shaft included.

Technical features:

- Outer width: 176 cm

- Real operating width: 164 cm

- Hammers (hammer flails): 24

- 3-point hitch: universal

- Working height: 2/9 cm

Agrieuro FL 164 Tractor-mounted Flail Mower with Fixed 3-point Hitch - Medium Series

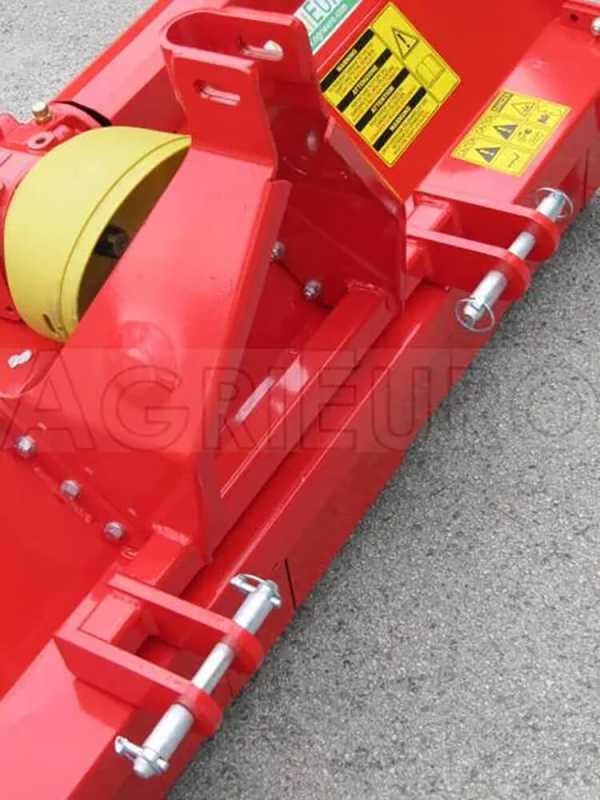

Fixed 3-point hitch

The machine is equipped with a sturdy 3-point hitch.

Universal joints suitable for all tractors on the market.

Focus on the sturdy 1° category 3-point hitch.

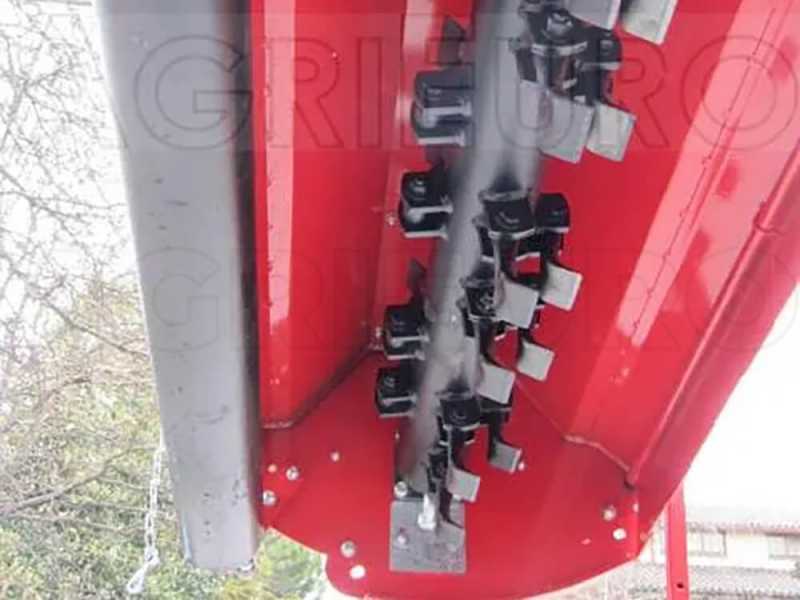

Cutting tools: hammer flails

No. of hammer flails fitted on standard equipment: 24

Focus on the hammers (hammer flails) mounted on extremely sturdy supports welded on the rotor.

It finely shreds grass and twigs, while simultaneously rolling the turf. Thanks to the high number of rotor revolutions and the number of hammers (hammer flails), it allows reducing the wave impact of the grass cover and performing excellent shredding operations.

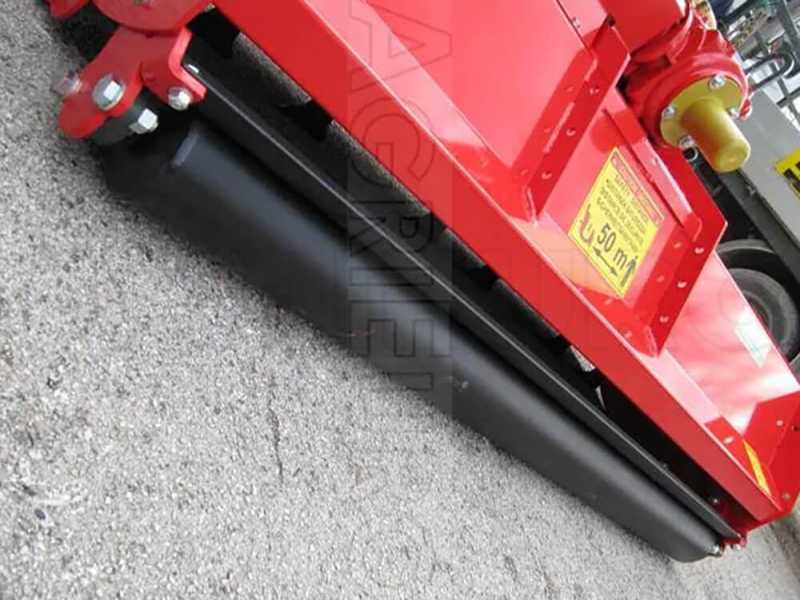

Rear support roller and PTO

It is height adjustable
Focus on the roller adjustment holes
Pair of adjustable side skids supplied as standard.
Sturdy front flaps made of thick steel
Side belt protection cover, equipped with ventilation openings (for regular cooling).

3-belt side drive
Easy tensioning of the side drive belts by means of a proper screw.

Simply tighten the screw a few turns to tension the belts.

Focus on the sturdy gearbox with gears in oil bath.

It is also equipped with an additional rear PTO with reverse rotation.
* Useful for those very old tractors equipped with a left PTO (which rotates in reverse). Simply unscrew four screws, turn the reduction gearbox 180° and move this additional PTO to the front instead of the other one. Then, re-tighten the four screws securing the gearbox. The machine will work also with old tractors with left rotation.

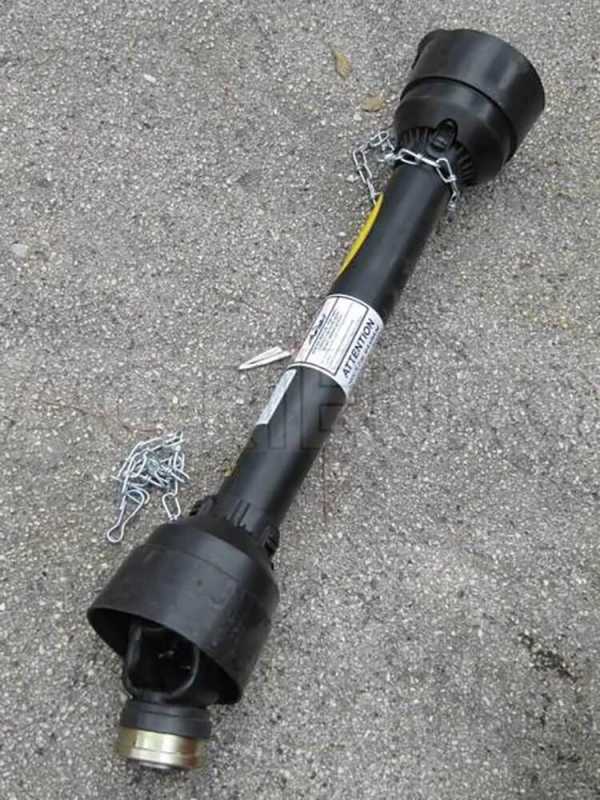

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): Whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).
Support foot.

Focus on the side support with inner locking bearing of the rotor with hammers.
