Description

Tractor-mounted side flail mower with arm

The AgriEuro CE SPECIAL 164 tractor-mounted side arm flail mower belongs to the medium/light series and it is completely Made in Italy.

This model is very versatile among other flail mowers as it can operate both vertically and horizontally.

It is suitable for different operations, such as:

Grass mowing
Stalks chopping
Pruning waste chopping
Hedge cutting
Ideal for municipal works, ditches, embankments and sloping terrain.

The hydraulic shift is operated by 2 sturdy pistons. 3-belt side drive.

TECHNICAL SPECIFICATIONS (brief overview):

Real working width: 158 cm
Real width (side skids already assembled): 164 cm
Weight: 330 Kg

ON STANDARD EQUIPMENT:

Category 1° 3-point hitch.
Electronic rotor balancing
Sturdy gearbox in oil bath with built-in freewheel.
Reverse gearbox (for connection to tractors with old left-hand PTOs)
3-belt drive with turnbuckle
Steel hammer flails with M20 bolts
Counter blades
Adjustable rear roller featuring large diameter
PTO
CE compliant safety equipment

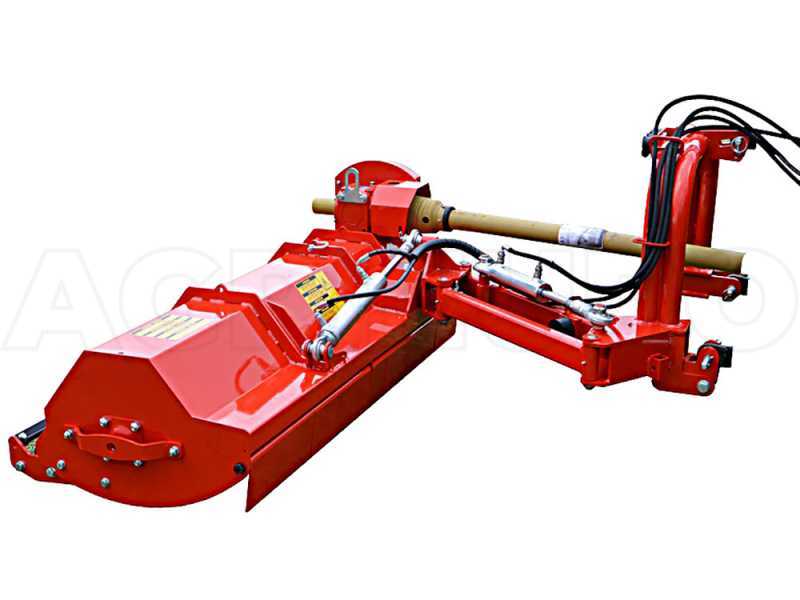

AgriEuro CE SPECIAL 164 M Tractor-mounted Side Flail Mower with Arm - Medium-small Series

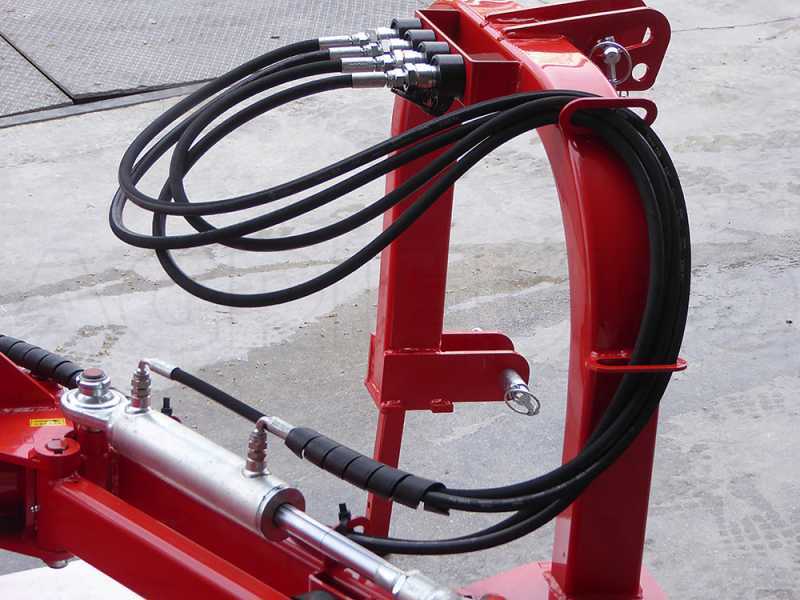

Hydraulic side and vertical shift

Vertical and side hydraulic shift is operated by 2 pistons. Equipped with 4 hoses with quick joints that must be connected to the hydraulic connections on the tractor.

This is a highly sturdy shifting system. It consists of articulated arms.

The flail mower can work up to 90° vertically upwards and - 50° downwards.

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 24

Focus on one of the the hammer flails (toothed hammers) mounted on supports welded to the rotor extremely sturdy

Focus on the side support with hammer flails rotor inner fixing bearing.

Focus on the outer rotor anchor plate, with central opening provided with greaser.

Medium/Light series flail mower, suitable for hobby use.

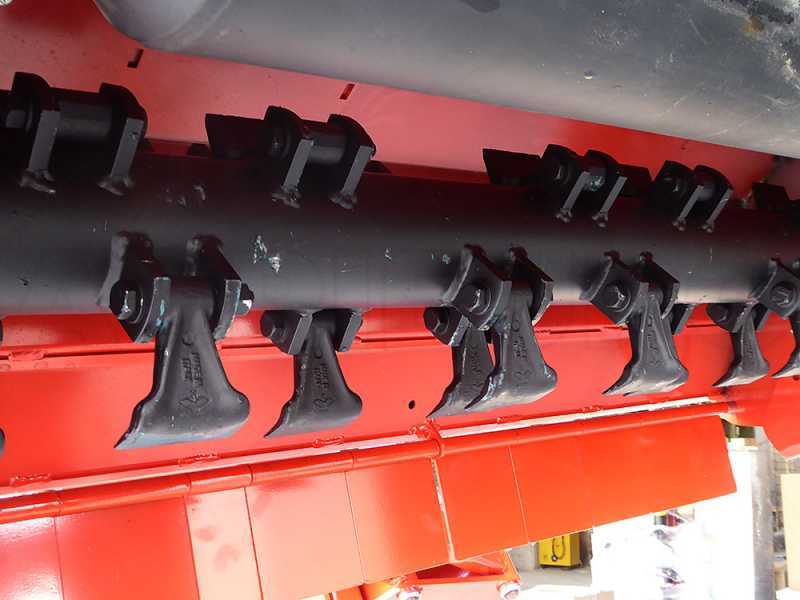

Rotor, hammer flails supports, side bearings

It finely shreds grass and twigs, while simultaneously rolling the turf.

Thanks to the high rotor speed and the large number of hammers (toothed hammers), this flail mower reduces the wave effect on the turf performing an excellent shredding.

Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas.

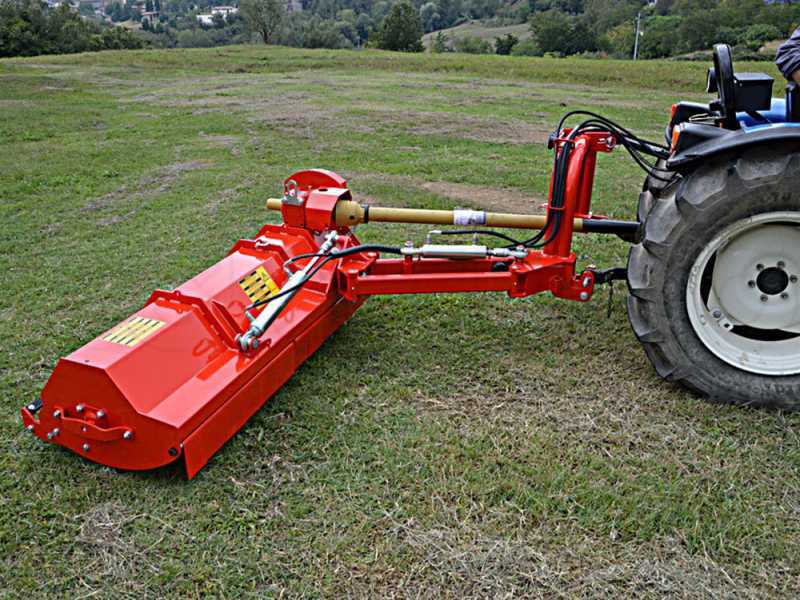

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

Side belt transmission and reduction gearbox

Reduction gearbox in oil bath.

3-belt side transmission featuring large section with belts protective side covering, equipped with many vents (for proper cooling).

Easy tensioning of the side drive belts by means of a proper screw.

Simply tighten the screw a few turns to tension the belts.

Focus on the side transmission greaser, which is comfortably placed in an easy-access position thanks to a specific opening.

Focus on the sturdy gearbox with gears in oil bath.

It is also equipped with an additional rear PTO with reverse rotation.
* Useful for those very old tractors equipped with a left PTO (which rotates in reverse). Simply unscrew four screws, turn the reduction gearbox 180° and move this additional PTO to the front instead of the other one. Then, re-tighten the four screws securing the gearbox. Now the flail mower is ready to operate even with old tractors featuring PTO left rotation.

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).
