Description

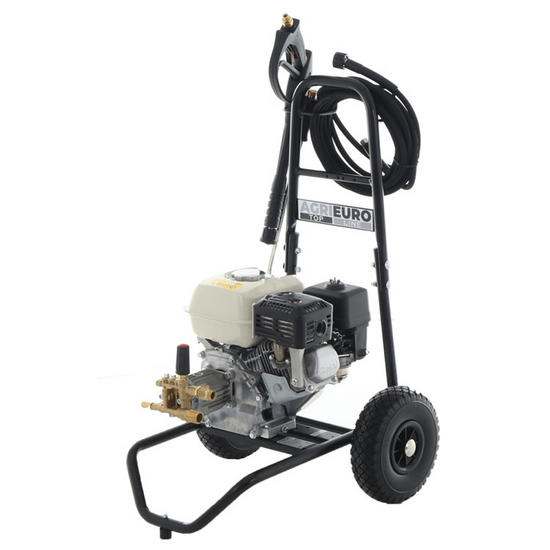

AgriEuro CXD 10/220 Petrol Pressure Washer

The AgriEuro CXD 10/220 pressure washer is the ideal product for anyone looking for a high-quality machine for pressure water cleaning work.

Powered by a Honda engine that can reach a power of 4.4 kW, which, together with the pump, provides a flow rate of 10 L per minute and an operating pressure of 220 Max bar.

It is equipped with large wheels with tyres for uneven surfaces. The compact and lightweight machine is also very easy to manoeuvre in confined spaces. For excellent mobility, comfortable transport and space-saving storage, it can then be safely stored in the car.

Finally, the sturdy metal frame and 2 large wheels make it easy to transport the machine over uneven floors and terrain. Thus, the front support with sturdy rubber feet stabilises the machine in use.

The pressure washer comes complete with:

Professional spray gun
High pressure hose 10m
Lance with adjustable nozzle
Water filter

AgriEuro Top-Line CXD 10/220 Petrol Pressure Washer - Honda GP 200 Engine

HONDA GP 200 Engine

The Honda engine is a 4-stroke single-cylinder OHV petrol engine, air-cooled, with a 25° inclined cylinder and horizontal shaft.

Its OHV configuration ensures very efficient combustion and offers a high power-to-cylinder ratio. Easy and comfortable start, also thanks to an efficient decompression system.

Using high-quality materials, Honda engines are designed and built to last a long time and comply with all the strictest regulations in Europe.

Very low fuel consumption while always offering a good power.

- Focus on the “OHV” technology

Features:

Engine type: Single-cylinder 4-stroke - OHV

Displacement: 196 cm³

Power: 4.1 kW (5.5 Hp) - 3400 rpm

Max. rpm 3600 rpm

Fuel tank capacity: 3 L

The engine is PROVIDED WITHOUT OIL.

Before using the machine it is important to read the instruction manual carefully.

Rated Power: 5.5 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This figure is the one that is still most widely used and publicised in the main commercial sales channels.

Real power: 4.5 HP

* It corresponds to the actual power output of the pump during operation. This is the power indicated as official in the engine instructions manual.

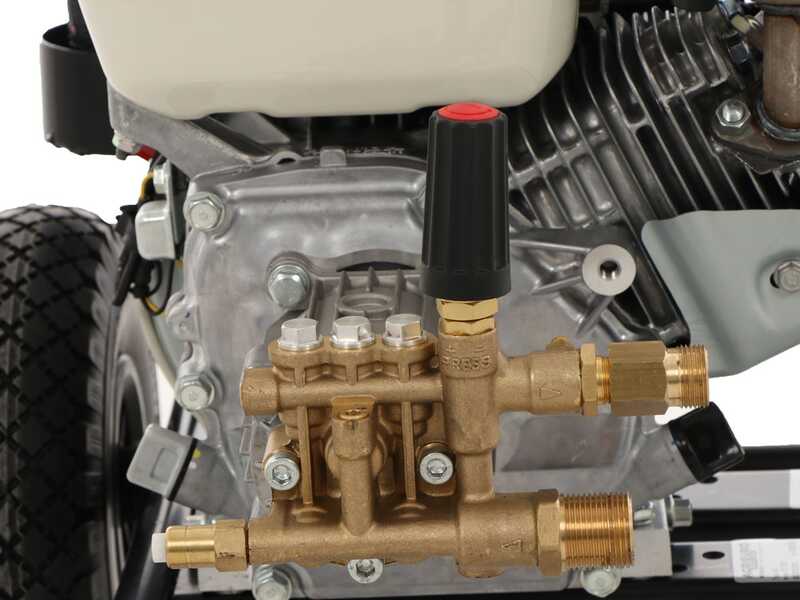

Comet CXD Pump

Ensured safety technology such as thermal and safety valve and water filter.

Crankshaft pump with ceramic pistons and brass head.

Major features:

Maximum pressure: 220 bar
Operating pressure: 200 bar
Flow Rate: 10 L/min
Maximum temperature: 60 C°
Integrated automatic regulating valve
Ceramic pistons
Ball bearings

The pressure represents a fundamental data while dealing with this category of machinery. An additional and more important technical specification is represented by the flow rate: the cheapest items may often feature a high pressure, but a very short flow rate resulting in inefficient units. The minimum flow rate must be at least 350 L/h.

Additional Features

Long-lasting and sturdy: a sturdy tubular steel frame reliably protects the machine from damage.

The pressure washer is equipped with two large wheels to allow the operator to move the machine in any working space, over any type of uneven surface.

Additionally, there is a large top push handle on which there is a hook for rewinding the 10 m hose and a special space for storing the lance and gun, and that allows moving the unit quickly and easily.

Rubber grommets

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

Ø 15 mm yellow hose, 15 m long
Male quick connector for tap connection (size of the standard thread: 3/4“)
Standard female quick connector (to insert the hose into the male quick connector for tap connection)
Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.
Adjustable plastic lance with male quick connector.

It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.
