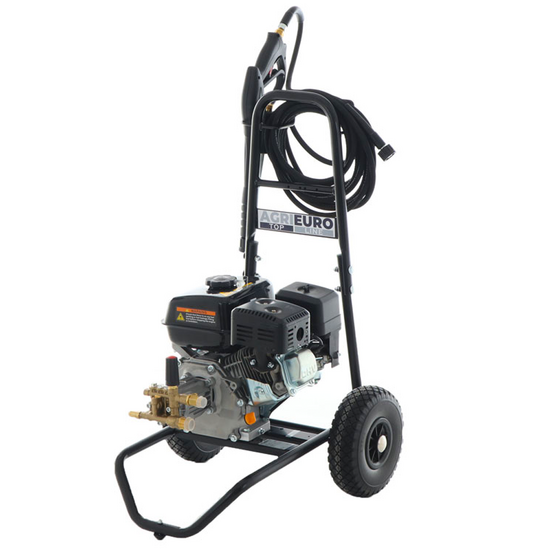

Name: AgriEuro Top-Line CXD 10/220 Petrol Pressure Washer - Loncin G200F engine
Brand: AgriEuro TOP-LINE
SKU: K606002
Price: 532.96 EUR
Availability: InStock
Rating: 3 (2 reviews)

Description

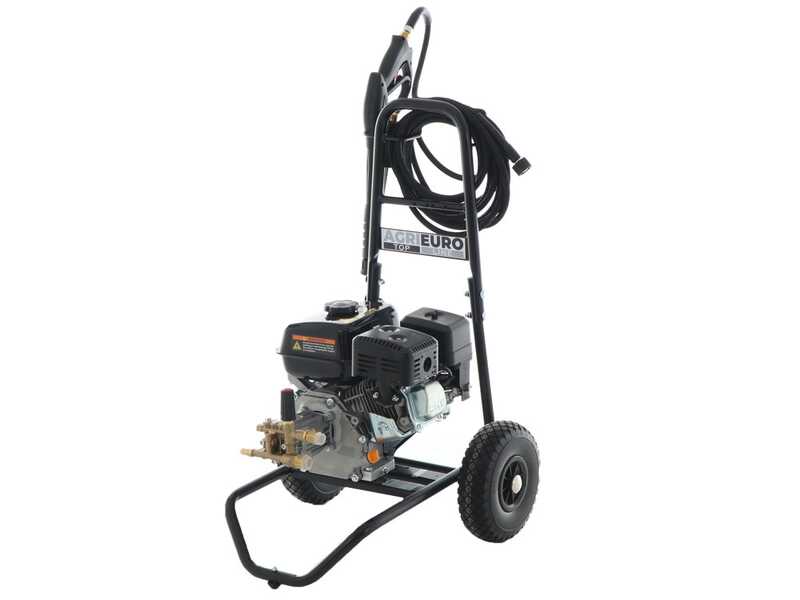

CXD 10/220 Petrol Pressure Washer

The AgriEuro Top-Line pressure washer is a high-quality machine with reliable performance.

It is powered by a powerful Loncin petrol engine with a displacement of 196 cc, which achieves a power of 4.4 kW, which together with the pump guarantees a flow rate of 10 L per minute (600 l/h).

Reaching a maximum working pressure of 220 bar, the sturdy crankshaft pump and a flow rate of up to 600 L of water per hour produce exceptional results.

It can be moved thanks to its large wheels with tyres for uneven surfaces. Compact machine structure, which makes it easy to manoeuvre in tight spaces.

Finally, the sturdy metal frame and large wheels make it easy to transport even on uneven floors and terrain, and the front support with sturdy rubber feet further stabilises the machine in use.

The pressure washer comes complete with:

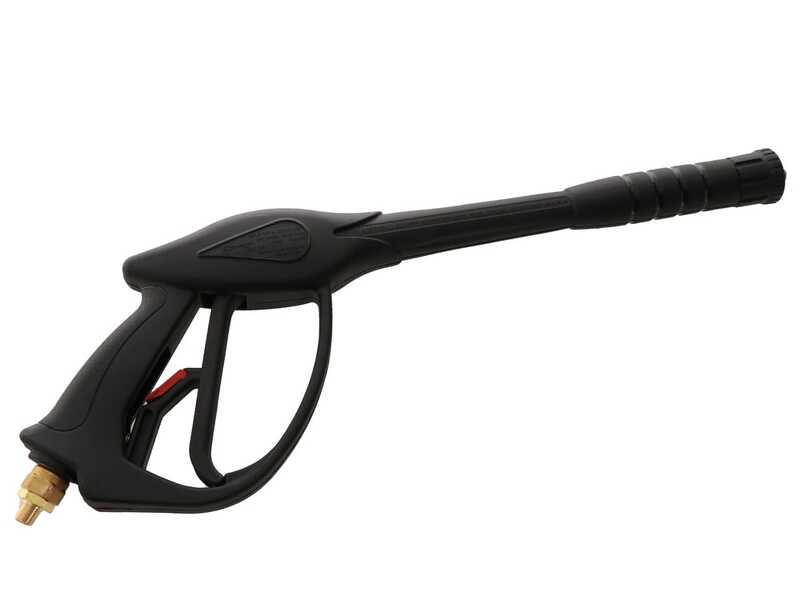

Professional spray gun
High pressure hose 10 m
Lance with adjustable nozzle
Water filter

AgriEuro Top-Line CXD 10/220 Petrol Pressure Washer - Loncin G200F engine

Loncin G200 4-stroke engine

Loncin G390F original latest 4-stroke petrol engine with 196 cccapacity. It has been designed with the ”OHV” overhead valve technology.

This latest generation model with overhead valve technology is suitable for works requiring moderate power.

Major advantages over conventional 2-stroke engines (still widely used on petrol-powered spraying pumps):

Greater reliability
Easier start especially after long periods of inactivity
Longer life, fewer problems with fuel preparation and freshness
Lower energy consumption
More silent

Features:

Engine type: Single-cylinder 4-stroke - OHV
Displacement: 196 cm³
Power: 4,1 kw 5.5 Hp

Rated Power: 5.9 HP

The more correct term would be 'Commercial' power, meaning the classic power definition standard officially used until a few years ago by all well-known engine manufacturers.* This technical feature is the one most widely used and publicised in the main sales channels, even though it is a higher figure than the actual power.
Effective power: 5.5 Hp
It corresponds to the real power expressed motor shaft. This is the one listed as official in the engine manufacturer's manual or technical data.* This technical feature can vary for the same engine model depending on the speed the equipment manufacturer has decided to have the engine applied.

Focus on the air filter and spark plug.

Focus on the starter rope

Focus on the tank

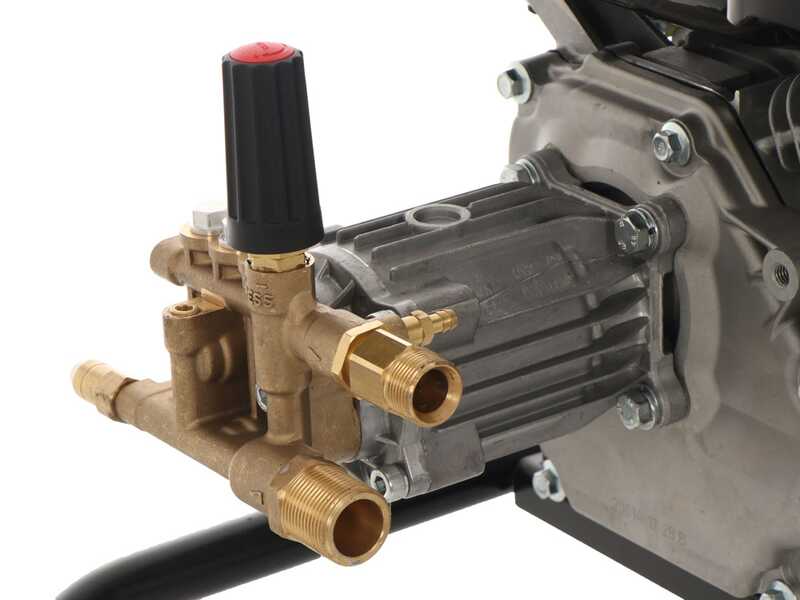

High-pressure Pump and Head

Ensured safety technology such as thermal and safety valve and water filter.

Crankshaft pump with ceramic pistons and brass head.

Major features:

Maximum pressure: 220 bar
Operating pressure: 200 bar
Flow Rate: 10 L/min / 600 L/h
Maximum temperature: 60 C°

The pressure represents a fundamental data while dealing with this category of machinery. An additional and more important technical specification is represented by the flow rate: the cheapest items may often feature a high pressure, but a very short flow rate resulting in inefficient units. The minimum flow rate must be at least 350 L/h.

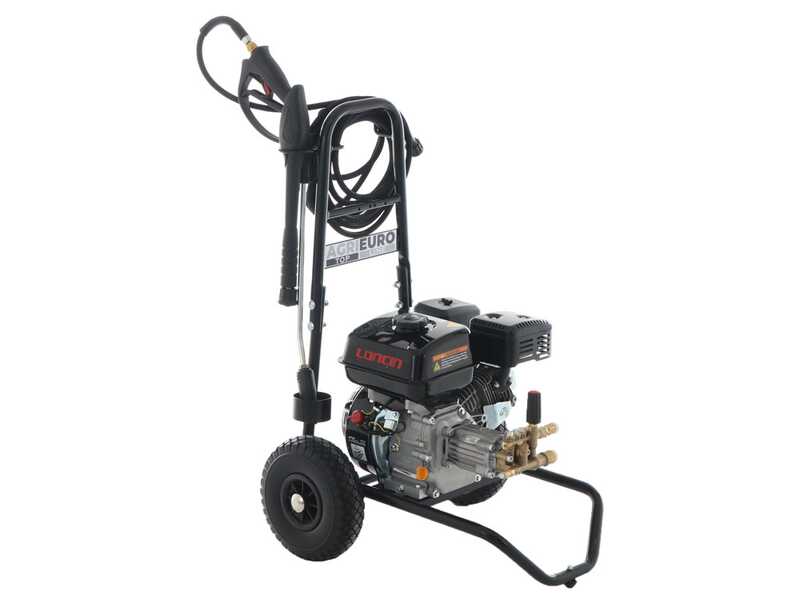

Additional Features

Long-lasting and sturdy: a sturdy tubular steel frame reliably protects the machine from damage.

The pressure washer is equipped with two large wheels to allow the operator to move the machine in any working space, over any type of uneven surface.

Additionally, there is a large top push handle on which there is a hook for rewinding the 10 m hose and a special space for storing the lance and gun, and that allows moving the unit quickly and easily.

Rubber grommets

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

Ø 15 mm yellow hose, 15 m long
Male quick connector for tap connection (size of the standard thread: 3/4“)
Standard female quick connector (to insert the hose into the male quick connector for tap connection)
Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.
Adjustable plastic lance with male quick connector.

It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.
