AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning

Industrial
Questions & Answers (6)
ID: 101459

EAN: 141795620

AgriEuro TOP-LINE
Catalog AgriEuro TOP-LINE
9,0/10
After-sales assistance & Spare parts
40Pictures
3Customer pics
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
Special offer
+30 sold
Max. operating pressure
11 bar
Air compressor tank
45 L
Cylinder head brand
Chinook
Air intake flow
1600 L/min
Pump type
Two-stage
Cylinder head rpm
1400 RPM
Tractor power
40 to 45 HP
Operable harvester
Up to 7
Manufacturing country
Italy
Product Features
Model:
Tractor 1600
Tractor power:
40 to 45 HP
Operating mode:
Tractor-driven PTO
Max. operating pressure:
11 bar
Number of tanks:
3
Air compressor tank:
45 L
Operable harvester:
Up to 7
Quantity of powered shears:
Up to 15
Quantity of powered chainsaws:
Up to 3
Power absorption:
40 Hp
Manufacturing country:
Italy
Pump data
Pump brand:
Chinook
Cylinder head brand:
Chinook
Model:
K 50
Air intake flow:
1600 L/min
Pump type:
Two-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
Yes (3 manifolds)
Cylinders material:
Cast iron
Manufacturing country:
Italy
Transmission data
Transmission type:
Belt
Transmission protective cover:
Metal grid
Cylinder head rpm:
1400 RPM
Pulleys material:
Cast iron
Equipment
No. of outlet couplings:
7
Hose reel support/s:
Yes
Pressure regulator with condensate filter:
Yes
Lubricator:
Yes
Pilot check valve:
Yes
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
105 x 70 x 100 cm
Net weight:
197 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
115 x 75 x 100 cm
Gross weight (packaging included) :
217 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
Assembled
Prompt Delivery
4 items in stock
Free Shipping
Estimated delivery: 12/11/2024 - 14/11/2024
Free returns (up to 30 days after receipt) *
Lowest price:
€ 2.675,66
-3 %
€ 2.595,39
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

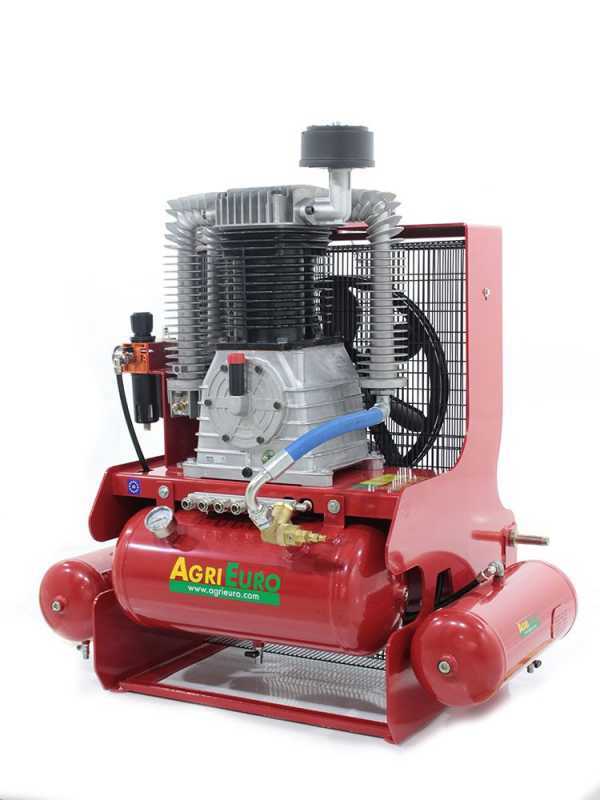

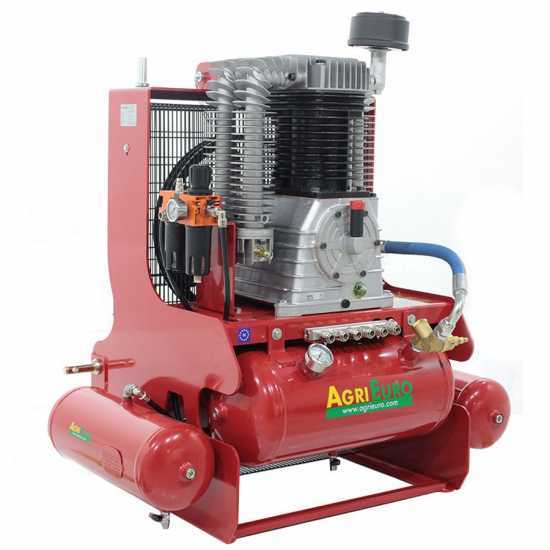

AgriEuro Tractor 1600 PTO Driven Air Compressor

The AgriEuro Tractor 1600 PTO driven air compressor is a professional product intended for use in combination with a tractor equipped with a power take-off, to simultaneously power different compressed air equipment.

PTO driven air compressor equipped with 3 tanks.

The large heavy-duty twin-cylinder head allows for an air output capacity of 1600 L/min at 11 bar, this allows to operate up to

15 pruning loppers

7 olive harvesters

3 Pruners

Characterized by a sturdy top-quality construction, it boasts a supporting frame of high-strength reinforced steel. Crushproof supporting structure made entirely of heavy-thickness steel

Low-rpm operation for greater fuel economy

MADE IN ITALY product

AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning

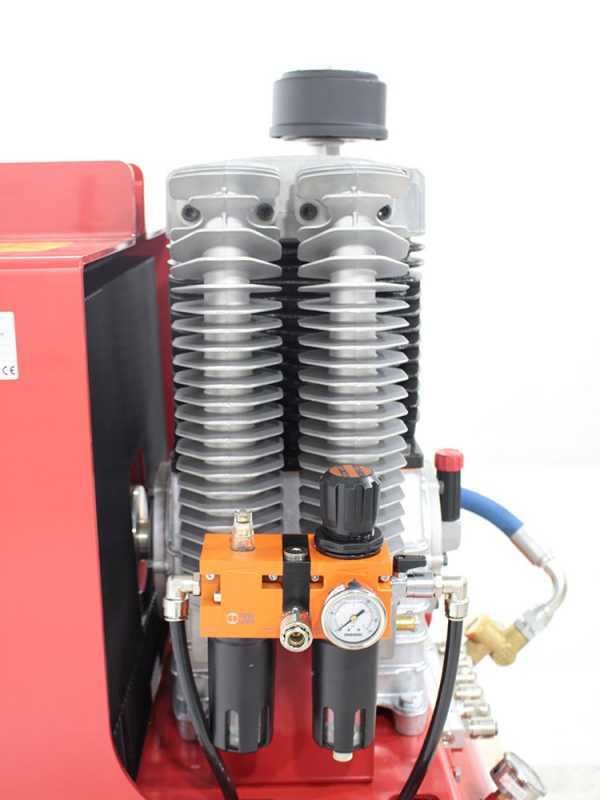

Professional twin-cylinder head

The large 1600 L/min twin-cylinder head with cast iron cylinder guarantees a long service life. High air output: 1600 L/min, enough to guarantee the operation of 7 olive harvesters, more than 15 pruning shears, 3 pruning saws.

Detail of the porthole for oil level control

Detail of the side cooling manifolds

Attention: do not exceed 325 rpm of the PTO.

AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning

Main features

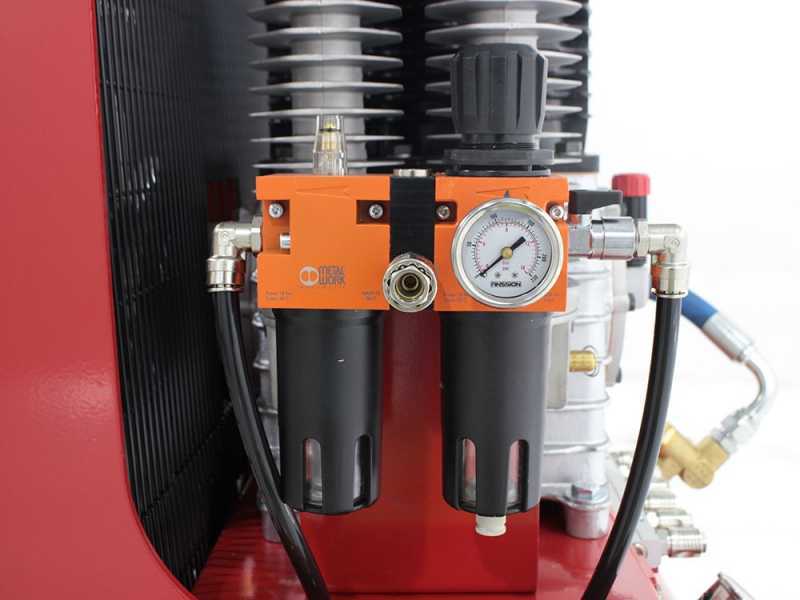

AIR OUTLET SYSTEM:

a) heavy-duty pressure regulator MADE IN ITALY with condensate separation filter entirely made in aluminium with glycerine pressure gauge

b) heavy-duty aluminium lubricator MADE IN ITALY

c) first outlet with female quick joint, suitable for all the non-agricultural uses, which normally do not require oil to be sprayed into the air via the lubricator (almost no compressor on the market has this additional outlet)

25 L tank

Detail of one of the two 10-litre tanks

No load operating system and maximum pressure control by means of a professional pilot check valve

AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning

Other features

PTO pulley and large-sized cooling fan made of alloy.

Support for hose reel as standard second hole for setting up a second hose reel.

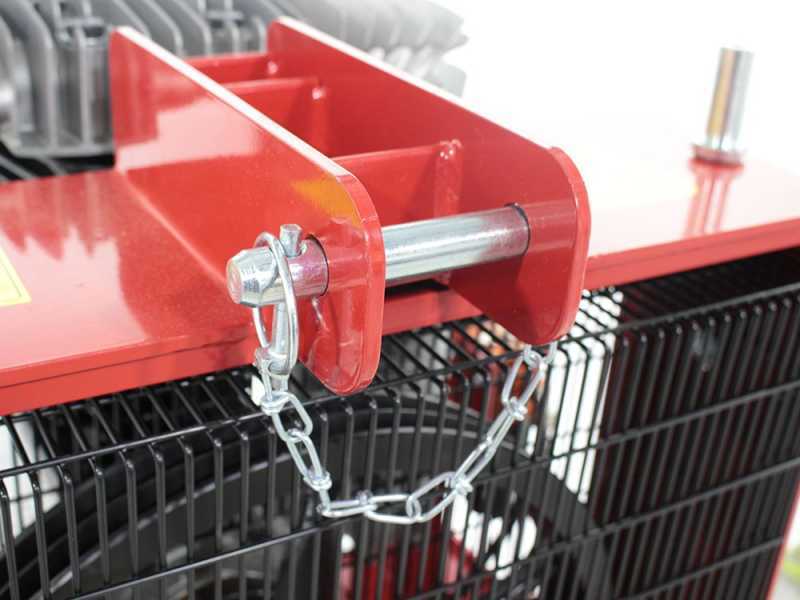

Three-point-hitch for tractor

AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
Free items & Standard equipment

Free items included

The PTO-driven air compressor is shipped in its original packaging

Instructions manual included

AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning AgriEuro Tractor 1600 PTO Driven Air Compressor with Three-point-hitch for Olive Harvesting and Pruning
