Description

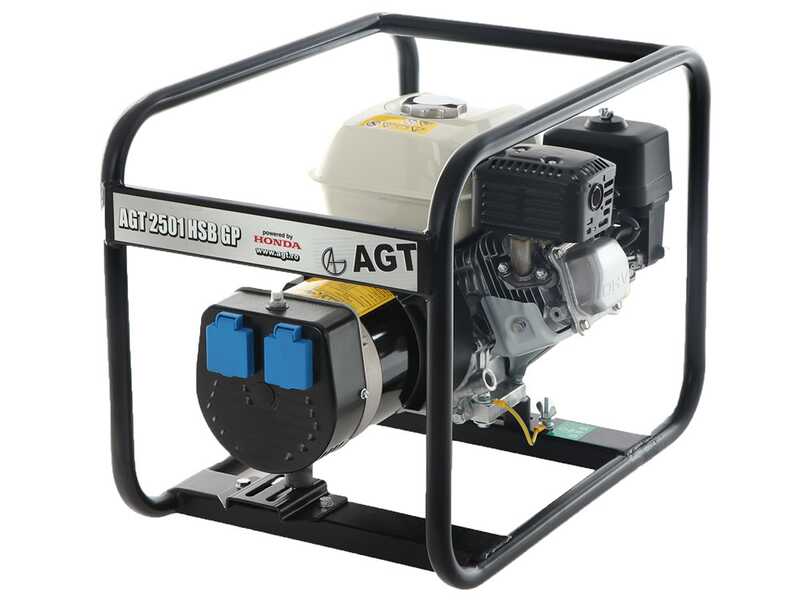

AGT 2501 HSB SE GP Generator

The AGT 2501 HSB SE GP single-phase power generator is very compact and easy to transport. Due to its small overall size and weighing only 35 Kg, it can be used comfortably wherever it is needed.

Easy and user-friendly controls. Two extremely useful 16A Schuko sockets are placed on the control panel.

The S16W-75 alternator with copper winding is entirely manufactured in Italy and it is marked Mecc Alte. The company is among the best in the world when it comes to producing alternators, thus guaranteeing a level of maximum reliability and quality for the generator.

It can deliver a continuous power of 2.1 kW and a maximum power of 2.2 kW.

Equipped with 3.1 L tank.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

AGT 2501 HSB SE GP - 2.2 kW Petrol power generator - DC 2.1 kW Single-phase

Technical specifications

Maximum single- phase power output: 2.2 KW

Rated power in continuous service (COP) single-phase: 2.1 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 3.1lt

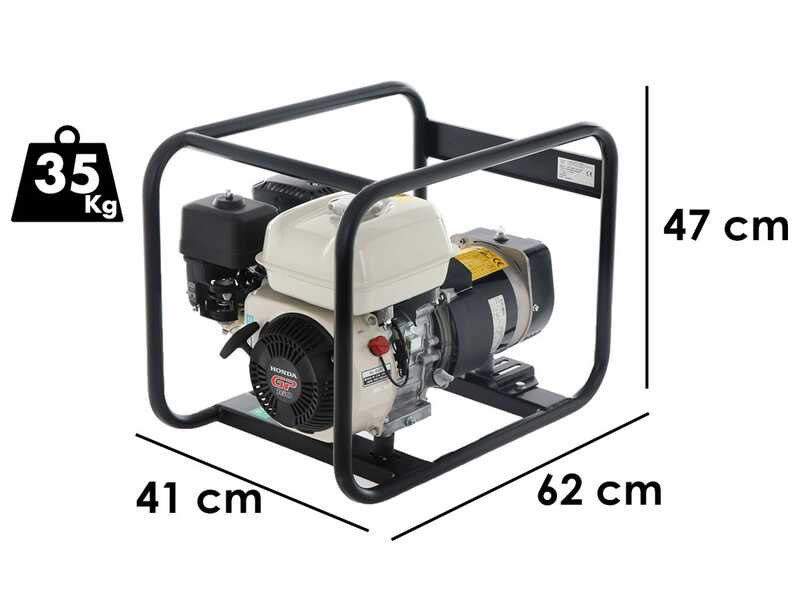

Dimensions: 62x41x47 cm

Weight: 35 kg

Noise level: 97 dB

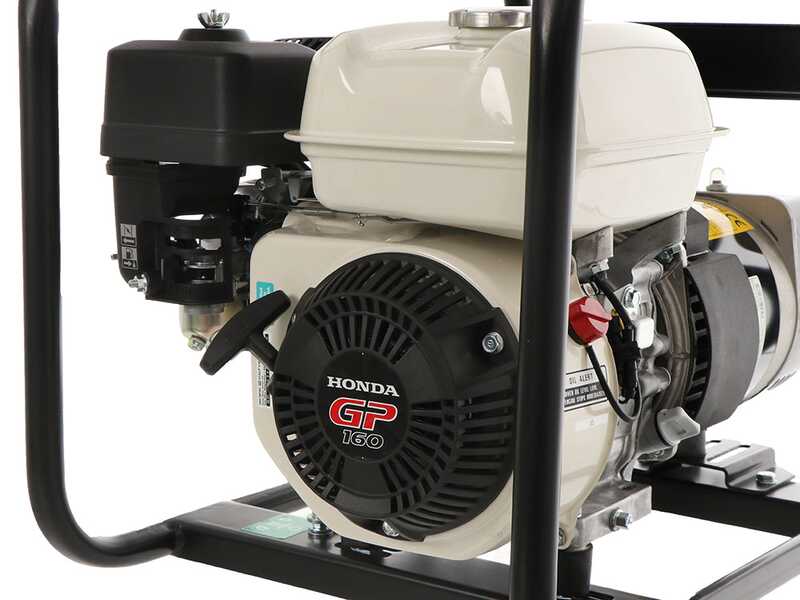

Honda GP160 Engine

The Honda GP160 is lightweight and high performing. It is suitable for works requiring high power, reached thanks to the 163 cc displacement.

Features:

Engine type

Single-cylinder 4-stroke - OHV

Cylinder type:

Cast Iron

Maximum torque:

10.3 Nm / 1.05 kgfm / 2500 rpm

Rated Power:

4.8 HP

Cubic Capacity:

163 cm³

Fuel tank capacity:

3.1 L

Oil tank capacity

0.6 L

Dry weight

15.1 kg

The engine is mounted on the anti-vibration grommets

Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

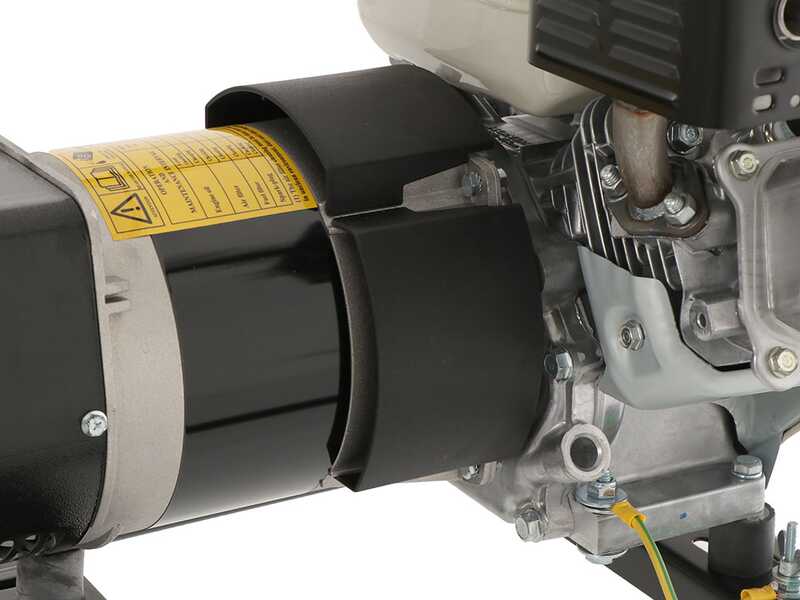

Mecc Alte Alternator

Alternator type: Mecc Alte S16W-75

Alternator manufacturing country: Made in Italy

Mecc Alte, a historic Italian manufacturer, guarantees high quality and reliable products.

This alternator is a very high-quality and guaranteed performance product with a copper winding.

3000 rpm

Voltage: 230V

Operating frequency: 50 Hz

Additional Features

Other engine features include:

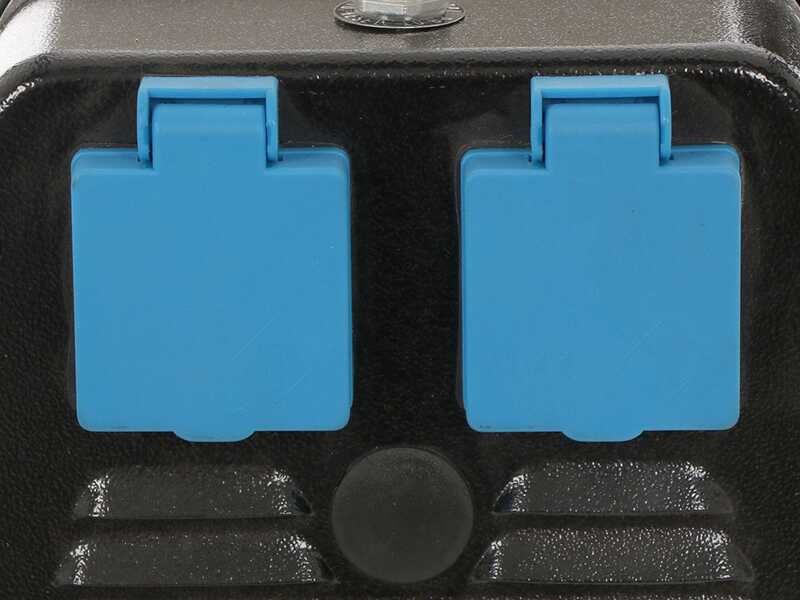

Schuko sockets 16A

Reset button

Oil tank plug

Focus on the ground discharge

Anti-vibration grommets

Handles for transportation

How To Select The Correct Power Rating Of The Generator

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.
