Description

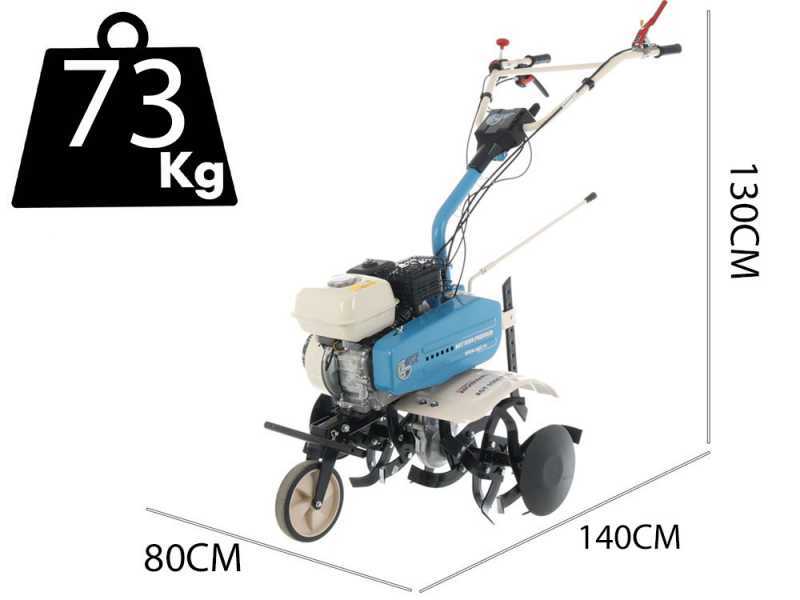

AGT 6500 - GP160 Garden Tiller

The AGT 6500 GP160 garden tiller is a compact medium-sized, handy, powerful and highly-reliable machine.

The Honda GP160 engine performance combined with its ease of use, make this garden tiller model suitable for both hobbyists and professional users.

Although it is mainly recommended for hobby use, this garden tiller is exceptionally effective in agricultural work of low-medium requirements, and for tilling operations on medium surfaces.

Versatile, sturdy and powerful, on medium-compact soils, this garden tiller is perfect for quickly and easily preparing the seedbed, making finely crushed and well-ventilated soil soft and ready for cultivation.

It can be used by anyone, even less experienced users.

Also remarkable are the ergonomics of the controls and the ease of use coupled with safety at all times for the operator.

This garden tiller is equipped with belt and chain transmission in oil bath.

Mudguards comply with standard (EN 709) in both thickness, 2 mm, and shape.

Furrower provided on standard equipment.

AGT 6500 - 5 HP Petrol Garden Tiller - Honda GP160 163cc - 2+1 Reverse Gear Gearbox

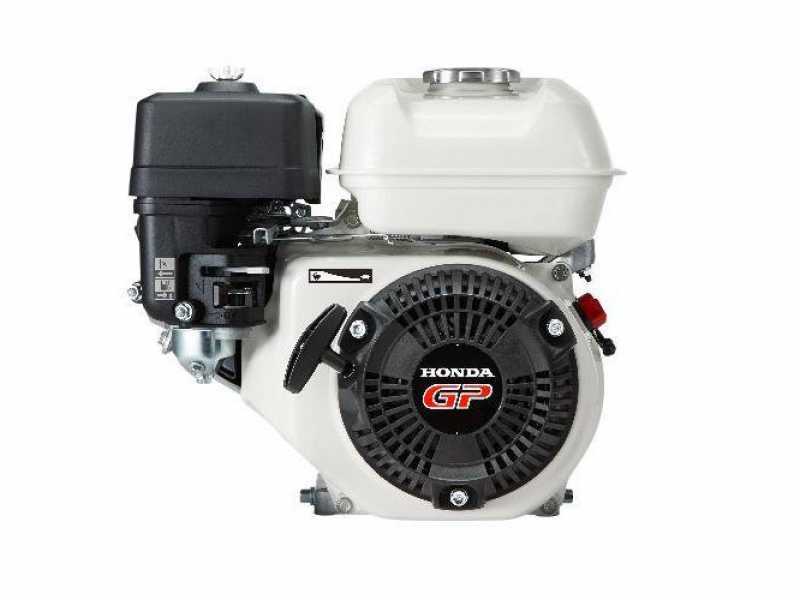

Honda GP 160 engine

The Honda GX 160 is a professional engine, with OHV overhead valve technology.

Features:

Engine type:

Single cylinder 4-stroke - OHV

Cylinder type:

Cast Iron

Cubic capacity:

163 cm³

Fuel tank capacity:

3.1 L

Consumption:

1.3 L/h 3000 rpm

The Honda GX series is highly professional and developed for heavy-duty jobs in building and agricultural field for generators, welders etc., characterized by its reliability and long service life.

Nominal Power: 5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.79 Hp (at 2900 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

ATTENTION!
The engine is PROVIDED WITHOUT OIL.
Please carefully read the instruction manual before starting the unit.

Transmission and 2+1 gearbox

The gearbox features 2 forward and 1 reverse gear, which can be engaged by means of the special lever located between the steering handles. The long gear lever allows to easily and comfortably engage the gears from just below the steering handles.

The transmission on the lower side on the engine is protected by a sturdy housing.

Side transmission consisting of 2 belts, which is protected by a sturdy openable housing.

Focus on the lower transmission housing.

The gearbox is made with gears in oil bath.

WARNING!

The engine and transmission are PROVIDED WITHOUT OIL.
It is highly recommended that the lubricating oil is filled up to the correct level.

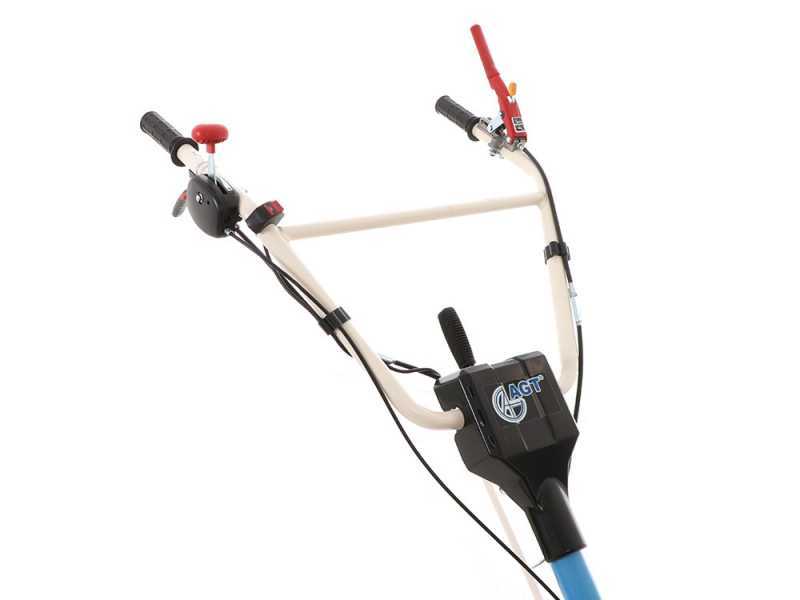

Steering handles and controls

All controls are within easy reach and all are located in the handlebars, in compliance with EN 709 standards.

The red lever engages the forward gear and is located on the right.

Lever for side adjustment of the steering handles.

ON/OFF switch

The steering handlebars are also adjustable in all positions.

Focus on the throttle lever.

Front transport wheel provided on standard equipment: it can be lifted into working position with a simple operation.

Cutter holder

Steering handles side adjustment system

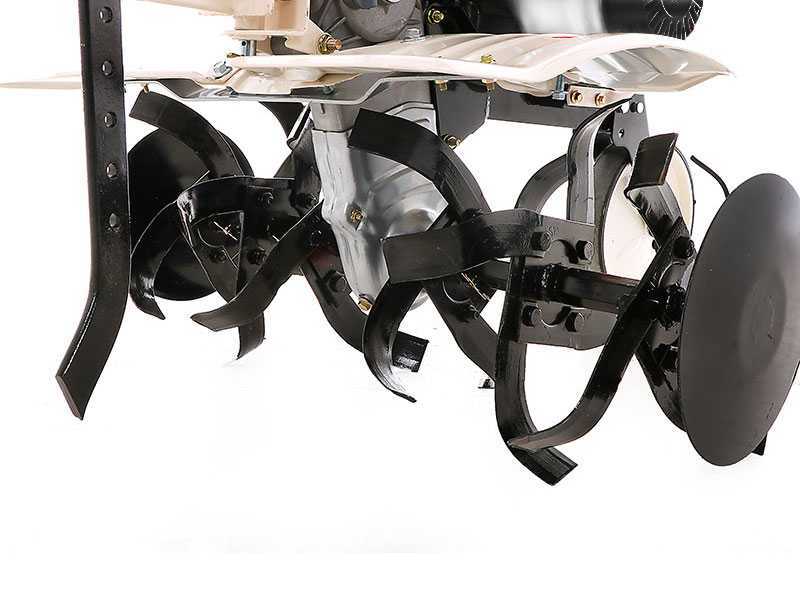

Tine with adjustable width and transport wheel

Tine: 80 cm, with 4 rows of rotary hoes + side crop protection discs.

Easily adjustable to 55 cm with a short operation.

The cutting width adjustment is carried out easily: the operator just insert or remove the most external element and insert the crop protection disc.

This garden tiller model can be also used without the crop protection discs.

In addition, the machine is equipped with a front wheel, which is useful for moving the garden tiller away from the work area for storage, thus freeing the operator from an additional dedicated means of transport.

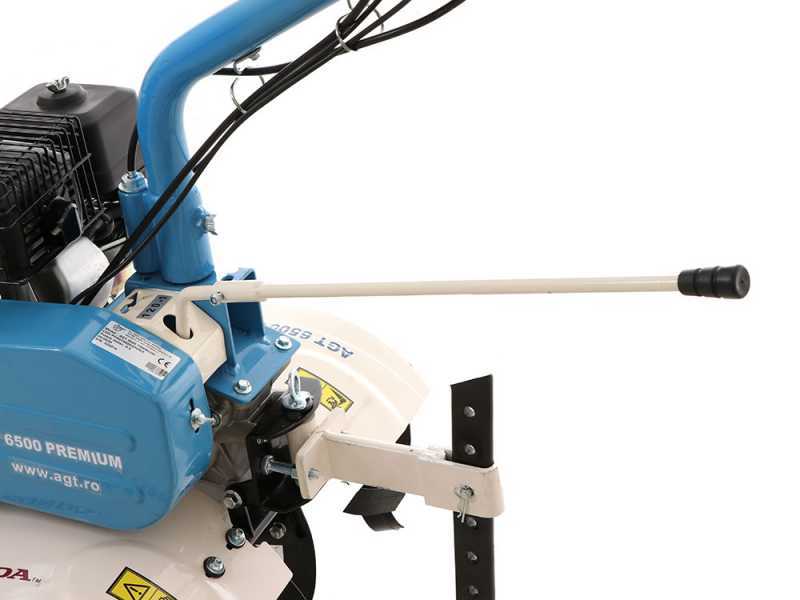

Height-adjustable rear stake.

Furrower attachment provided on standard equipment.

Free items & Standard equipment

Free items included

The garden tiller is shipped in its original packaging.

Instructions manual, furrower, small kit for machine assembly and cutting width adjustment included in the packaging.

Complimentary: wheel kit
