AGT 7201 HSB Generator

The AGT 7201 HSB single-phase generator is powered by a Honda GX390 petrol engine 389 cc, which is able to reach 11.7 HP rated power.

It is a product suitable for professional uses, simple to use and it is possible to use it on many different occasions. It has a compact design that makes it easy to move the generator. Thus, it consists of highly reliable components. Easy and user-friendly controls. Two extremely useful 16A Schuko sockets and a practical hour meter located on the control panel.

It can deliver a continuous power of 5.7 kW and a maximum power of 6.1 kW.

Among its outstanding parts, the S16W-150 Mecc Alte alternator with copper winding, manufactured in Italy. This company is among the best in the field of alternators, thus always providing elements of the highest quality.

Equipped with 6.1 L tank.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

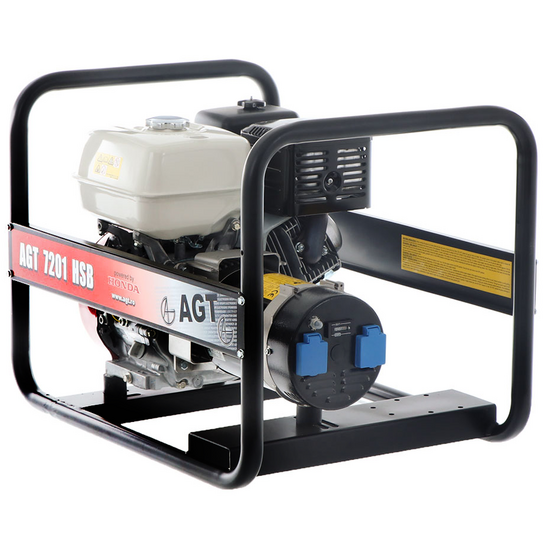

AGT 7201 HSB - 6.1 kW Petrol Power Generator - DC 5.7 kW Single-phase

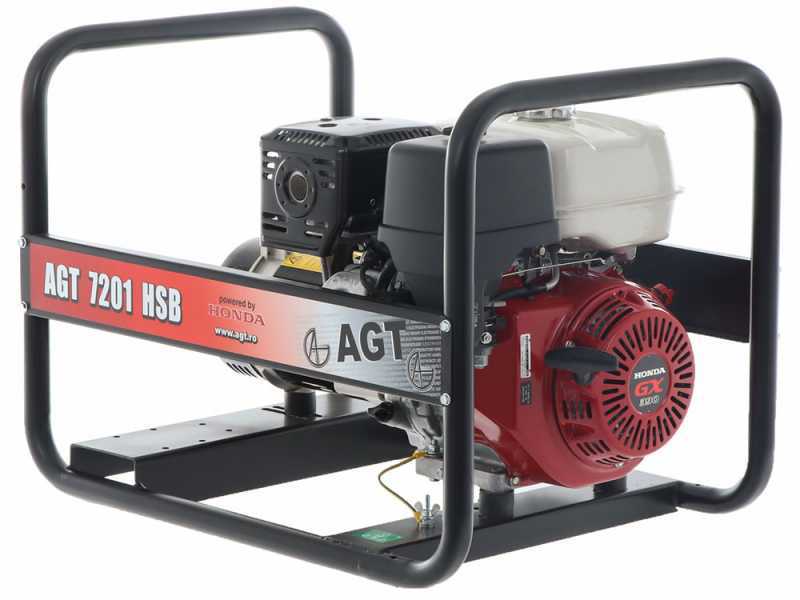

Technical specifications

Maximum single- phase power output: 6.1 KW

Rated power in continuous service (COP) single-phase: 5.7 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 230V

Operating frequency: 50 Hz

Fuel tank capacity: 6.1 L

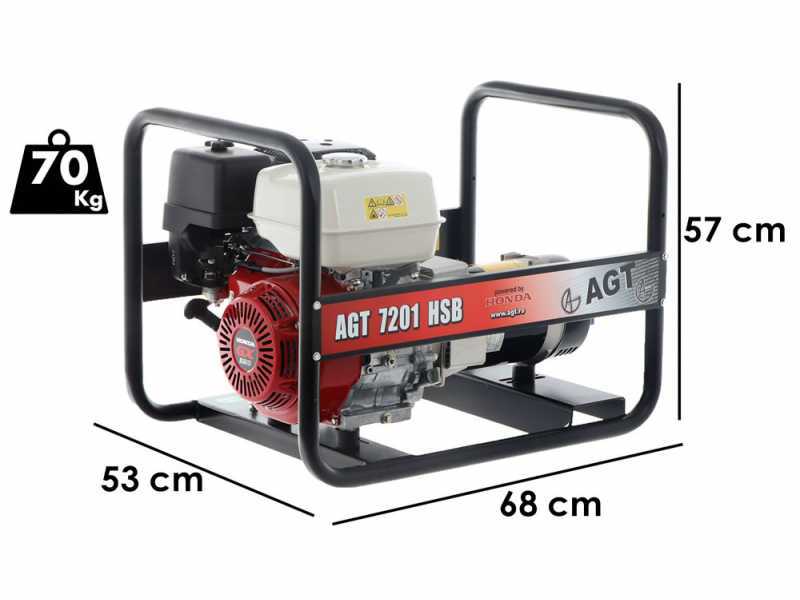

Dimensions: 68x53x57 cm

Weight: 70 kg

Noise level: 97 dB

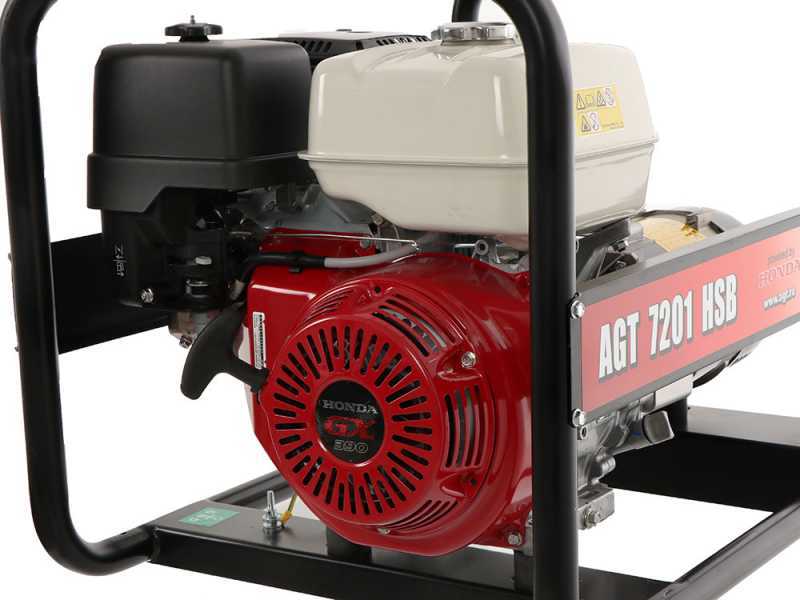

Honda GX390 Engine

The Honda GX390 is lightweight and high performing. It is suitable for works requiring high power, reached thanks to the 389 cc displacement.

Features:

Engine type

Single-cylinder 4-stroke - OHV

Cylinder type:

Cast Iron

Rated Power:

11.7 HP

Cubic Capacity:

389 cmÂ³

Fuel tank capacity:

6.1 L

Dry weight

31.7 kg

The engine is mounted on the anti-vibration grommets

Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

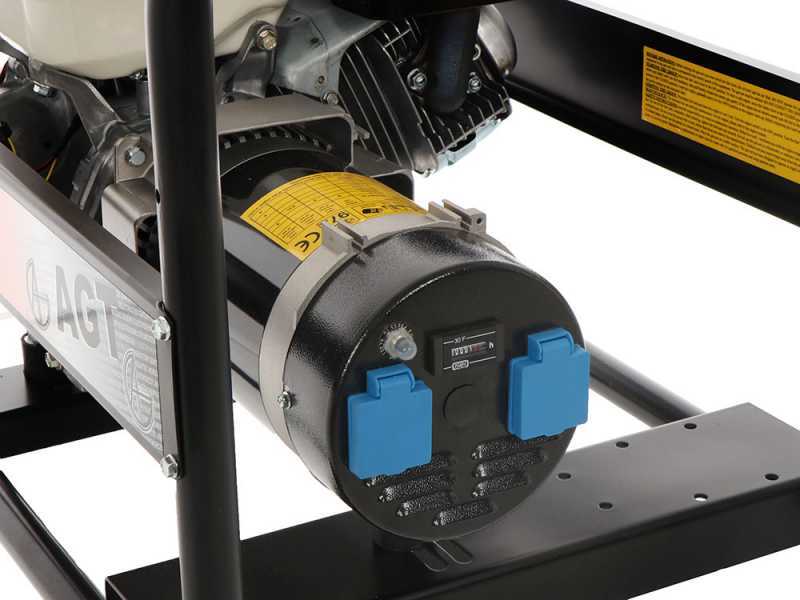

Mecc Alte Alternator

Alternator type: Mecc Alte S16W-150

Alternator manufacturing country: Made in Italy

Mecc Alte, a historic Italian manufacturer, guarantees high quality and reliable products.

This alternator is a very high-quality and guaranteed performance product with a copper winding.

3000 rpm

Voltage: 230V

Operating frequency: 50 Hz

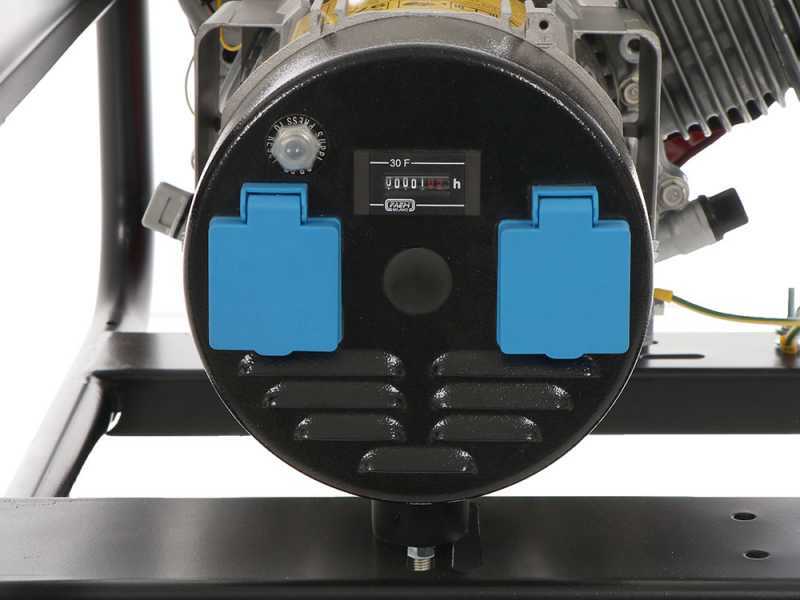

Additional Features

Other engine features include:

Schuko sockets 16A

Hour meter

Reset button

Handles for transportation

How To Select The Correct Power Rating Of The Generator

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

Honda GX 120/GX 160/GX 200
Honda GP160/GP 200
Loncin 120/160/196 cc
Axo 120/160/196 cc
Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.
