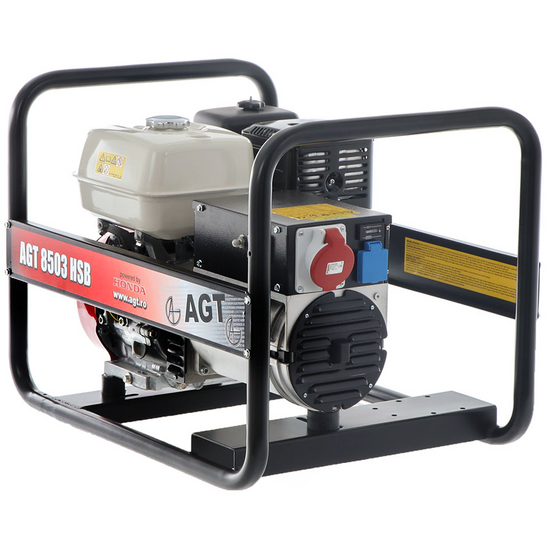

AGT 8503 HSB - 6.4 kW Petrol Power Generator - DC 6 kW Three-phase

The AGT 8503 HSB three-phase generator has maximum 6.4 kW three-phase and 2.1 kW single-phase power output.

The control panel is equipped with a 16A three-phase IP44 socket and a 16A Schuko socket.

Among its outstanding parts, the T16F-160 Mecc Alte alternator with copper winding, manufactured in Italy. This company is among the best in the field of alternators, thus always providing elements of the highest quality.

It is a product suitable for professional uses, simple to use and it is possible to use it on many different occasions. It has a compact design that makes it easy to move the generator. Thus, it consists of highly reliable components.

It is powered by a Honda GX390 petrol engine 390 cc, with a rated power of 11.7 HP. Large fuel tank, which is intended to hold up to 6.1 L of fuel.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

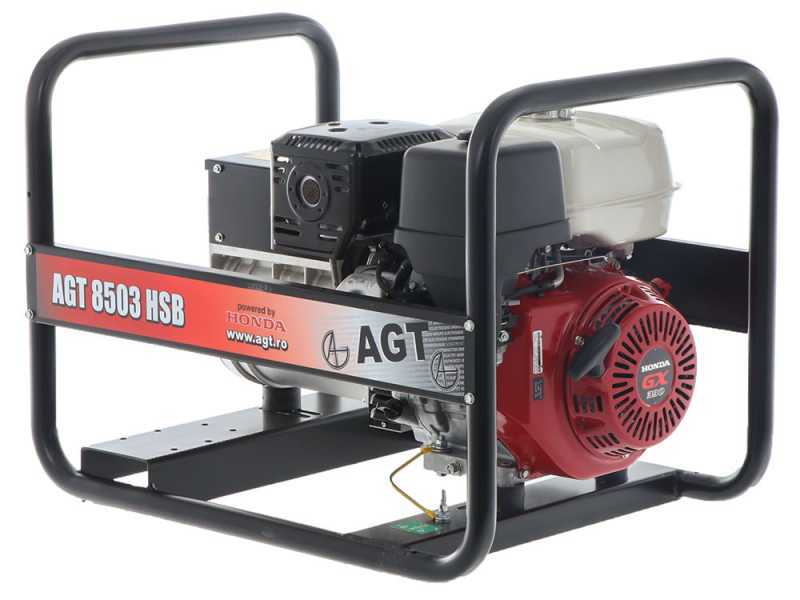

Maximum three-phase power output: 6.4 KW

Rated power in continuous service (COP) three-phase: 6 KW

Maximum single- phase power output: 2.1 KW

Rated power in continuous service (COP) single-phase: 2 KW

This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

Voltage: 400V

Operating frequency: 50 Hz

Fuel tank capacity: 6.1 L

Dimensions: 68x53x57 cm

Weight: 80 kg

Noise level: 97 dB

The Honda GX390 is lightweight and high performing. It is suitable for works requiring high power, reached thanks to the 389 cc displacement.

Features:

The engine is mounted on the anti-vibration grommets

Nowadays, the great majority of agricultural and gardening equipment available on the market are fitted with engines with unknown brands or motors Made in China.

WARNING

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

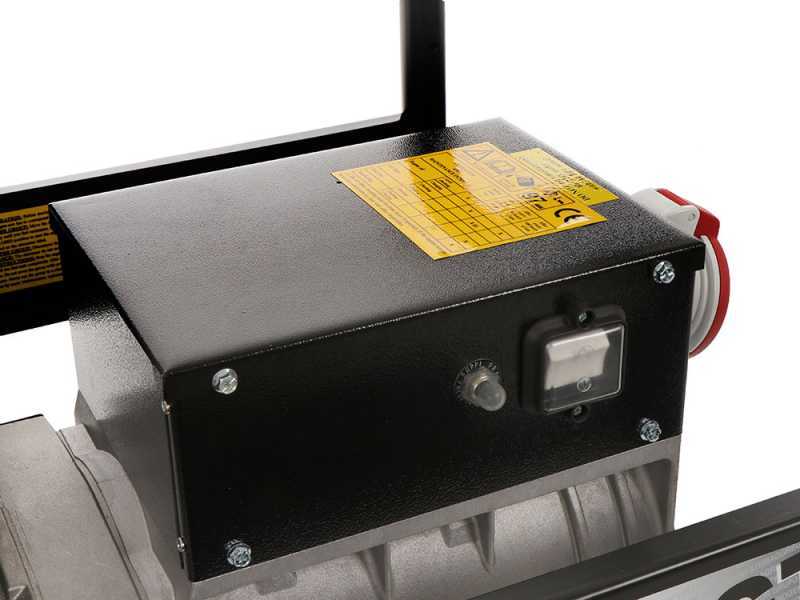

Alternator type: Mecc Alte T16F-160

Alternator manufacturing country: Made in Italy

Mecc Alte, a historic Italian manufacturer, guarantees high quality and reliable products.

This alternator is a very high-quality and guaranteed performance product with a copper winding.

3000 rpm

Voltage: 400V

Operating frequency: 50 Hz

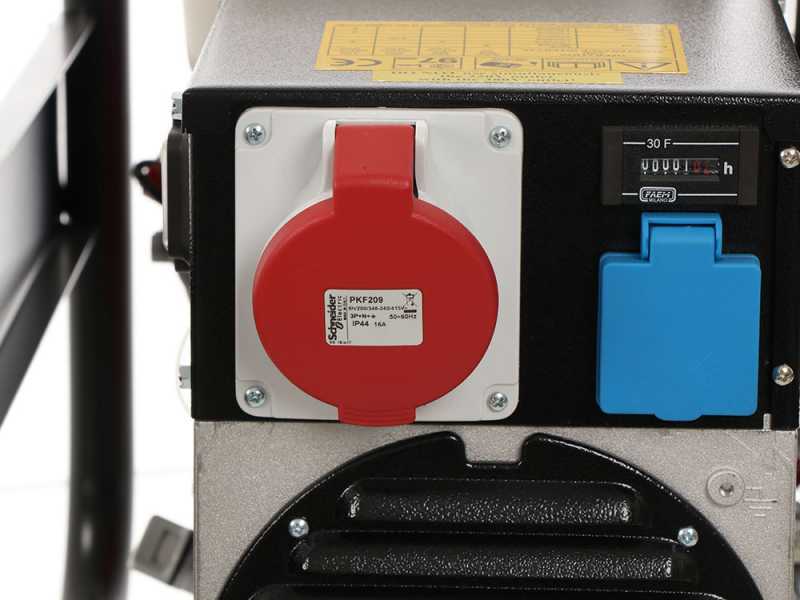

Other engine features include:

Switch

Three-phase socket IP44 16A

Schuko socket 16A

Hour meter

Reset button

Handles for transportation

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs. And remember that to operate the electronic equipment (computers, televisions and all the equipment equipped with an electronic card) must purchase a current with "inverter" generator (which stabilizes the output current).
