Aima MIRAGE AF 12V - 193-273 cm Electric Battery-powered Olive Harvester - Pole + Extension Pole

Questions & Answers (1)
ID: K503925

EAN: 9999237544146

MPN: 201-AG

8,3/10
After-sales assistance & Spare parts
Aima MIRAGE AF 12V - 193-273 cm Electric Battery-powered Olive Harvester - Pole + Extension Pole
Special offer
+100 sold
FREE
80 Ah (80 Amperes) battery80 Ah (80 Amperes) battery
Awelco Automatic20 Battery ChargerAwelco Automatic20 Battery Charger
Head material
ABS
Motion
Horizontal, double
Speed (bpm)
1250 bpm
Max. prongs opening
50 cm
Pole material
Aluminium
Max. length
270 cm
Motor type
Brush
Voltage
12 V
Nominal power (W)
500 W
Motor speed levels
1
Motor type
Battery-powered
Battery type
Car type
Carbon prongs
Manufacturing country
Italy
Product Features
Model:
Mirage 12V
Use:
For olive harvester only
Power supply:
Lead-acid battery 12 V
Head material:
ABS
Type:
12 V battery-powered
Operating mode:
12 V battery-powered
Motor position:
Up - on the head
Motion:
Horizontal, double
Speed (bpm):
1250 bpm
"Wave" prongs:
No
No. of prongs:
7+7
Prongs length:
30 cm
Prongs material:
Carbon
Carbon prongs:
Max. prongs opening:
50 cm
Min. length:
240 cm
Max. length:
270 cm
Pole material:
Aluminium
Removable harvesting head for direct use:
No
Pole type:
Fixed + extension
Manufacturing country:
Italy
Motor data
Motor position:
On the head
Motor type:
Battery-powered
Motor type :
Brush
Battery type:
Car type
Motor speed levels:
1
Nominal power (W):
500 W
Power supply:
12 V battery-powered
Fuse:
Yes
Voltage:
12 V
Recommended battery:
80 Ah
Motor power:
12 V
Manufacturing country:
Italy
Equipment
Extension pole :
193-273cm
Extension power cable:
15 m
Free gifts/extra features
Additional extension pole:
100 cm
Prongs/rods:
1
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
250x30x10 cm
Net weight:
3 Kg
Packaging:
Original packaging
Original packaging/s dimensions in cm (L x W x H):
220x24x17 cm
Gross weight (packaging included) :
7.9 Kg
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 14/04/2025 - 16/04/2025
Lowest price:
€ 645,35
-4 %
€ 619,54
Vat included
You're viewing:
Customers also viewed:
Description

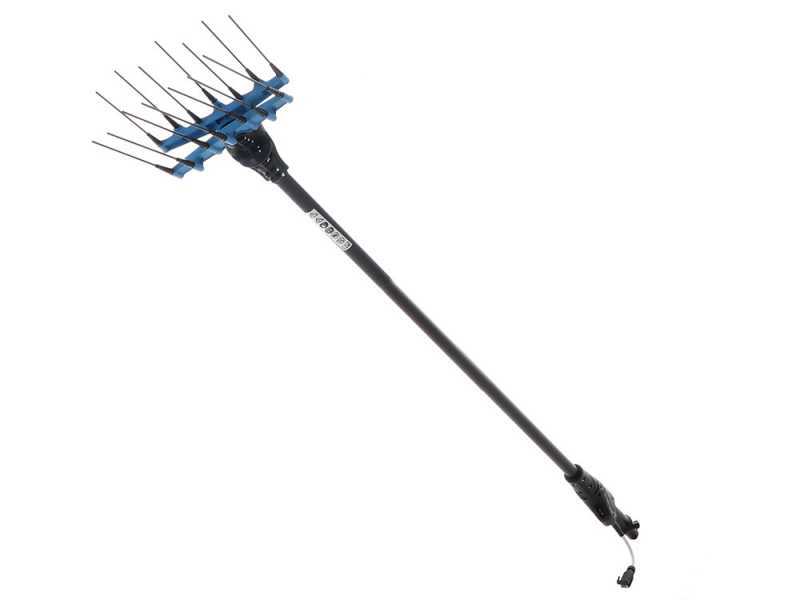

MIRAGE 12V olive harvester

The MIRAGE 12V shaker features a split-comb motion which, thanks to the new technical details proposed by Aima, aims to be at the top of its category.

The shaker MIRAGE 12V is the result of AIMA's continuous efforts to improve its products.

Mirage is an electric olive harvester designed for customers who needs a machine which ensures high productivity, suitable for a heavy and continuous use.

The high power of the motor (500W) guarantees to the two combs a high efficiency and a constant number of beats even in the thickest foliage.

Indeed, thanks to its motor slim shape, the harvester allows easily entering into the foliage of the olive trees with great ease.

Furthermore, the variable shape of the comb allows an even distribution of vibrations, resulting in good production without damaging the olive tree.

The olive harvester is equipped with a 2.5 m pole that can be extended of up to 2.7 m by connecting the extension pole provided on standard kit at the bottom of the fixed pole.

The MIRAGE olive shaker features an extremely low weight and, thanks to its excellent balance, makes the tool extremely easy and comfortable to use.

The MIRAGE olive shaker is suitable for harvesting the following olive tree types:

  • Moraiolo
  • Canino
  • Olivastra
  • Mignola
  • Carboncella
  • etc.

Made in Italy product

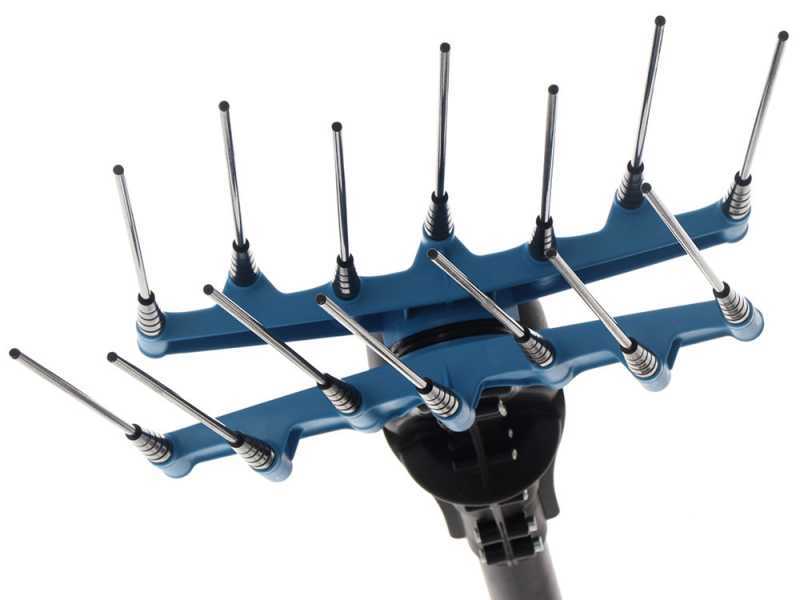

Olive harvester motion

Each carbon prong moves by swinging sideways and by crossing each other’s.

Furthermore, the variable shape of the comb allows an even distribution of vibrations, resulting in good production without damaging the olive tree.

Focus on the prongs movement.

Prongs movement features:

  • Cycles per minute: 2500 (1250+1250)
  • Comb: split, gull-wing with 8 carbon prongs (7+7)

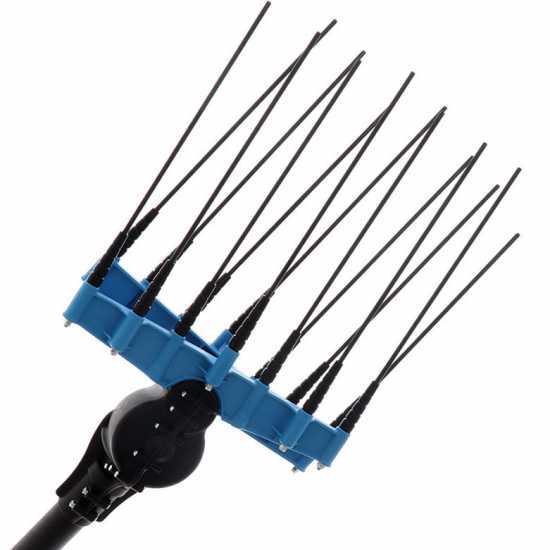

Prongs

This model stands out for its penetration capacity through the branches. It is possible by means of the long prongs (even 30 cm). This means that they can get very depth into the branches. These features make this olive harvester best suited to work on very thick and/or not pruned trees. It respects the olives and do not damage or break branches. It will be very easy and fast to replace the prongs in case of damages by means of the prongs fixing system with nut.

No. of prongs: 7+7

Prongs material: carbon fiber.

Min. comb width: 29 cm

Max. comb width: 55 cm

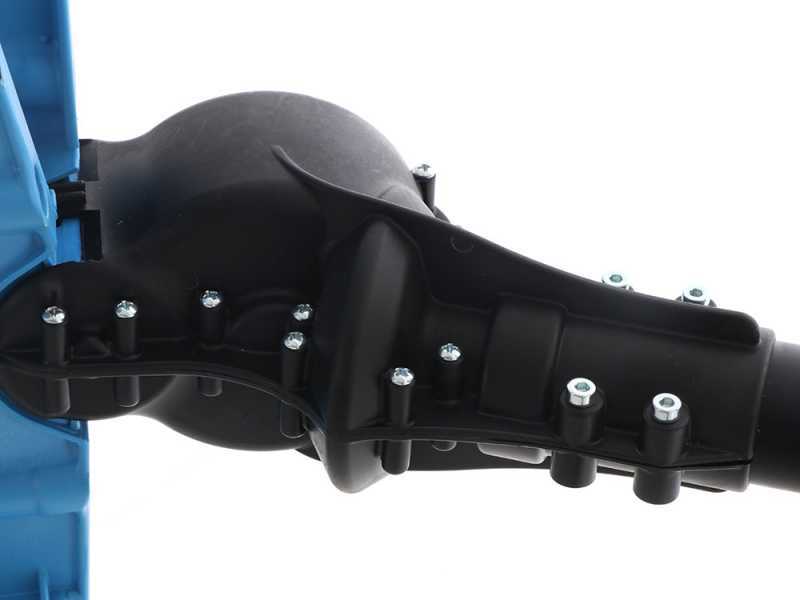

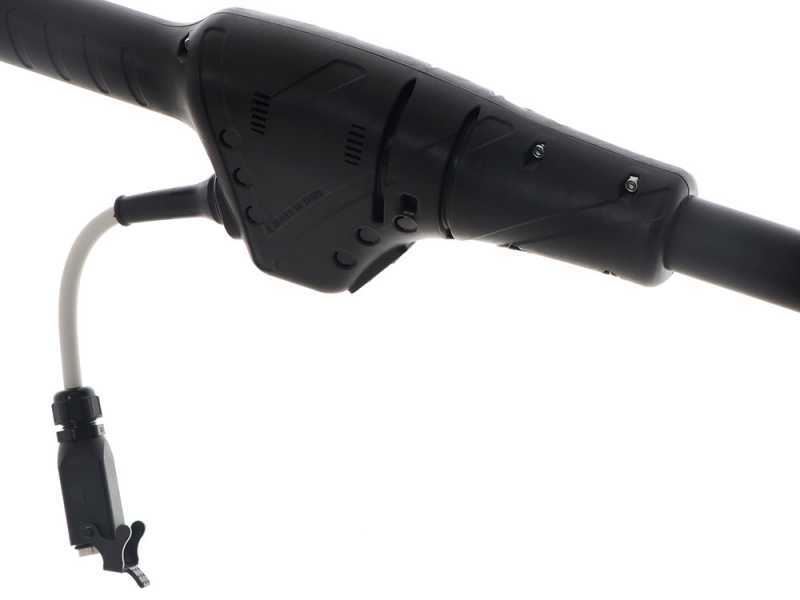

Motor

Head-mounted motor: 600 watt

The motor of this harvester has been designed for the best possible performance and long service life even in case of intensive use.

It consists of a rare earth motor and a self-lubricating kinematic mechanism with sealed bearings.

All these features guarantee a long service life to the machine without the need for costly maintenance.

The sturdy protection shield protects the transmission against dust, debris and any stress.

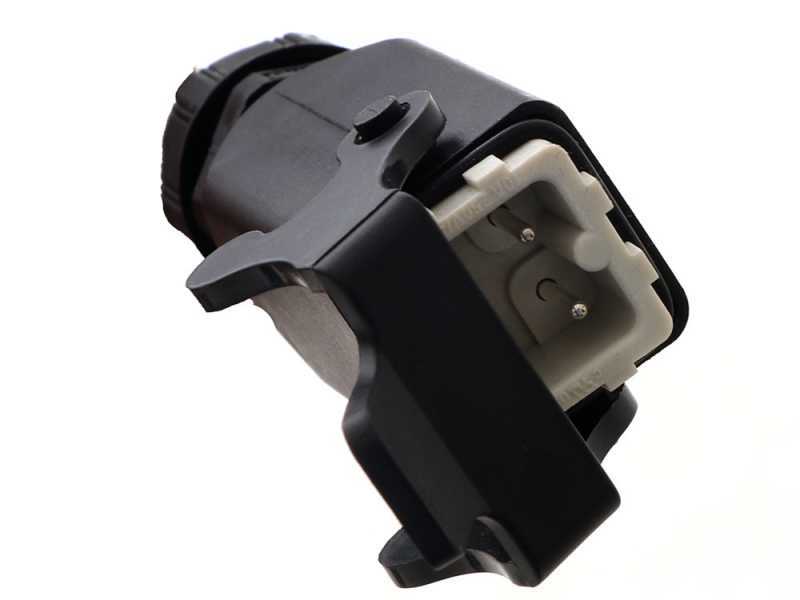

Extension pole and handle

Lightweight extension pole made of aluminium supplied with ergonomic grip.

The ON/OFF switch at the bottom of the pole allows the Operator, once switched on the machine, to handle it effortlessly as needed. This means that is not necessary to hold an hand on the handle to keep the trigger pushed.

Overall pole length:

  • Pole only: 140 cm
  • 1 m additional aluminium extension pole provided on standard kit

Focus on the screw lock coupling

Free items & Standard equipment

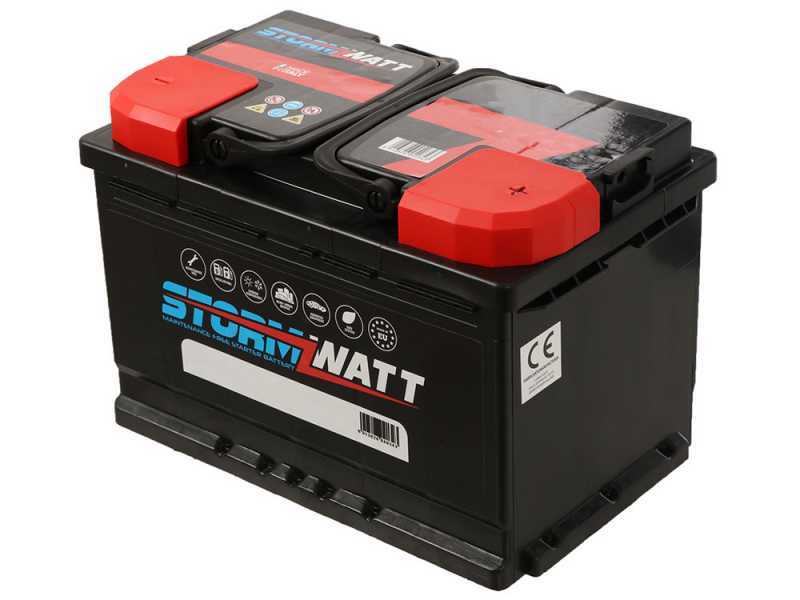

FOR FREE: 80 Ah battery

This large battery guarantees more than 8 hours of working autonomy. It is suitable for all the olive harvesters listed on our website.

It therefore allows you to work for the entire day without any problems.

Equipped with a pull-out handle for easy movement.

CAPACITY: 80 Amperes.

12V - 700A (EN)

SIZE: 315x175x190 (h) mm.

WEIGHT: 18 KG.

This is a professional lead-acid battery (it is a standard 80Ah car battery).

For fully charging it in just a few hours overnight, we recommend a battery charger with a charging capacity of at least 12-14 Ah/h

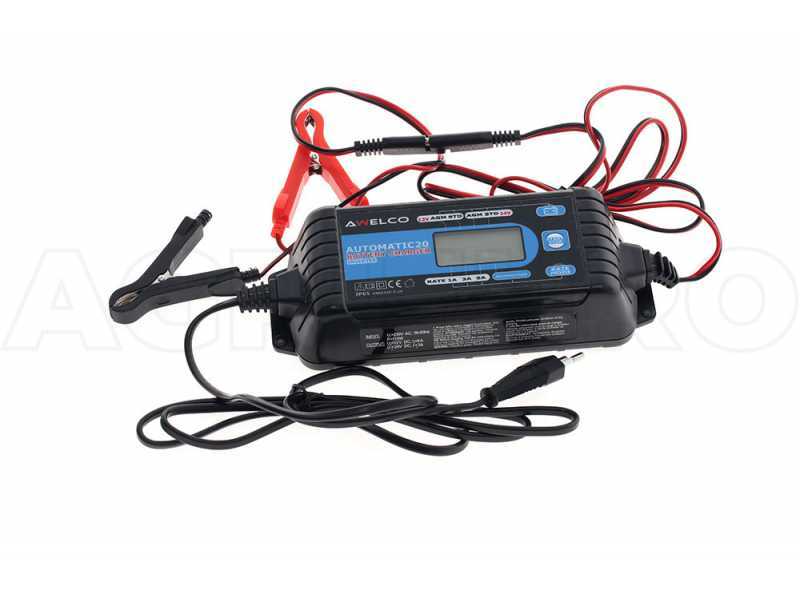

COMPLIMENTARY: Awelco Automatic20 Battery Charger

The Deca SM Automatic20 battery charger maintainer is an automatic charger with a charge maintenance program (Pulse charging). This type of charger is compact, efficient and easy to use. Suitable for motorcycles, cars, vans, campers and small displacement tractors.

Characterized by a special automatic charging cycle that allows you to never damage the battery, it is also possible to leave it connected to the battery because it has the MAINTENANCE function (maintenance function "Pulse Maintenance"). This way, the battery is always ready to use.

It is highly safe: it does not damage the electronics of the vehicle, it does not create sparks, it is equipped with protection against polarity reversals and short-circuits.

This product is innovative, versatile and low weight (only 0.60 kg).

This small car battery charger is suitable for outdoor use thanks to the IP65 protection level and its retractable hook.

5 ways of use:

  • Charging
  • Impulses
  • Maintenance
  • Sulphate batteries reconditioning
  • Operation testing

Technical features:

  • Power supply: 230V single-phase
  • Power: 65W
  • Nominal battery voltage 12V / 24V
  • Average charging current: 3A - 6A
  • Charging programs: 4 + TEST
  • Battery type: Pb, Gel, Pb/Ca, Agm
  • Battery capacity: 2 - 120 Ah min / max
  • Battery capacity in charge maintenance: 120Ah max
  • Protection rating: IP65
  • Charging process LED display, maintenance and testing
  • Equipped with cable pliers and cable with eyelets
  • With one 10-stage multi-stage charging process

Free items included

INCLUDED IN THE PACKAGE

  • Additional 1 m extension pole
  • Spare prong
  • 15 m extension cable with polarized clamps and converter.

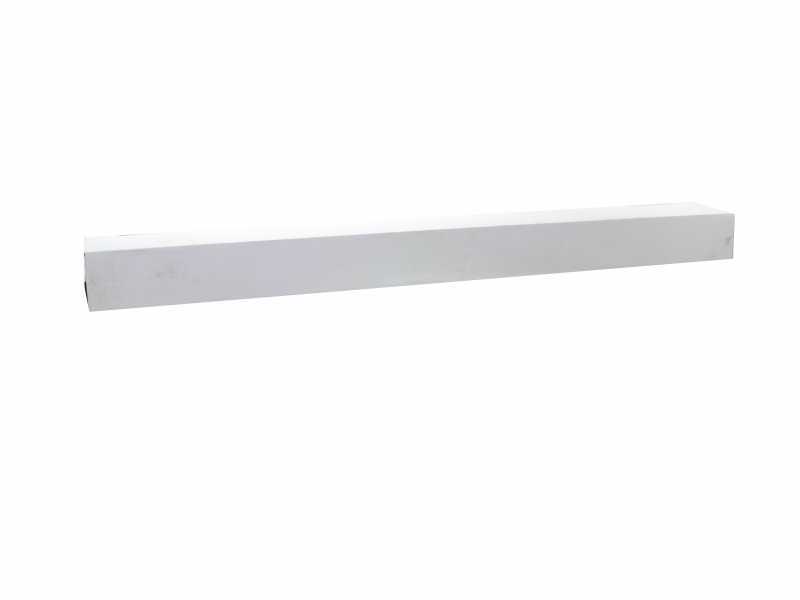

The machine is shipped in its original packaging.
