HOME Olive harvesting Air Compressors for Olive Harvesting and Pruning Treatments Petrol-driven compressors Petrol Engine-driven Air Compressors Loncin petrol engine compressors Airmec Micro 02/260

Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine

Hobby
Questions & Answers (3)
ID: 101989

EAN: 8006414052767

MPN: 141780030-nuovo

Airmec
Catalog Airmec
8,6/10
After-sales assistance & Spare parts
31Pictures
1Videos
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
+100 sold
Power supply
Petrol
Max. operating pressure
10 bar
Air compressor tank
2 L
Motor brand
Loncin
Motor type
4-stroke
Cubic capacity
118 cm³
Nominal power
4 HP
Cylinder head brand
Fini
Air intake flow
260 L/min
Pump type
Single-stage
Cylinder head rpm
3400 RPM
Operable harvester
1
Manufacturing country
Italy
Product Features
Model:
Micro 02/260
Power supply:
Petrol
Transport:
Portable
Operating mode:
Spark ignition
Max. operating pressure:
10 bar
Number of tanks:
1
Air compressor tank:
2 L
Electric start:
No
Operable harvester:
1
Quantity of powered shears:
Up to 2
Quantity of powered chainsaws:
0
Manufacturing country:
Italy
Motor data
Motor brand:
Loncin
Motor type:
4-stroke
Cubic capacity:
118 cm³
No. of cylinders:
1
No. of cylinders:
Single-cylinder
Nominal power:
4 HP
Rated power (HP):
3.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
2 L
Noise level:
96 dB(A)
Manufacturing country:
China
Pump data
Cylinder head brand:
Fini
Model:
S 15
Air intake flow:
260 L/min
Pump type:
Single-stage
No. of cylinder heads:
1
No. of cylinders:
2
Cooling manifold :
No
Cylinders material:
Aluminium
Manufacturing country:
Italy
Transmission data
Transmission type:
Coaxial type direct
Transmission protective cover:
No
Cylinder head rpm:
3400 RPM
Integrated clutch device:
No
Equipment
Battery for electric start:
No
Automatic throttle:
No
Electric start with key :
No
Recoil start system (with rope):
Yes
No. of outlet couplings:
1
Hose reel support/s:
No
Pressure regulator:
No
Pressure regulator with condensate filter:
No
Lubricator:
Yes
Pilot check valve:
Yes
Double tank:
X
Folding/removable handle/s:
No
Lifting handle:
Yes
Free gifts/extra features
Engine oil bottle for free:
No
Maintenance tool kit:
No
Tool case:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
51 x 30 x 50 cm
Net weight:
29 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
55 x 44 x 67 cm
Gross weight (packaging included) :
40 Kg
Assembly time:
Assembled
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 02/12/2024 - 04/12/2024
Free returns (up to 30 days after receipt) *
€ 796,65
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

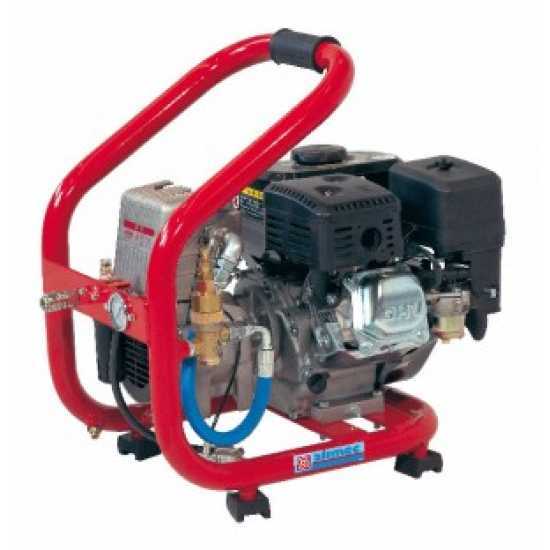

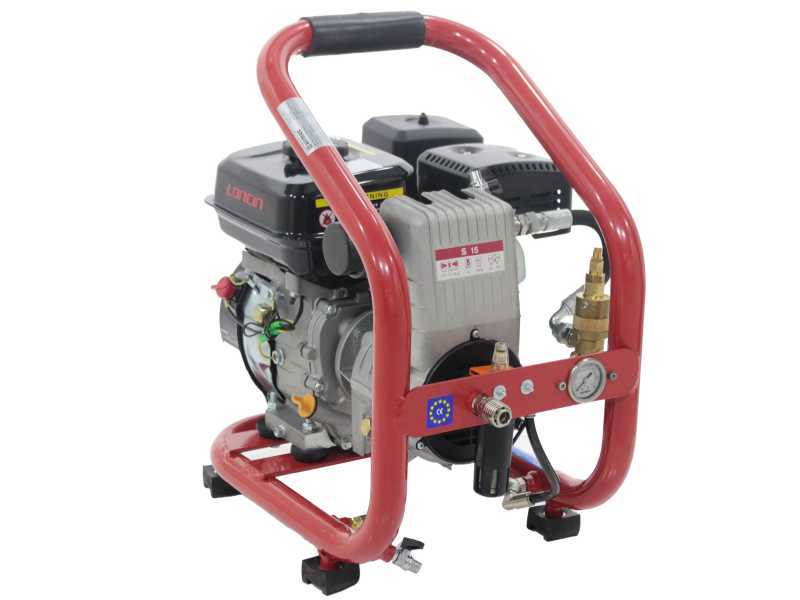

Airmec Micro 02/260 S15 Petrol Engine-driven Air Compressor

The Airmec Micro 02/260 S15 petrol engine-driven air compressor is designed to power and operate pneumatic tools for pruning and harvesting work in the agricultural sector.

The pumping unit is driven by a powerful Loncin 118 cc petrol engine that delivers 4 HP of power.

The air compressor is mounted on a balanced frame with a 2 L tank to reduce the condensate effect.

The Micro 02/260 S15 petrol engine-driven air compressor comes with a practical handle to ease transport and movement during the working phases. The weight is only 29 Kg.

Thanks to its 275 L/min of air intake flow, the FIAC S15 pumping unit allows to operate a olive harvester or two pneumatic pruning shears.

Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine

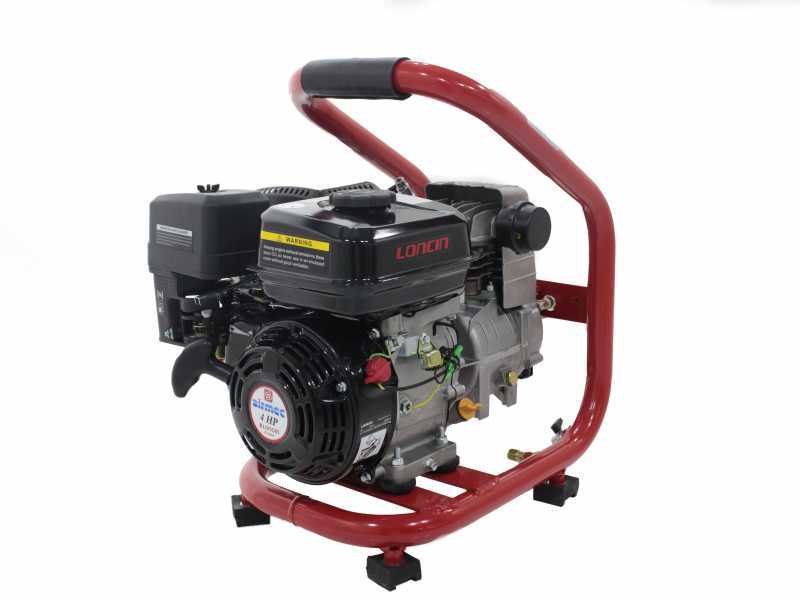

118 cc LONCIN engine

The LONCIN 118 cc engine is extremely powerful, sturdy and reliable

Features:

Engine type:
Single cylinder 4-Stroke - OHV
Cylinder type:
Aluminium
Cubic capacity:
118cm³
Power supply:
Petrol
Max. rpm:
3450 rpm
Start-up:
Manual

WARNING!
The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine

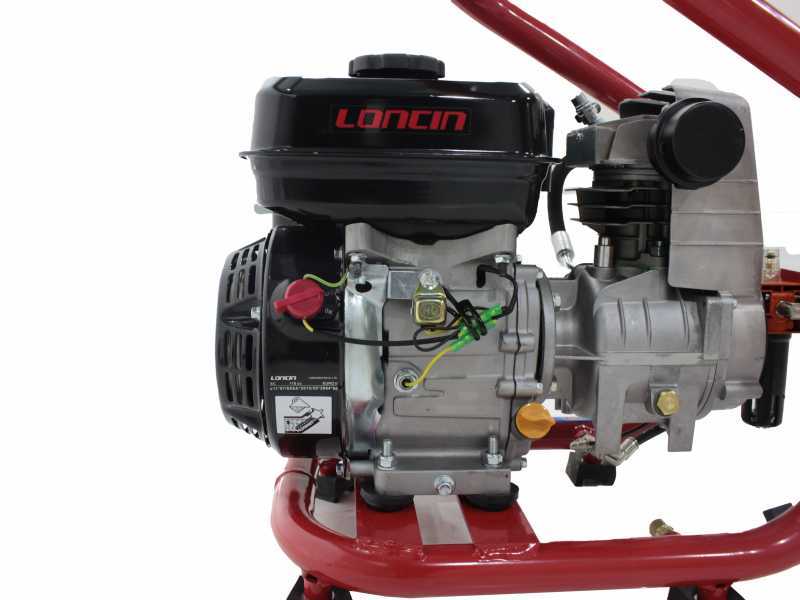

Fiac S15 cylinder head

Air intake flow: 275 L/min
Cylinder head type: twin-cylinder with cast iron cylinders
The pump unit requires 15W40 oil, to be replaced every 100 hours

The pumping unit by the Italian manufacturer FIAC fitted on the Airmec Micro 02/260 S15 is the result of high technology and years of experience in the field. The professional line to which this petrol engine-driven air compressor belongs, stands out for its exceptional durability and reliability, thanks to the use of components made with top-quality materials:

Detail of the high performance suction filters with labyrinth air flow pattern for noise reduction

Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine

Double tank and controls

The air compressor is protected by balanced frame with the tank to reduce the condensate effect.

Maximum pressure: 10 bar

Equipped with glycerine pressure gauge directly connected to the tank

It features a lubricator, that atomises oil in the outlet air to lubricate tools (adjustable lubrication intensity), and a double drain valve which allows the discharge of condensate. Detail of the compressed air joint.

No load operation system and maximum pressure control by means of professional pilot check valve

Detail of the ergonomic handle.

Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Free items & Standard equipment

Free items and extra features

Original documents and instructions manual included in the packaging.

The air compressor is shipped in its original packaging on pallet

Included in the packaging are:

Wrench for maintenance

Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine Airmec Micro 02/260 (260 L/min) Petrol Engine-driven Air Compressor with Loncin 118 cc Petrol Engine
