AL-KO LSH 370/4 - Electric Log Splitter - Horizontal - 230V

Add a question
ID: K605801

EAN: 4003718060768

MPN: 113791

7,0/10
After-sales assistance & Spare parts
AL-KO LSH 370/4 - Electric Log Splitter - Horizontal - 230V
FREE
Cotton glovesCotton gloves
Protective gogglesProtective goggles
Noise-canceling earmuffsNoise-canceling earmuffs
AgriEuro BandanaAgriEuro Bandana
Max. trunk diameter
25 cm
Piston stroke
42 cm
Operating mode
Single-phase 230 V
Nominal power
2 HP
Engine
Induction
Nominal power (W)
1500 W
Nominal splitting force
4 t
Nominal power
1500 W
Product Features
Model:
LSH 370/4
Type:
Horizontal
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
4 t
Piston stroke:
42 cm
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
2 HP
Nominal power (W):
1500 W
Nominal power :
1500 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
37 cm
Max. trunk diameter:
25 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side arms:
No
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Rear wheels size:
18 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
97x41x61 cm
Net weight:
48 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
86x34x51 cm
Gross weight (packaging included) :
54 Kg
Unloading with hydraulic tail lift:
No
Assembly time:
30 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 24/01/2025 - 28/01/2025
€ 413,32
Vat included

You're viewing:
Customers also viewed:
Description

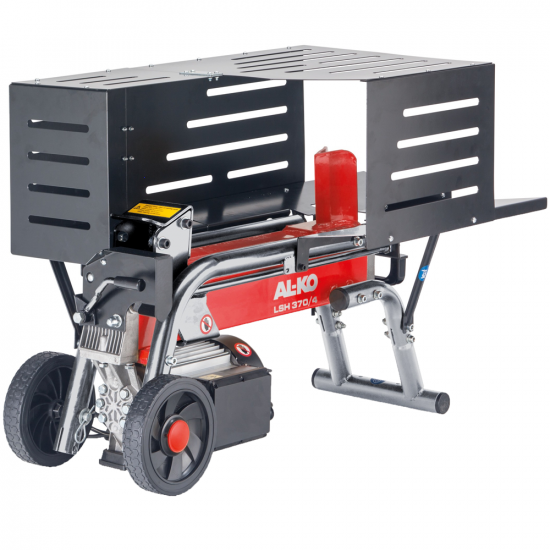

AL-KO LSH 370/4 log splitter

The AL-KO LSH 370/4 is an electric log splitter powered by a 230 V single-phase motor, that can develop a splitting force of 4 tons.

Small-sized electric log splitter intended for a hobby, domestic use.

This machine allows you to split trunks efficiently, effortlessly and safely, thanks to the protections in compliance with the CE standards.

HORIZONTAL STRUCTURE: it allows splitting even large-sized trunks without having to lift them up (you can place them on the cutting plate without any effort, given the low height of the support leg)

It is equipped with a powerful 230 V/50 Hz 1500W single-phase electric motor.

Splitting force: 4 tons

Trunks diameter: from 5 to 25 cm

Trunks height: from 13 to 37 cm

Equipped with a handle and wheels for easy transport.

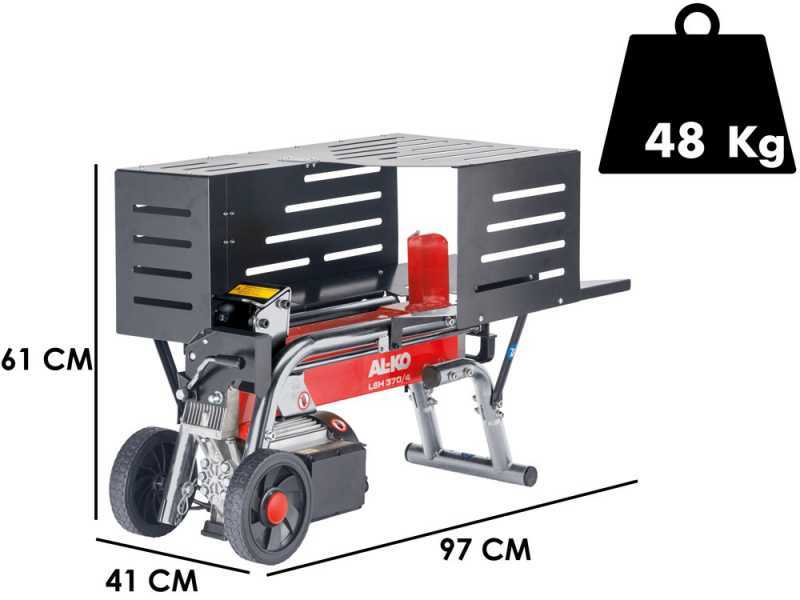

Overall dimensions: 97 x 41 x 61 cm

Weight: 48 Kg

It is in compliance with the CE safety standards.


WARNING:

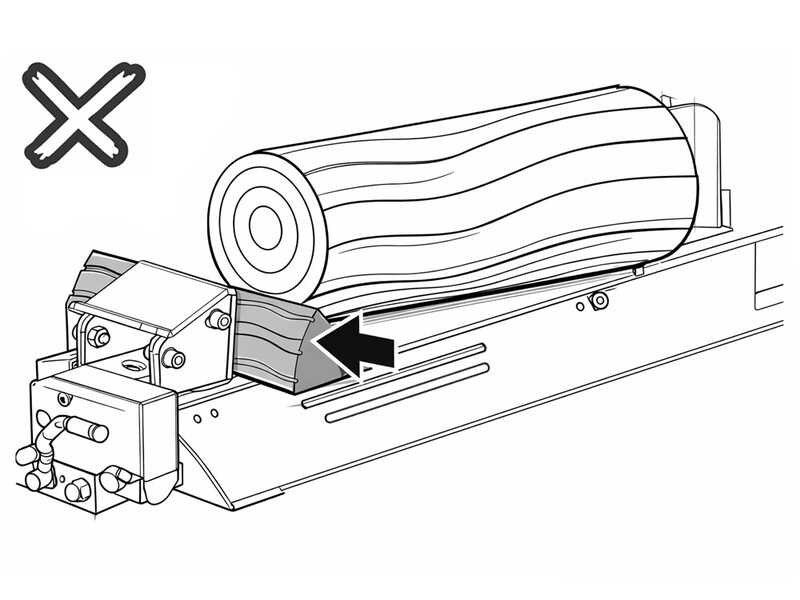

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter trunks and wood types with frequent knots in the wood. In this case it is advisable to use heavy-duty models intended for a professional use. Furthermore, the trunks should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

Electric motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 1500W

Power supply: 230 V 50 Hz

Focus on the on/off switch

Controls and other features

Two-hand operation:

1) The first hand must press the electric motor start button (which operates the pump).

2) The second hand pulls the piston drive lever to operate the splitting process.

Oil tank capacity: 2.4 L

Piston head made of cast aluminium

Focus on the sturdy cutting wedge

The heavy-duty multi-welded wedge ensures great performance and long-lasting durability. It can easily split even hardwood.

The handle and transport wheels near the motor guarantee high ease of transport.

Wheels diameter: 18 cm

Focus on the guards in compliance with the CE standards.

Free items & Standard equipment

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Free items included

The machine is shipped in its original packaging.

You’ll only have to assemble the guards provided.

The maintenance and instructions manual is included in the package.
