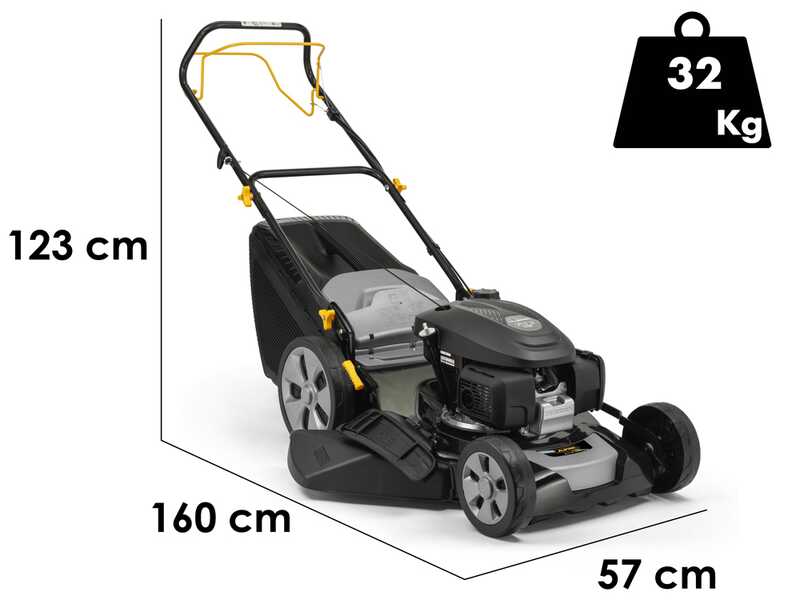

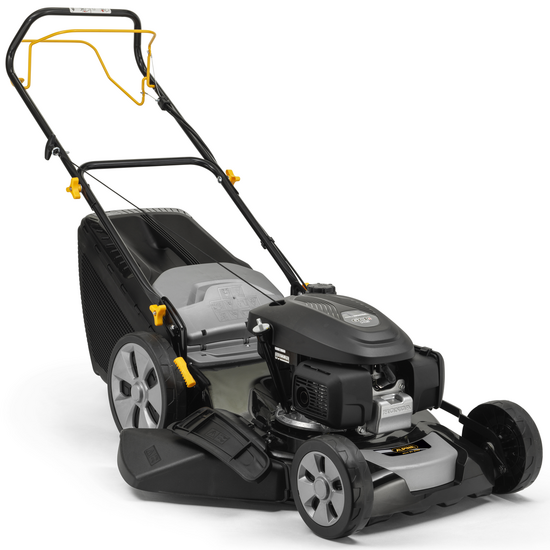

Alpina AL4 51 SHQ - Self-propelled Petrol Lawn Mower - Honda GCVx 145 Engine - 51cm Cutting Width

The Alpina AL4 51 SHQ Petrol Lawn Mower is a self-propelled model designed to offer high performance and great versatility.

Equipped with a Honda GCVx 145 OHV 145cc engine, this lawn mower can ensure excellent power and torque to tackle even the most challenging lawns. Its solid structure and well-balanced design make it particularly suitable for medium to large-sized terrains, with a cutting width of 51 cm and a collection capacity of 60 litres.

This model offers 4 cutting modes: collection, mulching, rear discharge, and side discharge, allowing easy adaptation to different lawn conditions.

The centralised cutting height adjustment system with six positions allows you to achieve the desired result effortlessly, while the large rear wheels of 280 mm facilitate manoeuvrability on more difficult and uneven terrains.

The Alpina AL4 51 SHQ lawn mower is also designed to be easy to manoeuvre thanks to its rear-wheel drive system, which allows you to tackle slopes and rough terrains with minimal effort. Additionally, the collection basket is equipped with an indicator that signals when it is full, thus preventing blockages.

The robust appearance of the steel chassis gives the lawn mower superior impact resistance, increasing the product's durability. The ergonomic handle, adjustable in height, helps improve operator comfort, reducing stress during use.

Distinctive features:

• Honda 145cc OHV Engine: Powerful, reliable, and easy to start, ensuring consistent performance.
• Four cutting modes: Collection, mulching, side discharge, and rear discharge.
• Large 280 mm rear wheels: Improve manoeuvrability on uneven terrains and tall grass.
• Centralised cutting height adjustment: Six positions for optimal cutting customisation.
• Full bag indicator: Detects when the collection bag is full, preventing clogging.

The Alpina AL4 51 SHQ lawn mower represents an ideal solution for those seeking a robust, powerful, and versatile lawn mower, capable of handling various lawn conditions with ease and comfort. The quality of the Honda engine and its practical features make it a perfect ally for maintaining large green areas.

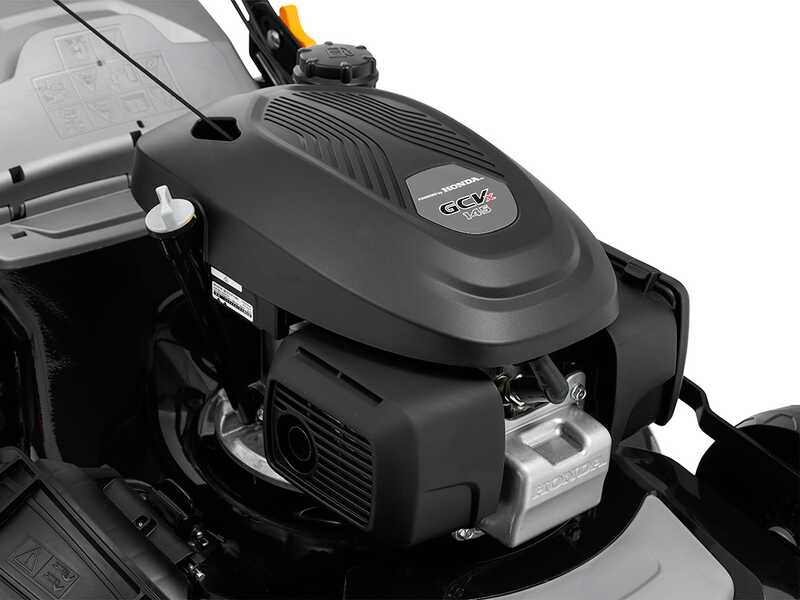

The Honda GCVx145 OHV Autochoke engine is lightweight and high-performance, suitable for tasks requiring high power, achieved thanks to the 145cc displacement which places it at the top of the Honda GCVx Series range.

Fixed RPM control

Special air filter

Special spark plug

Easy pull start thanks to the automatic fuel priming system.

WARNING:

The engine is SUPPLIED WITHOUT OIL.
Before starting, carefully read the instruction manual.

Nominal Power: 4.5 HP
The more correct term would be “Commercial” Power, meaning the classic standard of power definition officially used until a few years ago by all the most renowned engine manufacturers.* This data is still more widespread and advertised in the main commercial sales channels, although it is an exaggerated figure compared to the actual power.

Effective Power: 3.7 HP @ 2900rpm
Corresponds to the real power expressed at the crankshaft. It is the one indicated as official in the engine manufacturer's manual or technical data.* This data can vary for the same engine model depending on the rotation speed that the equipment manufacturer has decided to have the engine deliver.

Useful blade cutting width 51 cm.

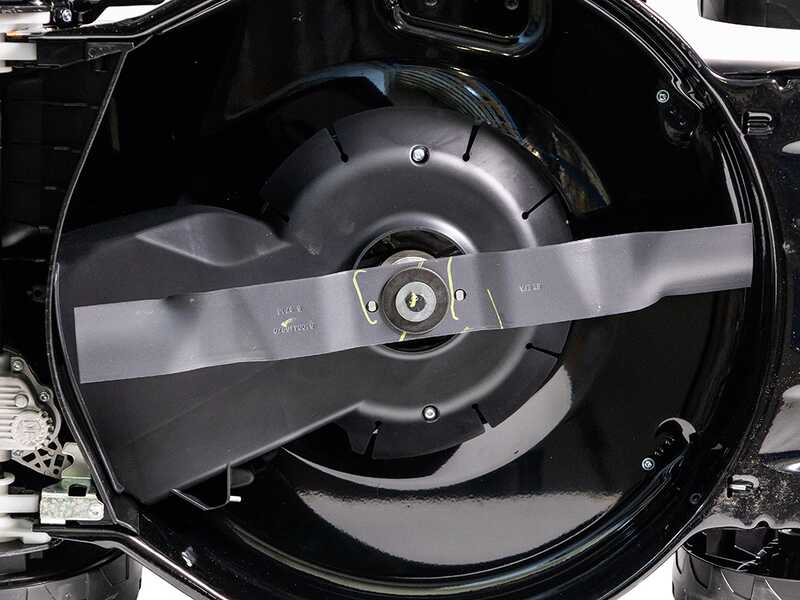

The mounted blade is made of tempered steel of a universal type, suitable for performing the 4 functions provided by the lawn mower.

The blade is of high thickness, designed to perform the four cutting functions provided by the machine: mulching, rear discharge, side discharge, and collection in the bag.

Practical front grass comb that lifts the grass just before cutting to ensure clean and uniform results.

The steel chassis gives this machine high robustness, combined with excellent lightness.

Rear-wheel drive (self-propulsion).

Forward speed: 3.7 Km/h.

Equipped with a robust gear transmission.

Allows the operator to conduct the grass cutting operation without effort, optimising the machine's traction and advancement efficiency.

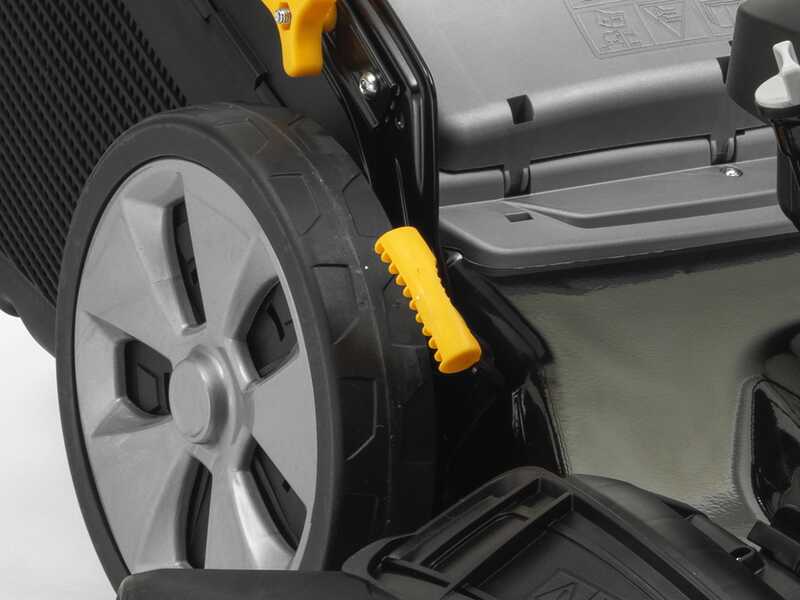

The high-wheel system provides incredible manoeuvrability. The wheels are mounted on ball bearings that significantly extend their lifespan.

Rear wheel diameter: 280 mm

Front wheel diameter: 200 mm

The Alpina lawn mower has 6 cutting height adjustments available, thanks to a centralised lever on the wheels, making it extremely easy to adapt the cut to the grass conditions.

They vary from a minimum of 22mm to a maximum of 80mm.

The centralised adjustment is incredibly fast and intuitive.

Simply rotate the appropriate handle and then lift the machine to the desired height.

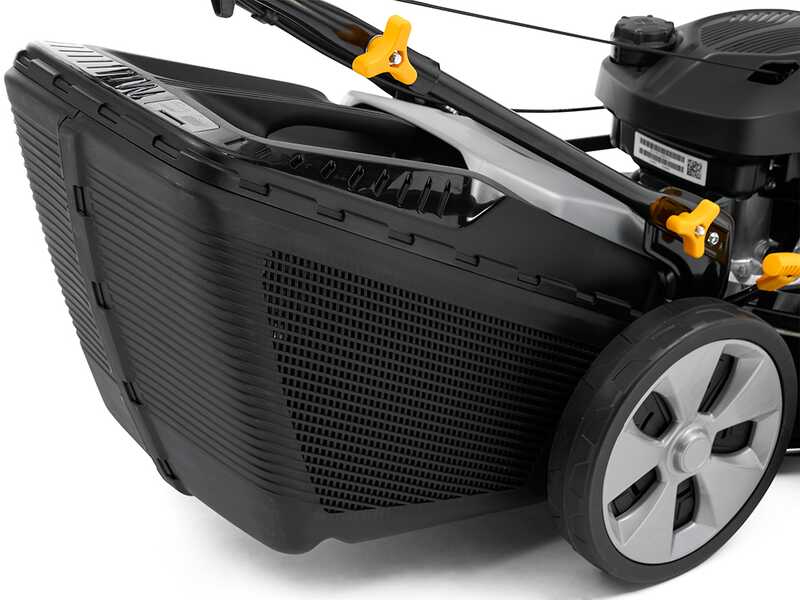

BAG COLLECTION CUTTING SYSTEM

Spacious 60-litre collection bag with full basket indicator .

The lower part is made of plastic. Its flexibility allows for easy emptying of the basket when full.

Practical handle located on the top of the basket to facilitate its removal.

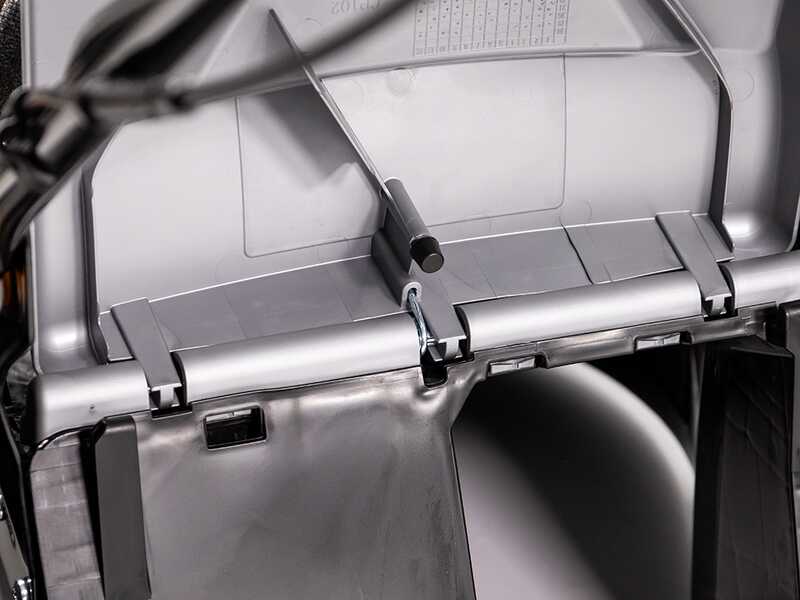

REAR DISCHARGE SYSTEM

Allows cutting the grass without using the collection bag, depositing it directly at the back of the lawn mower.

Simply remove the collection basket, and the rear discharge system will automatically function.

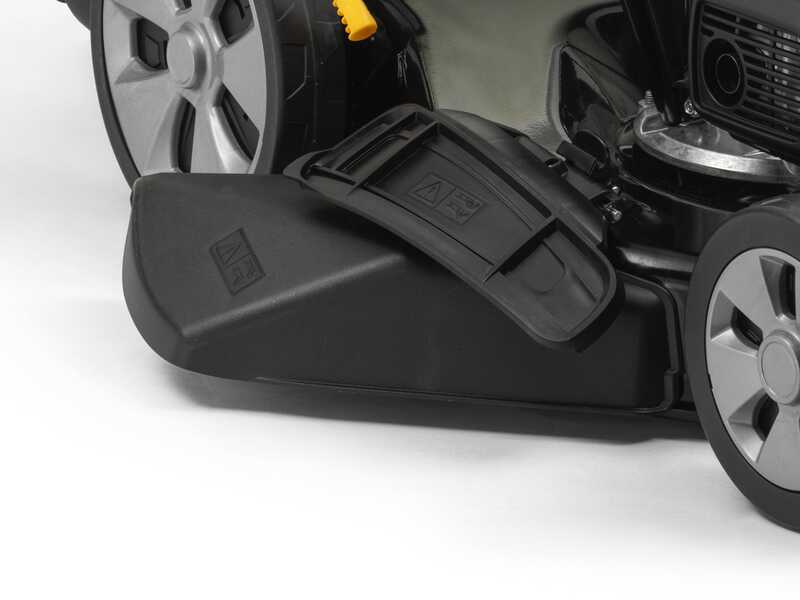

SIDE DISCHARGE SYSTEM:

for cutting grass without collection (even slightly taller grass, given the high disposal capacity of the side discharge deflector)

Leaving the mulching plug inserted, so that it blocks the grass discharge at the rear, simply lift the black side cover on the chassis and insert with a

simple gesture the side deflector provided.

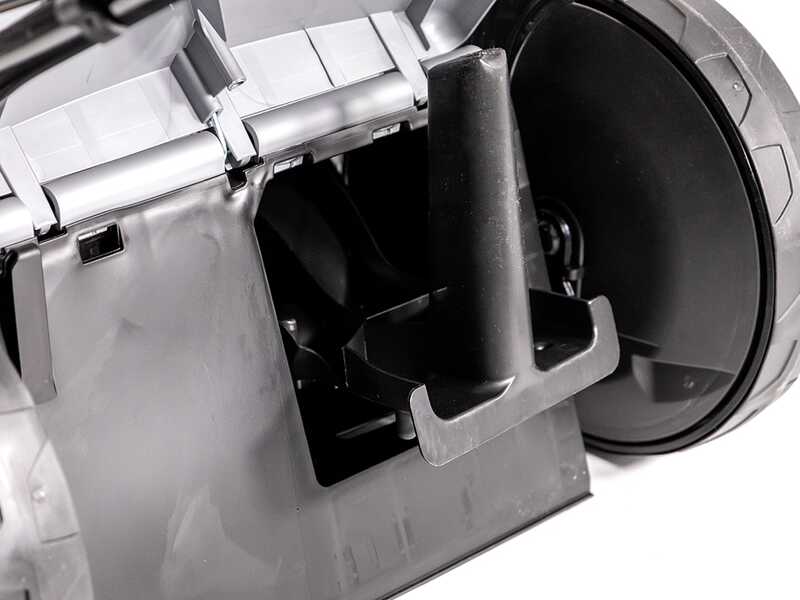

MULCHING CUTTING SYSTEM:

For cutting grass without collection, finely pulverising it before depositing it on the ground.

Immediate conversion: simply remove the collection basket, insert the mulching plug provided, and lower the rear deflector to enable the mulching system.

WHAT IS MULCHING:
a cutting system that allows the cut grass to be shredded and then released onto the lawn, pulverised to the point that it almost appears to have been collected. This eliminates the problem of its disposal (reducing effort and drastically shortening the time spent cutting) and also, as it decomposes, it will later turn into a nutrient for the lawn itself and into water (grass is made up of 80% water) thus ensuring a perfectly balanced biological cycle. However, it is useful to remember that, to ensure the absolute efficiency of the system, the lawn must still be watered, and the grass cut at least once a week.

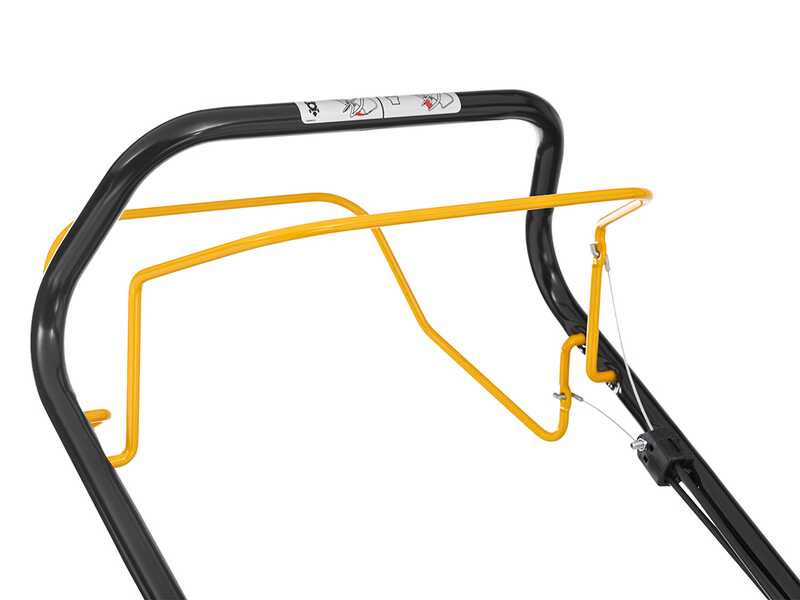

Controls located on the handlebar are simple and intuitive.

The handlebar is removable to facilitate storage operations.

Engine brake lever: it is the lever that allows the engine to start and stop and simultaneously engages/disengages the cutting device.

Drive engagement lever: it is the lever that engages the wheel drive and allows the machine to move forward
