Alpina AT4 98 HA Riding-on Mower with Hydrostatic Transmission with 240 L Grass Collector

Questions & Answers (9)
ID: K603788

EAN: 8008984851450

MPN: 2T2610404/A22

8,0/10
After-sales assistance & Spare parts
Alpina AT4 98 HA Riding-on Mower with Hydrostatic Transmission with 240 L Grass Collector
+400 sold
FREE
Multi-purpose trailerMulti-purpose trailer
Towing hitch kitTowing hitch kit
Mulching capMulching cap
Cover sheetCover sheet
Replacement spark plug kit + 2 bottles of 1 L oil eachReplacement spark plug kit + 2 bottles of 1 L oil each
Blade protection and sharpening kitBlade protection and sharpening kit
Grass collector
Mulching cutting system
For free
Front bonnet
Motor brand
Producer-manufactured
Motor Model
ST 450
Cubic capacity
432 cm³
Nominal power
16 HP
Recommended operating area
4000 s.q. m.
Cutting width
98 cm
No. of blades
2
Collection basket capacity
240 l
Reverse speed cutting
Blade engagement
Electromagnetic
Gear shifting system
Hydrostatic
Gears
Unlimited
Product Features
Model:
AT4 98 HA
Body:
Plastic
Front bonnet:
Grass collection system:
Standard equipment
Mulching cutting system:
For free
Cut with rear discharge:
Optional
Cutting system:
3 in 1 - Collection + Mulching + Rear discharge (optional)
Collection bag capacity:
240 L
Collection basket capacity:
240 l
Recommended operating area:
4000 s.q. m.
Starting mode:
Electric
Manufacturing country:
China
Motor data
Motor brand:
Alpina
Motor Model:
ST 450
Motor type:
4-stroke
Cubic capacity:
432 cm³
No. of cylinders:
Single-cylinder
Nominal power:
16 HP
Rated power (HP):
9.65 HP
Fuel:
Petrol
Tank capacity:
6 L
Outer oil filter:
Yes
Manufacturing country:
China
Transmission data
Gear shifting system:
Hydrostatic
Gearbox:
Hydraulic
No. of forward speeds:
Unlimited
Gears:
Unlimited
Operating mode:
Double pedal system
Cutting data
Body material:
Enamelled steel
Cutting width:
98 cm
No. of blades:
2
Blade type:
Cutting blades + mulching
Blade engagement:
Electromagnetic
Max. cutting height:
80 mm
Min. cutting height:
25 mm
No. of cutting positions:
7
Reverse cutting system:
Yes
Non-marking wheels:
2
Washing joint:
Yes
Equipment
Collection bag:
Standard equipment
Headlights:
Yes
Front Bull Bar:
On Standard equipment
Electric start with key :
Yes
Rear wheels size:
18 x 8.50 - 8
Front wheels size:
15 x 6.00 - 6
Seat type:
Comfort
Seat adjustment:
Yes
Can holder:
Yes
Free gifts/extra features
Mulching kit:
Optional
Engine maintenance kit:
For free
Free items:
Dumper
Instructions manual:
Yes
Dimensions and logistics

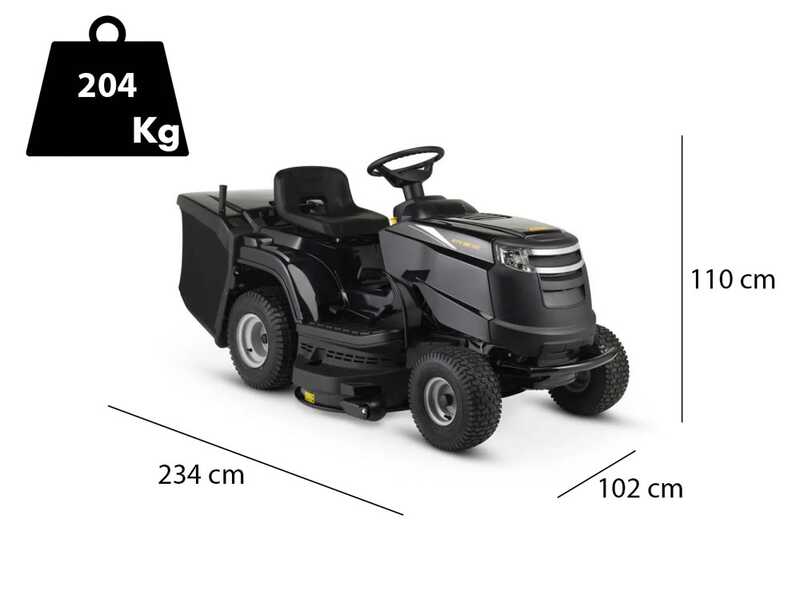

Product dimensions in cm (L x W x H):
234x102x110 cm
Net weight:
204 Kg
Packaging:
Original packaging on pallet
Original packaging/s dimensions in cm (L x W x H):
170x122.5x83 cm
Gross weight (packaging included) :
244 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
over 90 minutes
Prompt Delivery
25 items in stock
Free Shipping
Estimated delivery: 07/04/2025 - 11/04/2025
€ 3.517,39
Vat included
Available versions
You're viewing:
Customers also viewed:
Description

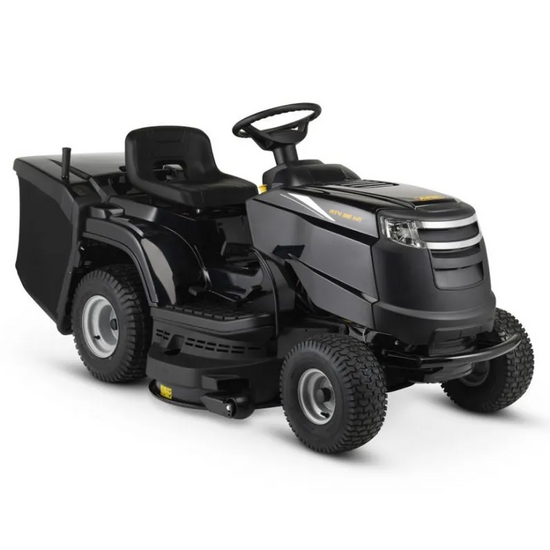

Alpina AT4 98 HA Riding-on Mower

This riding-on mower is reliable and easy to handle, suitable for working on large areas in a short time. Alpina AT4 98 HA is ideal also for less experienced users.

Powered by a powerful Stiga ST450 engine with 432 cc and 7.2 kW, which make it suitable to work on surfaces of up to 4000 s.q. m.

The machine is equipped with a foot-operated hydrostatic transmission, which will allow the driver to control speed and pace without the need to stop and change gears manually.

Equipped with a 2 cutting modes:

  • Grass collector
  • Mulching (supplied for free)

Using the first mode, the grass is collected inside the 240 L grass collector, while using the second mode, the grass is finely chopped and released directly onto the ground.

The powerful lights will allow you to work even in poor lighting, while the electromagnetic blade engagement allows you to stop the blades by pushing a button.

Cutting height adjustable in 7 different positions, from 25 to 80 mm and adjustable manually through a lever.

In addition to its handling and practicality, the riding-on mower also features a control panel with LED display, an ergonomic steering wheel and an adjustable seat for prolonged comfort even while working.

Non-marking wheels, which ensure that the edges of the cutting deck do not leave grooves on delicate surfaces when working on sloping terrain.

Ideal for users who are looking for functional and almost heavy-duty products.

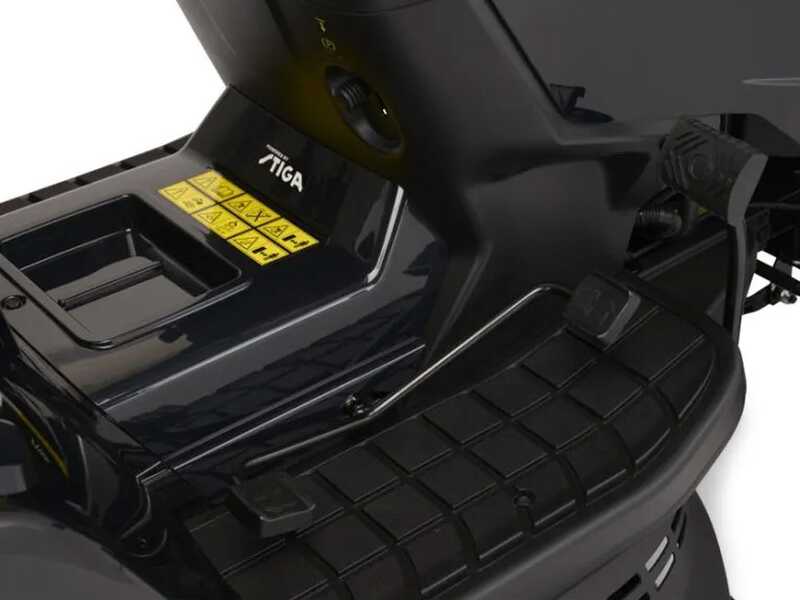

Hydrostatic Transmission

The hydrostatic transmission is a modern and functional type of transmission that is becoming increasingly popular among this type of machines.

Operating the machine is very simple: to move forward just push the pedal with the tip of your foot The riding-on mower will move according to the pressure applied. Simply push the opposite end of the pedal with your heel to engage the reverse speed.

To stop the machine, release the pedal.

This gearbox is becoming increasingly popular among users due to its practicality compared to the manual gearbox. The former in fact forces you to stop every time you want to change speed, to engage the gear, release the clutch and start again.

The hydrostatic gearbox, on the other hand, allows immediate speed changes without ever stopping, making it perfect for large surfaces where obstacles or trees must be avoided.

- Focus on the anti-slip footboard

- Focus on the brake pedal

- Focus on the washing joint

- Focus on the cutting deck

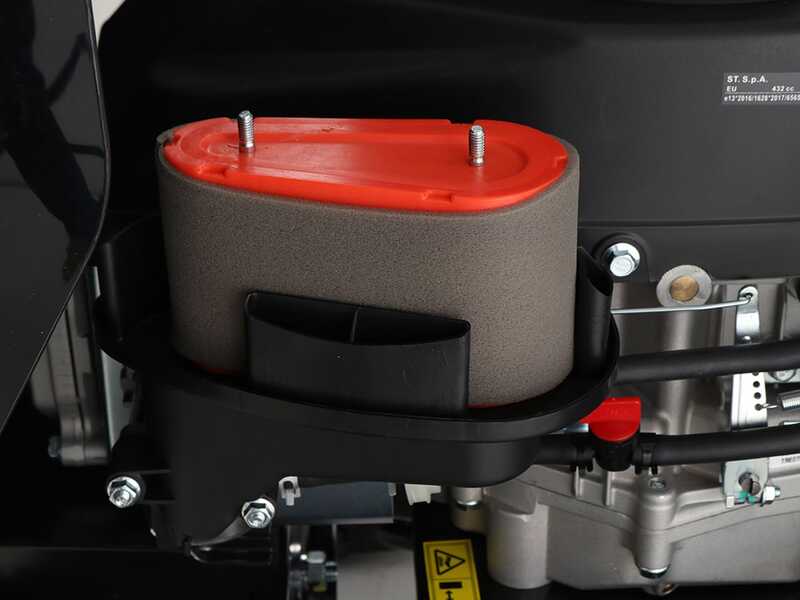

ST450 Engine

The engine fitted to the riding-on mower is an ST 450, ideal for high performance and versatility.

It develops a power of 7.2 kW, and allows the machine to work on large spaces in a very short time, as well as operating the large rear wheels and cutting blades.

It features a petrol tank up to 6 L.

At maximum power it reaches 2600 rpm and it is air-cooled.


Nominal Power: 16 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 9.65 Hp (a rotation speed of 2800 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from an engine model to another according to the rotation speed provided by the manufacturer.

Cutting Systems

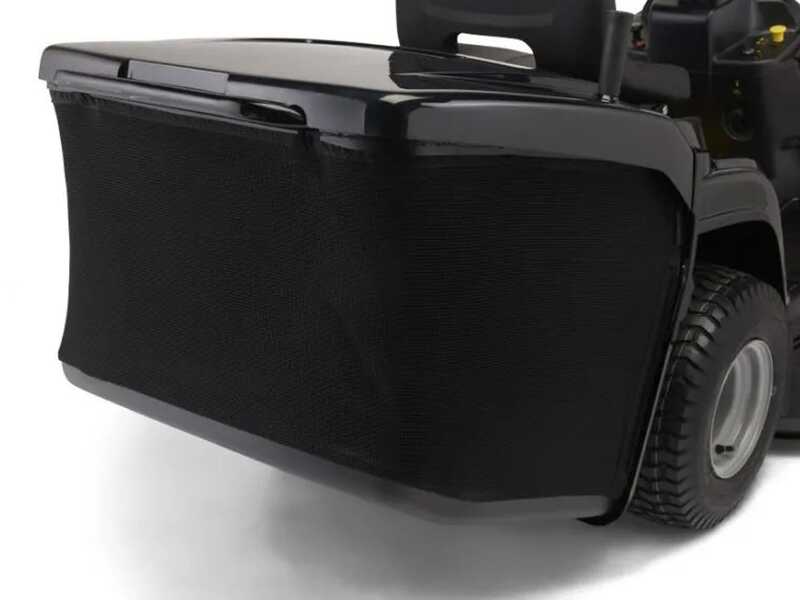

1 - GRASS COLLECTION SYSTEM (standard-supplied):

The grass is collected inside the grass collector, one of the most popular methods. The grass collector emptying system is very simple: It is sufficient to pull the dedicated handle. This way, you can empty the grass collector where you prefer without any effort.

Equipped with an acoustic signal that alerts the operator when the collector is full.

2- MULCHING (supplied for free):

The grass is finely chopped inside the cutting deck and then released directly onto the lawn. With this method, the grass will be so fine that it will look as if it has been collected, giving your lawn an aesthetically pleasing look. Furthermore, with this method, the grass will decompose and become a nutrient for the lawn itself.

Please remember that, in order to ensure the absolute efficiency of the system, the lawn must still be watered, and the grass cut very often.

Conversion: remove the grass collector and insert the mulching plug into the central opening.

- Focus on the rear part of the riding-on mower without grass collector

- Focus on the central opening

Cutting Deck

The cutting deck of the riding-on mower features two steel blades, for a width of 98 cm.

The plate is tilting, it adapts to unevenness in the ground, as long as they are not excessive, for a flawless cut in every condition.

Electromagnetic blade engagement activated through the button placed on the control panel. This system allows faster and more immediate engagement of the blades.

7 cutting positions available, from 25 to 80 mm. You can adjust the position using a side lever, placed next to the seat of the riding-on mower.

The cutting plate also features a washing joint: a small hole where the water hose can be attached, for quick cleaning of the blades and cutting deck. The machine also features two small non-marking wheels, for better grip on the ground.

- Focus on the washing joint

- Focus on the ignition lock with key

- Focus on the non-marking wheels

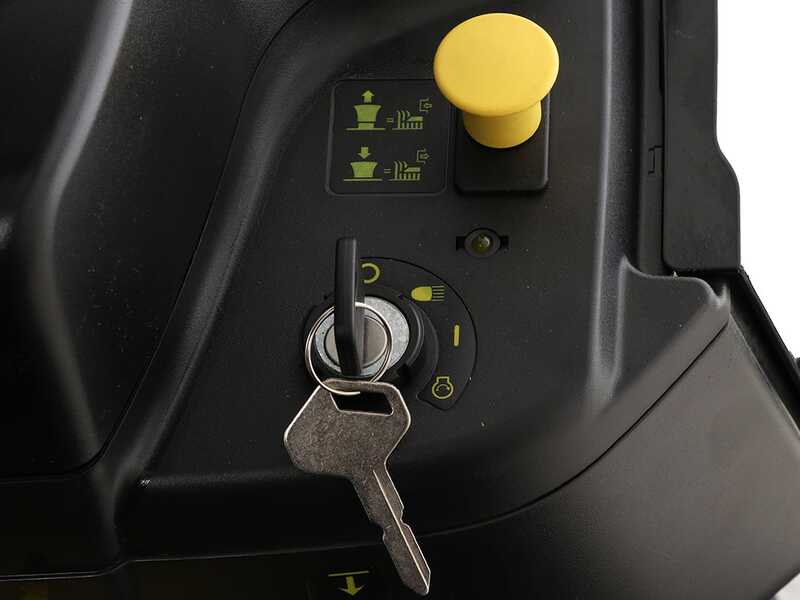

Controls and Adjustments

The AT4 98 HA controls and adjustments are:

  • Speed regulator
  • Parking brake
  • Ignition lock with key
  • Braking pedal
  • Electromagnetic blade engagement with yellow button placed on the right of the steering wheel
  • Cutting height adjustment lever
  • Hydrostatic transmission with pedal

Additional Features

Other features of the Alpina riding-on mower:

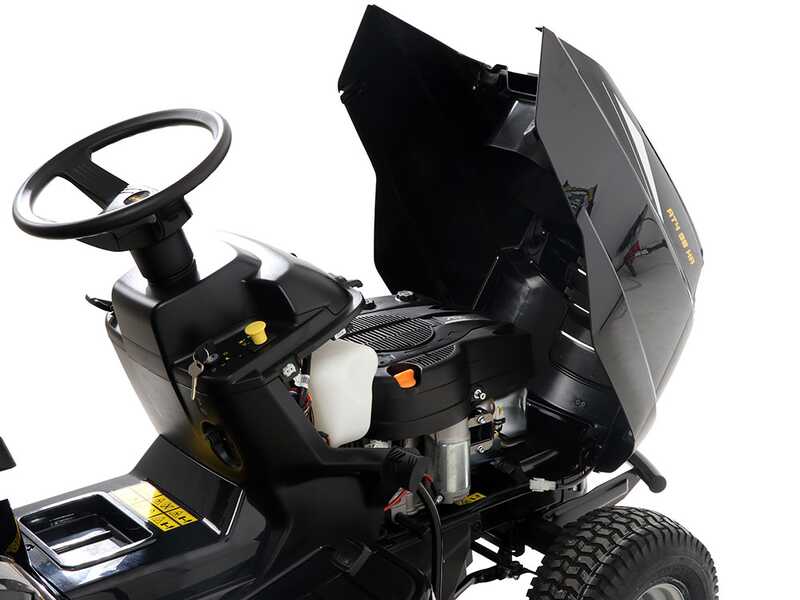

  • Opening engine bonnet to allow cleaning and maintenance operations
  • Ergonomic rubber-coated steering wheel
  • Sturdy front bull bar: it avoids frontal impacts and protects the machine.
  • 18 x 8.5-8 rear wheels
  • 15 X 6.00-6 front wheels
  • Pivoting front axle which ensure excellent balance, stability and riding comfort, even on not-perfectly flat terrains.
  • Non-marking wheels
  • Can holder
  • Can holder
  • Front headlights

- Focus on the front bonnet

Free items & Standard equipment

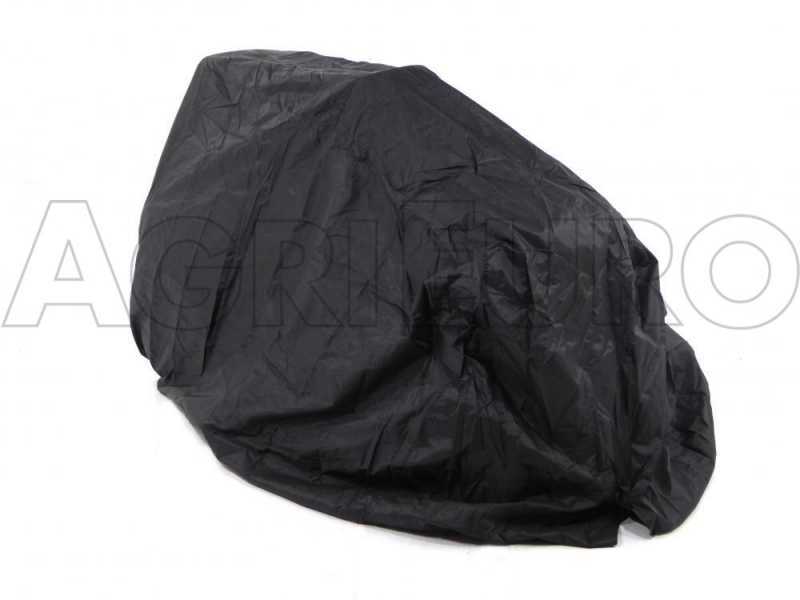

COMPLIMENTARYProfessional cover and XXL storage

It is essential for protecting your riding-on mower when stored.

This cloth is fast and easy to apply; within seconds your machine is protected from dust and moisture.

It is equipped with elastic on the lower edge to perfectly adhere to the bottom shape of the riding-on mower.

It is provided with a ventilation system.

Easy to fold and store in its box, it is really space-saving!

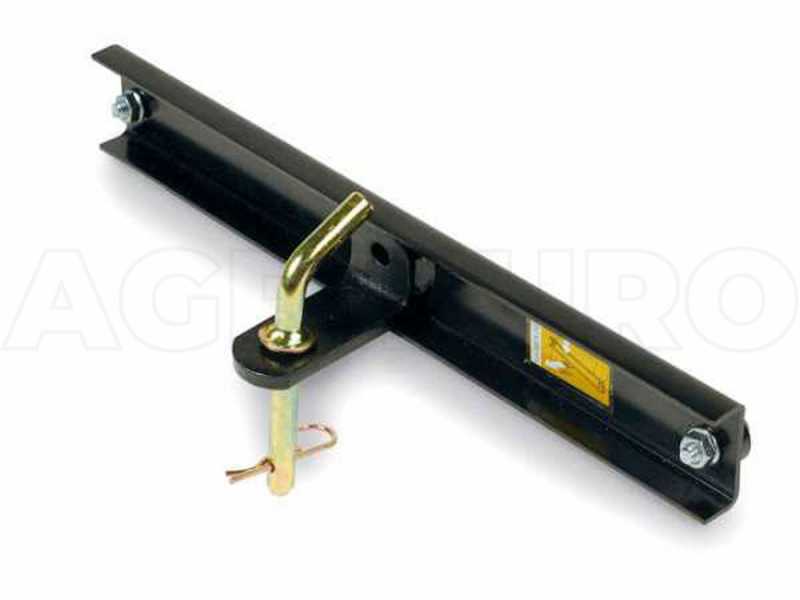

COMPLIMENTARY: Towing Kit for CastelGarden Riding-on Mowers

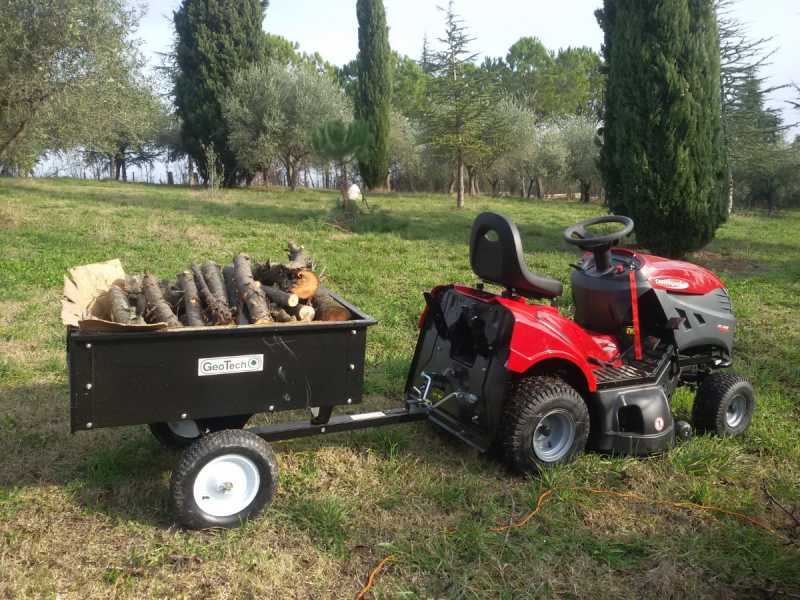

COMPLIMENTARY: Multi purpose tower trailer

HEAVY-DUTY MULTI-TOOL TOWED TRAILER: equipped with manual tilting and removable panel.

Its price in stores is around 300 euro.

We will give it to you FOR FREE without charging a single euro more! (it comes disassembled in its original packaging)

* The riding-on mower is already equipped with a tow hook on standard equipment (for hanging on the towed trailer to the riding-on mower the grass collector has to be removed)

Mulching plug 98 cm

Mulching plug that prevents grass from entering the collection tunnel.

Ideal for a very fine cut of the grass, allowing it to be left directly on the lawn, which in turn becomes a nutrient for the soil.

Suitable for 98 cm wide cutting deck.

1° GIFT: spare parts, accessories and maintenance kit for B&S 190/223 cc OHV engine

Spare parts and maintenance kit for the following BRIGGS & STRATTON engines:

  • 875 Series
  • 850 Series
  • 825 Series
  • 1000 Series

WARNING: this set is not suitable for other brands or models on market. We do not provide different kits from the ones offered on our website.

The kit includes:

  • Professional spark plug for the engine.
  • Multi tool spark plug wrench. Specific for lawn mowers - rough cut mowers - scythe mowers - etc.
  • Specific syringe for engine oil suction.
  • Waste oil collection bottle for easy waste oil disposal.
  • Funnel for oil draining and refilling.

2° GIFT: protection kit

PROTECTION KIT - SAFETY EQUIPMENT

Protective earmuffs to work with maximum comfort
Ear protection must be performed correctly in every working condition. In this case, the earmuffs provided on standard kit are specifically designed to protect the operator against the noise coming from the brush cutter.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate,equipped with anti-fog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid obfuscation and to improve comfort of use.

Agrieuro headscarf 100% cotton

Cotton gloves with rubber waves, for greater comfort and a secure and stable grip on the equipment

3° GIFT: 1 L oil bottles

FOR FREE: 2x 1 L sae 10W 40 bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 Hp. Good cleansing and dispersion.

4° GIFT: sharpener for lawn mower blades

The sharpener allows you to sharpen the blades of your lawn mower in a few minutes.

It is very easy to use since it is only necessary to attach it to your screwdriver / drill and then it will be ready to use.

Thanks to its small size, you won’t even need to remove the blade from the lawn mower, thus ensuring an even faster maintenance.

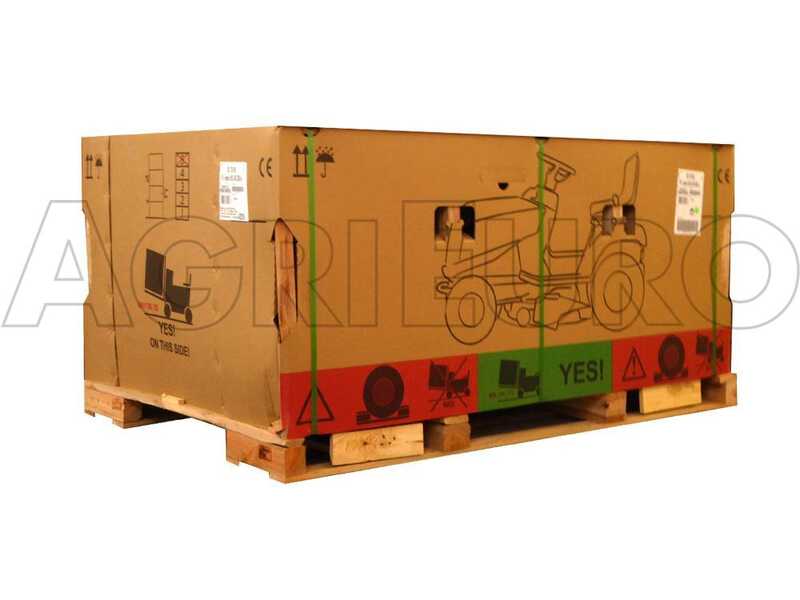

Standard Equipment

The Alpina riding-on mower is shipped in its original packaging.

The instructions manual is included in the packaging.

Once assembled the machine, please read the instructions manual carefully before starting.
