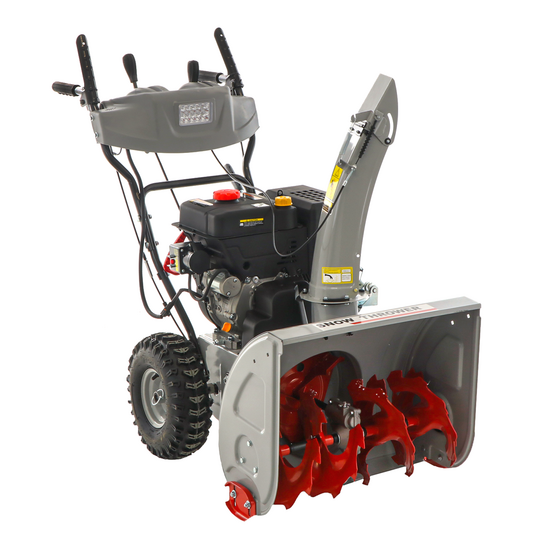

AMA NPS962 - Petrol Snowplough - Loncin LC180FDS

The AMA NPS962 snow blower is a machine suitable for work even in extreme conditions on medium/large areas thanks to the 302 cc and 9 Hp Loncin Snow LC180FDS engine.

Ideal for quickly and optimally clearing from snow the area around the house; practical to use, with extremely user-friendly and intuitive controls. Thanks to the headlights, it is also possible to operate at night and in low light conditions.

Engine designed specifically for snow thrower applications, for demanding work in extreme weather conditions (e.g. very low temperatures). Equipped with electric start, the engine can be started by connecting it directly to the home mains. The machine is not equipped with a battery as low temperatures would ruin it in a very short time. The batteries do not tolerate sudden temperature changes.

Equipped with a 62 cm wide and 53 cm high milling cutter, it allows collecting a large amount of snow.

Traktor tyres with a tread designed specifically for working on the snow.

Equipped with:

• 6+2 mechanical gearbox
• Steel 190° adjustable discharge chute
• Tool for unclogging
• Headlights

Powerful, reliable, designed to work specifically in extreme weather conditions, in contact with snow and frost.

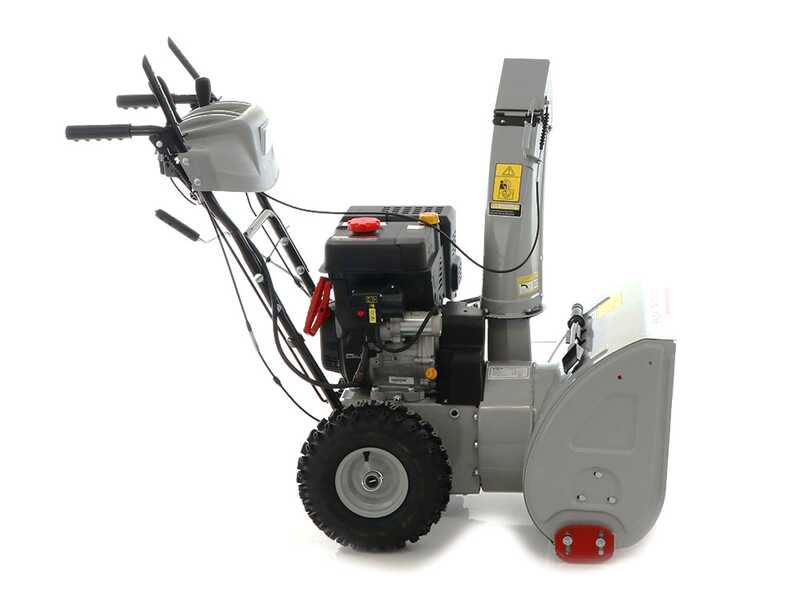

Engine type: 4-Stroke OHV single cylinder
kW: 5.6 KW / 3600 RPM
Cylinder type: Aluminium
Cubic capacity: 302 cc
Fuel Petrol
Power: 9 Hp
Start: Manual - Electric

OHV (over-head valve) engine

During starting, it may be necessary to use the primer (the red pump), which must be pressed max. 2 times before starting.

Air adjustment, which is necessary during starting, is possible by means the specific lever.

This truly exceptional system eliminates the need to use batteries, which are bound to run down all the time due to cold weather, especially in case of less frequent use. Winterised engines such as this one are not provided with air filter because working at low temperatures and with snow could create moisture that would then freeze, ruining the filter and creating problems for the operation of the machine.

Vent screw for proper summer storage, large starting handle, automatic inner decompressor for ultra-smooth, recoil-free starting.

Nominal power: 9 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 7.50 Hp
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

WARNING!

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before starting the unit.

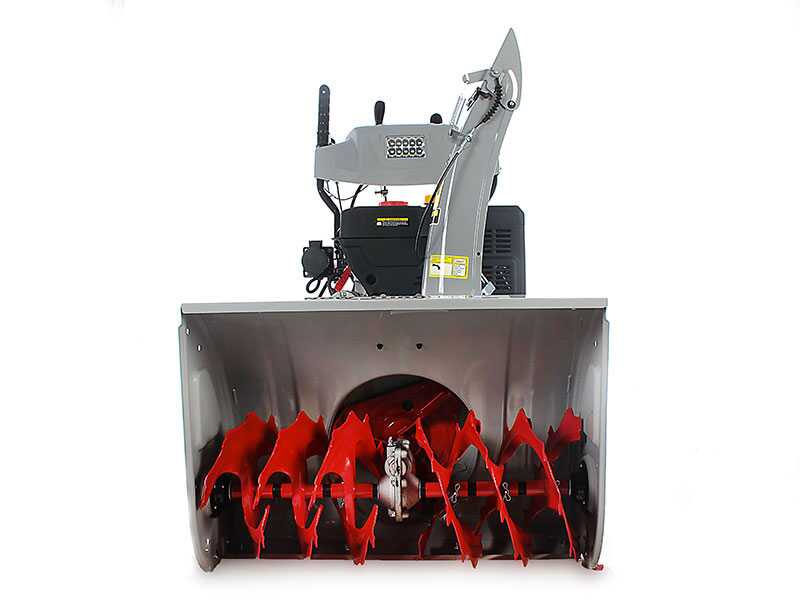

The auger compartment is 62 cm wide and 53 cm high.

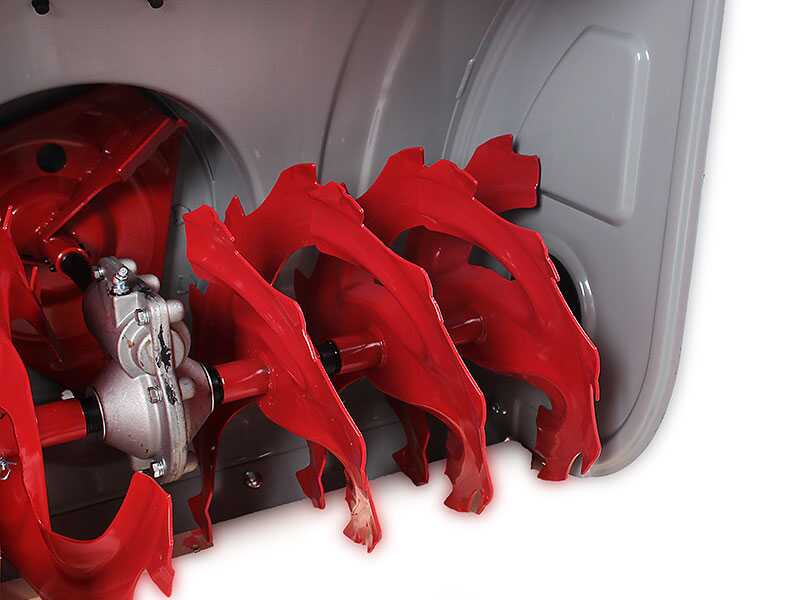

The heavy-duty auger is equipped with a steel spiral with optimised profile and serrated edge. This special design makes it suitable for crushing even the hardest snow.

The safety bolts protect the gearbox.

They are specially designed to fail as soon as the blade runs into some obstacle.

The 2-stage snow discharge system was carefully designed.

The snow is efficiently conveyed into the machine by means the auger, and then thrown away through the discharging chute by means an inner high-speed centrifugal fan.

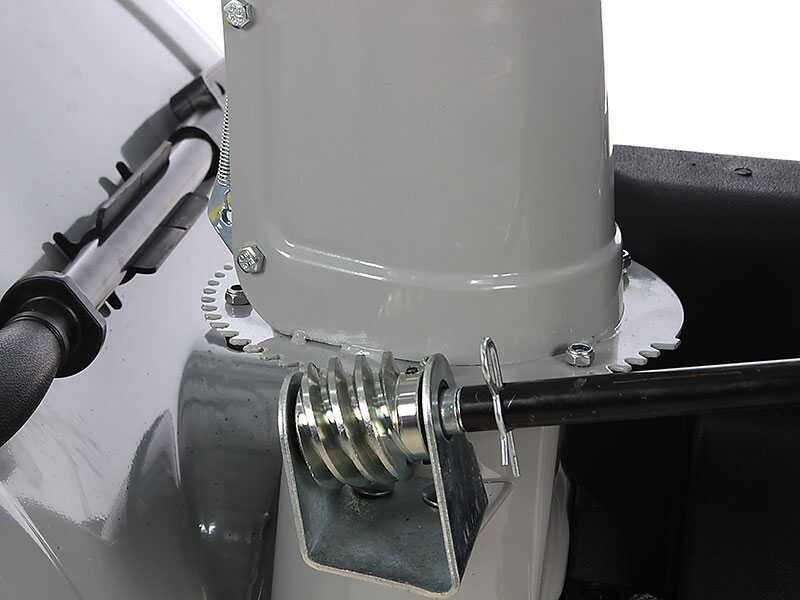

The snow discharge chute can be adjusted by means of a spiral connected to a lever near the main controls; simply turn the lever to rotate the chute to the desired position.

Discharge chute completely turned to the left.

Discharge chute completely turned to the right.

Deflector placed completely upwards, for maximum discharge distance.

The chute is also equipped with an safety grid for preventing debris to enter into it.

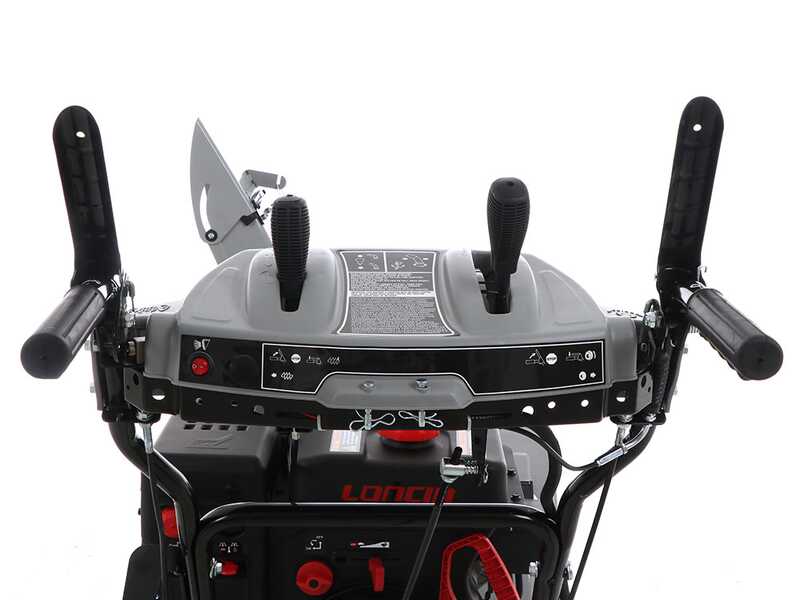

The dashboard is easy, user-friendly and intuitive. It includes all the main controls of the machine.

Gear right lever:
6 forward gears 2 reverse gears.

Gear left lever:
it adjusts the discharge chute opening

Lever on top of the right handle: engages and disengages the forward and reverse gears (whatever speed is selected on the gearbox, both forwards and backwards). Releasing this lever stops the machine instantly, for safety reasons.

Lever on top of the left handle: engages and disengages both the auger and the high-speed fan (engages and disengages both stages simultaneously).

Controls for switching on the headlights

Tool for unclogging.

If the discharging chute clogs it can be easily cleared with the proper tool.

Heavy-duty 35.5 cm Traktor wheels. Excellent grip on all types of terrain, even on gravel roads or slopes.

The handlebar of the snow blower can be folded so that it takes up less space during storage.

Starting mode: manual and electric

Speed: 6 forward gears, 2 reverse gears

Working width/height: 62 cm x 53 cm

Discharge chute rotation: 190°

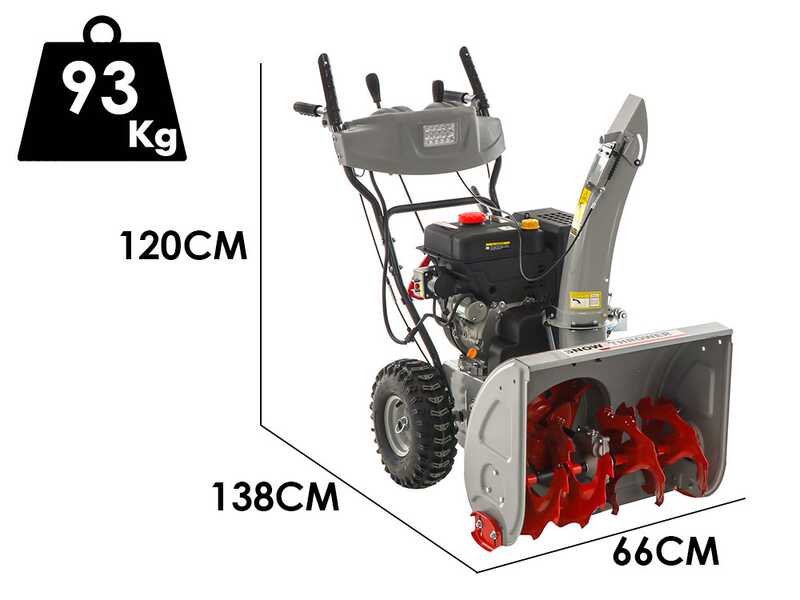

Weight: 93 kg

Front headlights
