Annovi & Reverberi AR 1440 Petrol Pressure Washer with Honda GP 160 Engine

Questions & Answers (5)
ID: K501785

EAN: 9999237544160

MPN: 26216

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 1440 Petrol Pressure Washer with Honda GP 160 Engine
+100 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Free water supply connection kitFree water supply connection kit
Heavy-duty axial pump
Pump head material
Brass
Max. flow rate per hour
660 L/h
Max. pressure
200 bar
Cubic capacity
163 cm³
Nominal power
4.8 HP
Motor type
4-stroke
Motor brand
Honda
Motor Model
GP160
Pressure regulator
Yes
Wheeled
Type
Trolley
Detergent tank
Weight
32 Kg
Product Features
Model:
AR 1440
Wheeled:
Type:
Trolley
Operating mode:
Spark ignition
Operation mode:
Petrol
Detergent delivery:
Low-pressure
Manufacturing country:
China
Motor data
Motor brand:
Honda
Motor Model:
GP160
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
4.8 HP
Motor speed:
3400 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.1 L
Manufacturing country:
Japan
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
3 axial cylinders
Heavy-duty axial pump:
Pistons material:
Steel
Pump head material:
Brass
Brass pump head:
Flow rate:
9.5 L/min
Max flow rate per minute:
11 L/min
Max. flow rate per hour:
660 L/h
Operating pressure:
150 bar
Max. pressure:
200 bar
Pressure regulator:
Yes
Pressure regulator:
Safety valve:
Yes
Manufacturing country:
China
Equipment
Integrated detergent tank:
Yes
Detergent tank:
External detergent suction hose:
Yes
Type of attachment:
M22 - Screw
Hose holder:
Yes
Rubber-coated soft grip:
Yes
Tool holder:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Connecting hose kit:
Yes
Maintenance tool kit:
Yes
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Quick-connect nozzle lance:
Yes
Hose length:
8 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
46 X 65 X 93 cm
Net weight:
32 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
53 X 69 X 58 cm
Gross weight (packaging included) :
40 Kg
Assembly time:
5 minutes
Prompt Delivery
24 items in stock
Free Shipping
Estimated delivery: 08/07/2024 - 10/07/2024
Suggested price:
€ 822,66
€ 765,07
VAT Included
You're viewing:
Customers also viewed:
Description

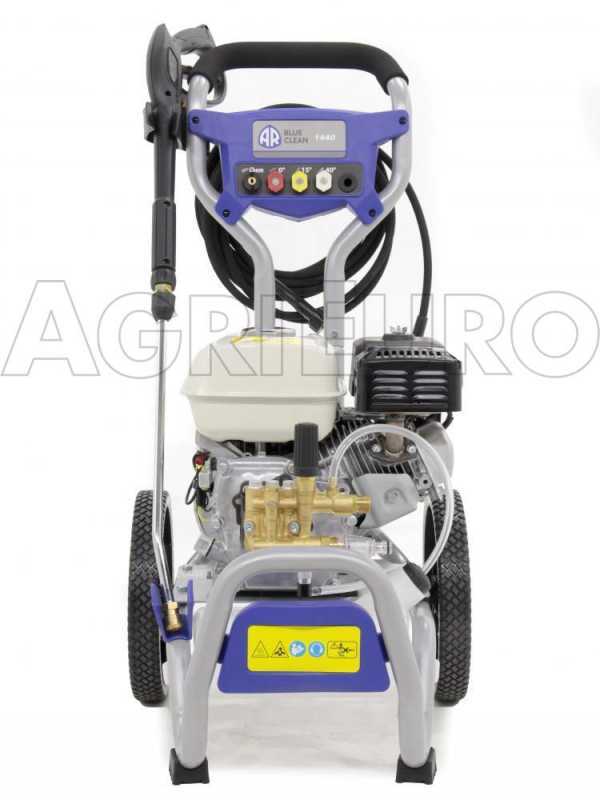

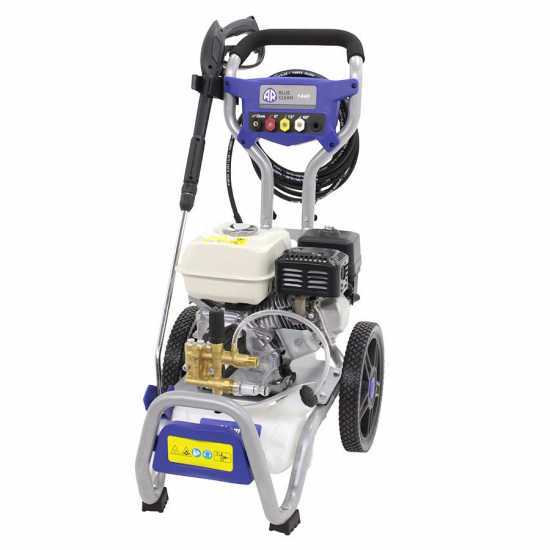

Annovi & Reverberi AR 1440 Petrol Pressure Washer

The Annovi & Reverberi AR 1440 pressure washer is a semi-professional machine, ideal for demanding amateurs who seek a product that combines excellent performance with competitive price.

The piston pump with high-performance rod-crank system features excellent manufacturing quality.

The structure of the pump with its in-line pistons and brass head ensures superior reliability and durability compared to standard aluminium and axial pumps.

The Honda GP 160 engine, renowned as one of the best on the market today, is equipped with a power of 4.8 Hp, which guarantees a maximum flow rate of 11 L per minute and a maximum pressure of 200 bar.

Easy and comfortable recoil start system, which is also ensured thanks to the efficient decompression system.

The sturdy metal trolley with two pneumatic wheels with 28 cm diameter features a removable handle and ensures safe movements despite its weight of 30 kg.

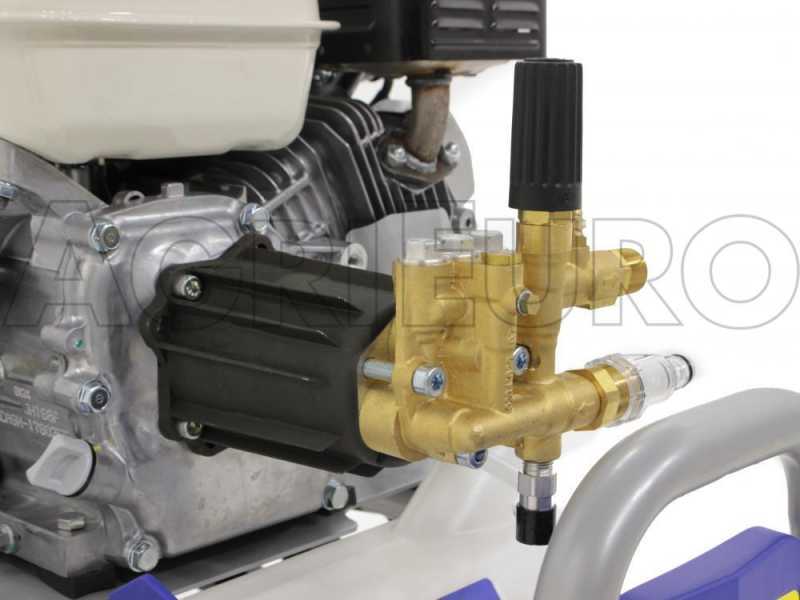

Three-piston pump with rod-crank system

The pump unit with a connecting rod-crank system is equipped with 3 high-strength pistons resistant to corrosion, placed inside the head.

The head is completely made of brass.

  • Aluminium alloy frame.
  • Pressure regulator
  • Automatic bypass valve

The piston pump with brass head with 3 steel pistons is intended for demanding and intensive use.

The structure of the pump with pistons and brass head unit ensures higher levels of reliability and durability compared to the regular aluminium and axial pumps.

  • Pump flow rate: 11 L/min max (660 L/h max), the flow rate is the most important technical data of a pressure washer, even more than pressure, as it shows the real power of the machine.
  • Working pressure: 200 bar

Integrated detergent suction with internal tank (supplied with suction tube), this convenient accessory is not present on many other machines on the market.




The engine is PROVIDED WITHOUT OIL.

The machine is provided with oil.

Read the instruction manual carefully before using the machine.

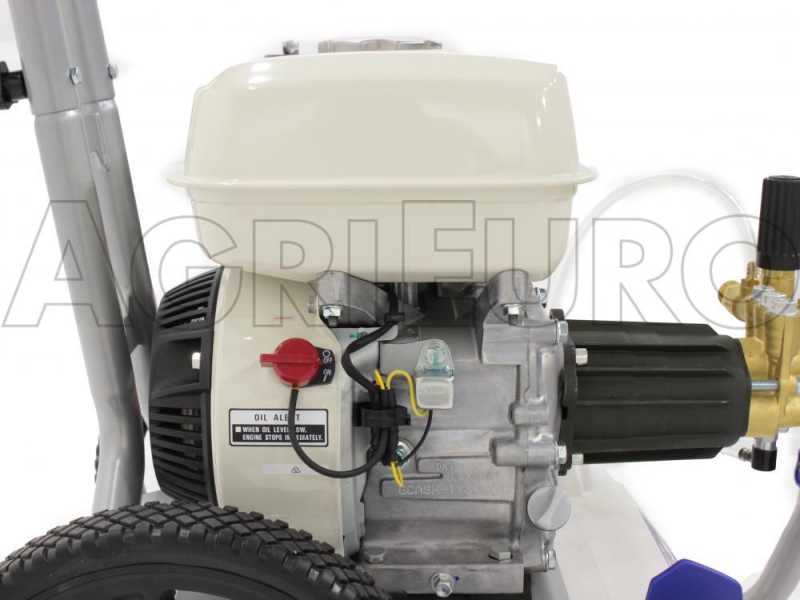

HONDA GP 160 Engine

HONDA engines stand out as the "TOP-QUALITY ENGINES ON THE MARKET”.

Honda GP 160 is lightweight and high-performance, suitable for jobs where good power is required, obtained thanks to the 163 cc cubic capacity.


Main features:

Engine type
4-stroke, single-cylinder - OHV
Cylinder type:
cast iron
Cubic capacity:
163 cm³
Compression ratio
8.5: 1
Max. rpm
3600
Fuel tank capacity:
3.1 L
Consumption:
1.4 L/h at 3600 rpm
Dry weight
15.1 kg

4-stroke petrol engine of the latest generation with "OHV” overhead valves - horizontal shaft, cycle eight, 4-stroke, 25° inclined cylinder, forced air cooling, cast iron cylinder.


Nowadays, the great majority of agricultural and gardening equipment available on the market features unbranded (or by unknown brand) engines made in China.


The engine is PROVIDED WITHOUT OIL.

The machine is provided with oil.

Read the instruction manual carefully before using the machine.


Nominal Power: 4.8 HP

The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers. This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 3.4 HP

* It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

Lance and Nozzles Included

The pressure washer features a lance with 4 interchangeable nozzles with quick coupling.

  • Red 0°: to obtain a jet with maximum cleaning power in a small range
  • Yellow 15°: for good cleaning power in a small range
  • White 40°: for good cleaning power in a wide range
  • Black SOAP: to use with the detergent

The professional lance features quick coupling, it is equipped with extension and safety device

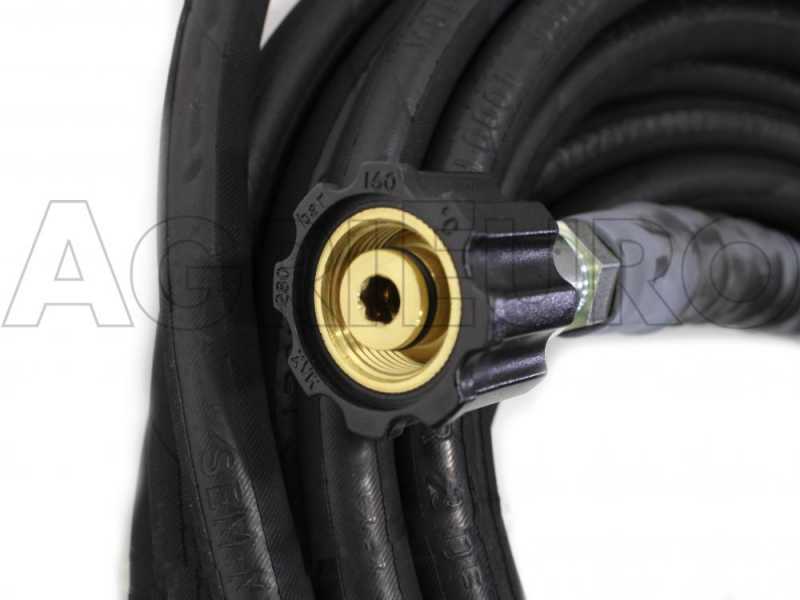

The 10 m high-pressure hose supplied features quick coupling.

Included also the easily accessible water filter equipped with quick coupling.

Other Features

The pressure washer is mounted on a steel trolley with slots for easier maintenance and removable handle.

The machine is equipped with:

  • hose reel and lance holder.
  • nozzle holder

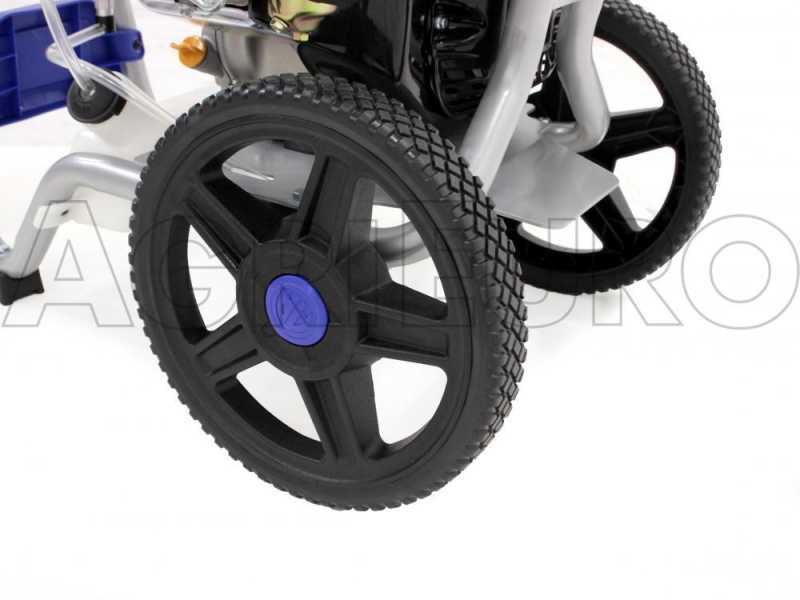

  • large rubber wheels to easily move the pressure washer even on surfaces that are not perfectly even.
  • anti-slip front rubbers

DIMENSIONS: 46 x 65 x 95 cm

WEIGHT: 31.3 kg

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

Free Items Included

The Annovi & Reverberi petrol pressure washer is shipped in its original packaging on a pallet. You only need to assemble the lance and the wheels.

  • 8 m high-pressure hose

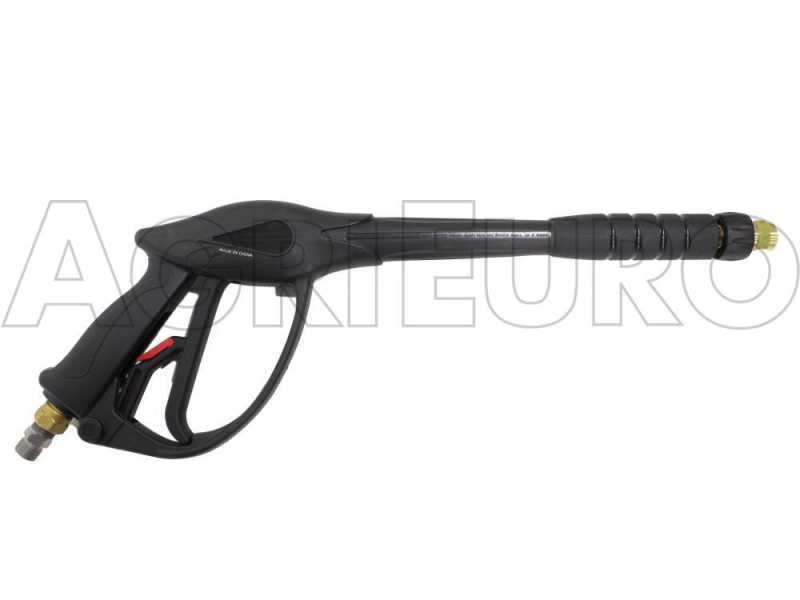

  • Spray gun provided with quick connection system
  • 4 nozzles included
  • Instructions and maintenance manual of the pressure washer
