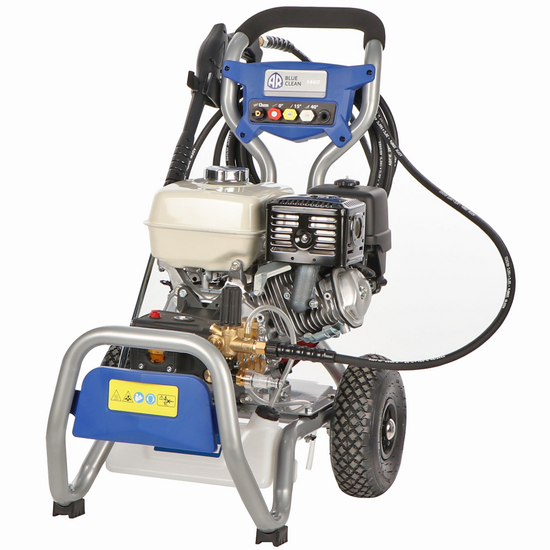

Annovi & Reverberi petrol pressure washer AR 1480

The Annovi & Reverberi AR 1480 high-pressure cleaner is the ideal professional tool for demanding hobbyists who aim for excellent performance at a competitive cost.

Its piston pump, with a high-performance crank-rod system, ensures superior construction quality.

The pump configuration, with aligned pistons and brass cylinder head, ensures greater reliability and durability than aluminium and axial alternatives.

The Honda GX 390 engine, renowned for its excellent value for money, delivers 13 Hp, allowing a maximum flow rate of 16 litres per minute and a maximum pressure of 280 bar.

The recoil start is made easy and light by an efficient decompression system.

The distinctive features and advantages :

Piston pump with connecting rod-crank system for high performance and quality construction;
Corrosion-resistant steel construction;
Integrated nozzle, gun and lance holder;
Built-in 2.8 litre detergent tank for greater autonomy;
Anti-vibration feet to reduce vibration and noise;
Inflatable tyres to facilitate handling;
Equipped with detachable handle for safe advancement;

Annovi & Reverberi AR 1480 - petrol pressure washer - 280 bar - 960 l/h - Honda GX 390 petrol engine

Three-piston pump with rod-crank system

The pump unit with connecting rod-crank system is equipped with three high-strength, corrosion-resistant pistons inside the cylinder head.

The pump head is completely made of brass.

Aluminium alloy, carter.
Pressure regulator
Automatic bypass valve

The piston pump, with brass headboard with 3 steel pistons, is realized for a very intensive and burdensome use.

The construction of the pump with in-line pistons and the brass head unit ensures a higher level of reliability and a durability compared to the standard aluminium and axial pumps.

Pump flow rate: 16 L/min max (960 L/h max), the flow rate is the most important technical data of a pressure washer, even more than pressure, as it identifies the real power of the unit.
Operating pressure: 280 bar

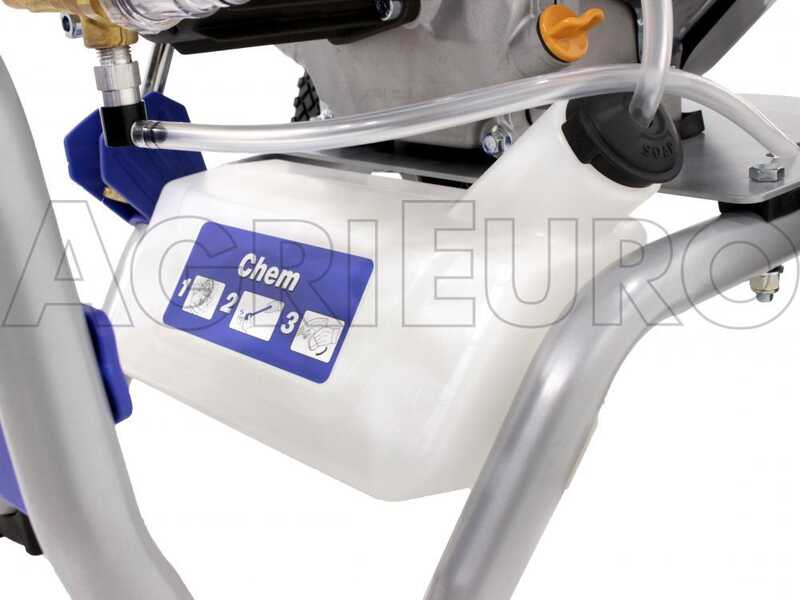

Integrated detergent suction with 2.8 L internal tank (suction tube included). Most petrol-powered high-pressure cleaners are not equipped with this practical integrated tank.

The engine is PROVIDED WITHOUT OIL.

Oil kit for engine and pump.

Before using the machine, it is important to read the instruction manual carefully.

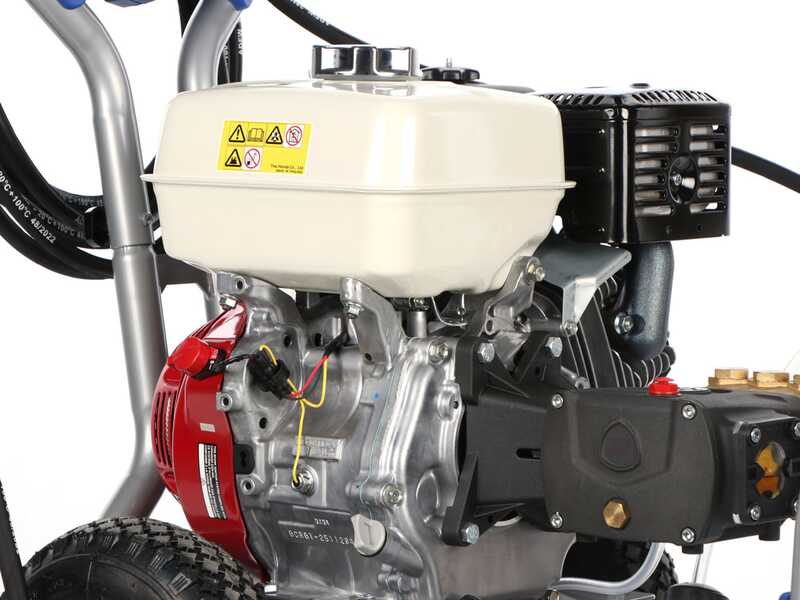

Honda GX 390 Engine

The powerful and professional standard Honda GX 390 engine with OHV overhead valve technology.

Features:

Engine type

Single cylinder 4-stroke - OHV

Cylinder type:

Aluminium

Displacement

389 cm³

Compression ratio

9.0 : 1

Max. rpm:

3600 rpm

Torque value

26.5 Nm / 2.7 kgfm / 2500 rev / min

Fuel tank capacity:

6.1 L

The Honda “GX” series is highly professional and was developed for heavy-duty woks in the building and agricultural field for generators, welders etc. It is characterised by great durability and reliability.

Filter detail.

Nominal Power: 13 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 11.7 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

WARNING!

The engine is PROVIDED WITHOUT OIL.

READ THE INSTRUCTION MANUAL CAREFULLY BEFORE STARTING IT UP.

Lance and Nozzles Included

The pressure washer is equipped with a lance consisting of 4 interchangeable nozzles with quick connecting system.

Red 0°: to obtain a jet with maximum cleaning power in small radius
Yellow 15°: for a good cleaning power in a small radius
White 40°: for good cleaning power over a wide radius
Black SOAP: to use with the cleanser

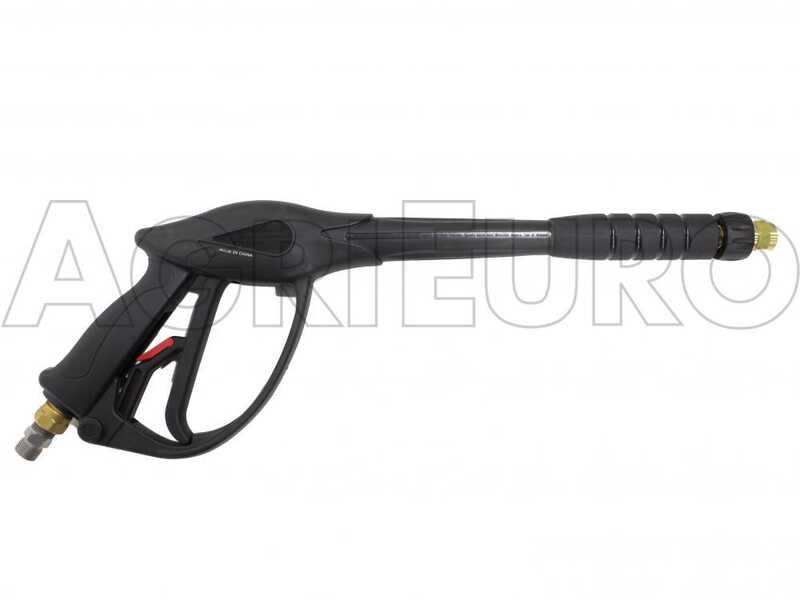

Professional lance with quick coupling system, equipped with extension

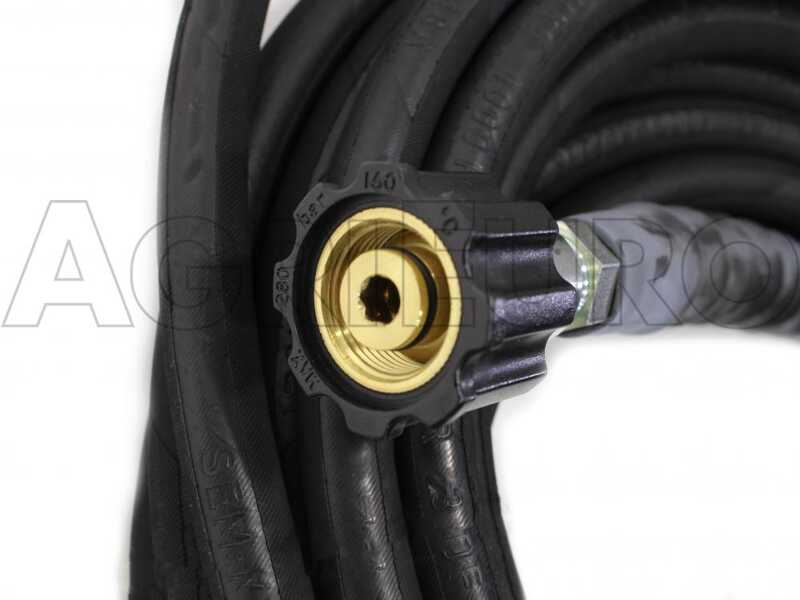

10 m high-pressure hose with quick coupling system.

Also included is an inspectable water inlet filter with quick coupling.

Other Features

The high-pressure cleaner is mounted on a steel trolley with eyelets for easy maintenance and a removable handle.

The machine is equipped with:

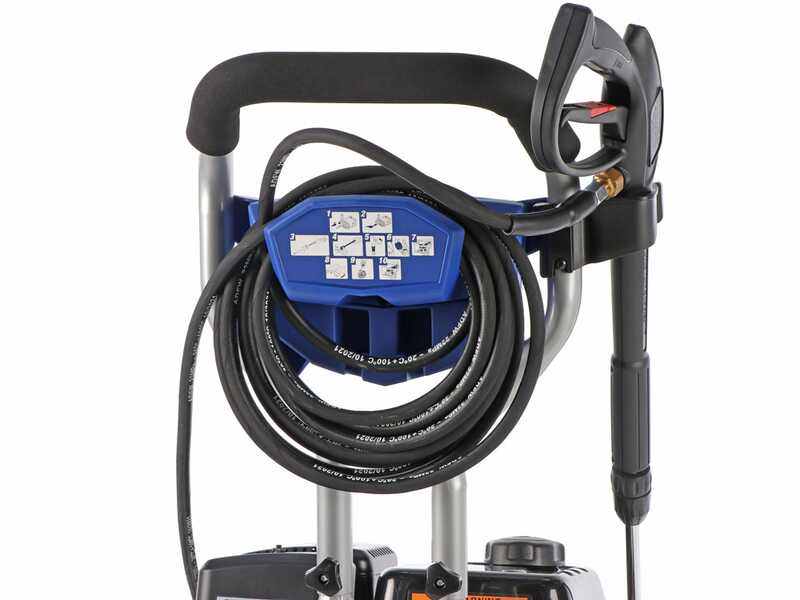

Hose reel and lance holder.
Accessory holder
Large RUBBER pneumatic wheels to facilitate movement, even on surfaces that are not perfectly smooth.
Anti-slip front rubber pads

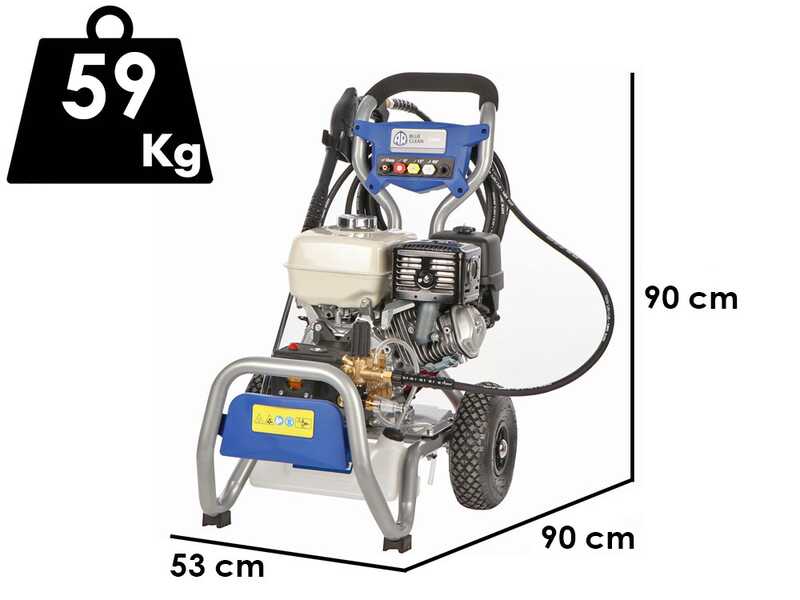

DIMENSIONS: 53 x 90 x 90 cm

WEIGHT: 59 kg

Free items & Standard equipment

COMPLIMENTARY: Spare parts and accessories kit for engine maintenance

Spare parts set and accessories for the maintenance of the following engines.

HONDA GX 330
HONDA GX 390
Loncin 330 cc
Loncin 390 cc
Axo 330 cc
Axo 390 cc

The set includes:

1 GeoTech spark plug

1 key professional jointed candle to use specifically for tractor engines, grass cutters and mowers professional mover

1 air filter elliptical and in sponge for the engine

WARNING: This kit can’t be used for other brands or models on market. We don’t provide different kit from the ones offered on our website. We do not guarantee the adaptability of products not purchased from our site.

COMPLIMENTARY: 1 lt Oil Bottles

COMPLIMENTARY: two 1 lt 10W 40 oil bottles. Specific lubricant for 4-stroke engine-powered gardening machinery featuring up to 10 HP. Good cleansing and dispersion.

Complimentary

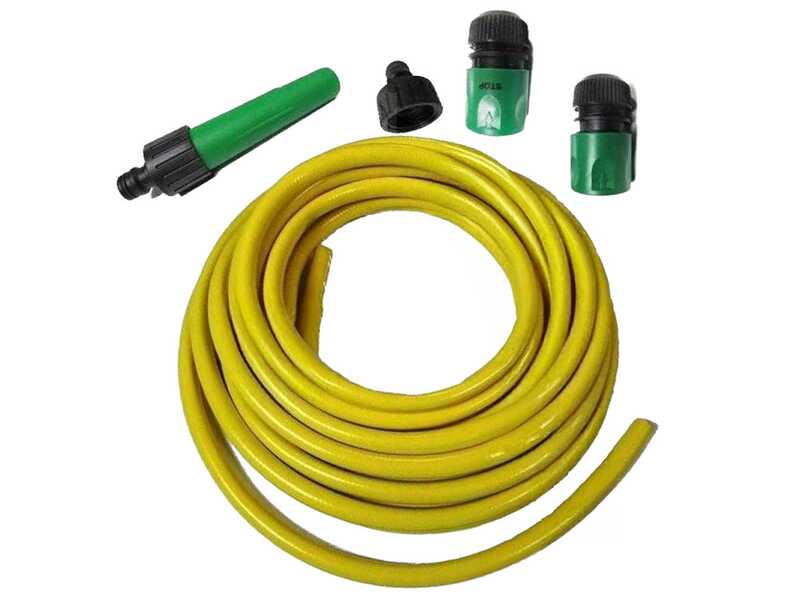

WATER CONNECTION KIT for pressure washer

The kit includes:

Ø 15 mm yellow hose, 15 m long
Male quick connector for tap connection (size of the standard thread: 3/4“)
Standard female quick connector (to insert the hose into the male quick connector for tap connection)
Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.
Adjustable plastic lance with male quick connector.

It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

Free Items Included

The Annovi & Reverberi pressure washer is shipped in its original package on a pallet. It comes fully assembled. You will just need to assemble the lance wheel adjustment.
