Annovi & Reverberi AR 588 Pressure Washer - 150 bar max. - Manual Hose Reel and Pressure Gauge

Questions & Answers (3)
ID: K604963

EAN: 8016287130271

MPN: 13027

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 588 Pressure Washer - 150 bar max. - Manual Hose Reel and Pressure Gauge
+100 sold
FREE
Protection and storage tarp coverProtection and storage tarp cover
Suede clothSuede cloth
Free water supply connection kitFree water supply connection kit
Axial pump
Pump head material
Brass
Max. flow rate per hour
500 L/h
Max. pressure
150 bar
Engine
Induction
Operating mode
Single-phase 230 V
Wheeled
Hose reel
Rotating nozzle
On the second lance
Detergent tank
Self-priming pump
Weight
23.4 Kg
Product Features
Model:
AR 588
Wheeled:
Type:
Wheeled
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Detergent delivery:
Low-pressure
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Motor speed:
2800 RPM
Max. power absorption:
2.5 Kw
Cooling:
With air
Pump data
Pump brand:
Annovi & Reverberi
Pump type:
3 axial cylinders
Axial pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Steel
Pump head material:
Brass
Brass pump head:
Max flow rate per minute:
8.3 L/min
Max. flow rate per hour:
500 L/h
Operating pressure:
140 bar
Max. pressure:
150 bar
Equipment
Integrated detergent tank:
Yes
Detergent tank:
Detergent dispenser:
Yes
Type of attachment:
M22 - Screw
Hose reel:
Total Stop:
Yes
Rear wheels size:
170 mm
Tool holder:
Yes
Free gifts/extra features
Spray gun:
Yes
Lance with adjustable nozzle:
Yes
Rotating nozzle:
On the second lance
Rotating nozzle:
Hose length:
8 m
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
38 x 33 x 84 cm
Net weight:
23.4 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
40 x 35 x 96 cm
Gross weight (packaging included) :
25 Kg
Assembly time:
5 minutes
Prompt Delivery
15 items in stock
Free Shipping
Estimated delivery: 14/01/2025 - 20/01/2025
€ 455,05
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

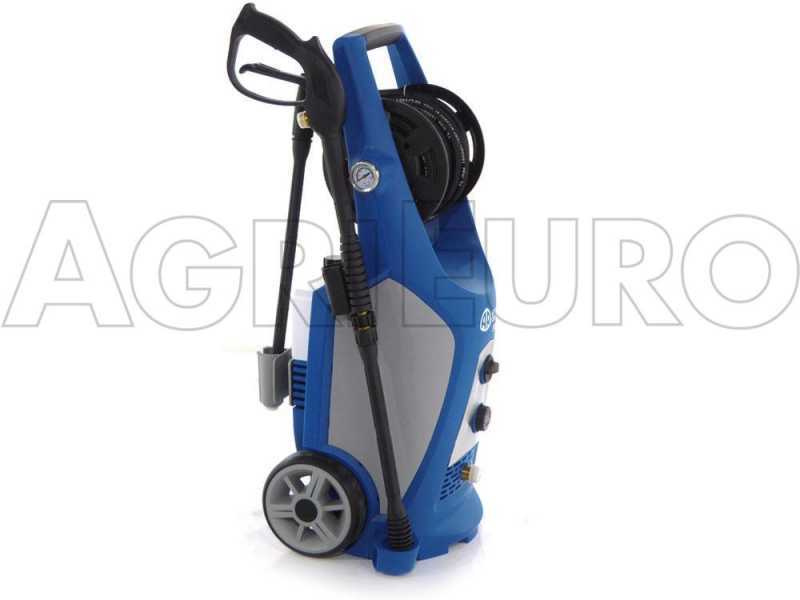

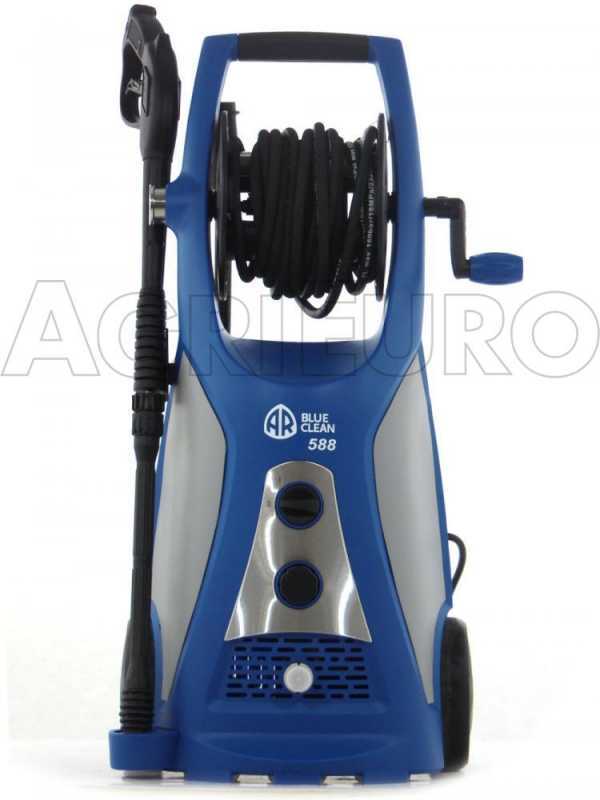

AR Blue Clean AR 588 Pressure Washer

Blue Clean AR 588 cold water pressure washer on trolley with manual hose reel and pressure gauge is part of series 5 by Annovi Reverberi.

Comfortable and user-friendly, easy to transport. This is thanks to the 17 cm diameter wheels, the large handle and the reduced 23.4 Kg weight.

The AR 588 is not bulky thanks to its vertical configuration, the hooks and compartments on the machine body, which are designed to store most of the accessories that come together with the machine.

Good performance: ideal for cleaning garden furniture, tools, bikes, patios and additional applications.

Reliable products

Unlike many “single-use” items available on the market at very low price, Annovi Reverberi pressure washers come with:

  • technical support availability
  • spare parts availability
  • long-lasting product
  • high performance

Pump and Motor

Pressure: 150 bar max.

Flow rate: 8.33 L/min (500 L/h)

The AR 588 pressure washer consists of 3-axial pistons driven by the swashplate and brass pump head.

  • Hardened stainless steel pistons
  • Automatic bypass valve.
  • Built-in pressure gauge
  • Remote total stop system of the pressure washer.
  • Single-phase electric motor with thermal protection.

Pressure is fundamental for pressure washers. Flow rate is even more important: affordable machines may often feature high-pressure but very short flow rate, resulting in inefficient products. The minimum flow rate must be at least 350 L/h.

Main Features

User-friendly start controls

“TSS" (Total Stop System)
When you release the water delivery button, the machine automatically shuts down, starting again when you continue working. Main advantages:

  • it prevents overheating
  • makes the pump more durable
  • reduces consumption

Easy access to the water filter and 5 m power cable.

  • 1.2 L built-in detergent tank with direct suction and adjustment knob.
  • Hose reel with crank handle and 8 m hose
  • The spray gun, lance and adjustable head are placed on the side and rear part of the machine.
  • Carrying handle
  • Heavy-duty threaded hose fitting for easy connection to the lance and focus on the handle
  • Focus on the safety device.
  • 17 cm diameter wheels

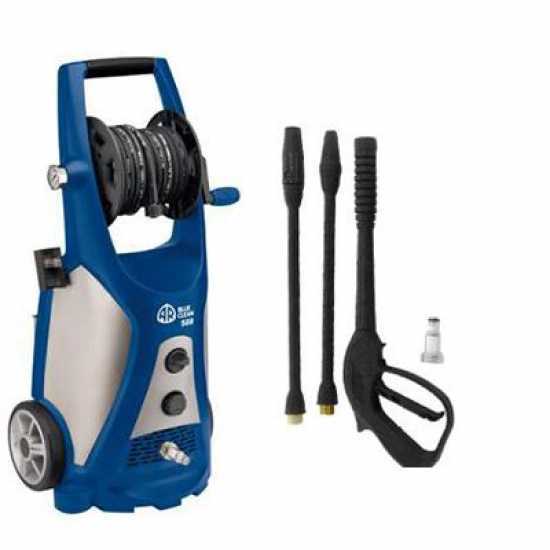

Assembly and Equipment

Free items included

  • Lance with rotating nozzle
  • Lance with adjustable nozzle
  • 8 m high-pressure hose and manual hose reel
  • High-pressure gun
  • Water inlet hose adapter with filter
  • 1.2 L built-in detergent tank
  • 5 m power cable
  • Rear accessory holder
Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

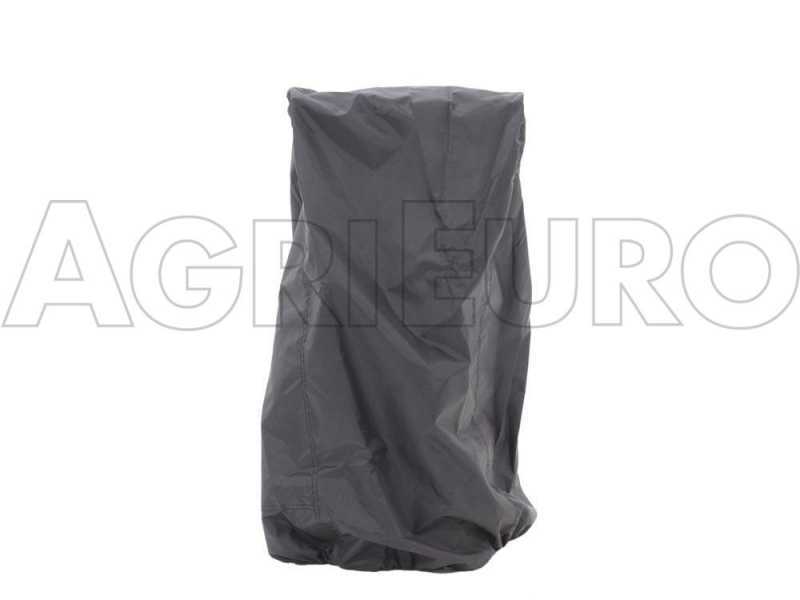

Protection and Storage Cover for Pressure Washers - Size: - Medium

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower border to perfectly fit to the shape of the machine.

Easy to fold and store in its box and space-saving!

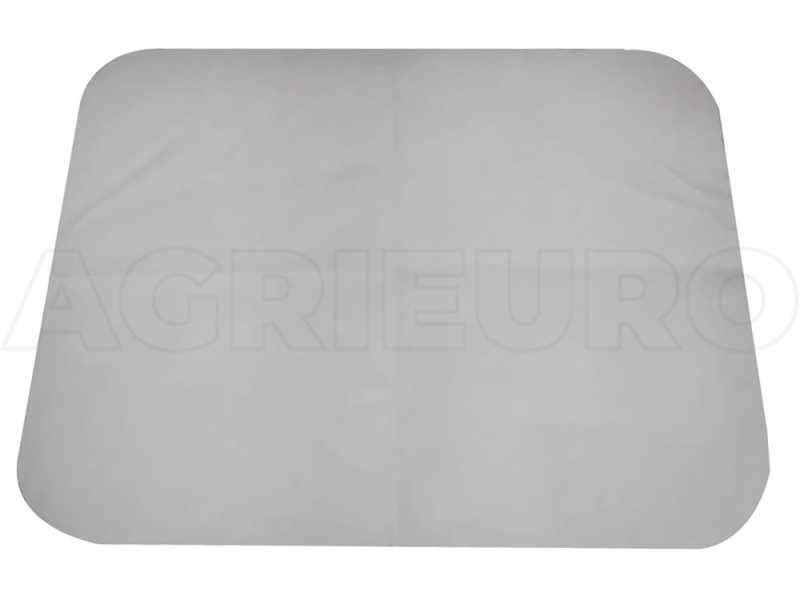

FOR FREE: suede cloth

Soft suede cloth

  • Quick and easy absorption of any liquid, suitable for preventing limescale
  • Machine washable and reusable
  • No abrasion, so no marks or scratches
  • Leaves no residue

Length: 39 cm

Width: 29 cm

Free Items Included

The pressure washer is shipped in its original packaging

Multilingual instructions

  • High-pressure gun with adjustable nozzle.
  • Rotating head
  • Water connection kit
