Annovi & Reverberi AR 630 - Professional cold water pressure washer - portable - 150 bar - 600 l/h

Questions & Answers (8)
ID: K501273

EAN: 8016287155120

MPN: 15512

7,8/10
After-sales assistance & Spare parts
Annovi & Reverberi AR 630 - Professional cold water pressure washer - portable - 150 bar - 600 l/h
+200 sold
FREE
Free water supply connection kitFree water supply connection kit
Protection and storage tarp coverProtection and storage tarp cover
Suede clothSuede cloth
Heavy-duty linear pump
Pump head material
Brass
Max. flow rate per hour
600 L/h
Max. pressure
120 bar
Engine speed
1450 RPM
Engine
Induction
Delayed Total Stop
Yes
Operating mode
Single-phase 230 V
Pressure regulator
Yes
Ultra-compact
Type
Portable
Self-priming pump
Weight
27 Kg
Manufacturing country
Italy
Product Features
Model:
AR 630
Handheld:
Ultra-compact:
Type:
Portable
Operating mode:
Single-phase 230 V
Operation mode:
Cold water
Detergent delivery:
Low-pressure
Manufacturing country:
Italy
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Motor speed:
1450 RPM
Max. power absorption:
2.6 Kw
Cooling:
With air
Manufacturing country:
Italy
Pump data
Pump brand:
Annovi & Reverberi
Model:
HRC_EM
Pump type:
Connecting rod-crank
Heavy-duty linear pump:
Self-priming pump:
No. of pump speeds:
1
Pistons material:
Ceramic
Pump head material:
Brass
Brass pump head:
Engine speed:
1450 RPM
Max flow rate per minute:
10 L/min
Max. flow rate per hour:
600 L/h
Operating pressure:
100 bar
Max. pressure:
120 bar
Pressure regulator:
Yes
Pressure regulator:
Manufacturing country:
Italy
Equipment
Type of attachment:
M22 - Screw
Total Stop:
Yes
Delayed Total Stop:
Yes
Free gifts/extra features
Spray gun:
Yes
Heavy-duty spray gun:
Yes
Lance with adjustable nozzle:
Yes
Heavy-duty lance:
Yes
Hose length:
8 m
Instructions manual:
Yes

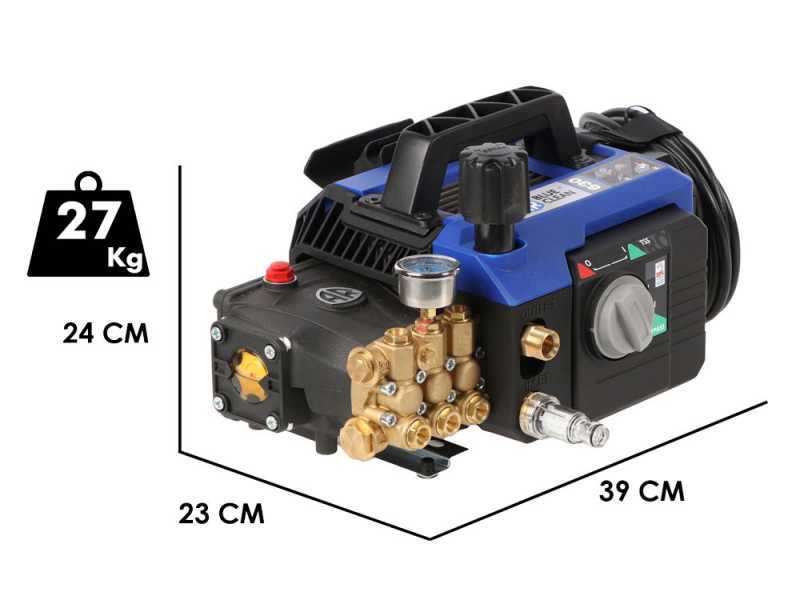

Dimensions and logistics
Product dimensions in cm (L x W x H):
39 x 24 x 23 cm
Net weight:
27 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
53 x 28 x 34 cm
Gross weight (packaging included) :
33 Kg
Assembly time:
Assembled
Prompt Delivery
9 items in stock
Free Shipping
Estimated delivery: 25/04/2025 - 29/04/2025
€ 701,85
Vat included

Available versions
You're viewing:
Customers also viewed:
Description

AR Blue Clean AR 630 compact pressure washer

The AR Blue Clean 630 is a cold pressure washer designed for professional use or for experienced users who require continuous deep cleaning on large surfaces.

Thanks to the high flow rate of 600 l/h and the maximum pressure of 150 bar adjustable via a dedicated pressure gauge, this pressure washer ensures exceptional performance in various work areas, such as construction sites, agriculture, livestock and crafts.

Produced in Italy with high quality materials, the AR Blue Clean 630 is equipped with a quiet, durable and reliable induction motor and a three-piston ceramic pump with a crank-connecting rod system and brass head.

The design is designed for easy maintenance: the pump valves can be inspected, and the oil drain plug is easily accessible.

The package includes professional accessories that connect via a threaded brass coupling, including a high-pressure hose reinforced with a 10-metre steel braid and a high-pressure gun with a steel core and swivel connection.

This swivel coupling, by rotating on its axis, prevents twisting and kinking of the hose, improving its service life and making work faster and more efficient. An adjustable spray lance is also included, allowing you to switch between a powerful cylindrical spray and a gentler fan spray.

In addition, the suction of the detergent takes place automatically via a small tube that can be connected to an external container.

A particularly useful function is self-priming, which allows water from a cistern to be used without having to resort to the water mains.

For optimum operation, it is preferable that the water level in the tank is equal to or higher than the water level at the machine inlet.

The AR Blue Clean 630 is equipped with a pressure regulator to adapt to different cleaning needs, while the pressure gauge indicates the pressure in real time.

A distinctive feature is the Dual Pro Appliance System (DPA), which allows a choice of two operating modes:

  • Total Stop System: ideal for normal use, automatically stops the machine when the gun lever is released, reducing energy consumption and wear (position "1" of the selector);
  • By-Pass System: designed for intensive use or in demanding environmental conditions , such as high temperatures or high humidity, where the machine is subjected to frequent starts and stops ("2" position of the selector).

This pressure washer offers a combination of power, reliability and versatility, making it the ideal solution for those who demand high-quality professional performance.

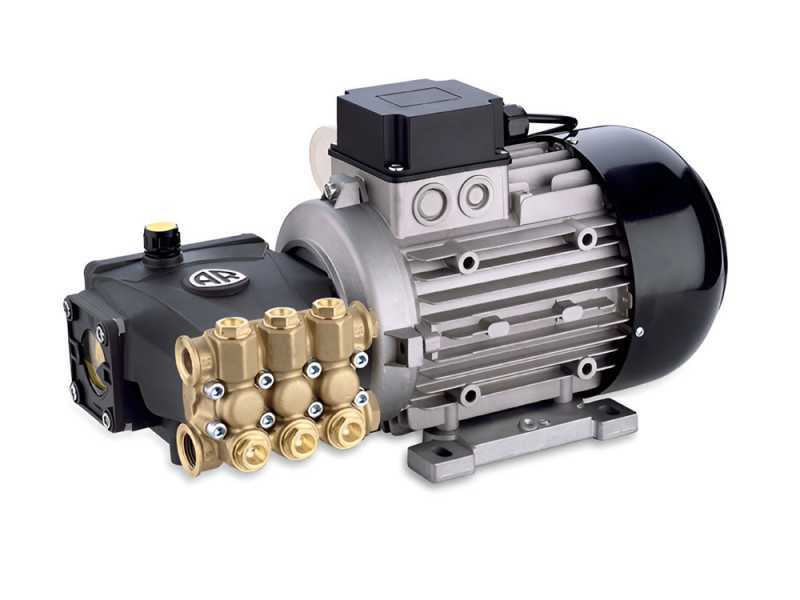

Pump and Motor

The HRC_EM electric pump is an advanced solution designed to meet the needs of professional and intensive cleaning.
Equipped with a 3-piston ceramic pump with crank-rod system and a brass pump head, it guarantees durability and wear resistance, ideal for long and frequent operations.
The presence of an automatic safety valve allows the pressure in the pump head to be reset, ensuring maximum safety and protection during use.

Powered by a single-phase induction electric motor with thermal protection, this electric pump ensures stability and reliability, maintaining an optimal operating speed of 1450 rpm and a power output of 2.6 kW.

The remote total stop system is a practical solution for stopping the operation immediately, reducing wear and tear on the pump and optimising energy consumption.

A distinctive feature of this electric pump is its ability to suck water from tanks thanks to its self-priming function, which allows it to be used even without a direct connection to the water mains.

With a maximum pressure of 150 bar and a flow rate of 600 l/h, this model perfectly suits a wide range of professional applications, offering high performance and long-term reliability.

Main Features

The AR Blue Clean 630 Pressure Washer has been designed to deliver reliable, high performance with quality specifications that meet the needs of professionals.

With a maximum pressure of 150 bar and a maximum flow rate of 600 l/h, the 630K is ideal for intensive cleaning on large surfaces, allowing you to tackle even the most stubborn dirt.

Equipped with a 2.6 kW motor and a speed of 1450 rpm, it ensures stable and continuous operation, reducing the risk of overheating.

The pressure washer is powered by 220-240V with a frequency of 50 Hz, making it compatible with standard power grids and easy to use in any professional setting. The machine can handle a maximum inlet water temperature of 60°°C, expanding the possibilities for more effective cleaning on surfaces requiring hot water.

These technical features demonstrate the reliability and robustness of the AR Blue Clean 630K, making it an ideal partner for effective and long-lasting professional work.

Here are the technical specifications of the AR Blue Clean 630K pressure washer:

  • Model: 630
  • Maximum pressure: 150 bar
  • Maximum flow rate: 600 l/h
  • Power: 2.6 kW
  • Speed: 1450 rpm
  • Power supply: 220-240V
  • Frequency: 50 Hz
  • Maximum inlet water temperature: 60°C

These specifications make the 630K a solid choice for professional cleaning operations, with power and versatility suitable for heavy-duty use.

Free items & Standard equipment

Complimentary

WATER CONNECTION KIT for pressure washer

The kit includes:

  • Ø 15 mm yellow hose, 15 m long
  • Male quick connector for tap connection (size of the standard thread: 3/4“)
  • Standard female quick connector (to insert the hose into the male quick connector for tap connection)
  • Female quick connector with WATERSTOP (to be applied to the end of the hose for connection to the high-pressure cleaner). Waterstop system: when the pressure washer, or another device is disconnected, the water flow stops automatically; when the pressure washer is re-connected, the water starts to flow again. This allows to avoid using the tap every time you disconnect the female connector from the pressure washer and every time you change the accessories.

  • Adjustable plastic lance with male quick connector.

    It is possible to connect it to the hose to use it for any job when you are not using the pressure washer. Also suitable for irrigation. It is equipped with adjustable nozzle (direct or cone).

    Also useful to rinse a surface before spreading the detergent to subsequently wash it with a pressure washer.

Fittings and hose connection diagram of this accessory on request (water connection kit)

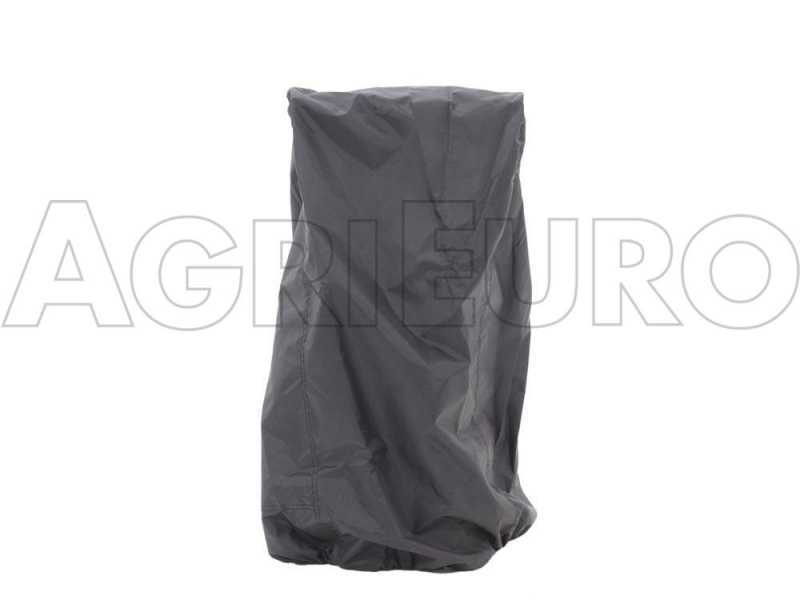

Protection and Storage Cover for Pressure Washers - Size: - Medium

Essential for protecting your machine when stored.

This cloth is quick and easy to apply; in a few seconds, your machine will be protected against dust and humidity.

It is equipped with an elastic band on the lower border to perfectly fit to the shape of the machine.

Easy to fold and store in its box and space-saving!

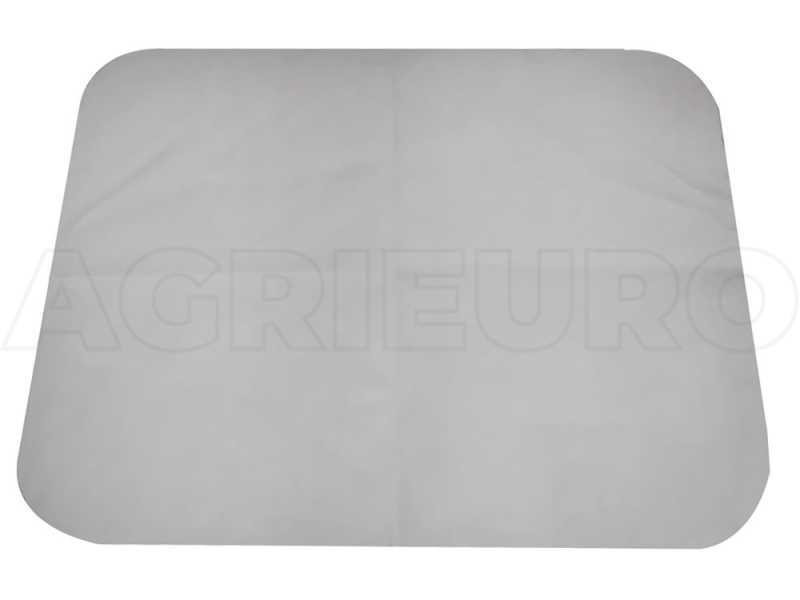

FOR FREE: suede cloth

Soft suede cloth

  • Quick and easy absorption of any liquid, suitable for preventing limescale
  • Machine washable and reusable
  • No abrasion, so no marks or scratches
  • Leaves no residue

Length: 39 cm

Width: 29 cm

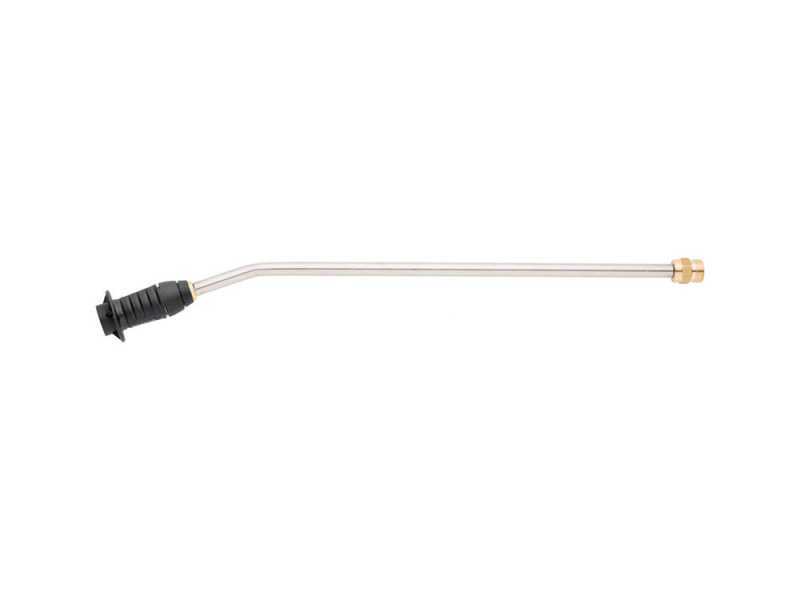

Standard Equipment

The pressure washer in addition to its original packaging is supplied with this equipment:
