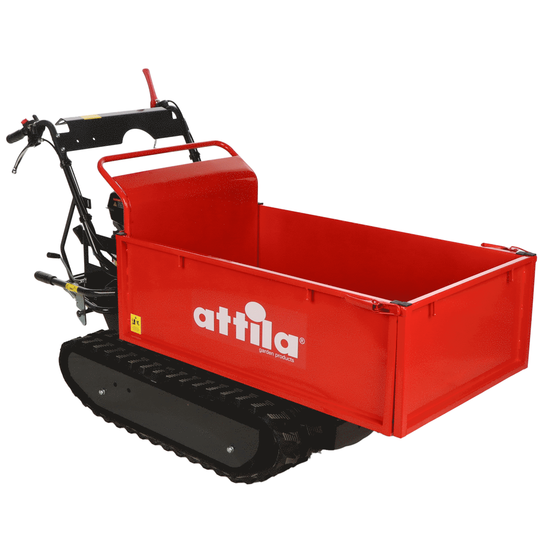

Attila ATT 500 C - Extendable crawler wheelbarrow - Capacity 500Kg

The Attila ATT 500 C petrol-driven wheelbarrow is a robust and versatile machine designed to facilitate the transport of heavy materials in agriculture, construction and forestry. With a load capacity of up to 500 kg, it is the ideal solution for work on difficult and sloping terrain. The track system ensures grip and stability, even on uneven or muddy surfaces.

The internal combustion engine fitted to this model is designed to offer high efficiency and long life, with a quick and reliable start. Thanks to the 3 forward and reverse gears, the user can adjust the speed according to the type of load and terrain. The wheelbarrow is capable of tackling steep slopes, making it indispensable for work on hills or mountainous areas.

Another distinctive feature is the manually tipping skip, which facilitates the unloading of material. The robust design and compact dimensions allow the machine to be manoeuvred easily, even in tight spaces.

Main features of the Attila ATT 500 C wheelbarrow:

• Load-bearing capacity : supports up to 500 kg, ideal for heavy materials.
• Combustion engine: High efficiency, quick start.
• Gearbox: 3 forward + reverse gears for optimal control.
• Tracks: designed to provide grip on any surface.
• High Pendants : ability to operate in hilly and mountain areas.
• Tipper: for unloading materials quickly and easily.

The Loncin G200F engine is suitable for jobs where it is required high power due to its high displacement of 196 cc.

Features:

Four-Stroke petrol engine of the latest generation with overhead valve “OHV” technology.

Easy recoil start, thanks to the automatic fuel priming system.

WARNING The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 5.5 Hp
Corresponds to the actual power expressed at the crankshaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

Gearbox: Large, reliable and precise.

Speed:
3 forward gears
1 reverse gear

Parking brakes:
connected to the gearbox, for greater stability and security.
These are automatically activated when the controls are released (leaving the machine in neutral, even on a steep incline, the machine remains perfectly locked)

Transmission:
Sturdy and resistant, it allows steering by acting on the single track, disengaging its rotation.

The machine is supplied by the manufacturer with transmission oil level. However, oil levels must ALWAYS be checked before switching on as specified in the instruction and maintenance booklet.

With their tread width and profile, they guarantee perfect grip and stability on all types of terrain.

Made of special reinforced rubber with excellent grip, they are able to tackle any type of surface or step.

Total track width: 180 mm

Thanks to the width and the tread configuration, they guarantee perfect grip and stability on all types of terrain.

Tracks made in high-density rubber to ensure a longer life and greater efficiency, with teeth designed to have a good adhesion on rough terrains, provided with 4 Rollers .

Rear of track with pointed ‘tank-type’ upper corner that allows it to climb steps or other obstacles with ease.

The sturdy frame with steel structure in high thickness which limits the vibrations and noise.

The low centre of gravity also ensures optimum stability during work The position of the engine and transmission facilitates maintenance

Adjustment of track tension using tension springs

A high-strength steel body, it is reinforced with tubular crossbars at the bottom, making it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate loading/unloading operations.

The tubular crossbars can be removed with a simple gesture. An example of use is for transporting and loading wood.

Mechanical tipping: activated manually with the rubberised release lever fitted with a spring, and facilitated (in the case of heavy loads) by the long tipping lever on the side.

Extensible tailgates to significantly increase the size of the loading platform, allows even bulky transports to be optimised

Caisson size: 102,5x62,5x32,5 cm

Extended barrow dimensions: 115,5x86x32,5 cm

The machine is provided with two lower levers for steering, respectively on the right and on the left.

Large red motion activation lever. The two lower levers are for the steering, respectively, right and left.

The steering can be adjusted depending on the control lever and it allows smooth moving. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial. This allows the wheelbarrow to be steered extremely smoothly, without causing abrupt movements.

Throttle lever

Power button
