Awelco MIG 350 Multi-process Inverter Welding Machine - MIG-TIGLIFT-MMA - three-phase power supply - GAS/NO GAS

Questions & Answers (2)
ID: K604248

EAN: 8004386184301

MPN: N18431

7,8/10
After-sales assistance & Spare parts
Awelco MIG 350 Multi-process Inverter Welding Machine - MIG-TIGLIFT-MMA - three-phase power supply - GAS/NO GAS
+40 sold
Type
Multifunction inverter
MMA electrode
TIG
Gas / no gas wire (MIG-MAG)
Open circuit voltage
60 Volt
Suitable MMA electrodes
1.6 - 5
40°C duty cycle
60 %
Aluminium Welding (optional)
Yes
MMA Welding current range (A)
20 - 220
TIG Welding current range (A)
20 - 240
MIG welding current range
50 - 250
Wire welding type
MIG - MIG/PULSE - MIG/NO GAS
Generator +/- 15%
Manufacturing country
Italy
Product Features
Model:
MIG 350
Type:
Multifunction inverter
MMA electrode:
TIG:
Gas / no gas wire (MIG-MAG):
Power supply:
Three-phase electric
Suitable MMA electrodes:
1.6 - 5
Open circuit voltage:
60 Volt
380 V max absorbed power:
11.4 KW
Min. required generator power:
12.9 KW
40°C duty cycle:
60 %
40°C duty cycle:
60%@250A(MIG) - 60%@250(TIG) - 60%@250(MMA)
20°C duty cycle:
100%@194A(MIG) - 100%@194A(TIG) - 100%@195A(MMA)
MMA Welding current range (A):
20 - 220
TIG Welding current range (A):
20 - 240
MIG welding current range:
50 - 250
TIG Duty Cycle:
20%
TIG 40°C Duty Cycle:
60%@250A
Suitable cored wire:
0.8 - 1.2
Suitable stainless steel wire:
0.6 - 1.2
Suitable aluminium wire:
0.8 - 1.2
Suitable SG2 wire:
0,6 - 1,2
Wire welding type:
MIG - MIG/PULSE - MIG/NO GAS
Generator +/- 15%:
Aluminium Welding (optional):
Yes
Synergic welding:
No
Manufacturing country:
Italy
Free gifts/extra features
Welding machine equipment:
Standard supplied accessories
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
91 x 47 x 76 cm
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
95 x 45 x 80 cm
Gross weight (packaging included) :
51 Kg
Assembly time:
5 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 14/04/2025 - 16/04/2025
€ 1.421,89
Vat included
You're viewing:
Customers also viewed:
Description

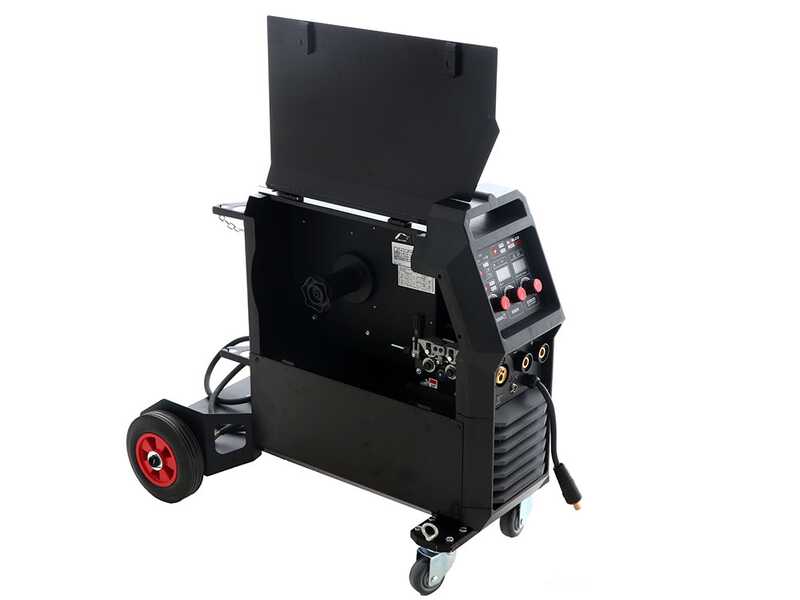

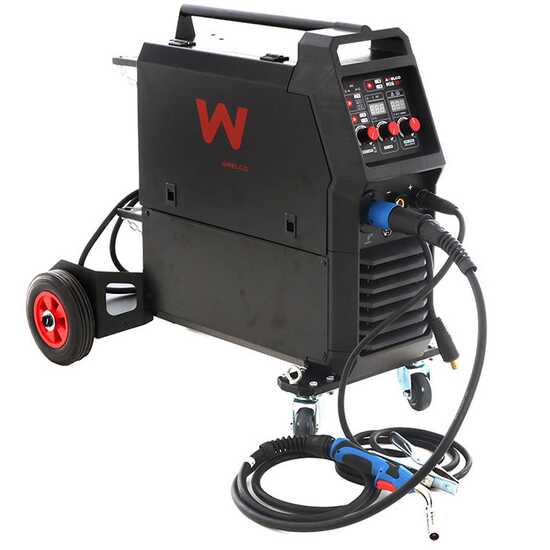

Awelco MIG 350

The Inverter Awelco MIG 350 is a welding machine provided with 4 rolls integrated wirefeed ideal for MIG - MAG/FLUX/MMA/TIG DC - LIFT welding, controlled by a microprocessor.

It ensures a big versatility in the use of different welded materials (steel, stainless steel, aluminum) and in different applications, from maintenance to installation.

Indeed, it allows welding various types of materials like steel, stainless steel, HSS, aluminum and alloys.

EASY and FAST regulation of the welding parameters make this product easy to use and ensures an always excellent result even for the less expert user. Light, compact and wheeled, it can be easily transported in every situation where necessary.

It is a professional inverter welding equipment with 400V 250Amp THREE-PHASE power supply.

Ventilated machine with thermostatic protection fitted with control with microprocessor for gas - no gas welding, TIG welding and electrode welding.

Equipped with centralized torch connection, 5 kg - 15 kg reel, thermostatic protections, overvoltage, undervoltage, overcurrent, motor generator (+/-15%).

This welding equipment ensures great performances in terms of amperage and Duty Cycle in all welding types: MMA electrode, TIG and MIG wire feed welding.

It allows to weld with cored wire of 0.8 - 1.2 mm diameter, SG2 wire of 0.6 - 1.0 mm and stainless steel wire of 0.6 - 1.0 mm diameter.

This welding equipment enables the aluminum welding (kit can be purchased apart among the accessories listed).

This welding equipment is provided with swiveling wheels and fixed rear wheels, which makes it a comfortable and easy to transport unit.

The welding machine comes complete with face mask, EURO welding torch, earth clamp, electrode holder and pressure gas reducer provided on standard kit.

Optimum quality and reliability ensured by Made in Italy manufacturing product.

Technical specifications

Power supply: 400V - 3 HP

MMA Welding:

Open circuit voltage: 60V

Welding current range: 25 - 250 A

Duty Cycle 40°: 60%@250A

Duty Cycle 20°: 194A@100%

Usable electrodes: 1.6 - 5.0 mm

TIG Welding:

Open circuit voltage: 60V

Welding current range: 15 - 250 A

Duty Cycle 40°: 60%@250A

Duty Cycle 20°: 194A@100%

MIG Welding:

Open circuit voltage: 60V

Welding current range: 50 - 250

Duty Cycle 40°: 60%@250A

Duty Cycle 20°: 194A@100%

Cored wire: 0.8 - 1.2 mm Ø

SG2 wire: 0.6 - 1.2 mm Ø

Stainless steel wire: 0.6 - 1.2 mm Ø

Control panel with LED display and adjustable parameters

Handle for easy transport

Wire and accessories holder

Rear wheel kit for easy motion

Front wheels for easy transport

Free items & Standard equipment

COMPLIMENTARY: wire feeder roller

Wire feeder roller

Iron - aluminium, diameter 0.8/1.0

Free Items Included

The welding equipment is shipped in its original packaging.

The unit comes complete with accessories equipment, which includes:

- Face mask

- Ground clamp

- EURO welding torch

- Electrode holder

- Brush/hammer

- Transport handle

- Instruction manual
