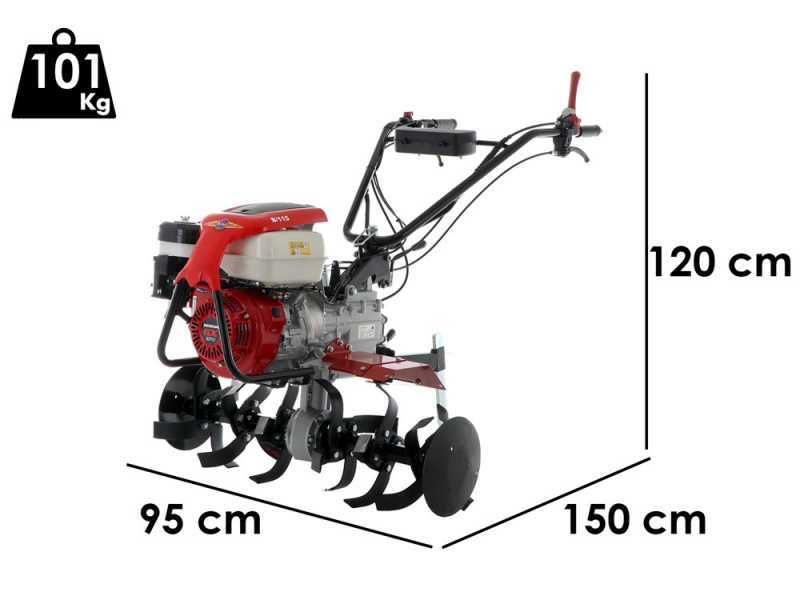

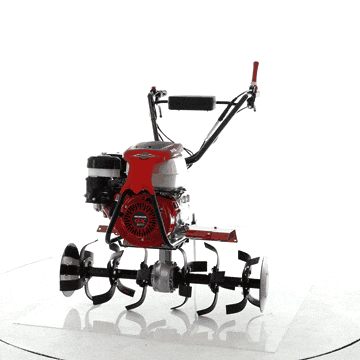

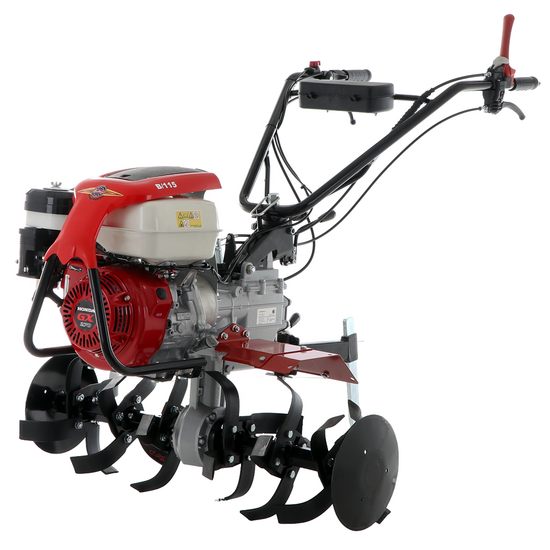

Name: Barbieri B/115 - 9 HP Petrol Garden Tiller - Honda GX270 Engine
Brand: Barbieri
SKU: K606469
Price: 2502.01 EUR
Availability: InStock

Description

Barbieri B/115 Garden Tiller - Honda GX270 Engine

Barbieri B/115 is the flagship among the garden tillers provided by Barbieri company, designed to meet the needs both in the agricultural field and in professional gardening.

Reliability and power are guaranteed by the Italian brand Barbieri.

The Honda GX270 engine, known for its reliability and power, provides the necessary thrust to move the cutter through the harder soil.

The sturdy and modern gear transmission in bath oil is provided with 4 speeds and it makes the B115 garden tiller a versatile and powerful machine.

The standard reverse function facilitates manoeuvring, optimising both speed and comfort to achieve the desired goals.

The adjustable cutter with standard end discs allows a working width of 115 cm, while two standard-mounted PTOs (independent and synchronised) allow the use of different attachments.

Thanks to the height- and side-adjustable handlebars, it is possible to move easily even in tight areas without damaging the previously tilled soil.

In brief, B115 is an authentic powerful and versatile work equipment, suitable for the needs of those who work in the agricultural industry or professional gardening.

Barbieri B/115 - 9 HP Petrol Garden Tiller - Honda GX270 Engine

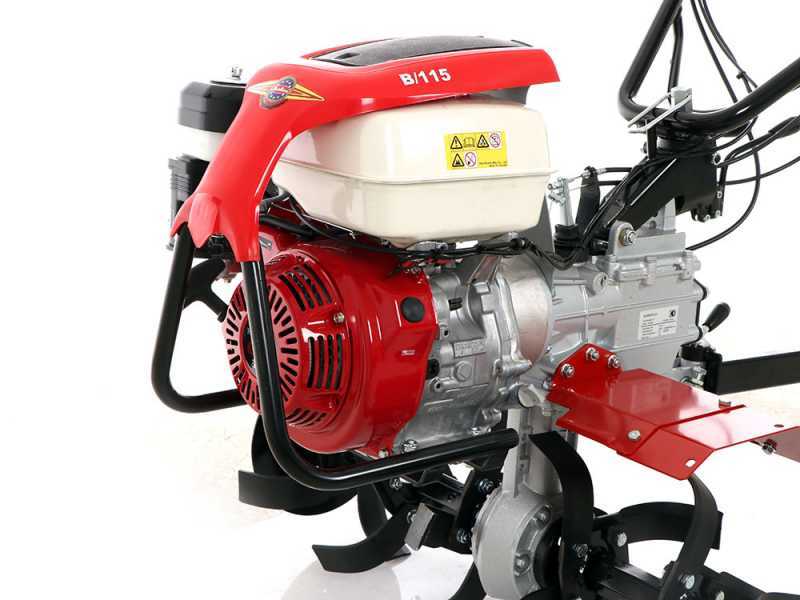

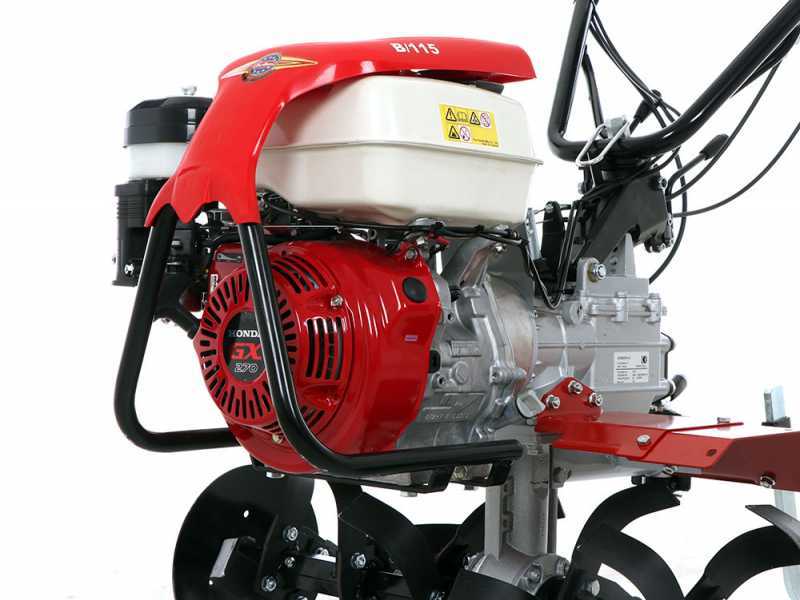

Honda GX 270 Engine

The machine is fitted with the Honda GX 270 engine.

Features:

Engine type:

4-Stroke - OHV - single cylinder

Cylinder type:

Aluminium

Cubic capacity:

270 cc

Fuel:

Petrol

Max. rpm:

3600 rpm

Starting:

manual

Four-stroke petrol engine belonging to the latest technology with overhead valve system "OHV” and automatic decompressor starting system.

Focus on the air filter.

Fuel tank

WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal power: 9 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 8.4 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

Gearbox, steering handles and controls

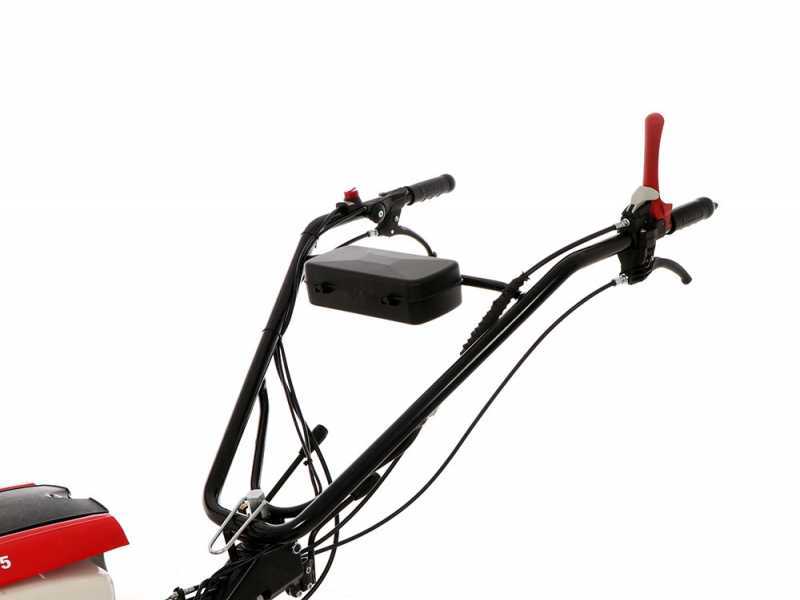

Focus on the steering handles (handlebars). All the main controls are placed in this area.

Yellow lever: clutch lever that starts the motion of the tillers and the machine forwarding speed.

Throttle lever near the power switch.

Reverse speed engagement lever

Gear lever and quick disconnect.

Handlebars adjustable in height by means of a lever in three positions (1,2,3)

And laterally adjustable in three positions (1,2,3).

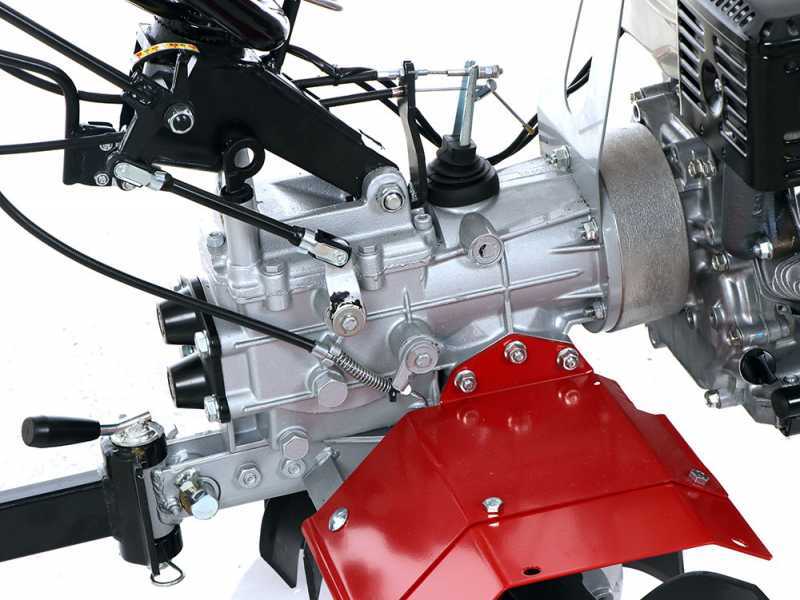

Gearbox detail 3+1

Gear transmission in oil bath

The engine is driven to the cutter through a sturdy gear transmission in an oil bath.

This is the best transmission suitable for a garden tiller. It needs little maintenance; it is the sturdiest transmission and is able to till hard soils also in depth.

It drives the machine quickly and efficiently, while the belt drive system requires the periodical replacement of the belt.

Solid and robust gearbox

Cutter: Adjustable from 90 to 115 cm, with 3+3 cutters composed of 4 hoes each + side protection discs.

Hexagon width: 27 mm
