Barbieri B/35 - 5.5 HP Petrol Garden Tiller - Honda GX160 Engine

Questions & Answers (1)
ID: K606441

EAN: 8053435094870

MPN: 3000.10

7,4/10
After-sales assistance & Spare parts
Barbieri B/35 - 5.5 HP Petrol Garden Tiller - Honda GX160 Engine
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Replacement sprak plugReplacement sprak plug
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
Foam air filterFoam air filter
Foam air filterFoam air filter
Standard milling cutter width
90 cm
Recommended surface
200 m²
Motor type
4-stroke
Motor brand
Honda
Cubic capacity
163 cm³
Nominal power
5.5 HP
Transmission type
Belt and gears
Gears
2+1
Soil consistency
Medium
Manufacturing country
Italy
Product Features
Model:
B/35
Operating mode:
Spark ignition
Recommended surface:
200 m²
Soil consistency:
Medium
Medium soil:
Starting mode:
Recoil
Manufacturing country:
Italy
Motor data
Motor brand:
Honda
Motor type:
4-stroke
Cubic capacity:
163 cm³
No. of cylinders:
1
Nominal power:
5.5 HP
Rated power (HP):
4.8 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Tank capacity:
3.1 L
Oil tank capacity:
0.6 L
Manufacturing country:
Japan
Transmission data
Transmission type:
Belt and gears
No. of forward speeds:
2
No. of reverse speeds:
1
Gears:
2+1
Operating mode:
Gear lever
Cutting data
Standard milling cutter width:
90 cm
Narrow milling cutter width :
70 cm
Milling cutter diameter:
30 cm
No. of blade holders:
6
No. of blades:
24
Blade engagement:
Lever on the handle
Equipment
Milling cutter accessory:
Included as standard
Side crop protection discs:
Yes
CE Accident prevention system:
Yes
Rear stake:
Yes
Adjustable stake:
Yes
Pair of milling cutter extensions:
Yes
Pair of side transfer wheels:
No
Clutch:
Belt tensioner
Power take-off:
1
Battery for electric start:
No
Electric start with key :
No
Recoil start system (with rope):
Yes
Height-adjustable handle:
Yes
Side-adjustable handle:
Yes
Rubber-coated soft grip:
Yes
Folding/removable handle/s:
Yes
Free gifts/extra features
Engine oil bottle for free:
2
Maintenance tool kit:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
140x115x120 cm
Net weight:
60 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x80x136cm
Gross weight (packaging included) :
80 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 08/04/2025 - 14/04/2025
€ 1.427,99
Vat included
You're viewing:
Customers also viewed:
Description

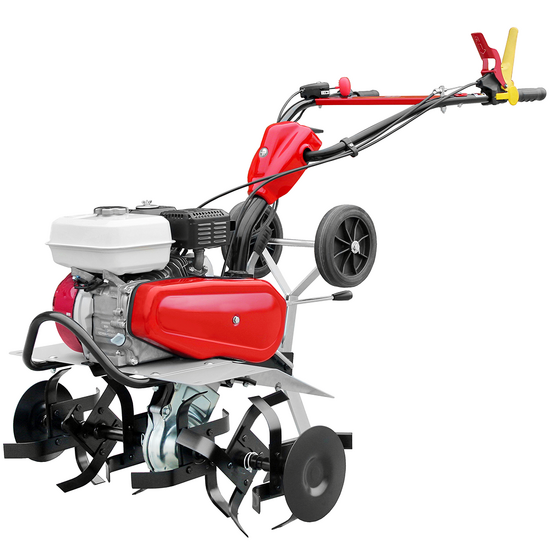

Barbieri B/35 Garden Tiller

Barbieri B/35 is a powerful and reliable garden tiller, designed to simplify soil preparation and make plant cultivation easier and more efficient.

Thanks to the 6-stars 90 cm cutter with side discs, this garden tiller is able to work on a big soil area in short time.

The Honda GX160 engine, known for its reliability and power, provides the necessary thrust to move the cutter through the harder soil.

The 2-speed forward and 1-speed reverse (2+1) gearbox offers maximum flexibility and control when operating with the garden tiller, allowing the selection of the right speed according to the soil and working conditions.

The mechanic transmission in oil bath guarantees long-lasting and reduces maintenance, while height and lateral adjustable handlebars allow to customize the tilling depth and the tilt angle of the cutter in order to meet the specific needs of the soil and cultivation.

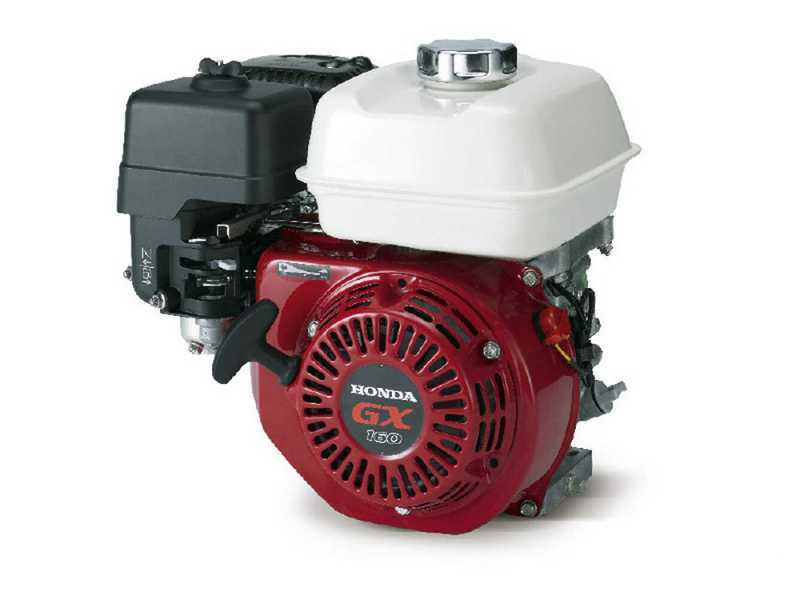

Honda GX 160 Engine

The Honda series GX 160 engine is
super-professional and SUPER-POWERFUL , belonging to the latest overhead valve technology.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cylinder type:
Aluminium
Cubic capacity:
163 cc³
Compression ratio:
9.0 : 1
Max. rpm:
3600 rpm
Torque value
10.3 Nm / 1.05 kgfm / 2500 rpm
Fuel tank capacity:
3.1 L
Consumption:
1.4 L/h 3000 rpm
Dry weight
15.1 Kg

The Honda “GX” series is highly professional and was developed for heavy duty jobs in building and agricultural field for generators, welders etc., reliable and long life.


ATTENTION!

The engine is PROVIDED WITH OIL. CHECK THE OIL LEVEL WITH THE MACHINE ON A FLAT SURFACE.
Please, read carefully the instruction manual before starting it up.

Nominal power: 5.5 HP
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 4.8 Hp (at 3600 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This technical feature may vary from a an engine model to another according to the rotation speed provided by the manufacturer.

Gearbox, steering handles and controls

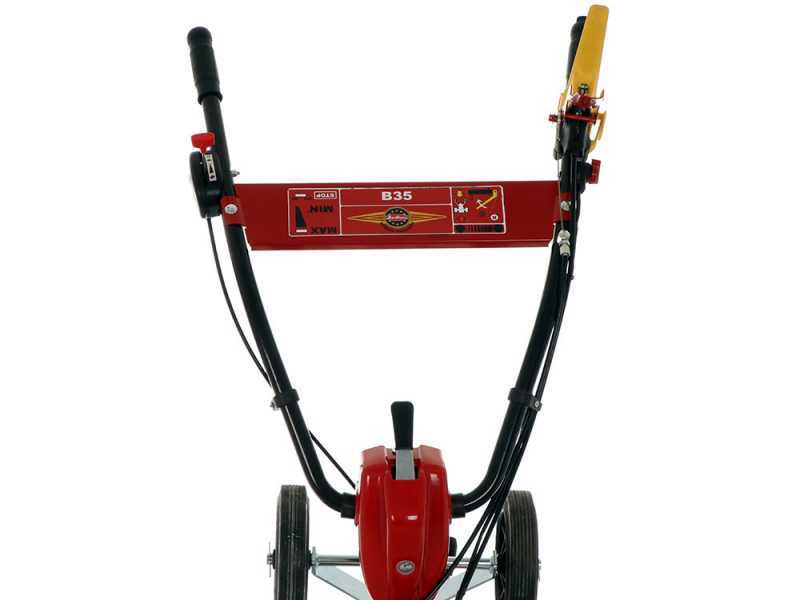

Focus on the steering handles (handlebars). All the main controls are placed in this area.

Yellow lever: clutch lever that starts the motion of the tillers and the machine forwarding speed.

Red lever: quick reverse drive.

Focus on the throttle lever.

Power switch

Height-adjustable handlebars in multiple positions (Example from the higher to the lowest)

Laterally adjustable in three positions (1,2,3).

Gearbox detail 2+1

Gear transmission in oil bath

The belt drive, protected by a sturdy crankcase, transfers engine power to a solid gear drive (in oil bath).

It requires very little maintenance and provides maximum resistance to stress when working in hard terrain.

This system allows to the machine to avoid engine serious damages in case of a collision with a stone or a particularly hard clod of ground, precisely because the belt will slide and the engine will not stop roughly.

The gearbox in aluminium with steel protection caps.

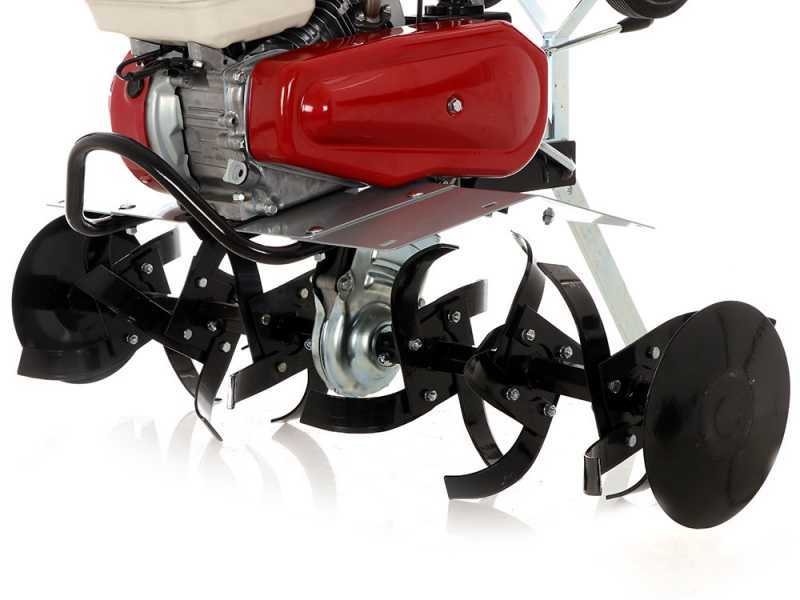

Cutter: 90 cm, with 3+3 tillers composed of 4 hoes each + side protection discs.

Focus on the cutters attachment.

More details

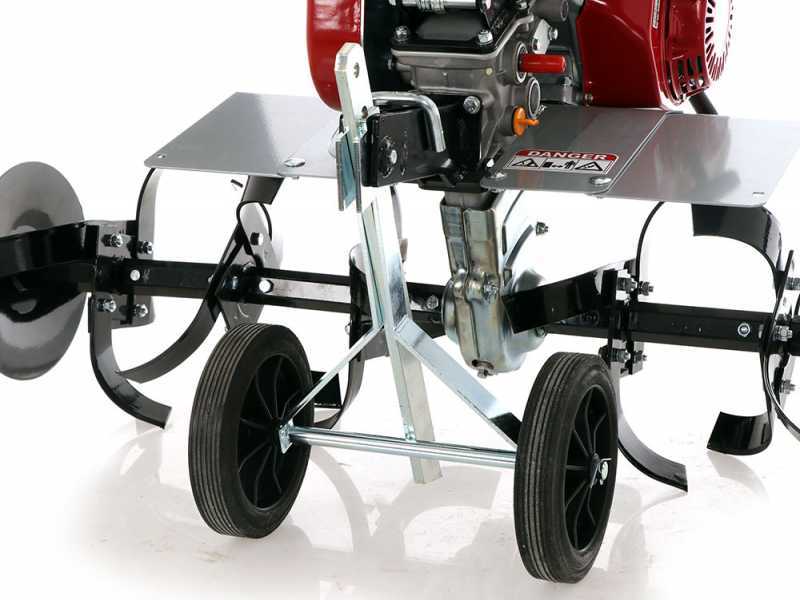

The convenient wheels allow to move the tiller easily and practically. They don’t require assembling and disassembling every time you use them; in fact, they will lock in the raised position when not in use.

Spur of excellent size, allows the user to exploit the garden tiller at its best.

One unique feature of this garden tiller is the side power take-off. This allows to amplify the use of the machine in a wide number of ways, as desired by the user.

Front Bull Bar that protects the engine from bumps and accidents.

Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

Free items included

The garden tiller is shipped in its original packaging.

The Instructions manual is included in the package.

Maintenance kit included
