BlackStone BD 10000ES Diesel Water Pump, 100 mm Fittings - 4 inches - electric start - 14 L tank - Euro 5

Questions & Answers (4)
ID: K601054

EAN: 9999237546263

8,9/10
After-sales assistance & Spare parts
BlackStone BD 10000ES Diesel Water Pump, 100 mm Fittings - 4 inches - electric start - 14 L tank - Euro 5
+100 sold
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor brand
Producer-manufactured
Motor Model
D400
Cubic capacity
418 cm³
Nominal power
9.5 HP
Power supply
Diesel
Electric start
Yes
Reinforced square tubular frame
Yes
Battery type
Lead-acid
Voltage
12 V
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
1600 L/min
Fittings diameter
100 mm
Max. head lift
31 m
Max. suction height
8 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
BD 10000ES
Power supply:
Diesel
Electric start:
Yes
Reinforced square tubular frame:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Blackstone
Motor Model:
D400
Battery type:
Lead-acid
Cubic capacity:
418 cm³
No. of cylinders:
1
Nominal power:
9.5 HP
Fuel:
Diesel
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Decompressor with lever
Tank capacity:
14 L
Oil tank capacity:
1.65 L
Voltage:
12 V
Working autonomy:
30 h
Manufacturing country:
China
Pump data
Pump brand:
Blackstone
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
100 mm
Max. debris diameter:
9 mm
Flow rate:
1600 L/min
Max. head lift:
31 m
Max. suction height:
8 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Battery for electric start:
Yes
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
70x52x73 cm
Net weight:
84 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
65x48x70 cm
Gross weight (packaging included) :
80 Kg
Assembly time:
5 minutes
Prompt Delivery
6 items in stock
Free Shipping
Estimated delivery: 17/09/2024 - 19/09/2024
€ 817,90
VAT Included
You're viewing:
Customers also viewed:
Description

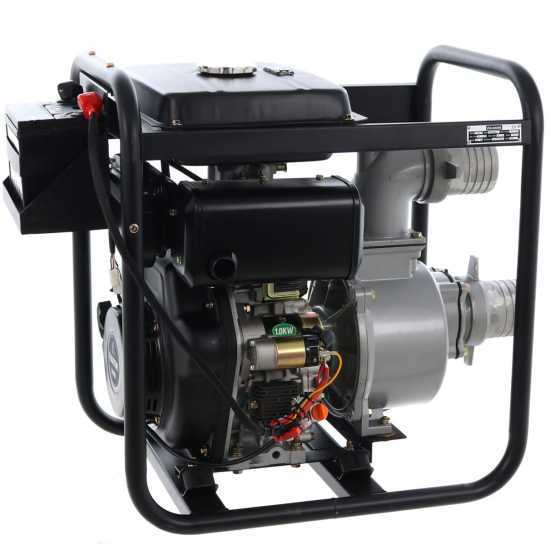

Blackstone BD 10000ES Diesel Water Pump

The Blackstone BD 10000ES water pump is particularly suitable for the supply and distribution of clean water. In particular, this product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, a cistern or ponds and tanks that are difficult to reach, or even when you have to drain a cellar or a garage that has been flooded.

This machine is peculiar because it features both electric start with key and recoil start system. Also, this water pump provides a maximum head lift of 31 m and a suction depth up to 8 m. High performance and reduced consumption are guaranteed by the powerful 418 cc diesel engine which delivers a power of 9.5 Hp, guaranteeing a flow rate of 1600 L/min.

This particular model features a sturdy wraparound frame made of steel, giving the pump stability, safety and protection against impacts. Despite its robustness, this machine is easy to transport, as well as being a good compromise between size and power.

Finally, the Blackstone BD 10000ES is very practical and easy to use; in fact, it is sufficient to fill it using the dedicated tap placed on the top of the pump and drain the excess water from the drip valve.

Items included: 2 100 mm fittings, 3 metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:

  • Model: D400
  • Type: 4-stroke - Euro 5
  • Cubic capacity: 418 cc
  • Power: 9.5 Hp
  • Fuel: Diesel
  • Fuel tank: 14 L
  • Oil tank: 1.65 L

Blackstone BD 10000ES water pump stands among other models because it is equipped with electric start with key which allows quick and optimal starting, thanks to the 30Ah 12 V battery. Moreover, the machine has a 14 L tank, from which you can comfortably check the level.

Focus on the starting engine and the battery slot, fixed to the outside of the water pump frame.

Focus on the air filter (removed) and the oil filter (removed).

How to start the water pump without using the electric start:

  1. Move the engine adjustment lever until you reach the start position.
  2. Move the valve opener downward.
  3. Pull the starting lever until you feel a slight resistance, then pull hard.

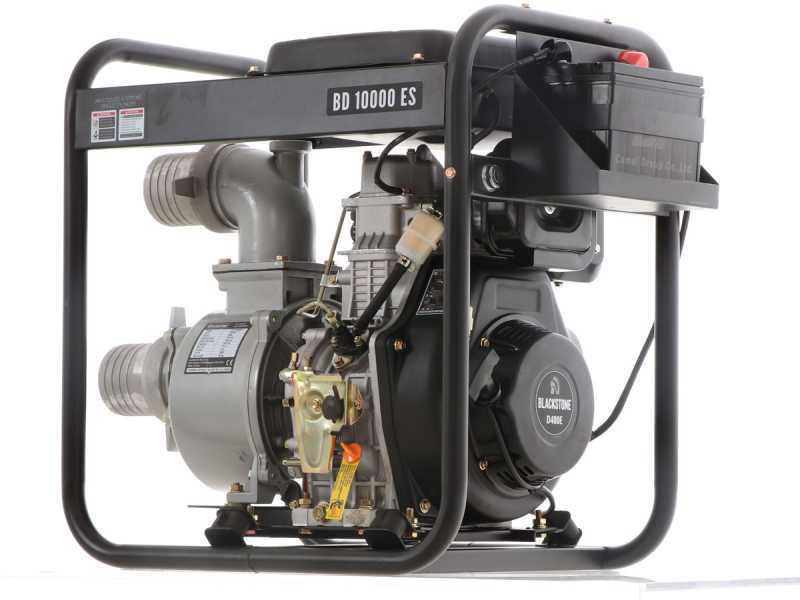

Water Pump Technical Features

The pump mounted on the BD 10000ES is made of cast aluminium alloy, making it very robust and shock-resistant.

Pump features:

  • Suction: 100 mm - 4 inches
  • Discharge: 100 mm - 4 inches
  • Maximum suction height: 8 m
  • Maximum flow rate: 1600 L/min
  • Maximum head lift: 31 m

Focus on the suction and discharge fittings

Focus on the pump-engine fitting

Focus on the pump filling cap

Focus on the pump emptying cap

WARNING:

To achieve maximum suction height, the use of a bottom valve is recommended

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

The water pump is shipped in its original packaging with instruction manual, equipped with tools for assembly and maintenance:

  • 12V 30Ah battery
  • keys for electric start
  • 2 100 mm fittings
  • 3 metal clamps
  • 2 rubber gaskets for fittings
  • bottom filter for suction
