BlackStone BD-H 5000 Diesel Water Pump, 50 mm Fittings - 2 inches - high head lift - 6 Hp - Euro 5

Questions & Answers (3)
ID: K601055

EAN: 9999237546270

8,9/10
After-sales assistance & Spare parts
BlackStone BD-H 5000 Diesel Water Pump, 50 mm Fittings - 2 inches - high head lift - 6 Hp - Euro 5
Special offer
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Motor brand
Producer-manufactured
Motor Model
D300
Cubic capacity
296 cm³
Nominal power
6 HP
Power supply
Diesel
Reinforced square tubular frame
Yes
Double delivery mode
Yes
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
500 L/min
Fittings diameter
50 mm
Max. head lift
65 m
High delivery head
Yes
Max. suction height
9 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
BD-H 5000
Power supply:
Diesel
Starting mode:
Recoil
Reinforced square tubular frame:
Yes
Double delivery mode:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Blackstone
Motor Model:
D300
Cubic capacity:
296 cm³
No. of cylinders:
1
Nominal power:
6 HP
Fuel:
Diesel
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Decompressor with lever
Tank capacity:
3.5 L
Oil tank capacity:
1.1 L
Manufacturing country:
China
Pump data
Pump brand:
Blackstone
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
50 mm
Max. debris diameter:
5 mm
Flow rate:
500 L/min
Max. head lift:
65 m
High delivery head:
Yes
Max. suction height:
9 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Oil bottle:
Yes
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
60x49,5x63 cm
Net weight:
69 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
57x47x57 cm
Gross weight (packaging included) :
65 Kg
Assembly time:
5 minutes
Prompt Delivery
37 items in stock
Free Shipping
Estimated delivery: 03/02/2025 - 05/02/2025
Lowest price:
€ 640,56
-4 %
€ 614,75
Vat included
You're viewing:
Customers also viewed:
Description

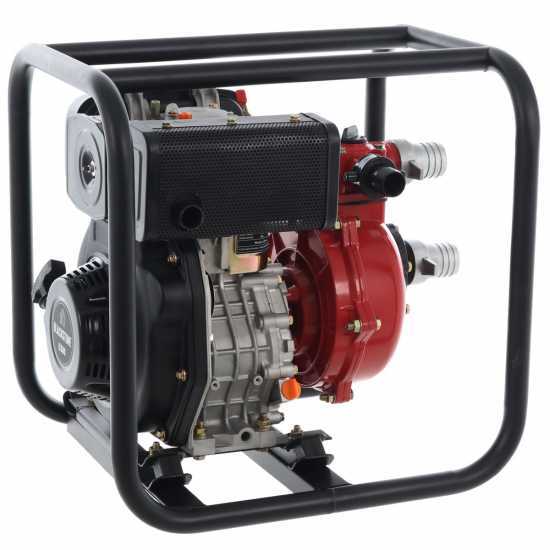

Blackstone BD-H 5000 Diesel Water Pump

Blackstone BD-H 5000 is the perfect high-head lift water pump if you need to extract water from a well, from cisterns or ponds and tanks that are difficult to reach, or even when you have to drain a cellar or a garage that has been flooded.

The self-priming pump allows to pump up to 500 L of water per minute. Furthermore, this model has a suction height of 65 m and a suction depth up to 8 m. The high performance and reduced power consumption are guaranteed by a powerful 296 cc diesel engine, delivering 6 Hp.

This particular model features a sturdy wraparound frame made of steel, giving the pump stability, safety and protection against impacts. Despite its robustness, this machine is easy to transport, as well as being a good compromise between size and power.

Finally, Blackstone BD-H 5000 is very practical and easy to use; in fact, it is sufficient to fill it using the dedicated tap placed on the top of the pump and drain the excess water from the drip valve.

Items included: 2 50 mm fittings, 2 pvc fittings, metal clamps and rubber gaskets for the fittings in addition to the suction filter.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

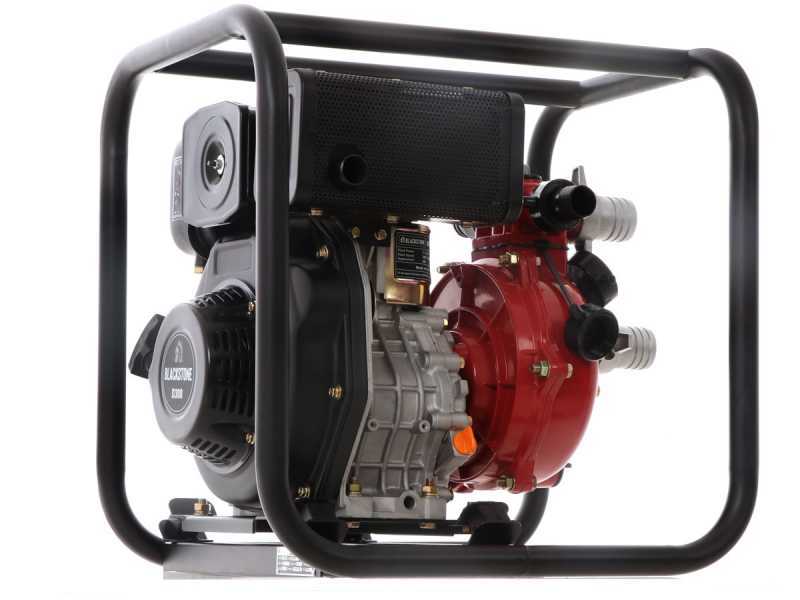

Engine Technical Features

Engine features:

  • Model: D300
  • Type: 4-stroke - Euro 5 - single-cylinder
  • Cubic capacity: 296 cc
  • Power: 6 Hp
  • Fuel: Diesel
  • Fuel tank: 3.5 L
  • Oil tank: 1.1 L

Focus on the fuel emptying cap and the muffler.

Focus on the removed air filter and the oil filter (removed).

How to start the water pump with petrol engine:

  1. First, open the fuel valve placed underneath the tank.
  2. Move the engine adjustment lever until you reach the start position.
  3. The next step is to slowly pull the starter cord until you get a light resistance, then gently release it.
  4. Move the decompression lever until it reaches the position without compression.
  5. Pull the starting lever until you feel a slight resistance, then pull hard.
  6. In case of cold start, the machine may need as little as 2 cc of engine oil in the small tank placed on top of the machine.

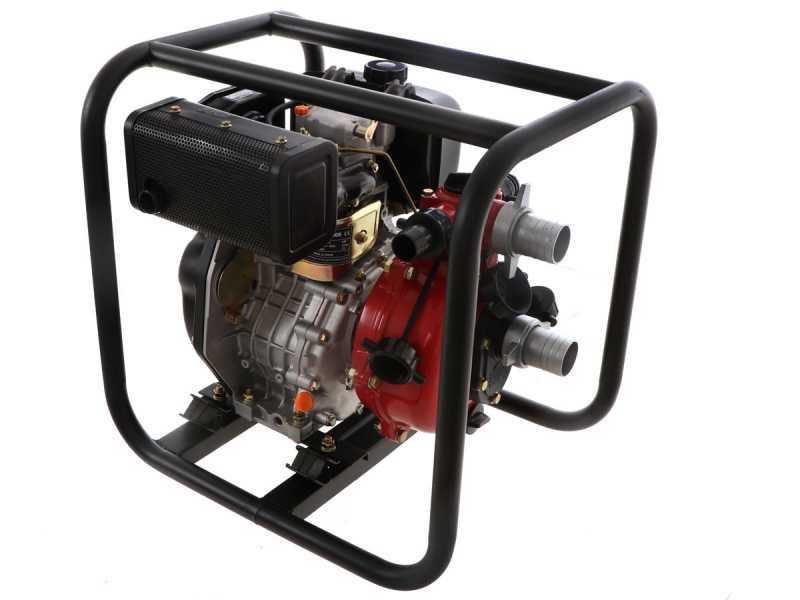

Water Pump Technical Features

The pump mounted on the BD-H 5000 is made of cast aluminium alloy, which makes it very robust and shock-resistant.

Pump features:

  • Suction: 50 mm - 2 inches
  • Discharge: 50 mm - 2 inches + 2 x 30 mm - 1 inch
  • Maximum suction height: 8 m
  • Maximum flow rate: 500 L/min
  • Maximum head lift: 65 m

The high head lift of this model allows to work in two discharge modes:

  1. Double discharge with 30 mm - 1 inch side fittings
  2. Single discharge with 50 mm - 2 inches central fitting

Focus on the 50 mm suction and discharge fittings and the 30 mm side fittings.

Focus on the pump-engine fitting

Focus on the pump filling cap

Focus on the pump emptying cap

WARNING:

To achieve maximum suction height, the use of a bottom valve is recommended

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

Free Items Included

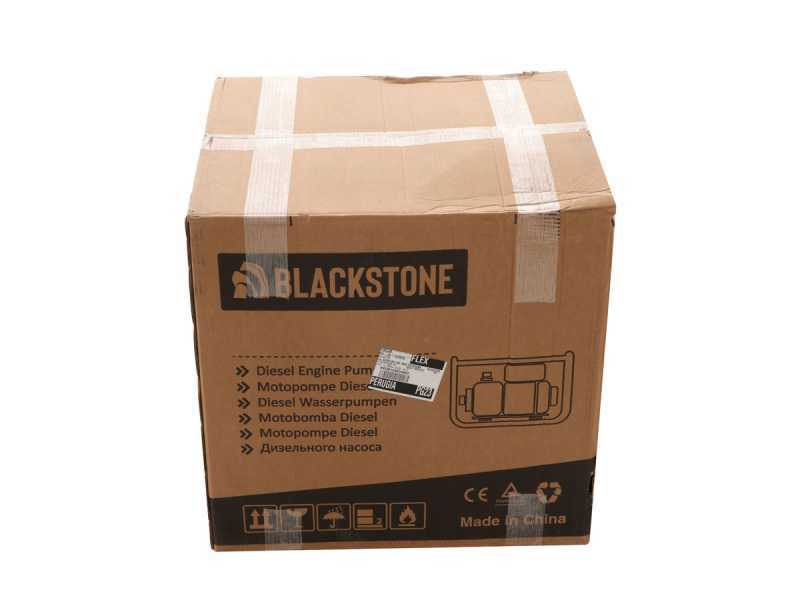

The water pump is shipped in its original packaging with instructions manual, equipped with tools for assembly and maintenance:

  • 2 50 mm fittings
  • 2 50 mm rubber gaskets for the fittings
  • 3 50 mm clamps
  • 2 30 mm PVC fittings, 2 30 mm gaskets and 2 30 mm metal clamps
  • bottom filter for suction
