BlackStone BD 5000 - Self-priming diesel motor pump - 50 mm fittings

Questions & Answers (4)
ID: K601041

EAN: 9999237546232

MPN: BD 5000

8,9/10
After-sales assistance & Spare parts
BlackStone BD 5000 - Self-priming diesel motor pump - 50 mm fittings
+100 sold
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Motor brand
Producer-manufactured
Motor Model
D250
Cubic capacity
246 cm³
Nominal power
5.5 HP
Power supply
Diesel
Reinforced square tubular frame
Yes
Water pump type
Self-priming
Pump material
Aluminium
Flow rate
600 L/min
Fittings diameter
50 mm
Max. head lift
30 m
Max. suction height
8 m
Aluminium fittings
Yes
Engine speed
3600 RPM
Product Features
Model:
BD 5000
Power supply:
Diesel
Starting mode:
Recoil
Reinforced square tubular frame:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Blackstone
Motor Model:
D250
Cubic capacity:
246 cm³
No. of cylinders:
1
Nominal power:
5.5 HP
Fuel:
Diesel
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Decompressor with lever
Tank capacity:
2.5 L
Oil tank capacity:
0.75 L
Manufacturing country:
China
Pump data
Pump brand:
Blackstone
Water pump type:
Self-priming
Pump material:
Aluminium
Engine speed:
3600 RPM
Fittings diameter:
50 mm
Max. debris diameter:
9 mm
Flow rate:
600 L/min
Max. head lift:
30 m
Max. suction height:
8 m
Pair of fittings with ring nut:
Yes
Manufacturing country:
China
Equipment
Recoil start system (with rope):
Yes
Aluminium fittings:
Yes
Free gifts/extra features
Hose clamps:
Yes
Suction filter:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
55x48x55 cm
Net weight:
42.2 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
52x45x52 cm
Gross weight (packaging included) :
36 Kg
Assembly time:
5 minutes
Prompt Delivery
38 items in stock
Free Shipping
Estimated delivery: 08/05/2025 - 12/05/2025
Suggested price:
€ 656,18
€ 492,14
Vat included

You're viewing:
Customers also viewed:
Description

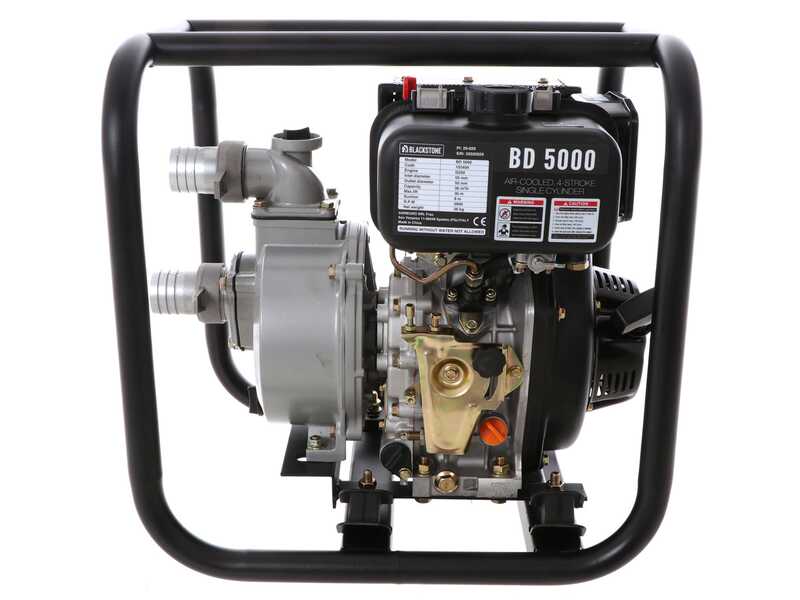

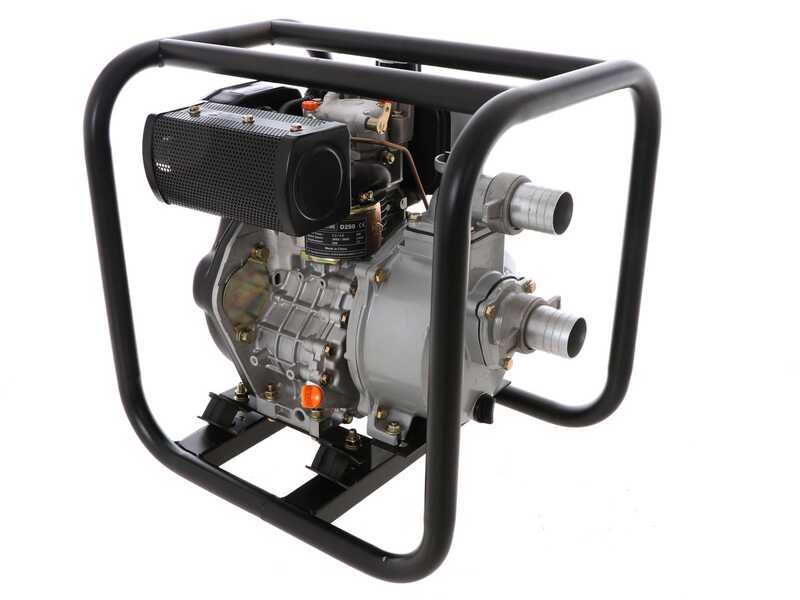

Blackstone BD 5000 Water Pump

Blackstone BD 5000 is the ideal water pump for all water distribution needs. In particular, this product is very useful in the absence of electricity, or in the countryside when you need to extract water from a well, a cistern or ponds and tanks that are difficult to reach, or even when you have to drain a cellar or a garage that has been flooded.

The features of this product guarantee high performance, allowing it to pump up to 600 L per minute. Also, this water pump provides a maximum head lift of 30 meters and a suction depth up to 8 m. The high performance and reduced power consumption are guaranteed by a powerful 246 cc diesel engine, delivering 5.5 Hp.

This particular model features a sturdy wraparound frame made of steel, giving the pump stability, safety and protection against impacts. Despite its robustness, this machine is easy to transport, as well as being a good compromise between size and power.

Finally, Blackstone BD 5000 is very practical and easy to use; in fact, it is sufficient to fill it using the dedicated tap placed on the top of the pump and drain the excess water from the drip valve.

Items included: 2 50 mm fittings ,3 metal clamps and 2 rubber gaskets for the fittings, as well as the suction filter.

WARNING:

  • The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
  • Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

Engine Technical Features

Engine features:

  • Model: D250
  • Type: 4-stroke - Euro 5 - single-cylinder
  • Cubic capacity: 246 cc
  • Power: 5.5 Hp
  • Fuel: Diesel
  • Fuel tank: 2.5 L
  • Oil tank: 0.75 L

Focus on the fuel emptying cap and the muffler.

Focus on the removed air filter and the oil filter (removed).

How to start the water pump with petrol engine:

  1. First, open the fuel valve placed underneath the tank.
  2. Move the engine adjustment lever until you reach the start position.
  3. The next step is to slowly pull the starter cord until you get a light resistance, then gently release it.
  4. Move the decompression lever until it reaches the position without compression.
  5. Pull the starting lever until you feel a slight resistance, then pull hard.
  6. In case of cold start, the machine may need as little as 2 cc of engine oil in the small tank placed on top of the machine.

Water Pump Technical Features

The pump mounted on the BD 5000 is made of cast aluminium alloy, which makes it very robust and shock-resistant.

Pump features:

  • Suction: 50 mm - 2 inches
  • Discharge: 50 mm - 2 inches
  • Maximum suction height: 8 m
  • Maximum flow rate: 600 L/min
  • Maximum head lift: 30 m

Focus on the suction and discharge fittings

Focus on the pump-engine fitting

Focus on the pump filling cap

Focus on the pump emptying cap

WARNING:

To achieve maximum suction height, the use of a bottom valve is recommended

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

Free Items Included

The water pump is shipped in its original packaging with instructions manual, equipped with tools for assembly and maintenance:

  • 2 50 mm fittings
  • 3 metal clamps
  • 2 rubber gaskets for fittings
  • bottom filter for suction
