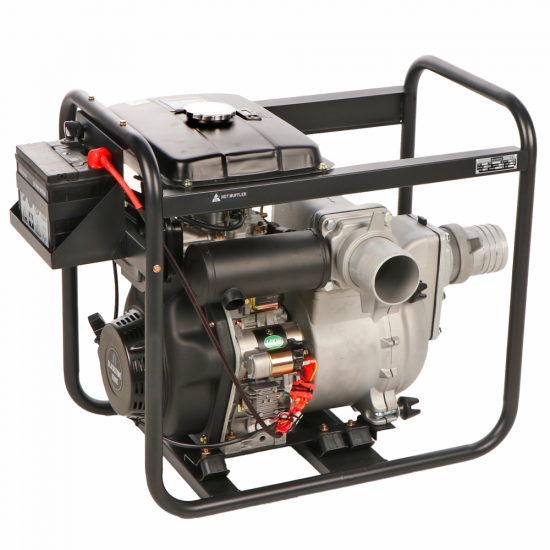

BlackStone BD-ST 10000ES Diesel Water Pump for Dirty Waters, 100 mm Fittings - Euro 5

Blackstone BD-ST 10000ES water pump for dirty water is a specific machine to drain dirty water, and it stands among the standard petrol pumps for its large dimensions and exceptional volume of its pump unit.

This pump can handle liquids that may also contain solids, ideal for emptying muddy construction site excavations, muddy bottom ponds and the like. It is also equipped with a specific metal filter, resistant to shocks and wear due to debris that dirty waters contain.

Another distinctive feature of this product is the electric start with key, which ensures easy and quick starting. In addition to this, the high performance of the powerful 498 cc diesel engine that delivers a power of 12 Hp guarantee a maximum flow rate of up to 1500 L per minute. Also, this water pump provides a maximum head lift of 25 m and a suction depth of up to 8 m.

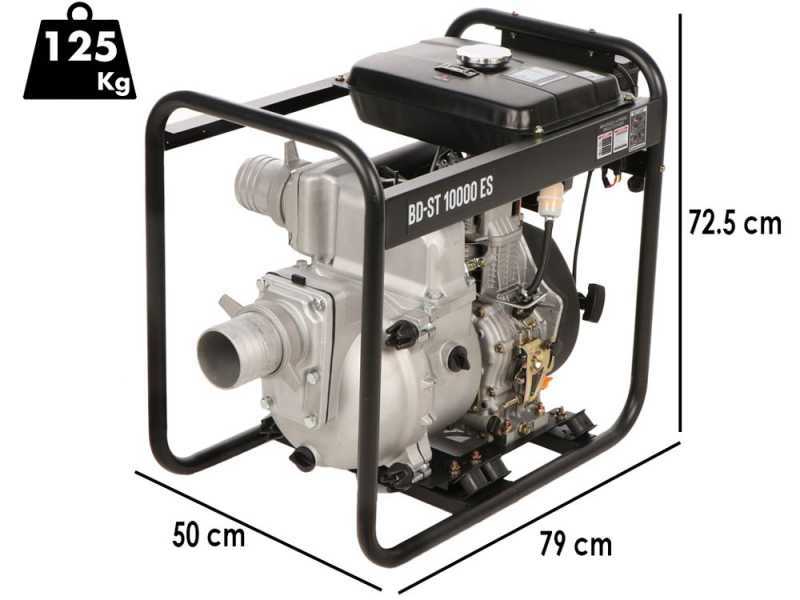

This particular model features a sturdy wraparound frame made of steel, giving the pump stability, safety and protection against impacts. Despite its robustness, this machine is easy to transport, as well as being a good compromise between size and power.

Finally, Blackstone BD-ST 10000ES is easy to use; in fact, it is sufficient to fill it using the dedicated tap placed on the top of the pump and, if necessary, drain the excess water from the drip valve.

Items included: 2 100 mm fittings, 3 metal clamps and 2 rubber gaskets for fittings in addition to the steel suction filter.

WARNING:

• The engine is provided without oil, remember to fill it before use with the bottles supplied on standard equipment
• Do not operate the machine with a dry pump

These pumps are suitable for transferring water (e.g. from a cistern to another) or for furrow irrigation in fields and gardens.
We do not guarantee the suitability for the combined use with different types of sprinklers or irrigation systems, (as they require the contribution of a qualified technician and a number of calculations in terms of flow rate, head lift, pressure, hose diameters, valves, nozzles, and so on), which may require more specific types of pumps for water systems.

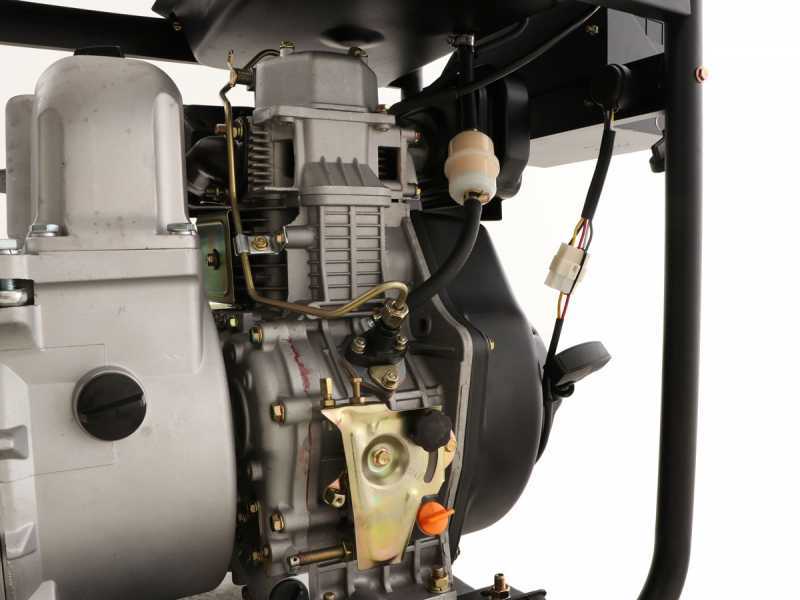

Engine features:

• Model: D500 E
• Type: 4-stroke - Euro 5 - single-cylinder
• Cubic capacity: 498 cc
• Power: 12 Hp
• Fuel: diesel
• Fuel tank: 14 L
• Oil tank: 1.65 L

Blackstone BD-ST 10000ES water pump stands among other models because it is equipped with electric start with key, which allows for a quick and optimal starting thanks to the 12V 30 Ah battery. Moreover, the machine has a 14 L tank, from which you can comfortably check the level.

Focus on the starting engine and the battery slot, fixed to the outside of the water pump frame.

Focus on the air filter (removed) and the oil filter (removed).

How to start the water pump without using the electric start:

1. Move the engine adjustment lever until you reach the start position.
2. Move the valve opener downward.
3. Pull the starting lever until you feel a slight resistance, then pull hard.

The pump mounted on the BD-ST 10000ES is made of cast aluminium alloy, which makes it lightweight and robust at the same time. While the flow control system and the impeller are made of highly resistant cast iron.

Its materials and its exceptionally high volume make it suitable for pumping liquids, which may also contain solid parts without problems.

• Suction: 100 mm - 4 inches
• Discharge: 100 mm - 4 inches
• Maximum suction height: 8 m
• Maximum flow rate: 1500 L/min
• Maximum head lift: 26 m

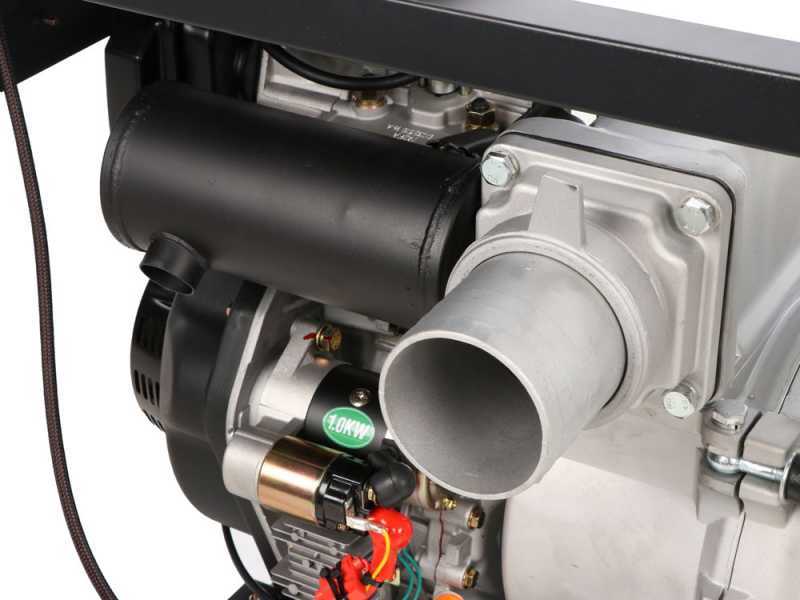

Focus on the 100 mm suction and discharge fittings. Please note that in this model the intake valve is very easy to remove and clean. In fact, it may happen that the air vacuum which forms can be compromised by some debris.

Focus on the pump-engine fitting

Focus on the pump filling cap

Focus on the pump emptying cap and discharge plug

Focus on the steel bottom filter, which allows the passage of debris with a maximum diameter of 35 mm.

WARNING:

To achieve maximum suction height, the use of a bottom valve is recommended
