Name: Blackstone BM120 - Tractor-mounted Flail Mower - Medium-light Series
Brand: BlackStone
SKU: 105383
Price: 1593.69 EUR
Availability: InStock
Rating: 4.36 (14 reviews)

Description

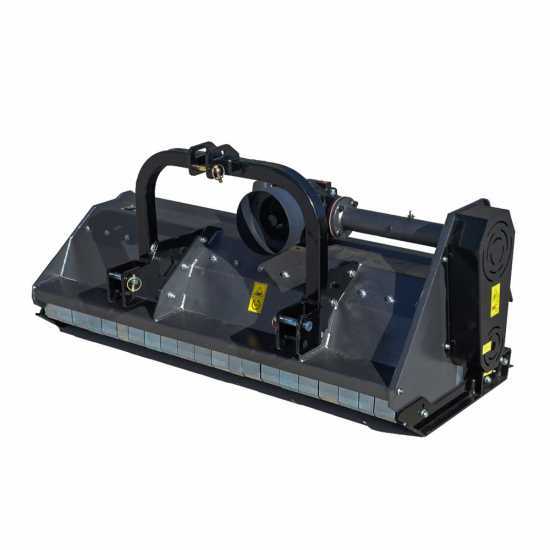

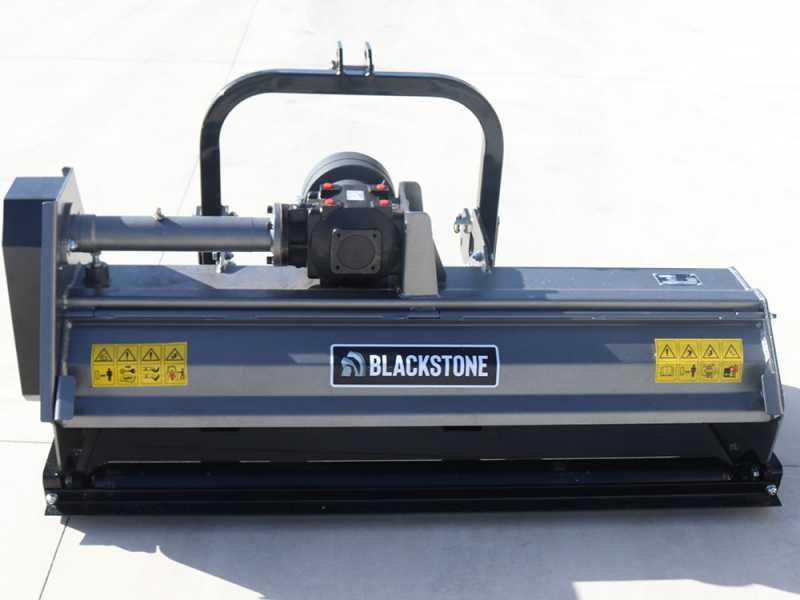

Blackstone BM120 tractor flail mower

The horizontal flail mower for tractor of Blackstone BM120 with hydraulic side shift was designed for the light runners crushing, grass and small bushes of lawns, woods, orchards and uncultivated soils.

The BM series is equipped with an engine hood with opening for an easy maintenance and inspection of the machine.

Suggested for medium-light, hobby purposes.

Hydraulic side shift, 3 drive belts and rear roller.

TECHNICAL DETAILS (in summary):

Real working width: 120 cm
Real width occupied (with side skids assembled): 135 cm
Weight: 253 kg
1° category 3 point linkage
3 belts transmission

STANDARD EQUIPMENT (in summary):

Hammer flails
Adjustable skids
Standard-supplied cardan shaft

Attention: this machine is shipped ready for use. After the assembly, check for bolts loosening and fasten.
Before using this product, please carefully read the instructions manual.

Blackstone BM120 - Tractor-mounted Flail Mower - Medium-light Series

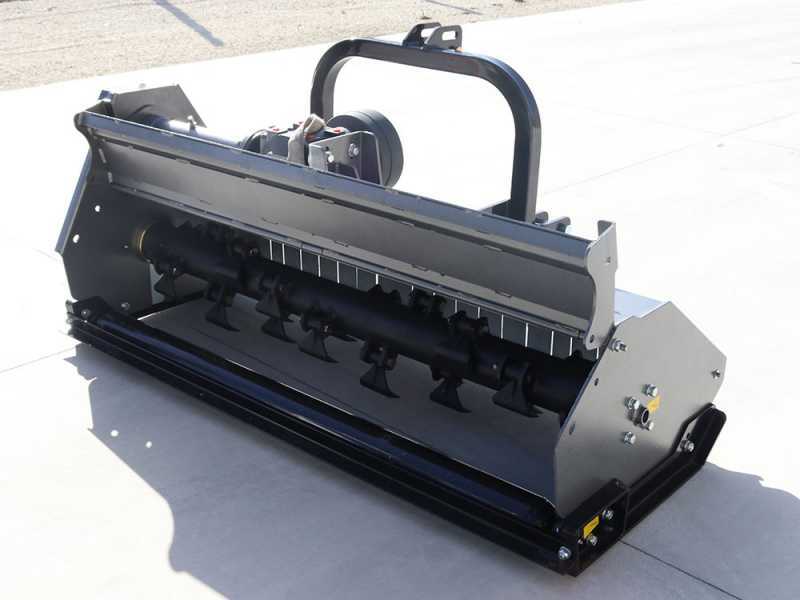

Opening of the engine hood

The special feature of this tractor flail mower is its rear opening of the engine hood.

It enables to adjust the rear unloading space by means of simple screws and to simplify the maintenance operations.

The use of bolts enables to open the small door.

Cutting tools: hammer flails

Nr. of hammer flails on standard equipment: 16

Hammer flail's hole diameter: 16mm

Focus on the drum's hammer flails.

It finely crushes grass and runners while rolling the lawn. Thanks to the high rotor's rotations and the high number of flails, it reduces the soil wave effect and have a perfect crushing function.

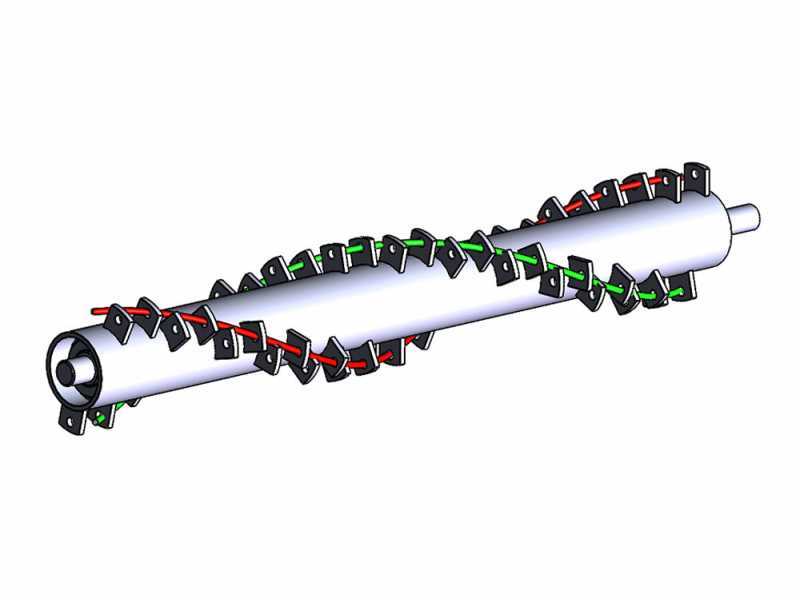

Figurative image of the double-spiral rotor.

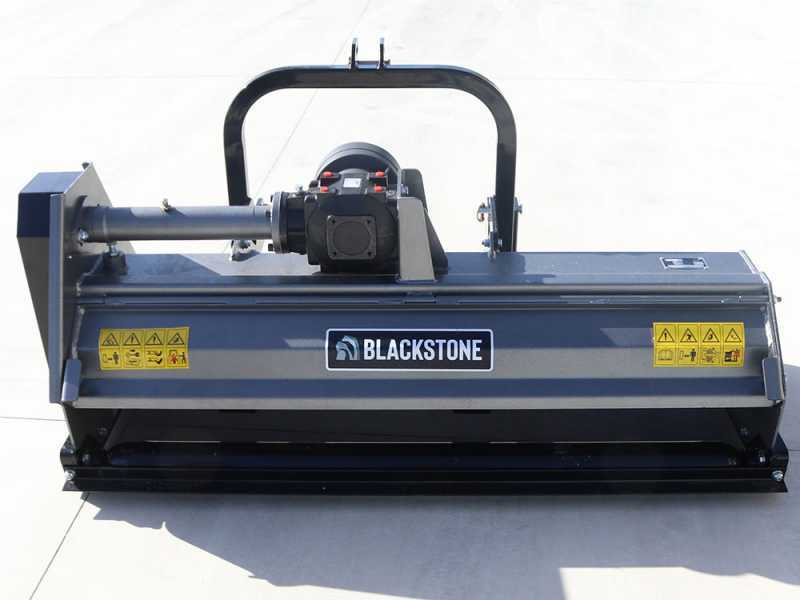

Side belt transmission and gearbox

Oil-bath gearbox. Monocoque shell, hardened steel inner gears.

Equipped with lubricated extension.

3 belts side transmission.

Focus on the side belt protection cover

Focus on the side greaser located on the same transmission's side

This machine's gearbox capacity is under 1 L oil.

Before using this product, please carefully read the instructions manual.

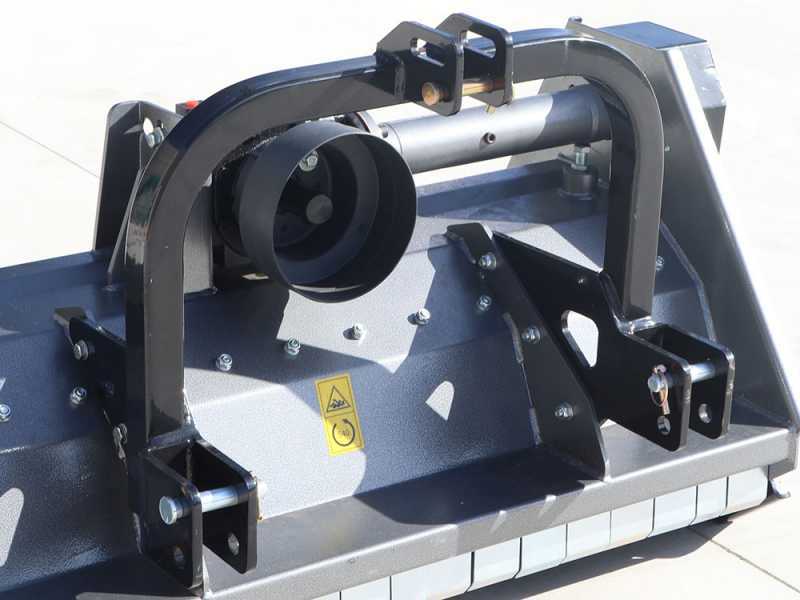

Hydraulic side shift and 3 points hitch

Equipped with hydraulic side shift.

Universal type PTO ( 1 3/8" Z6 )

Connections are universal type for all tractors on market.

Focus on the sturdy 3 points hitch.

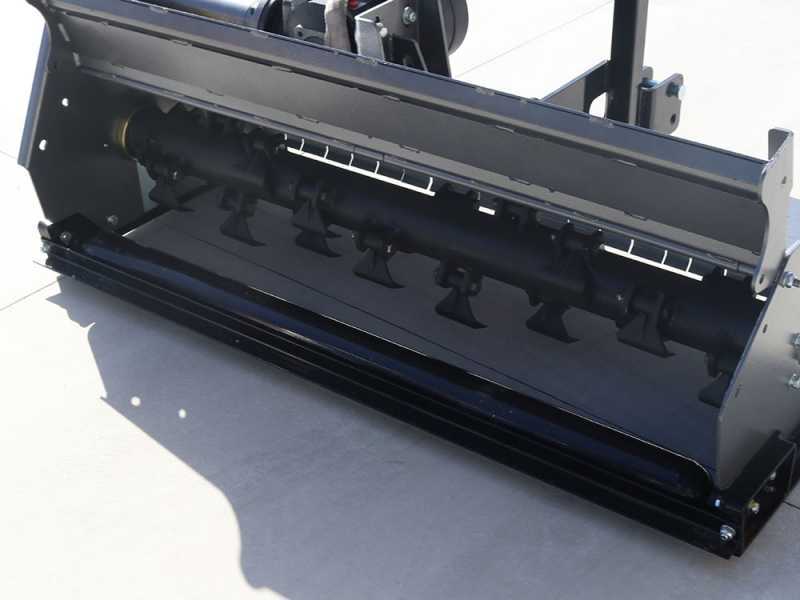

Rotor and side bearings

Focus on the side flail support and of the side drum's bearing.

Focus on the outer rotor's anchoring, with central greaser hole.

Good cut on gardens, lawns and urban areas thanks to the hammers. The flail mower is connectable to tractor is by 3 points linkage.
