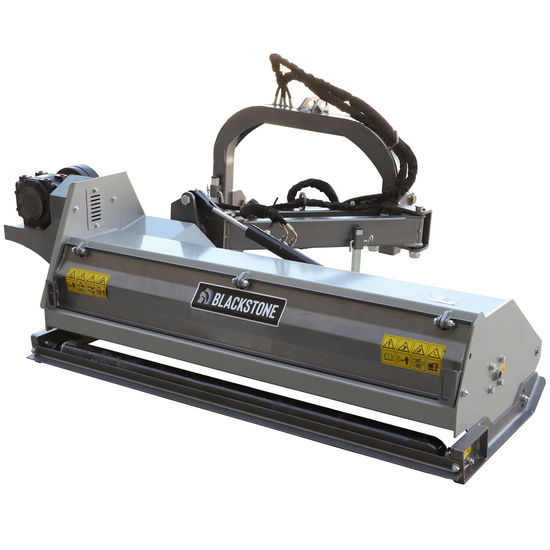

Name: BlackStone BVM 180 M - Tractor-mounted side verge flail mower with Arm - Medium Series
Brand: BlackStone
SKU: 107301
Price: 2847.2 EUR
Availability: InStock
Rating: 3.43 (7 reviews)

Description

Tractor-mounted side flail mower with arm

The BlackStone BVB 180 M side flail mower with arm is a tool intended for green maintenance, ditches and hedges.

It features excellent quality/price ratio and it is suitable for all users who require a high flexibility of use and possibility to adjust the machine operating mode according to their needs.

This model ensures the highest flexibility of use among side flail mowers; indeed, the hydraulic shift is both horizontal and vertical. Its structure is medium and elastic and it is used for shredding light prunings, grass and small shrubs.

It is suitable for different operations, such as:

Grass mowing
Stalks chopping
Pruning waste chopping
Hedge cutting
Ideal for ditches, embankments and sloping terrain

The 3-point hitch is hydraulically operated by 2 sturdy pistons mounted on the machine.

The flail mower is provided with a 4-belt drive transmission.

TECHNICAL SPECIFICATIONS (brief overview):

Real working width: 180 cm
Total width: 220 cm
Weight: 468 kg

ON STANDARD EQUIPMENT:

Category 1° 3-point hitch
4-belt drive transmission
Rotor with toothed hammers
PTO
CE compliant safety equipment

BlackStone BVM 180 M - Tractor-mounted side verge flail mower with Arm - Medium Series

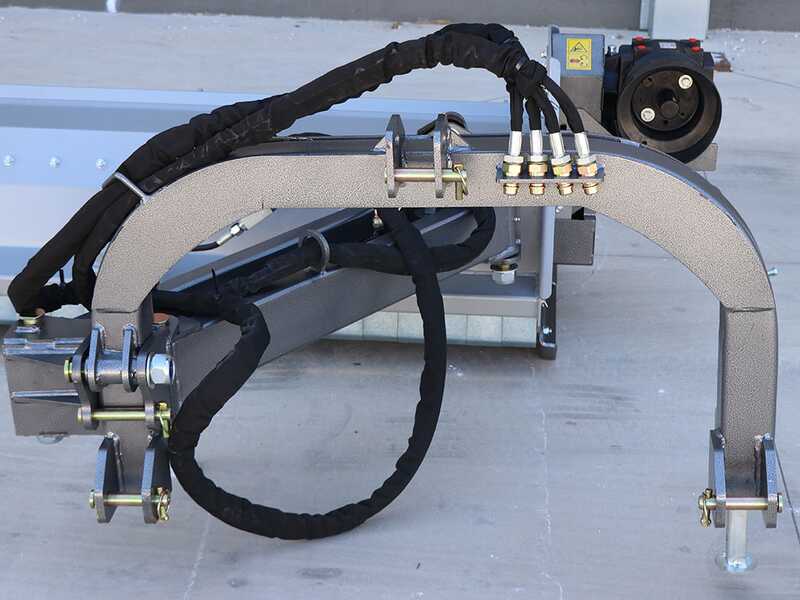

Hydraulic side and vertical shift

Vertical and side hydraulic shift is operated by 2 pistons. Equipped with 4 hoses connected to the hydraulic connections on the tractor.

A very sturdy shift system. It consists of articulated arms.

The flail mower can work up to 90° vertically upwards and - 40° downwards.

Cutting tools: hammer flails

No. of hammers fitted on standard equipment: 22

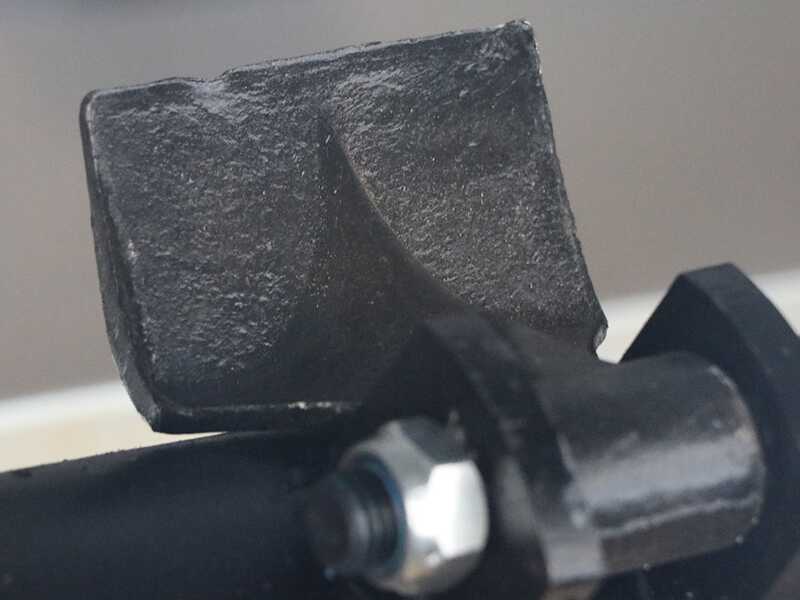

Focus on one of the the hammer flails (toothed hammers) mounted on supports welded to the rotor.

Focus on the side support with hammer flails rotor inner fixing bearing.

Focus on the outer rotor anchor plate, with central opening provided with greaser.

Hammer width: 90 mm

Bolt length: 87 mm

Hammer flail's hole diameter: 16mm

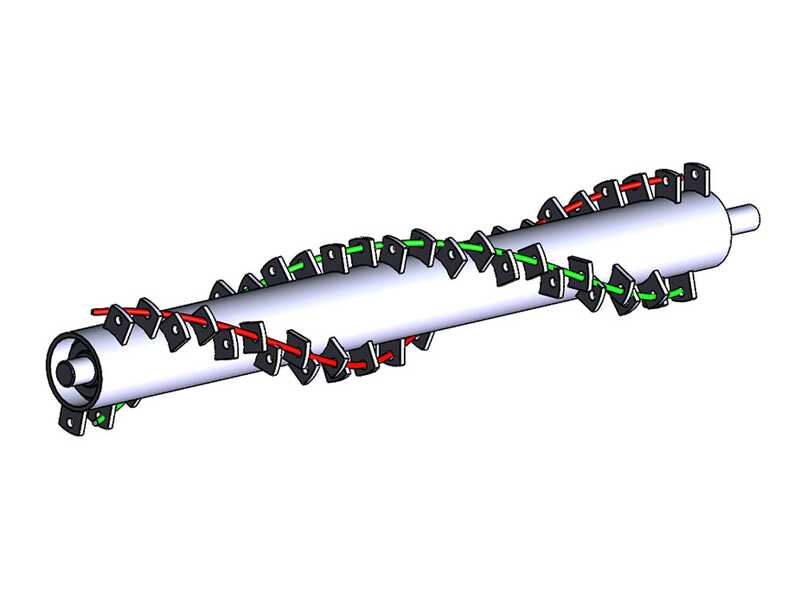

Figurative image of the double-spiral rotor.

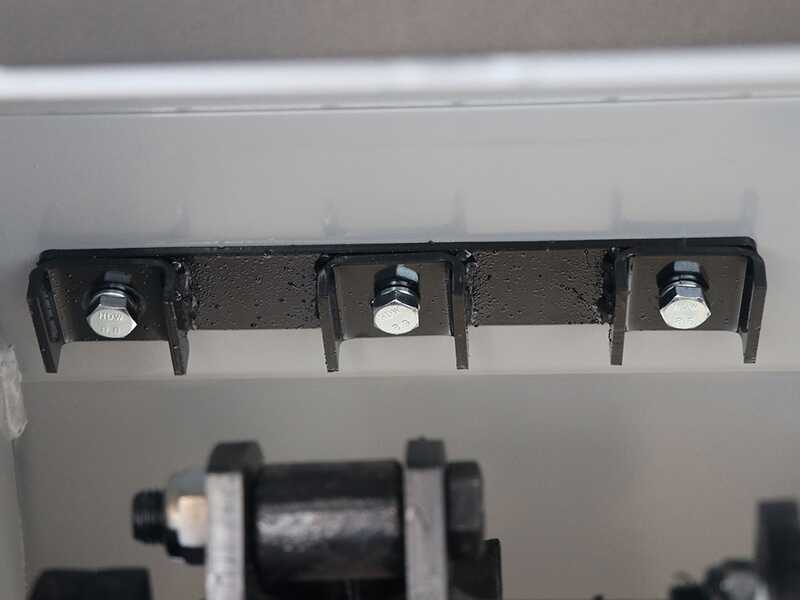

Set of counter-knives

This flail mower ensures excellent cutting and shredding performance of grass and branches.

The shredding unit features a series of counter-knives which guarantee an optimal crushing of scrubs. The counter-knives are comb-shaped to ensure excellent and effective shredding performance, while the rotor is equipped with supports for the shredding hammers.

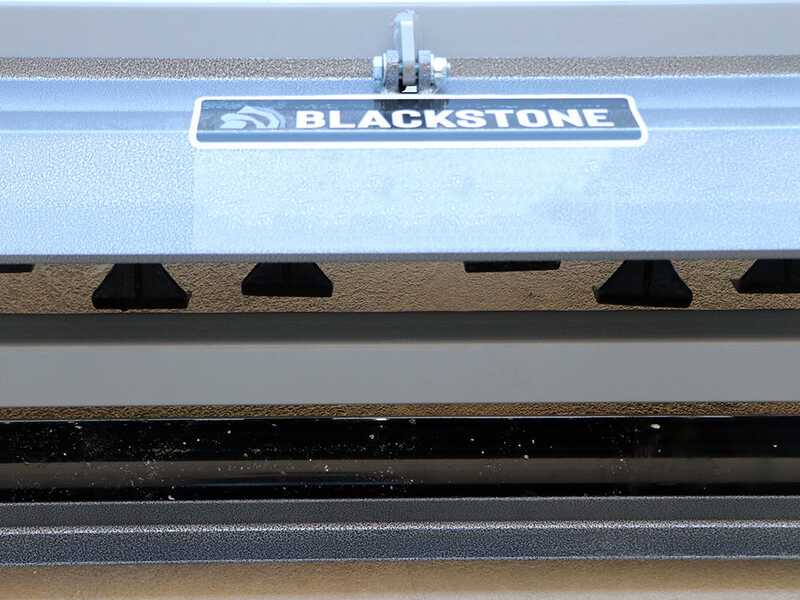

The counter-knives are placed under the housing and operate together with the hammers, acting as a counter-blade for better shredding results.

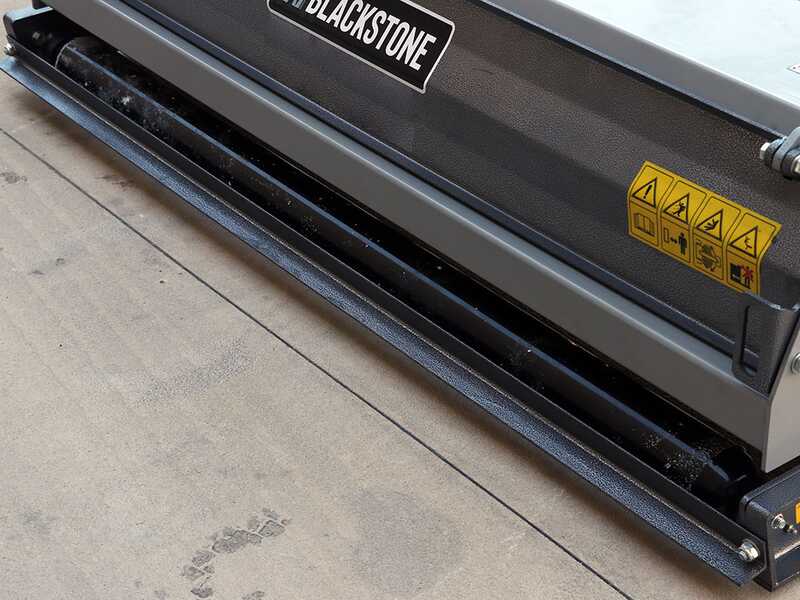

Rotor, hammer flails supports, side bearings

It finely shreds grass and cuttings, while simultaneously rolling the turf.

Thanks to the high rotor speed and the large number of hammers (toothed hammers), this flail mower reduces the wave effect on the turf performing an excellent shredding.

Thanks to the sharpened toothed hammers it ensures high-quality results in gardens, lawns and urban areas.

The flail mower is connected to the 3-point hitch on the rear part of the tractor.

The rotor with hammers features a 108 mm diameter.

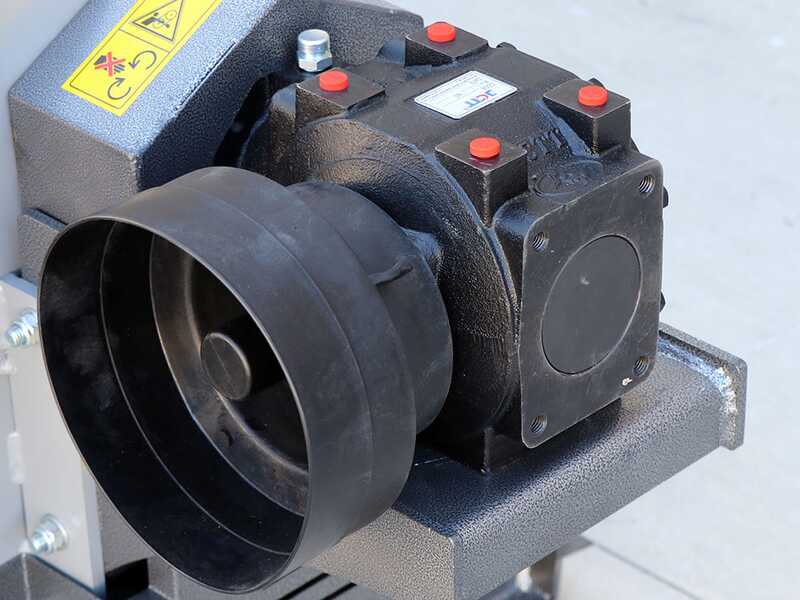

Side belt transmission and gearbox

Reduction gearbox in oil bath.

4-belt side transmission featuring large section with belts protective side covering, equipped with many vents (for proper cooling).

Standard 1 3/8” z6 PTO (suitable for all current and recently manufactured tractors): whether you own a particularly old tractor, make sure that it s equipped with the same PTO and with standard clockwise rotation (right-side).

THE MACHINE IS PROVIDED WITH OIL.
