HOME Workshop and Do-It-Yourself Electric Air Compressors Small Portable Air Compressors Portable Small-sized Oil-lubricated Air Compressors with tank BlackStone LBC 09-15

BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure

Hobby
Questions & Answers (1)
ID: K603411

EAN: 9999991089167

BlackStone
Catalog BlackStone
8,9/10
After-sales assistance & Spare parts
41Pictures
4Videos
9Customer pics
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
FREE
no. 8 compressor connectionsno. 8 compressor connections
Air compressor tank
9 L
Max. operating pressure
8 bar
Air intake flow
110 L/min
Cylinder head rpm
2880 RPM
Lubrication
Oil
Pump type
Single-stage
Nominal power
1.5 HP
Operating mode
Single-phase 230 V
Product Features
Model:
LBC 09-15
Air compressor type 2:
Oil-lubricated coaxial
Air compressor type:
Horizontal
Handheld:
✔
Operating mode:
Single-phase 230 V
Max. operating pressure:
8 bar
Number of tanks:
1
Air compressor tank:
9 L
Noise level:
97 dB(A)
Noise level:
97 LwA
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Nominal power:
1.5 HP
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump brand:
Blackstone
Air intake flow:
110 L/min
Pump type:
Single-stage
Lubrication:
Oil
No. of cylinders:
1
Cooling manifold:
No
Manufacturing country:
China
Transmission data
Transmission type:
Coaxial type direct
Cylinder head rpm:
2880 RPM
Equipment
No. of outlet couplings:
1
Front handle:
Yes
Rubber-coated soft grip:
Yes
Lifting handle:
Yes
Battery position:
Free gifts/extra features
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
50x17x48 cm
Net weight:
13 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
55x23x12 cm
Gross weight (packaging included) :
14 Kg
Assembly time:
5 minutes
Out of stock
Notify me when available
Free Shipping
Free returns (up to 30 days after receipt) *
Suggested price:
€ 141,41
€ 133,42
VAT Included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

BlackStone LBC 09-15 Electric Air Compressor

The BlackStone LBC 09-15 electric air compressor is a compact, multi tool and powerful equipment.

Powered by a 1.5 HP electric motor running at 2880 RPM, it has a compressed air suction capacity of 110 L/min, and it can reach a 8 bar Max pressure.

The main uses of this air compressor include:

  • Air-blowing
  • Inflation
  • Airbrushing
  • Nailing - Stapling
  • Spraying treatments
  • Painting

Provided with a large-sized 9 L compressed air storage tank. It weighs 14 Kg and it can be easily transported thanks to its wheels and the upper handle.

BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure

Technical features

Technical features:

Pump type: coaxial

Air displacement: 110 L/min


Pressure: 8 bar

Electric motor power: 1.5 HP

Tank: 9 L

LwA: 97 dB

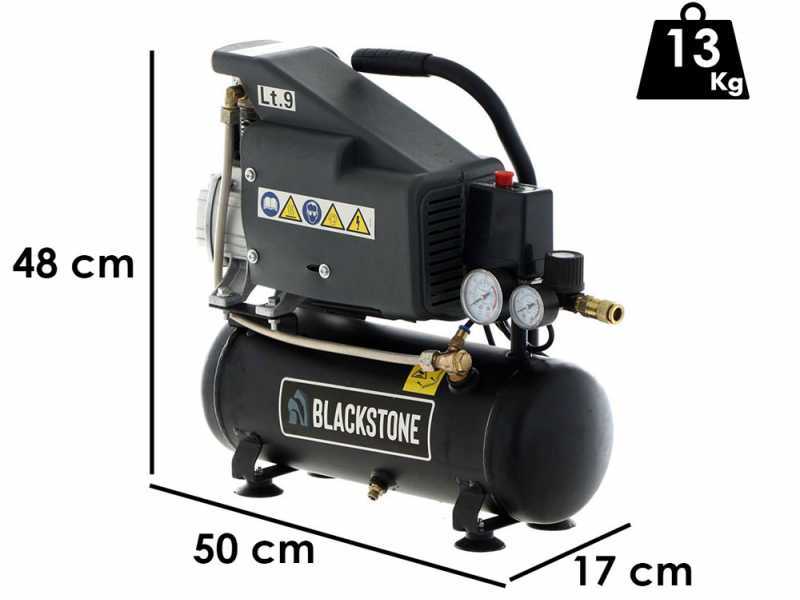

Dimensions:

Length: 500 mm

Width: 170 mm

Height: 480 mm

Weight: 13 Kg

BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure

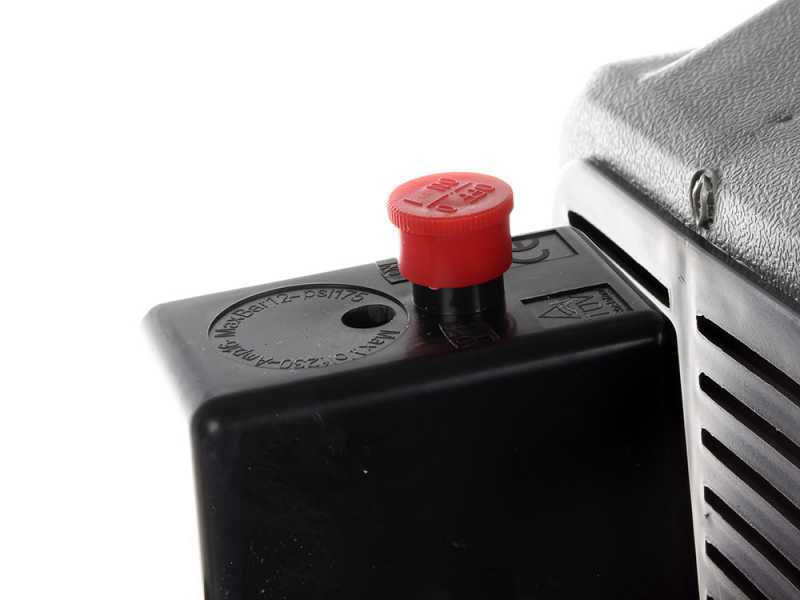

Controls

This Blackstone air compressor features easy and user-friendly controls, which are divided into:

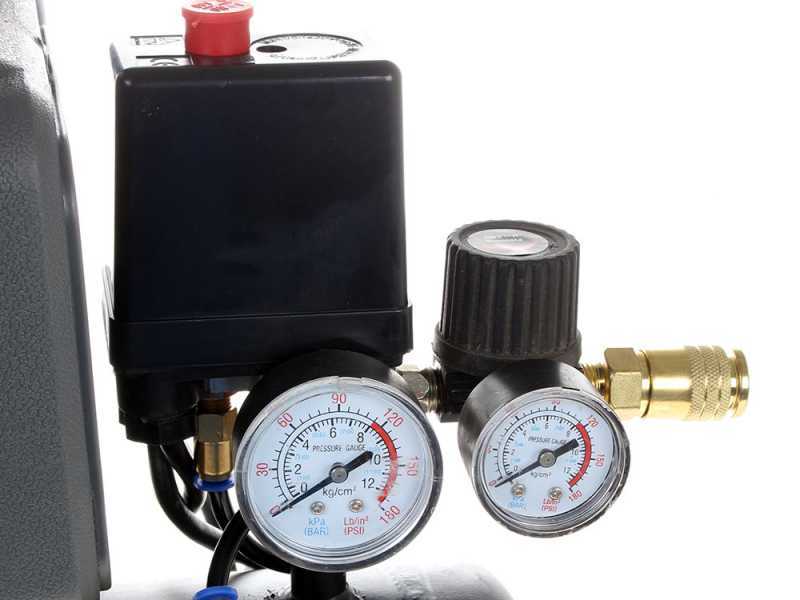

Output air pressure gauge

Tank air pressure gauge

Female outlet fitting

Pressure adjusting knob

Power switch

BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure

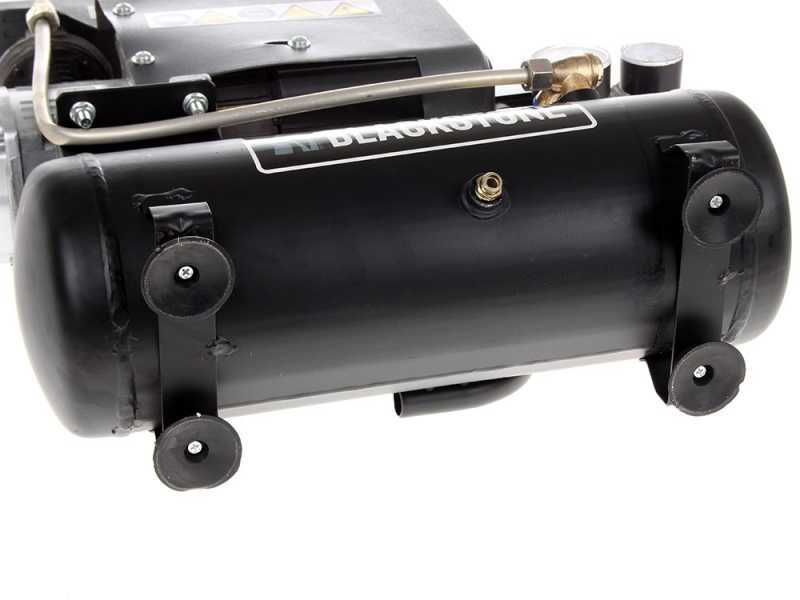

Other features

Schuko socket.

Ergonomic handle

Anti-vibration rubber pads

Air drain valve

Condensate drain valve

Focus on the the oil tank plug

BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
Free items & Standard equipment

COMPLIMENTARY: Oilless Air Compressor Maintenance Kit

Maintenance kit provided on standard equipment includes:

  • Air compressor spare/replacing female output joint

  • Air compressor spare/replacing male output joint (replaceable on equipment with bayonet cap) or usable as spare joint

  • Quick joint to convert all the machineries fitted with standard bayonet coupling. It allows easily connecting the units to hoses with female quick joint.

  • Quick male joint for converting the female output joint supplied on the air compressor into the traditional bayonet cap (it also allows the use of the standard hoses with bayonet system)

  • Repair/Junction fitting for Ø 8 hoses
  • Repair/Junction fitting for Ø 10 hoses
  • Lower tank discharge valve replacement air compressor
  • Teflon roll, ideal for the main maintenance operations
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure

Free items included

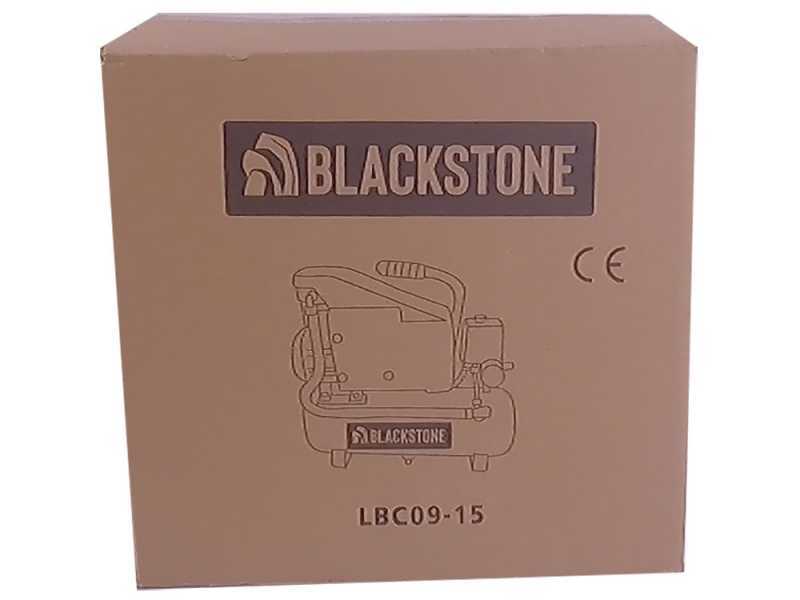

The air compressor is shipped in its original packaging

.Instructions manual included in the package.

BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure BlackStone LBC 09-15 - Electric Air Compressor - 9L Tank - 8 bar Pressure
