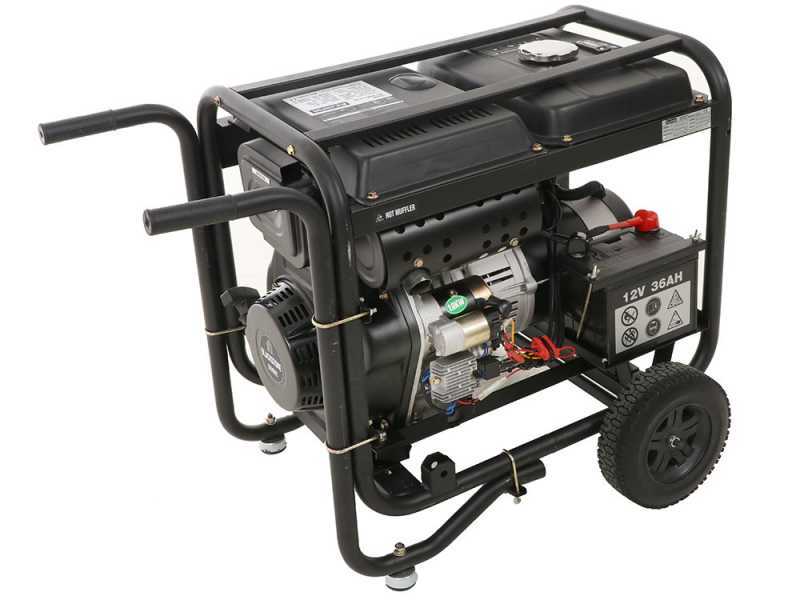

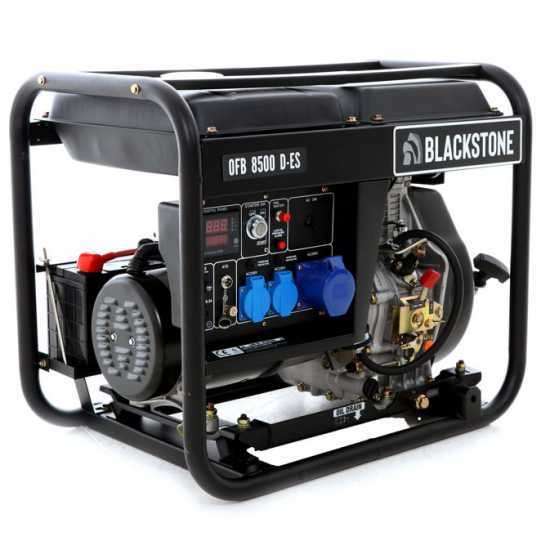

BlackStone OFB 8500 D-ES - 6.3 kW Diesel Power Generator with AVR - DC 6.0 kW Single-phase

The Blackstone OFB 8500 D-ES is equipped with a copper alternator casing and can develop up to 6500 W maximum power. It is easy to use thanks to user-friendly and easy controls and its compact size enables it to move it according to any need.

It is powered by a 4-stroke 498 cc diesel engine that provides 13 HP. It features an easy electric start with keys and is provided with an 11 L fuel tank.

The engine is in compliance with the European regulations for EURO 5.

Equipped with an AVR card: the current generator has an electronic card that automatically regulates the output voltage, keeping it constant as the load changes

The generator can work at temperatures between 5° and 40° and at an altitude not exceeding 1000 m.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

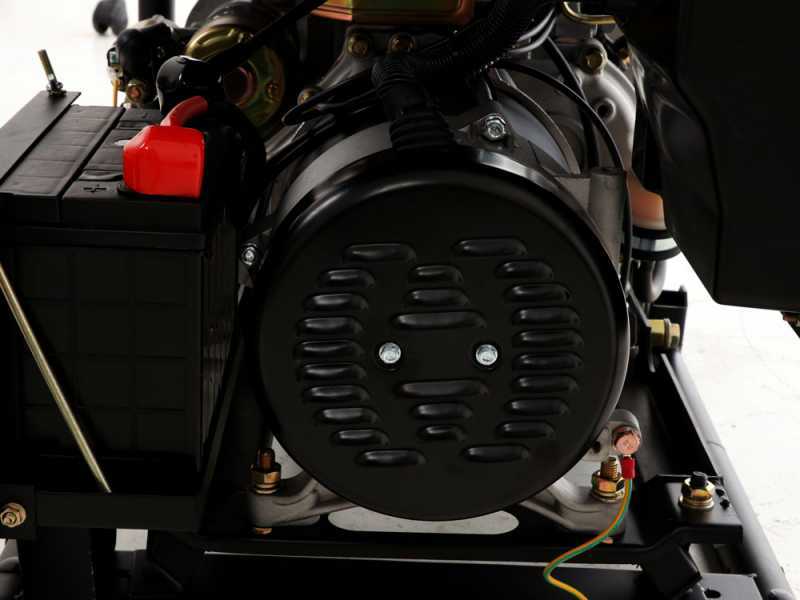

The alternator of this generator shows a copper winding.

Max rated output: * in emergency conditions LTP: 6.5 KW

* In emergency conditions, the generator is able to generate this maximum output power.

Rated power output * in continuous running PRP: 6.0 KW

* This last feature represents the technical data to take into account as effective according to the generator capacity of generating electric power (since it allows the generator running for a long period of time).

This Blackstone generator is also equipped with AVR card that allows an automatic output voltage regulation maintaining it constant even in case of sudden changes in load.

The generator is built into a heavy-duty frame through sturdy anti vibration rubber feet.

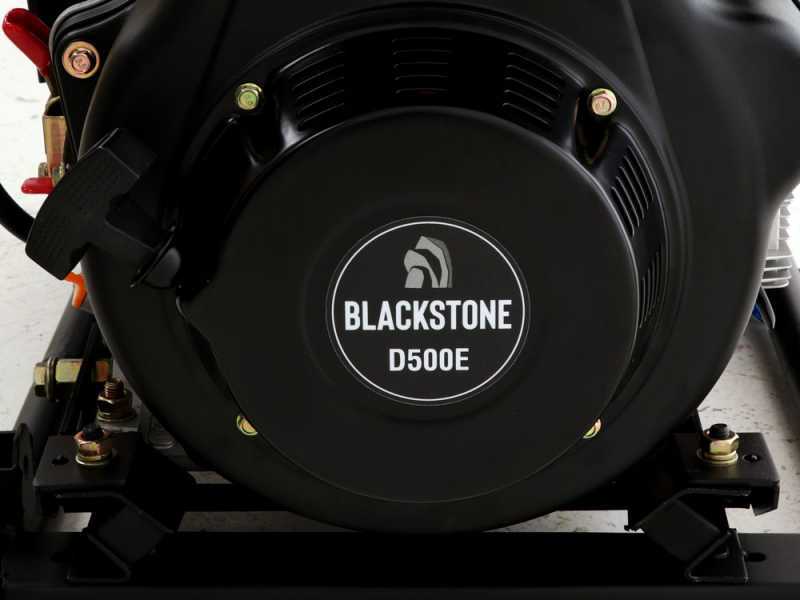

Engine features:

Model: D500E
Engine type: 4-stroke single-cylinder
Cubic capacity: 498 cc
Power: 13 Hp
Fuel supply: diesel
Fuel tank capacity: 11 L

The generator AVR card (used to regulate the output voltage) even allows automatically regulating the gas rate and it is responsible for the engine acceleration in case of sudden changes in load.

Focus on the engine air filter.

Focus on the recoil start.

Focus on the diesel tank and the oil tank.

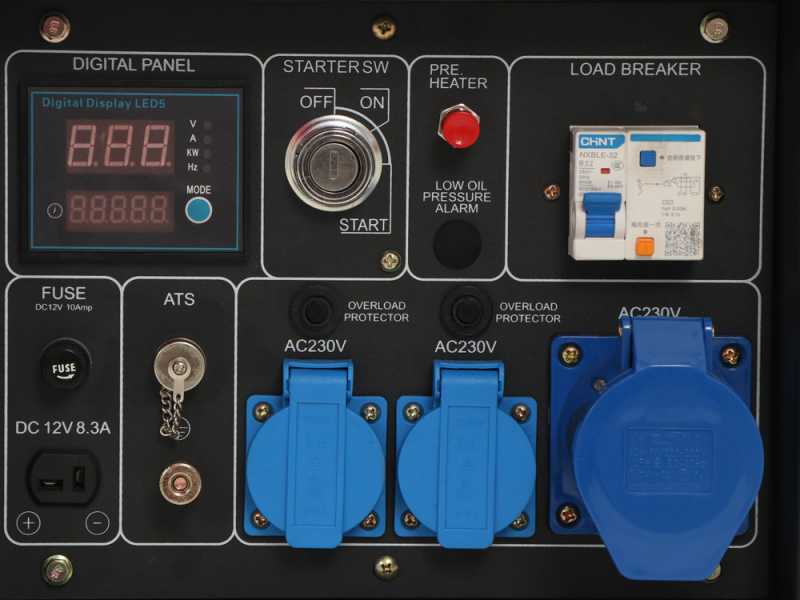

The Blackstone power generator control panel is complete and feature-rich.

• Voltmeter to display the current voltage output at the outlet and to display the alarm due to low oil level

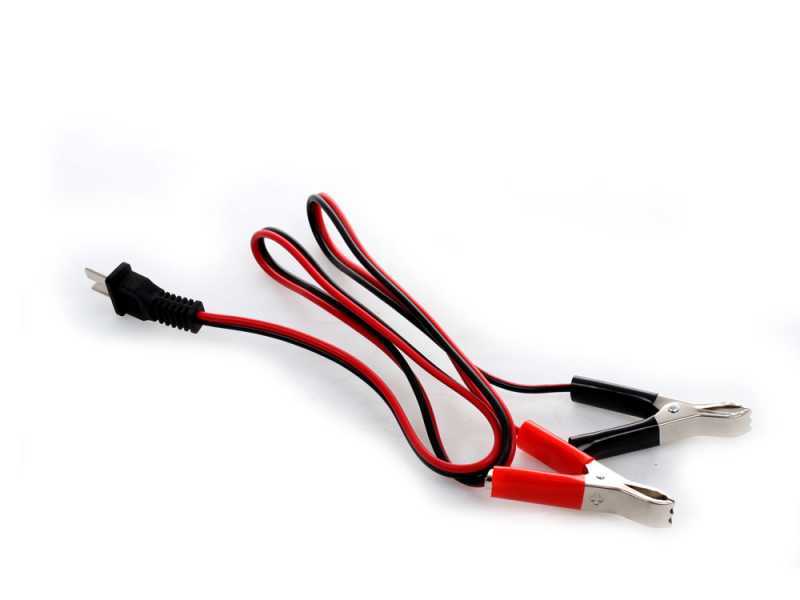

• This generator is also equipped with a battery charger suitable for charging all 12-volt batteries. WARNING: This is not a 12-volt power supply system for operating 12-volt equipment. It is a normal battery charger.
• No. 2 16 A Shuko power sockets
• 32 A CEE socket (this must absolutely be used for the full power of the generator, i.e. with high absorption and switching power above 3.5KW, e.g. large blenders, electric pumps, compressors, suitable welders, etc.).
• Possibility of connection with ATS panel
• Overload protector, to protect the machine from a possible overload
• Pre Heater, button for pre-starting the machine
• Electric start with keys
• RCD panel
  Orange button (Test button)
  Blue button (Locks the lever for ignition

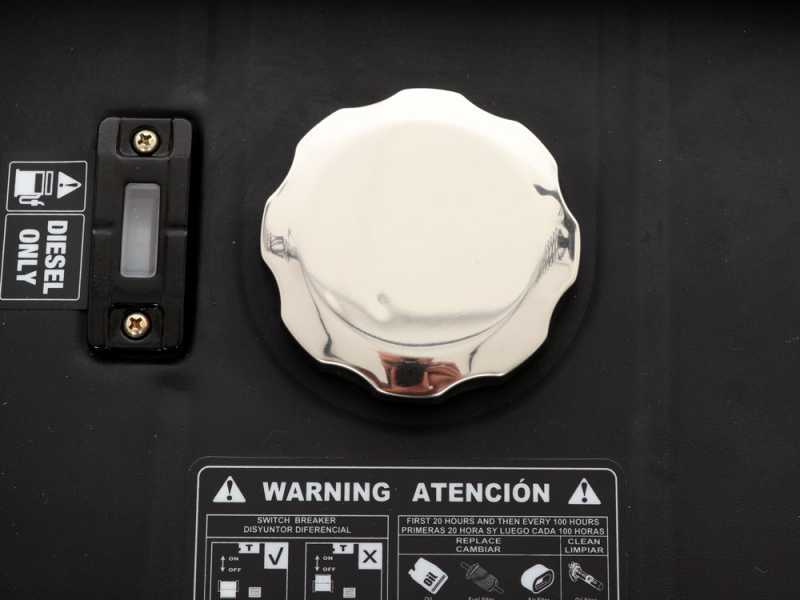

Focus on the tank

Focus on the muffler.

Focus on the air filter.

Focus on the anti vibration rubber feet.

• Voltage: 230 volts
• Frequency: 50 Hz
• Fuel tank capacity: 11 L

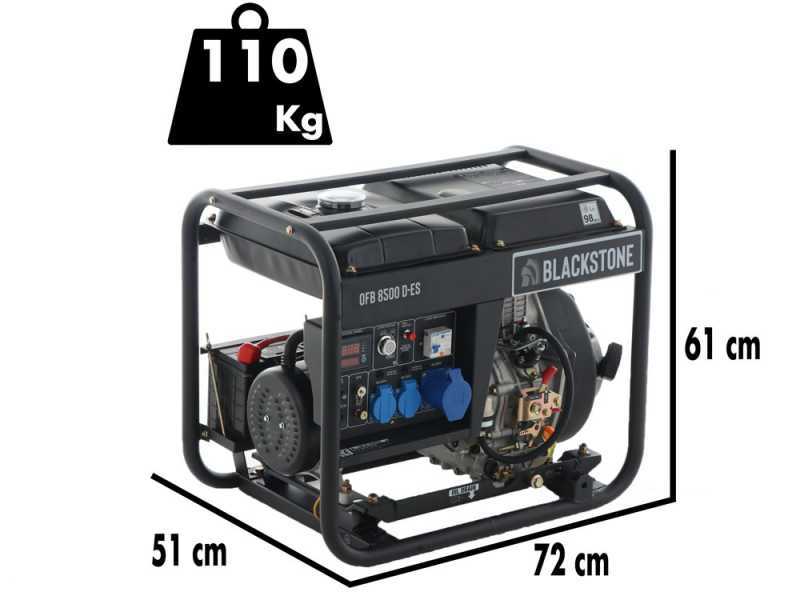

• Weight: 110 Kg
• Size: 72 x 51 x 61 (LxWxH)

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs.

• The generator can only be used to power individual electrical equipment (respecting the rated power in KW produced by the generator in relation to the absorption of the appliances during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).
• The generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with standard 3000 rev/min alternator as this specific model, but it is designed with professional alternator with low speed: 1500 rev/min – with liquid-cooled engine and alternator – in this case you’ll see that the unit specifications and price are much different from this model).

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
