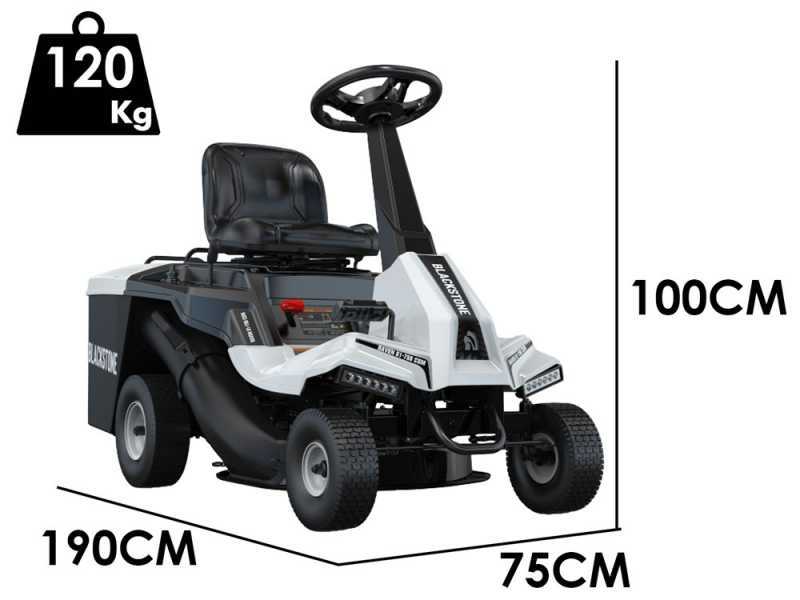

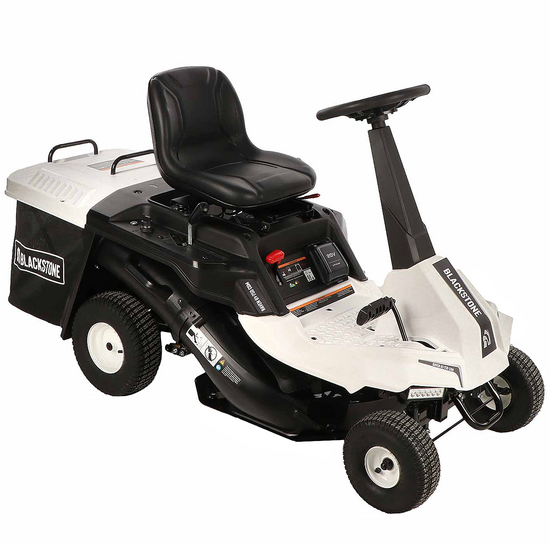

Blackstone RAVEN 61-750 CSM - Mini-rider Riding-on Mower - 224cc Engine - Electric Start

The Blackstone RAVEN 61-750 CSM riding-on mower is an ideal choice for those looking for a practical and efficient device for maintaining their garden.

Equipped with a 61 cm single blade cutting deck, this ride-on mower is designed to care for your lawn in less time.

The universal blade is designed for optimal performance and the following cutting modes:

1. Collection in the 150L basket.
2. Mulching cutting system
3. Side discharge with deflector included

This model is equipped with a 7.5HP 224cc engine, ensuring powerful and reliable performance. The electric starter facilitates ignition, making it quick and effortless (battery and charger included).

The centralised cutting height adjustment allows the user to select from 5 different positions, with a range from 35 mm to 75 mm, providing operating flexibility.

Thanks to its mechanical gearbox, the Blackstone RAVEN 61-750 CSM mini-rider features:

• 4 forward speeds
• Neutral (N)
• Reverse (R)

The riding-on mower is equipped with a lever to control the blade, making activation and deactivation of the cut easy and precise.

The 10x400-4 front wheels and 13x500-6 rear wheels provide good stability and grip on the ground, improving safety and comfort during use.

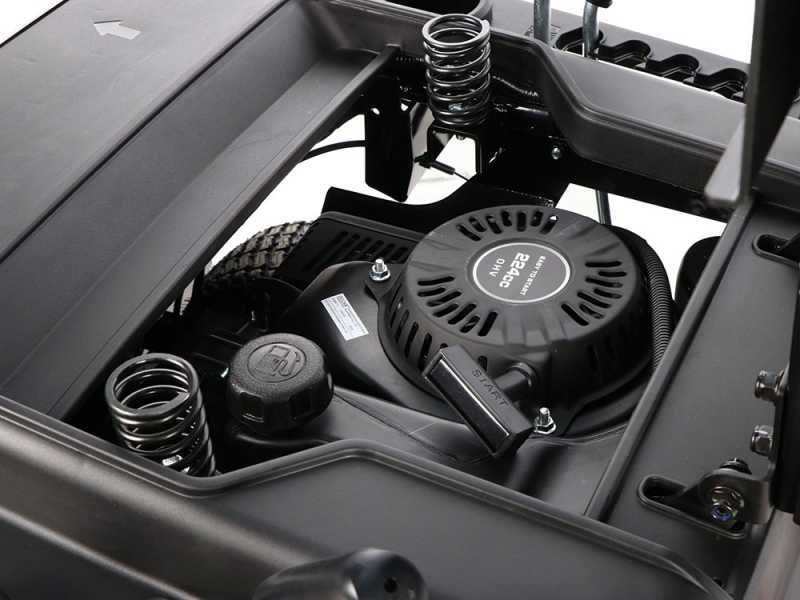

The DV225 is a 4-stroke, air-cooled petrol engine with an aluminium cylinder.

It features 224 cc and develops good power.

Machine equipped with electric starter (battery and charger included)

WARNING!

The engine is PROVIDED WITHOUT OIL.
Read the instruction manual carefully before start-up.

Nominal Power: 7.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers.

* This figure is the one that is most widely used and publicised in the main sales channels, even if it is higher than the real power of the engine.

Actual power: 5.90 Hp (at 3100 rpm)
It refers to the real power of the engine. This is the power indicated as official in the engine instructions manual.

* This figure may vary for the same engine model, depending on the speed the manufacturer decided to have the engine applied.

1. SIDE DISCHARGE:

For cutting grass without collecting it into the grass collector (suitable for maximising cutting performance in the shortest time; with this system, it is possible to cut grass even slightly higher than normal)

2. MULCHING:

This grass mowing system allows crushing grass clippings and dropping them on the ground. The resulting grass particles are so small, they will be barely noticeable on the lawn. This eliminates the problem of its disposal (reducing any effort and shortening the time-saving). Moreover, grass clippings will break down into nutrients and water for the lawn (grass is 80% water) and will thus ensure a perfectly balanced biological cycle. However, it is worth remembering that, to ensure the greatest mulching results, the lawn should be irrigated, and the grass needs cutting at least once a week. Converting the machine from a cutting system to the other one is very easy.

3. GRASS COLLECTION SYSTEM:

The grass collector assembly is very easy and requires only a few minutes.

It is not necessary to remove the grass collector to operate with the side discharge or mulching cutting system. Just remove the hose that connect the cutting deck to the rear grass collector and leave it attached even while not in use. An operation that requires only a few minutes.

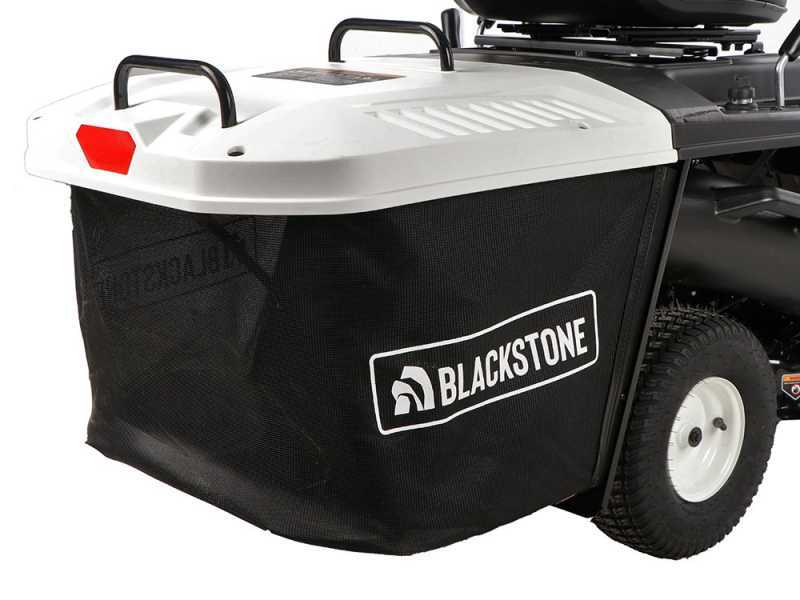

150L grass collector

The Blackstone RAVEN 61-750 CSM mini-rider is equipped with a selector switch that allows users to set between:

• Forward speed with 4 different driving speeds.
• Neutral (N)
• Reverse gear (R)

Travel speed of the riding-on mower according to the selected gear:

• 1.5 km/h
• 2.0 km/h
• 4.0 km/h
• 6.0 km/h

Reverse speed: 2.4 km/h

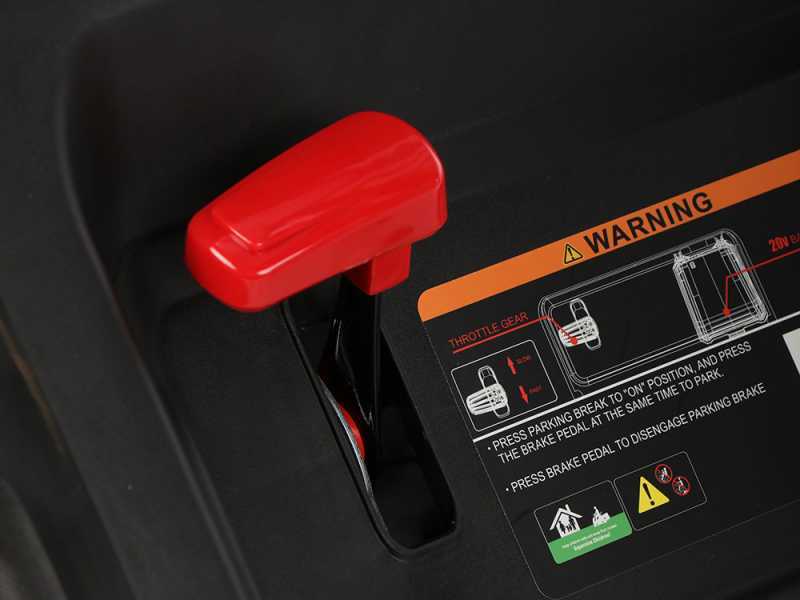

Focus on the engine rpm adjustment lever

Once selected one of the 4 gears, you’ll get the possibility to adjust the speed (reducing it) by simply adjusting the pressure on the braking pedal (decelerating in the brake circuit).

Releasing the brake pedal, the riding-on mower will automatically return to the gear that has been previously selected.

Detail of the transmatic transmission

Features of the Blackstone RAVEN 61-750 CSM mini rider cutting unit

Sturdy single-blade cutting deck: 61 cm real cutting width.

The riding-on mower comes with a universal blade already assembled.

The cutting height is adjustable via the cutting lever in 5 different positions between 35 and 75 mm.

The blade is operated via the proper blade engagement lever.

Cutting deck with washing connection

Easy and user-friendly controls.

After starting the engine, from the driver's seat it is possible to select the starting gear, engage the reverse gear, adjust the RPM throttle, change the different cutting heights, engage the parking brake, turn on the headlights and more...

Key activation lock: electric engine start. (battery and battery charger included)

Blade engagement lever

Braking pedal

Engine rpm adjustment lever

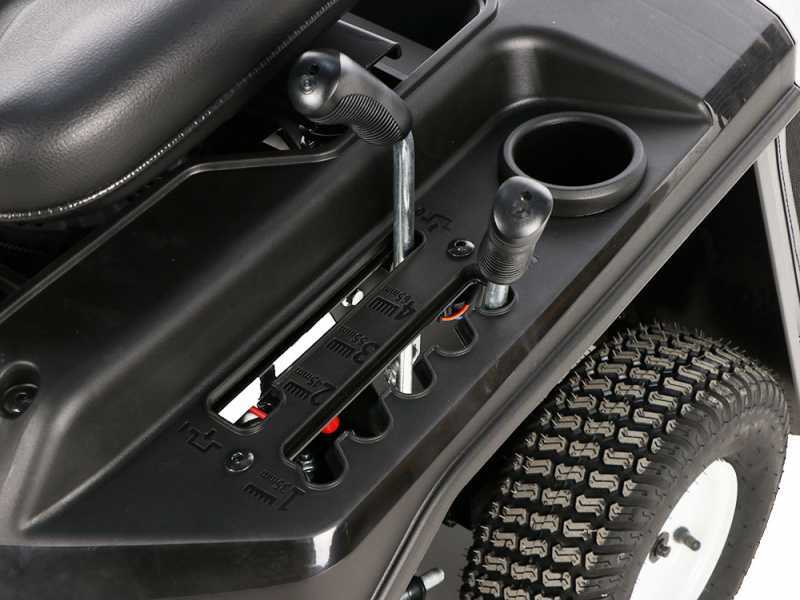

Cutting height adjustment lever in 5 different positions from 35 to 75 mm.

Parking brake engagement lever

Headlight activation button

Forward, reverse and neutral gear engagement.

Additional features of the Blackstone RAVEN 61-750 CSM riding-on mower

• Tread tyres: They ensure greater turf protection and the best possible traction on the riding-on mower:
  • Front wheels 10x400-4
  • Rear wheels 13x500-6
• Comfort seat resting on a steel spring to cushion any unevenness of the ground
• Ergonomic steering wheel
• Tow hitch
• Electric start, with lithium battery and charger included
• Cupholder
• Front lights for optimal illumination even in low light conditions
• Connection for washing the cutting plate
• Front bull bar

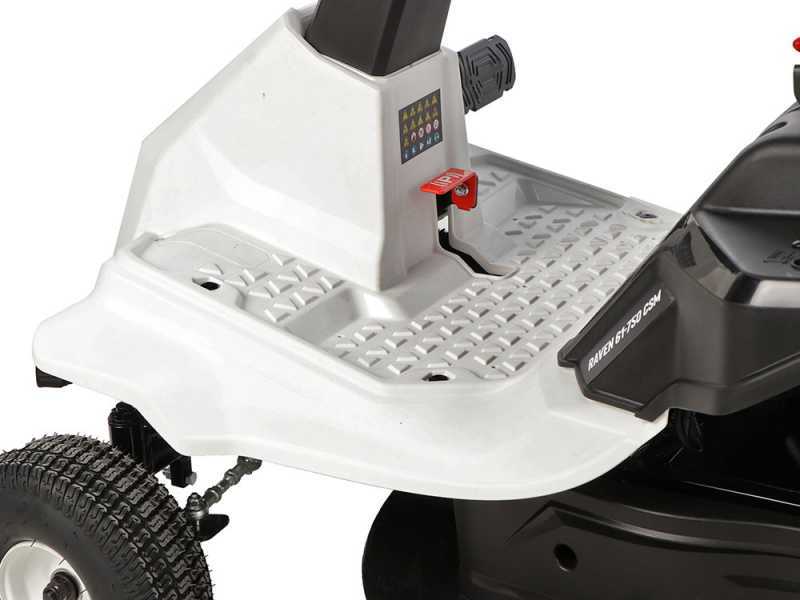

• Footrest
