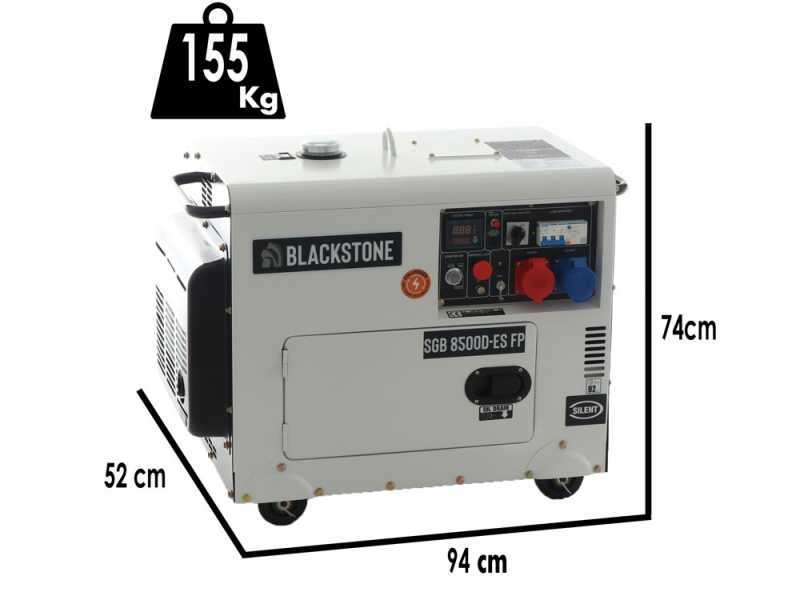

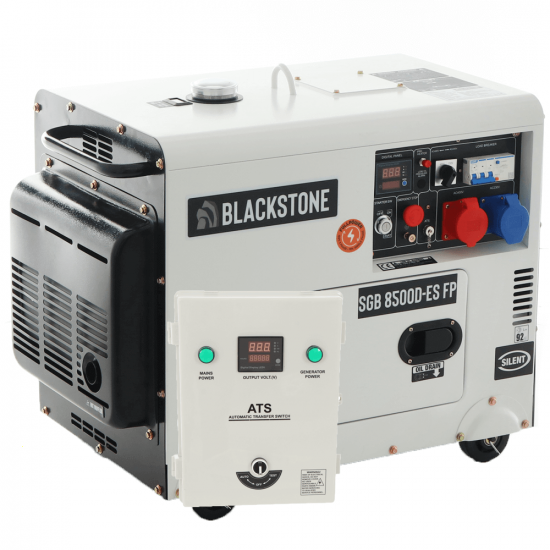

Blackstone SGB 8500 D-ES FP - 6.3 kW Silenced Diesel Power Generator with AVR - DC 6 kW Full-Power + ATS

Blackstone SGB 8500 D-ES FP SILENT DIESEL generator is a semi-professional product ideal for private use. It is powered by a 4-stroke diesel engine and is able to supply 13 HP (9.6 kW) and 498 cc. It features an easy electric start with keys and is provided with an 12.7 L fuel tank.

The generator is provided is fully coated with copper and can reach up to 5800 W max. single-phase power and 6300 W three-phase power. The switch from three-phase mode to the single-phase and vice versa is very simple thanks to a lever located on the control panel. Really handy to use also thanks to the compact size.

Easy to start unit thanks to the electric start.

The engine is in compliance with the European regulations for EURO 5.

Thanks to its cladding and residential muffler, the diesel generator is particularly suitable for work near residential areas.

Equipped with an AVR card: provides automatic regulation of the output voltage, making it perfectly constant at all times as the load changes.

Three-phase ATS board included.

The generator can work at temperatures between 5° and 40° and at an altitude not exceeding 1000 m.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

Max. three-phase power output: 6.3 kW

Max. three-phase rated output: 6 kW

Max. single-phase power: 5.8 kW

Max. single-phase rated output: 5.5 kW

This generator is also equipped with AVR card that allows an automatic output voltage regulation maintaining it constant even in case of sudden changes in load.

Engine features:

Model: D500E
Type: 4-stroke, single-cylinder
Displacement: 498 cc
Power: 13 HP
Fuel: diesel
Tank: 12.7 L

The generator engine features an electric start through the key on the control panel.

It comes complete with battery included.

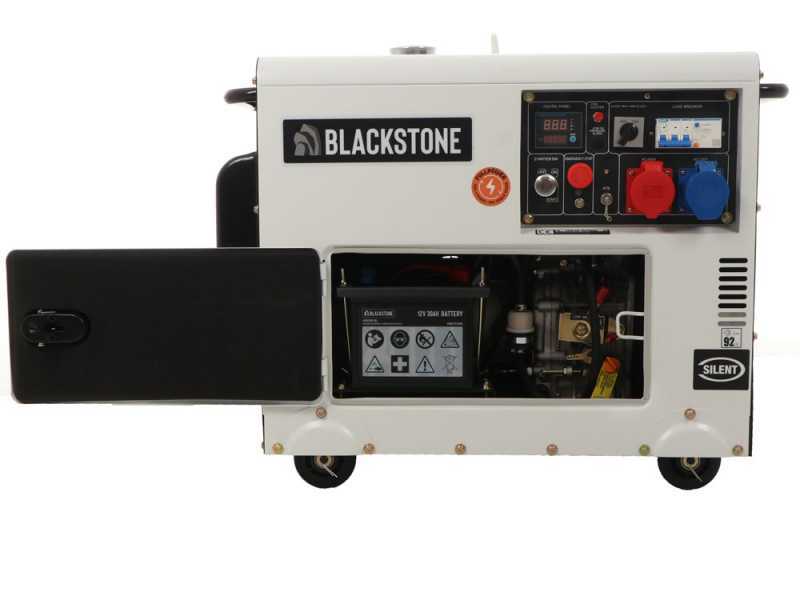

Engine access panel door for maintenance and regulating procedure.

ATTENTION:

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before using it.

SILENT: extremely low noise emissions, 92 dBA

Particularly suitable for working close to people and homes

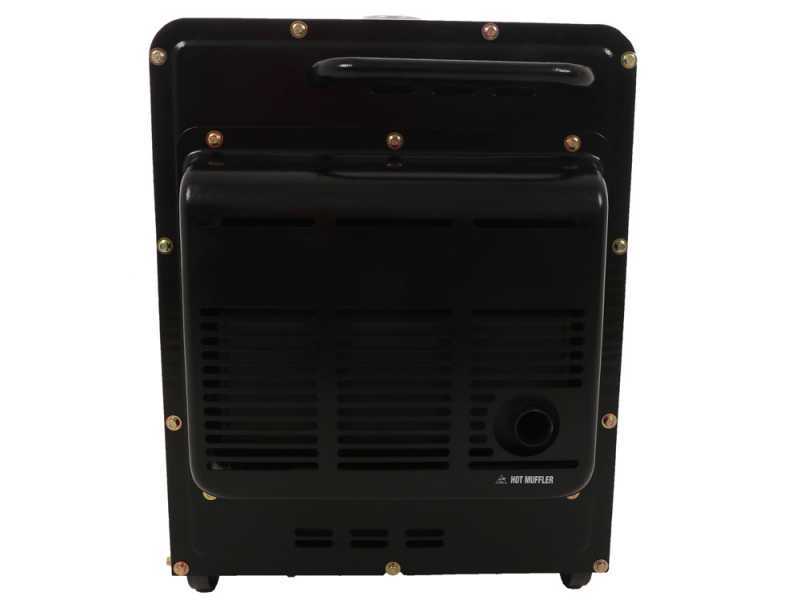

Focus on the muffler

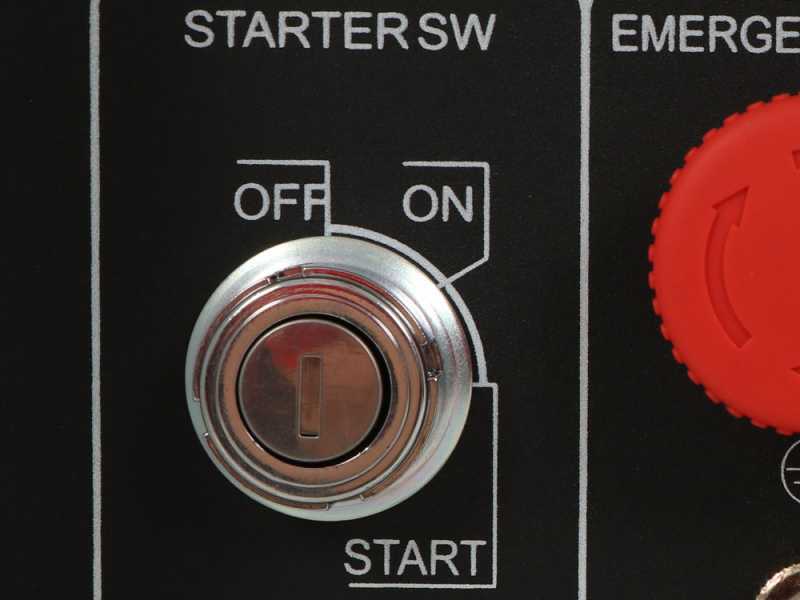

The generator engine provides an electric start with key.

Detail of the battery included.

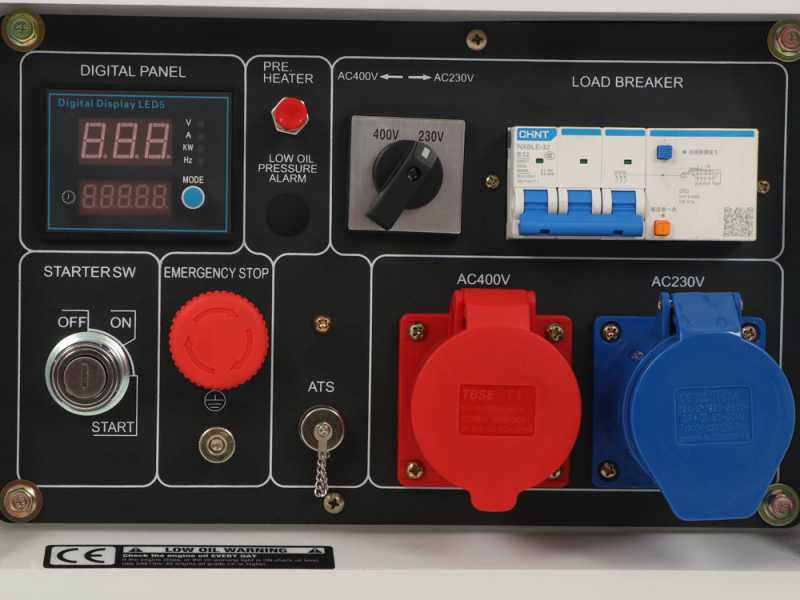

Extremely comprehensive and feature-rich control panel.

• LCD screen to display the current voltage at the outlet and to display the alarm due to low oil level
• Electronic engine start with key
• Emergency stop button
• 32A single-phase CEE Industrial power socket
• 5-pole 16A Three-phase power socket
• RCD panel
  Orange button (Test button)
  Blue button (Locking lever for ignition)
• Switch for switching to different phases
• Cable for connection to ATS panel
• Overload protector, to protect the machine from a possible overload
• Pre Heater, button for pre-drive of the machine
• Emergency button

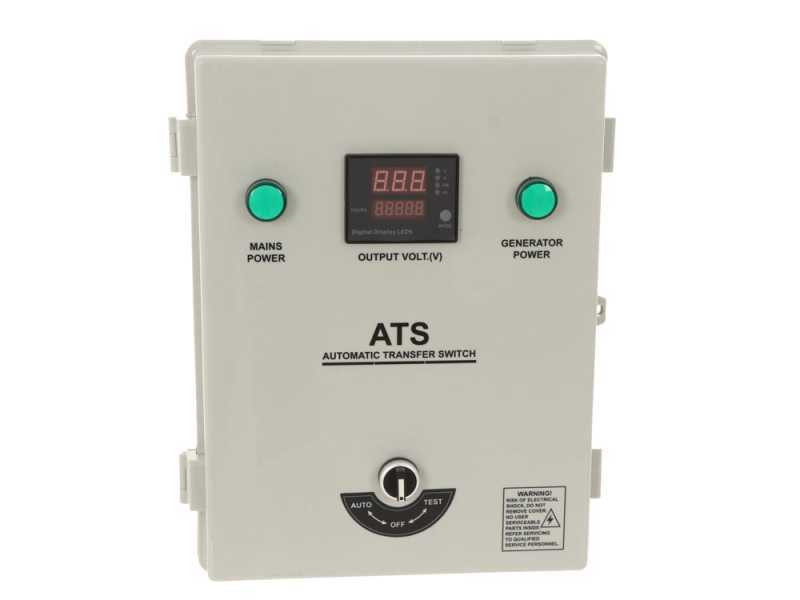

The ATS board is compatible with the Blackstone silenced diesel generator series:

• • Blackstone SGB 6000 D-ES
  • Blackstone SGB 8500 D-SE
  • Blackstone SGB 8500- 3 D-SE
  • Blackstone SGB 8500 D- SE FULL FULL

The ATS board must be connected to the electric grid and the generator.

This ATS is used in the following generator models:

This allows to compensate immediately when there is a power outage.

This features is necessary for all those cases in which, a black out for example, could create economic, material damages or major inconveniences.

It is recommended to execute the connection of the AUTOMATIC INTERVENTION BOARD to your household with the help of your electrician.

The generator is shipped in its original packaging and features the instruction manual and a generator connector

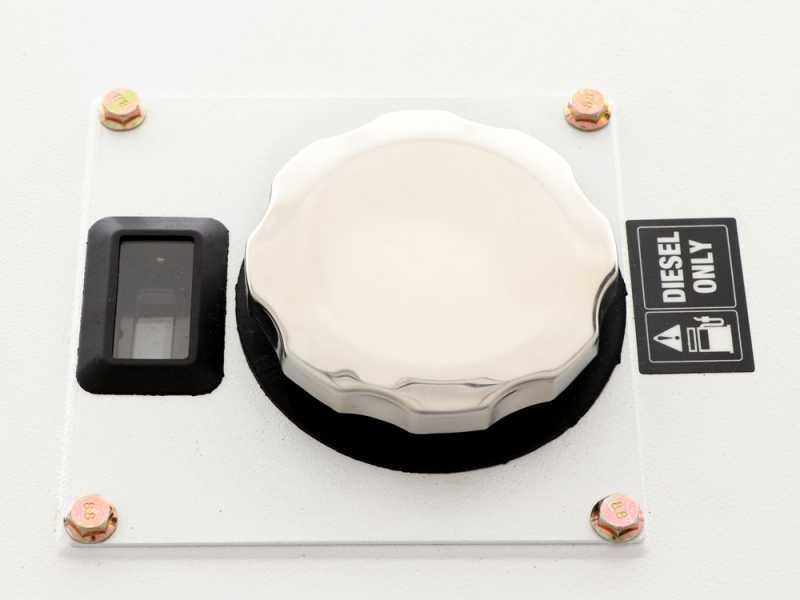

Very large tank (12.7L). This makes sure that the generator can guarantee an high autonomy. This tank is designed in steel and is equipped with an external diesel control pointer system.

Equipped with hook to allow lifting with forklift and other systems

Equipped with lateral handles to ease transport

Equipped with 4 rubber wheels easily removable

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.

• The generator can be exclusively used to power single electrical appliances (with respect to the produced KW power in relation to the absorption during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).

• The generator was NOT designed for PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear, especially in its internal components rotor and stator) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with a standard 3000 rpm alternator as this models is, but one which is designed with a professional alternator with low speed; 1500 rpm - with liquid-cooled engine and alternator - which have a level of specific characteristic and price point very different from this model’s);

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
