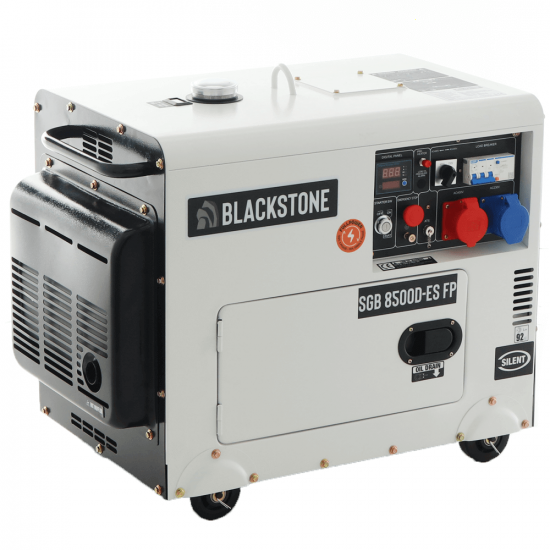

Blackstone SGB 8500 D-ES FP - 6.3 kW Silenced Diesel Power Generator with AVR - DC 6 kW Full-Power

Blackstone SGB 8500 D-ES FP SILENT DIESEL generator is a semi-professional product ideal for private use. It is powered by a 4-stroke diesel engine and is able to supply 13 HP (9.6 kW) and 498 cc. It features an easy electric start with keys and is provided with an 12.7 L fuel tank.

The generator is provided is fully coated with copper and can reach up to 5800 W max. single-phase power and 6300 W three-phase power. The switch from three-phase mode to the single-phase and vice versa is very simple thanks to a lever located on the control panel. Also really handy to use thanks to the compact size.

Easy to start unit thanks to the electric start.

The engine is in compliance with the European regulations for EURO 5.

Thanks to its cladding and residential muffler, the diesel generator is particularly suitable for working near residential areas.

Equipped with an AVR card: provides automatic regulation of the output voltage, making it perfectly constant at all times as the load changes.

The generator can work at temperatures between 5° and 40° and at an altitude of no more than 1000 m.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

Max. three-phase power output: 6.3 kW

Max. three-phase rated output: 6 kW

Max. single-phase power: 5.8 kW

Max. single-phase rated output: 5.5 kW

This generator is also equipped with AVR card that allows an automatic output voltage regulation maintaining it constant even in case of sudden changes in load.

Engine features:

Model: D500E
Type: 4-stroke, single-cylinder
Displacement: 498 cc
Power: 13 HP
Fuel: diesel
Tank: 12.7 L

The generator engine features an electric start through the key on the control panel.

It comes complete with battery included.

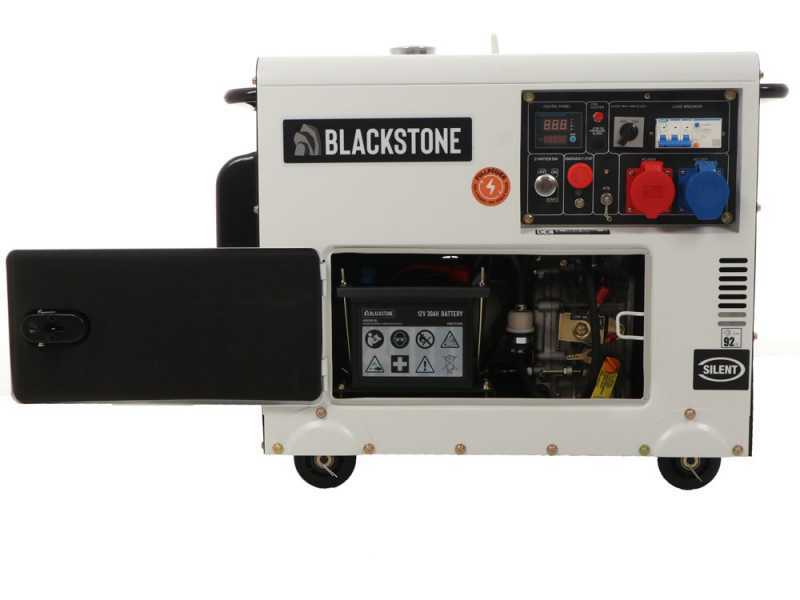

Engine access panel for maintenance and regulating procedure.

ATTENTION:

The engine is PROVIDED WITHOUT OIL.
Please carefully read the instructions manual before using it.

SILENCED: extremely low noise emissions, 92 dBA

Particularly suitable for working close to people and homes

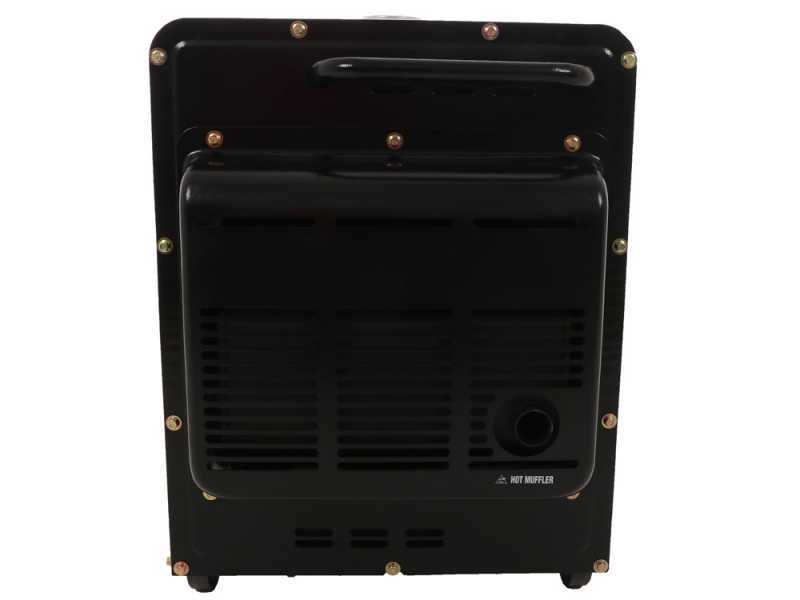

Focus on the muffler

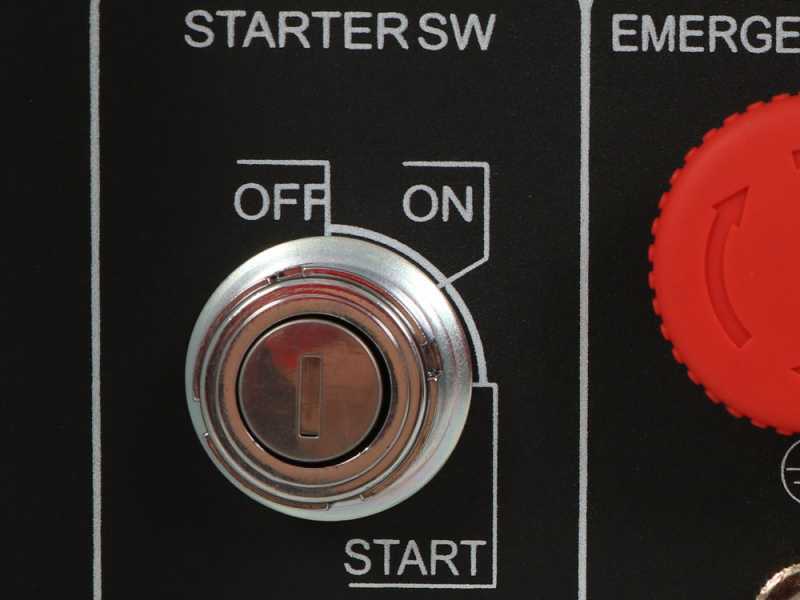

The engine has an electric starter with key

Standard-supplied battery

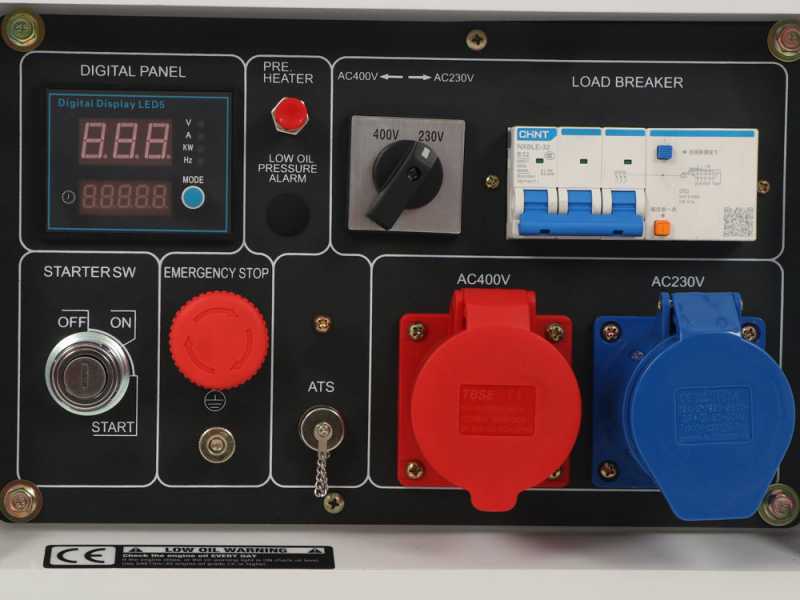

Extremely comprehensive and feature-rich control panel.

• LCD screen to display the current voltage at the outlet and to display the alarm due to low oil level
• Electronic engine key start
• Emergency stop button
• Industrial power socket
• Three-phase power socket
• RCD panel
  Orange button (Test button)
  Blue button (Locking lever for ignition)
• Switch for switching to different phases
• Cable for connection to ATS panel
• Overlord protector, to protect the machine from a possible overload
• Pre Heater, button for pre-drive of the machine
• Emergency button

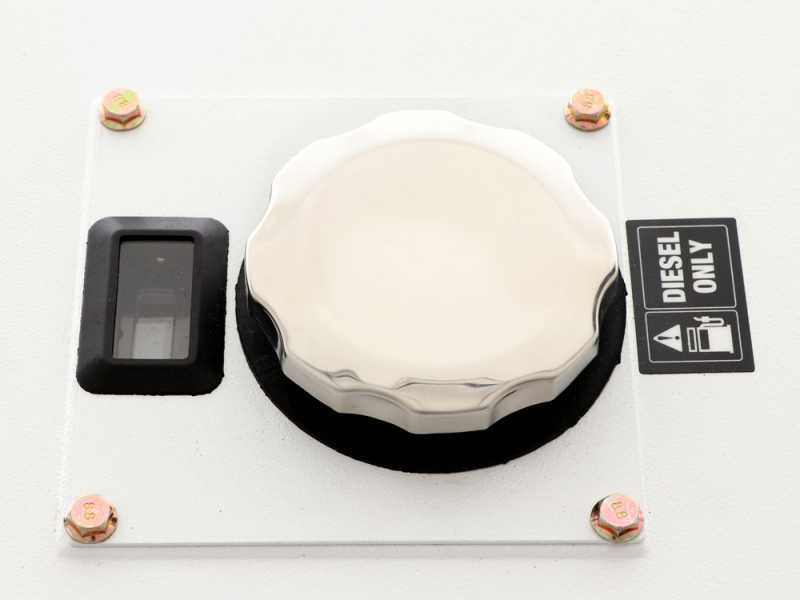

The generator is also equipped with a high capacity FUEL TANK made of steel, which is able to contain 12.7 L fuel quantity: this important feature allows the generator running for a longer period of time. It consists of a fuel level gauge, specifically used to check and inspect the level of fuel contained in the tank.

Equipped with towing hook for the generator lifting through lift trucks or other systems.

Equipped with side handles, which allows its easy manoeuvring and transport.

Equipped with 4 rubber wheels that are easily removable.

As regards the power needed referring to the use you will make of your generator, here below an extremely useful table to guide you among consumptions, starting coefficient and watt. Firstly, the highest-quality method is to identify which are the electric appliances we need to power with the generator and then perform a simple calculation to identify the necessary power that the generator must supply, as explained below.

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient represents a fundamental feature for all the electric equipment as it indicates how much the consumption of the electric appliance increases. Therefore, it allows to concretely determine how many WATTs are necessary during the start-up operations.

Example: Air compressor ( 1500 Watt ) X Starting coefficient ( 2 ) = 3000 Watt

Hence, it is important to address your choice on a generator featuring equal or higher WATT-rated electric power than the result obtained from the calculation made.

( * ) Check the consumption of the electric appliance on the operator’s use and maintenance manual or on the plate attached to the machine.

WARNING! Purely indicative table. Thanks to the formula indicated above you can easily calculate the electric power that the generator has to supply in order and connect to the generator specific electric appliances and select the model of generator which best suits your needs.

• The generator can only be used to power individual electrical equipment (respecting the rated power in KW produced by the generator in relation to the absorption of the appliances during the starting phase that must be lower than the power supplied by the generator).

• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).
• The generator is NOT intended for PROFESSIONAL use. It means that it is exclusively designed for occasional use (infrequent use of the unit). The working hours must not exceed 3-4 of continuous running (which may lead to the alternator overheating or wear, especially to its internal components: alternator stator and rotor). Whether you’re looking for a generator for intensive use (once a week, for instance), the operator should address the choice to a different type generator specifically designed for a more intensive use. Indeed, you should focus the attention on PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with standard 3000 rev/min alternator as this specific model, but it is designed with professional alternator with low speed: 1500 rev/min – with liquid-cooled engine and alternator – in this case you’ll see that the unit specifications and price are much different from this model).

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
