Name: Blackstone TB 3250 E Tracked Power Barrow with extendable skids - 320 Kg loading capacity
Brand: BlackStone
SKU: K503316
Price: 1247.74 EUR
Availability: InStock
Rating: 4.43 (153 reviews)

Description

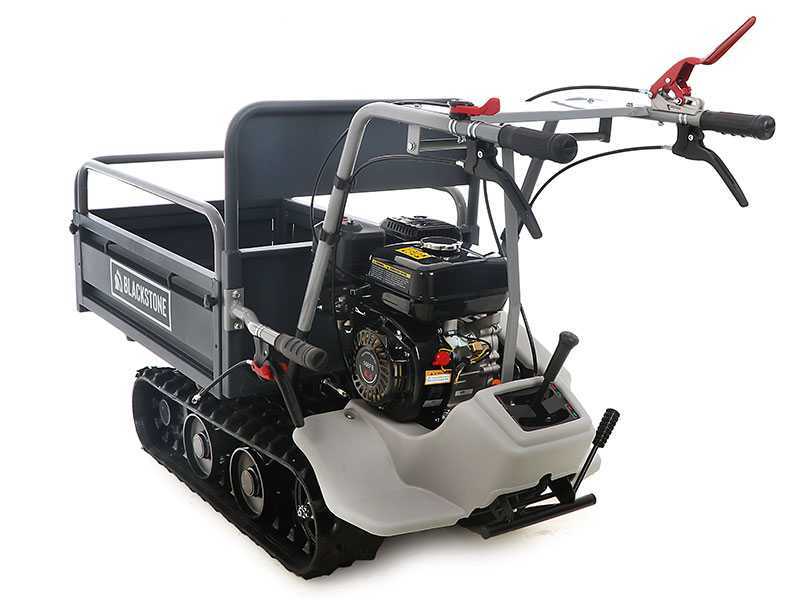

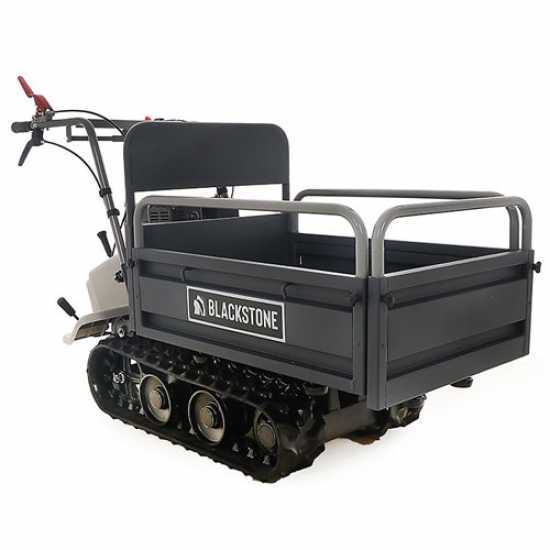

Blackstone TB 3250 E Tracked power barrow / mini dumper

Tracked power barrow provided with extendable skip and 320 kg effective load capacity.

Thanks to the track drive system and to the 196cc engine, this tracked power barrow is suitable to carry loads up to 320 Kg (suitable to work on slopes). The result is a perfect tool for transport any type of material (wood, cement, bricks, plaster debris, etc.).

The sturdy steel frame and the gearbox consisting of 6 forward + 2 reverse speeds make the equipment extremely versatile and efficient.

The unit comes complete with extendable dumper, which allows to increase the load capacity.

Furthermore, an additional advantage is represented by the extendable side panels, which allow to get a great versatility while working.

The mechanical tipping by means of a specific lever and the extendable dumper make this model extremely versatile and easy to use.

Gearbox, brake and transmission

Large-sized, reliable gearbox

Speeds:

6 forward + 2 reverse speeds

Large-sized sturdy gearbox equipped with thick protective guard to avoid damage to the unit due to stones and other foreign objects.

Brakes:

They are connected to the transmission gear in order to guarantee more balance and safety. Release the controls to start the brakes automatically (the machine will be kept totally blocked even on steep slopes and even if the speed is put in neutral).

Transmission:
Sturdy transmission, which allows managing the power steering by disconnecting its rotation and selecting which roller should drive.

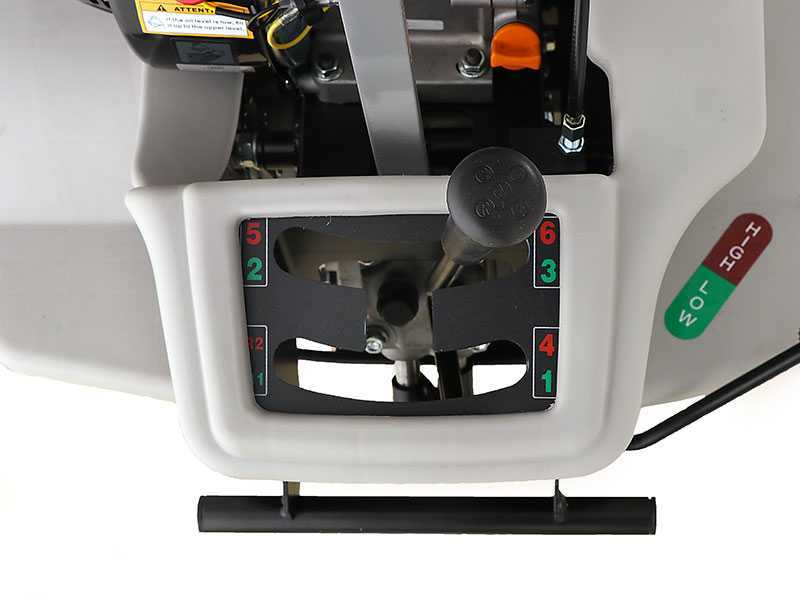

Comfortable lever for the speed selection and change from low speeds (1, 2, 3) to high speeds (4, 5, 6).

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

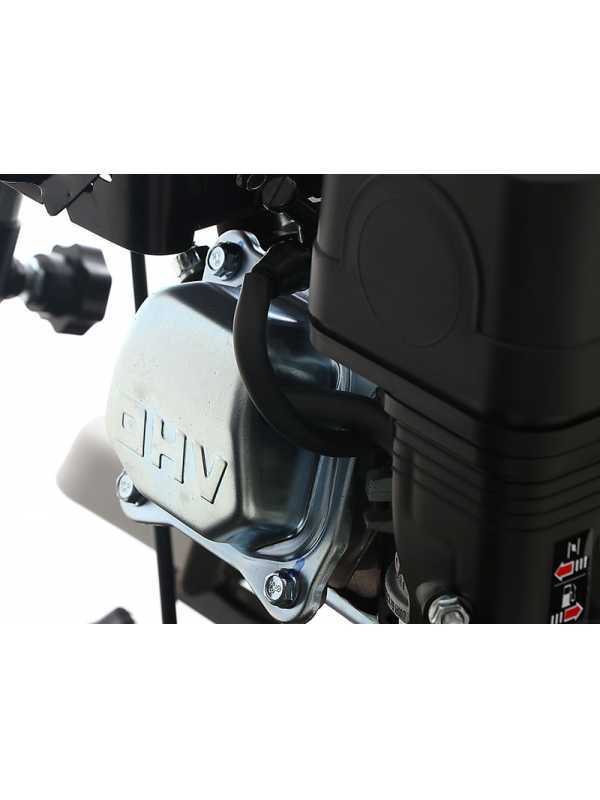

Four-stroke petrol engine

Four-stroke petrol engine with overhead valve technology

The engine is located on the front side of the machine in order to immediately access to all the mechanical components of the unit and to facilitate the maintenance operations.

Specifications:

Engine type

Single-cylinder four-stroke - OHV

Cylinder type

Aluminium

Displacement

196 cm³

Horse power

6.5 HP

ATTENTION:

Motor NOT PROVIDED WITH OIL.
Read the instructions manual carefully before using.

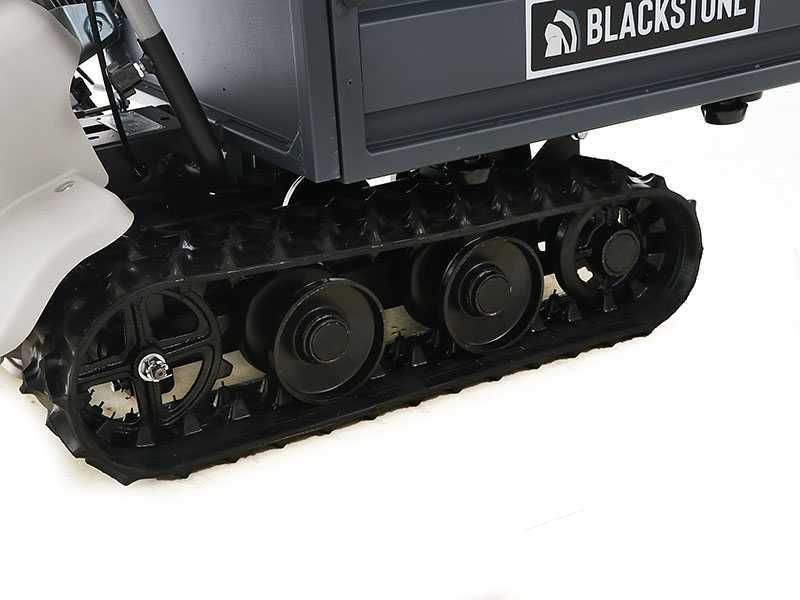

Tracks and tread pattern

Their width and structure are guarantee of extra-grip and balance on any type of ground. They are made of reinforced rubber as guarantee of extra grip on any surface and step.

Perfect front-rear balance, which ensures great load distribution and perfect ground adherence.

Frame

The unit comes complete with sturdy frame with thick steel box-section preventing it from noise emissions and vibrations. The low center of mass guarantees a great balance while working. The engine and the transmission are easily accessible to ensure easy maintenance.

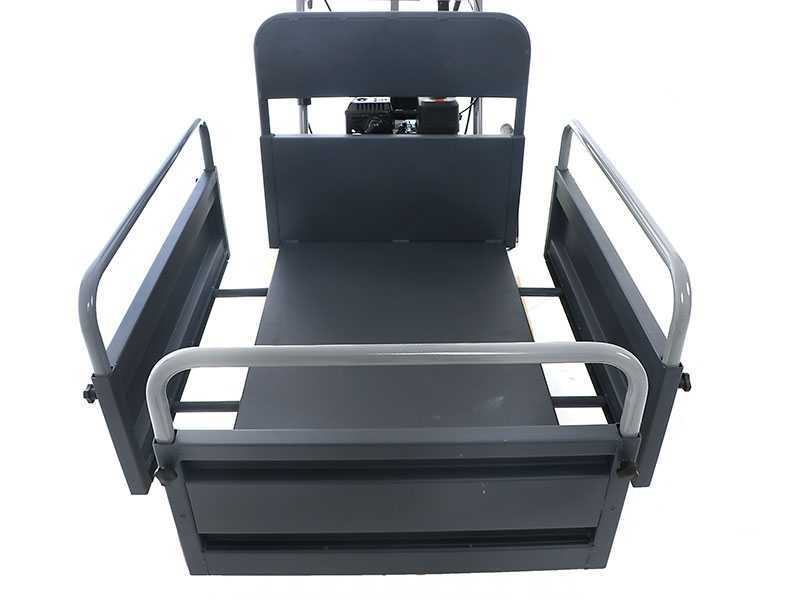

Extendable dumper with tipping system

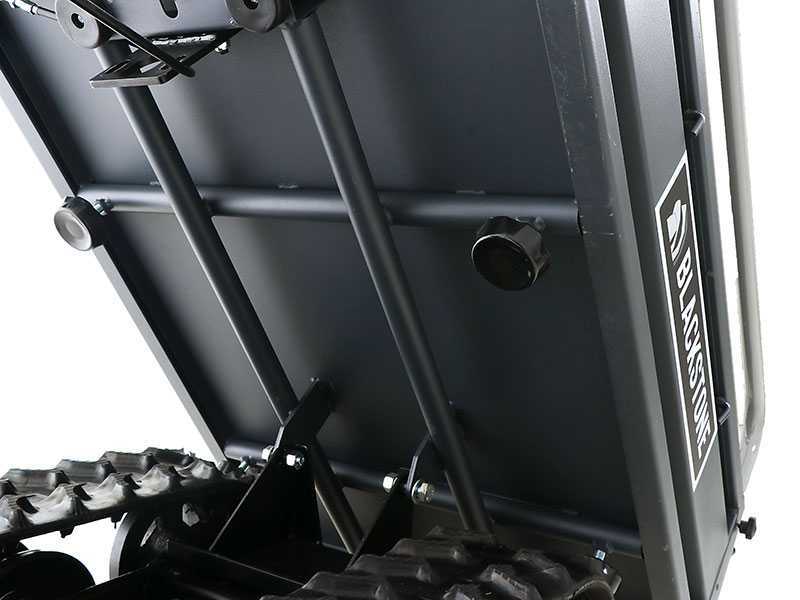

The equipment is designed with high impact steel dumper. It is reinforced with tubular construction on the underside of the tracked power barrow, which make it suitable to transport any kind of loads effortlessly. Minimum distance of the loading platform from the ground surface in order to make loading-unloading operations easier.

Easily removable tubular construction.

Hydraulic tipping: use the proper rubber lever with spring to release it manually. It is easy to use even with heavy loads by means of the tipping control lever on the side.

Extendable side panels to increase the load platform. This feature allows to improve the possibility to carry heavier loads.

Controls

The tracked power barrow comes complete with easy-to-use and ergonomic controls, which offer precision of work and easy manageability.

Red large red start lever.

Right and left lower steering triggers.

Possibility to manage the steering from the control lever allowing a comfortable motion. Partial steering by pulling the levers. This allows steering the equipment very easily avoiding sudden movements.

Safety brake to machine

Throttle lever and power switch

The High-Low lever supports wheelbarrows when climbing uneven terrain, thus slowing the machine down and improving its grip on the ground.
