Blue Bird Log Splitter LSE 11000 - Electric Log Splitter - Vertical - 230V

Questions & Answers (3)
ID: 105679

EAN: 8025518369793

MPN: 883730

8,1/10
After-sales assistance & Spare parts
Blue Bird Log Splitter LSE 11000 - Electric Log Splitter - Vertical  - 230V
Max. trunk diameter
30 cm
Piston stroke
80 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Single-phase 230 V
Nominal power
4 HP
Engine
Induction
Nominal power (W)
3000 W
Nominal splitting force
11 t
Nominal power
3000 W
Product Features
Model:
LS 65711
Type:
Vertical
Double speed:
Yes
Operating mode:
Single-phase 230 V
Nominal splitting force:
11 t
Piston stroke:
80 cm
Adjustable piston stroke (for short logs):
No
Worktop log cutting:
No
Cutting plate positions:
1
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
4 HP
Nominal power (W):
3000 W
Nominal power :
3000 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Piston diameter:
40 mm
Manufacturing country:
China
Cutting data
Max. trunk length:
104 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Stump Support Shelf:
Yes
Tractor three-point hitch:
No
Replaceable wedge guides:
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
20
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
136x103x228
Net weight:
173.4 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
74x48x180 cm
Gross weight (packaging included) :
183.4 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
€ 1.257,41
Vat included
You're viewing:
Customers also viewed:
Description

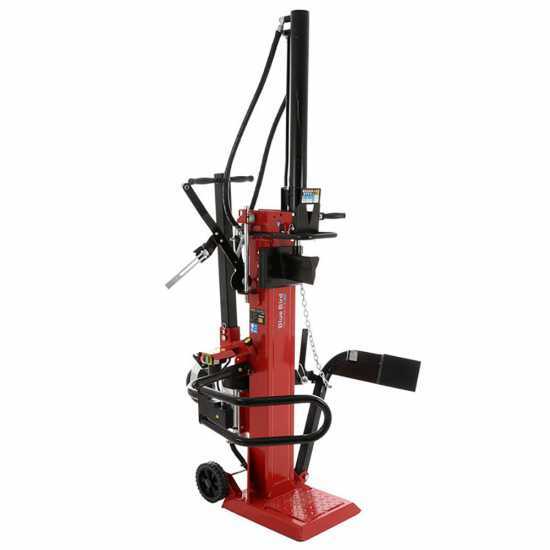

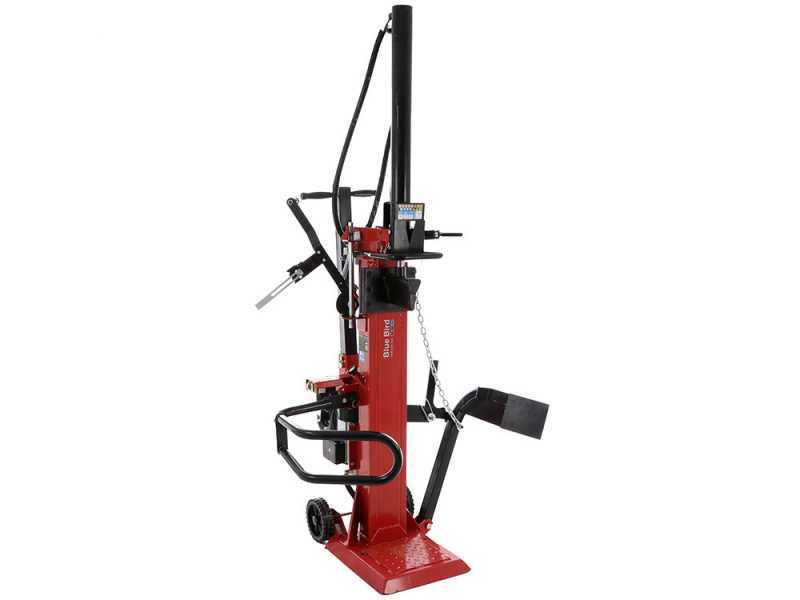

BLUE BIRD LOG SPLITTER LSE 11000 Log Splitter

The BLUE BIRD LOG SPLITTER LSE 11000 - 11T is a compact and easy to transport log splitter.

The engine allows the wedge to develop a splitting force of 11 tons, which is optimal for splitting wood for domestic use.

During storage the piston can be retracted, making the machine really compact.

It is equipped with wheels and a sturdy and safe handle for transport, essential and very important features for all private users.

The long piston stroke allows splitting trunks of max. 85 cm height.

The cutting plate is long-lasting and placed on the ground.

The machine is provided with a system for lifting and holding the trunks.

It is also equipped with a transport wheel. Simply tilt the machine to easily move it in total comfort.


Splitting force: 11 tons
Electric motor: 3000W

Retractable piston

Overall dimensions with the wedge lifted up: 103x136x228 cm

Weight: 173.4 Kg


WARNING:

The log splitters included in this category are not suitable for processing wood with particularly twisted fibres such as poplar or pine, large-diameter trunks and wood types with frequent knots in the wood. In this case it is advisable to use heavy-duty models intended for a professional use. Furthermore, the trunks should only be split once dried, not green; when the wood is green, it has less tendency to split and open and is therefore less suitable to be split with the log splitter. Once dried, however, it can be split and becomes ready for use in fireplaces, stoves, ovens, etc.

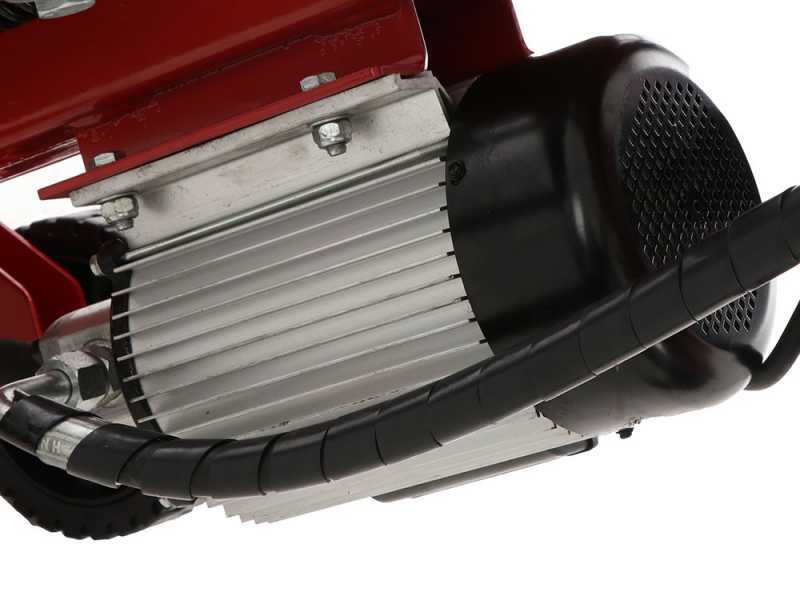

Electric motor and hydraulic pump

3000W 230 V electric motor that ensures 11 tons splitting force.

The oil tank is placed at the base of the machine frame. Focus on the oil tank cap that must be unscrewed to ensure that air escapes from the system during use.

The platform base acts as a oil tank, featuring 7 L capacity.

Main features

Oil tank mounted on frame base of the log splitter.

CE-compliant On/Off switch.

Schuko plug in the plug housing.

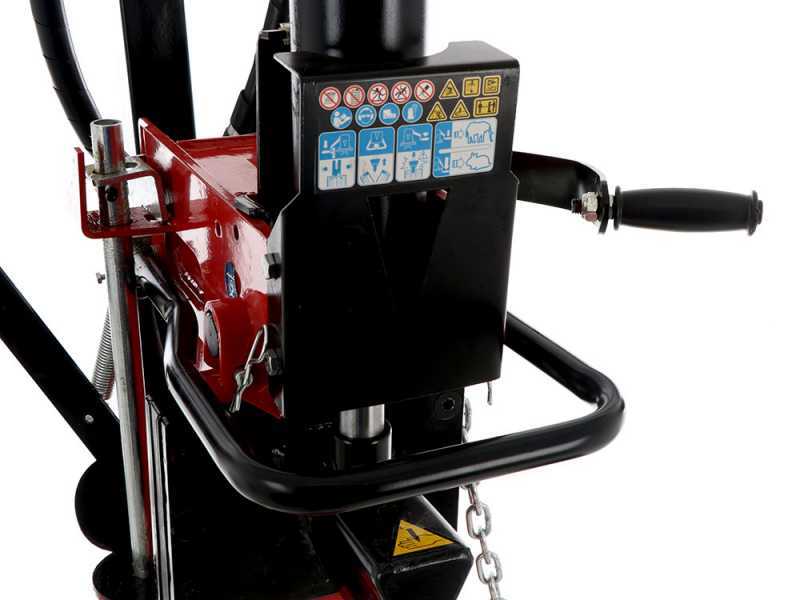

Focus on the operating handles with proper hand guards in compliance with the CE standards.

Trunk side support integrated in the handle arms and laterally adjustable by means of the adjustment knob.

Trunks lifting system with proper locking device.

Focus on the wedge and rear handle (adjustable in 2 positions) for tilting and transporting the log splitter, thanks to the lower wheels and pneumatic wheel (adjustable in 2 positions) that allows transporting the machine quickly and easily.

Focus on the wheels mounted at the base of the log splitter.

Equipped with double speed adjustment. Simply press the operating levers with greater force.

Focus on the lever for lifting the piston.

Free items & Standard equipment

Standard equipment

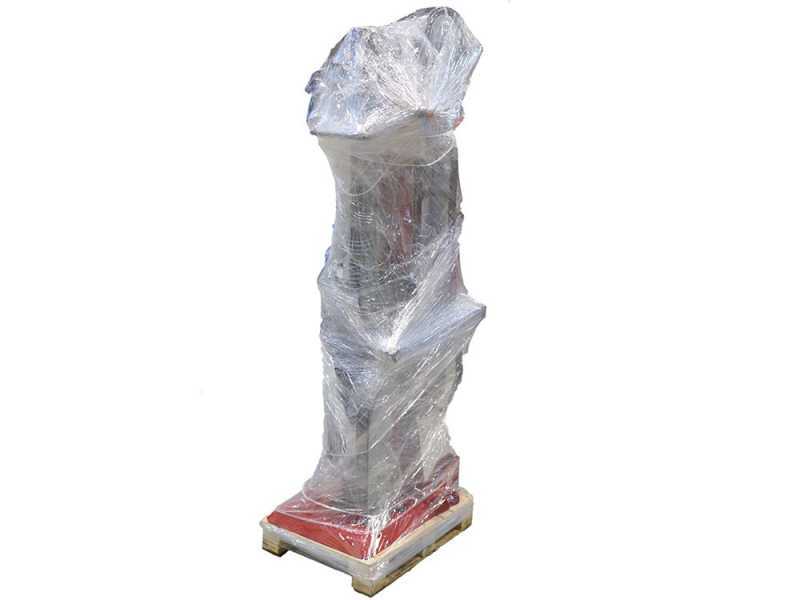

The log splitter is shipped on pallet.

Instructions manual included in the package.
