Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V

Limited
Add a question
ID: 105676

EAN: 8025518360240

MPN: 883290

Blue Bird
Catalogue Blue Bird
8,1/10
After-sales assistance & Spare parts
25Pictures
1Videos
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Max. trunk diameter
25 cm
Piston stroke
52 cm
Max. pressure
206 bar
Operating mode
Single-phase 230 V
Nominal power
2.95 HP
Engine
Induction
Nominal power (W)
2200 W
Nominal splitting force
5 t
Product Features
Model:
LS 65558
Type:
Horizontal
Double speed:
No
Operating mode:
Single-phase 230 V
Nominal splitting force:
5 t
Piston stroke:
52 cm
Worktop log cutting:
No
Ground splitting system:
No
Manufacturing country:
China
Motor data
Motor type:
Electric single-phase
Engine:
Induction
Nominal power:
2.95 HP
Nominal power (W):
2200 W
Power supply:
220 V electric
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Max. pressure:
206 bar
Oil tank:
Yes
Manufacturing country:
China
Cutting data
Max. trunk length:
52 cm
Max. trunk diameter:
25 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
No
Retaining side arms:
No
Retaining side supports:
Yes
Trunk lifting system:
No
Retractable piston for transport:
No
Tractor three-point hitch:
No
Replaceable wedge guides:
No
Cartridge oil filter :
No
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
15 cm
Free gifts/extra features
4-way wedge:
No
Splitting wedge:
No
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
117x41.5x62
Net weight:
50 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
95x32.5x51
Gross weight (packaging included) :
54 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
3 items in stock
Free Shipping
Estimated delivery: 07/05/2025 - 09/05/2025
Free returns (up to 30 days after receipt) *
€ 383,07
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!

You're viewing:
Customers also viewed:
Description

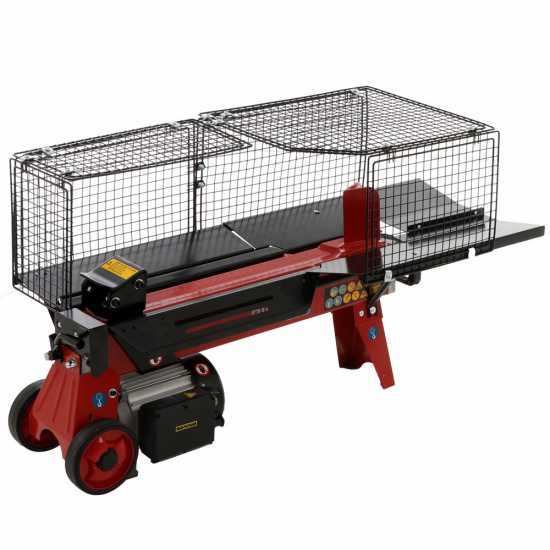

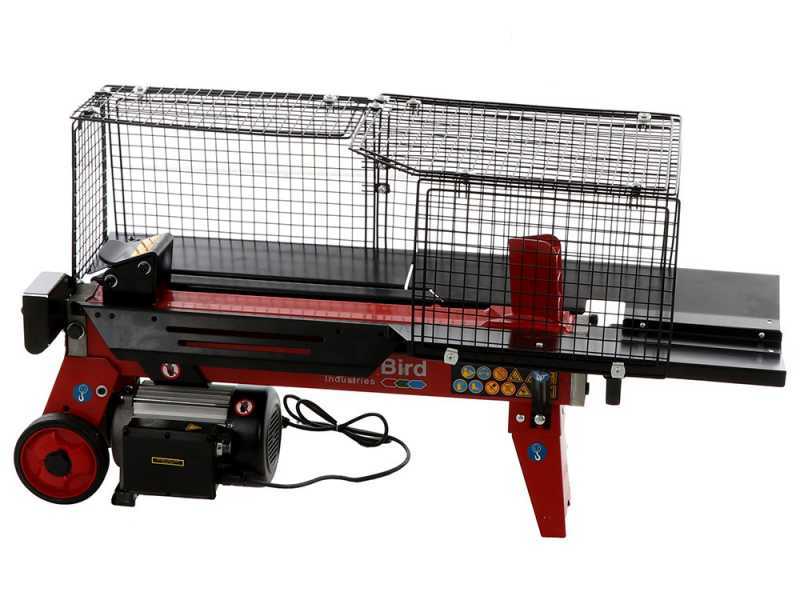

Blue Bird LS 65558 Horizontal Log Splitter

The BLUE BIRD LS 65558 log splitter is powered by a single-phase 220V electric motor and features 5 tons splitting force.

It is a small-sized electric log splitter intended for a hobby, domestic use. Highly convenient and efficient machine. It combines high performances and manoeuvrability, great convenience of use and ease of transport thanks to the proper handle and wheels.

This machine allows you to split trunks efficiently, effortlessly and safely. This log splitter is also equipped with safety grid for ensuring to the Operator a complete safety during use.

Equipped with a powerful 2.95 HP single-phase electric motor (2200 Kw)

Splitting force: 5 tons

Trunks diameter: from 5 to 25 cm

Trunks height: from 20 to 52 cm

Equipped with a handle and wheels for easy transport.

Overall dimensions: 117x41.5x62 cm

Weight: 50 kg

It is in compliance with the CE safety standards

Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V

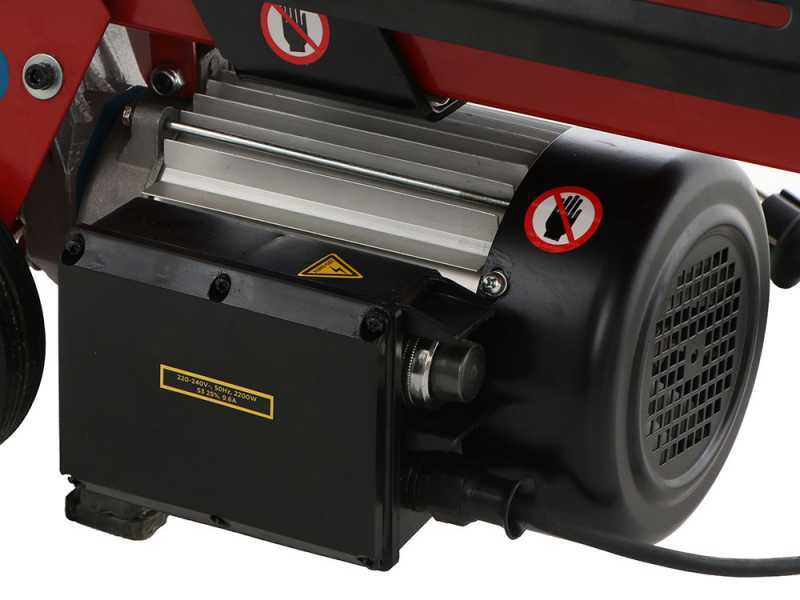

2.95 Hp electric motor

This horizontal log splitter is powered by a single-phase electric motor.

Electric consumption: 2200W

Power: 2.95 Hp

Power supply: 230 V 50 Hz

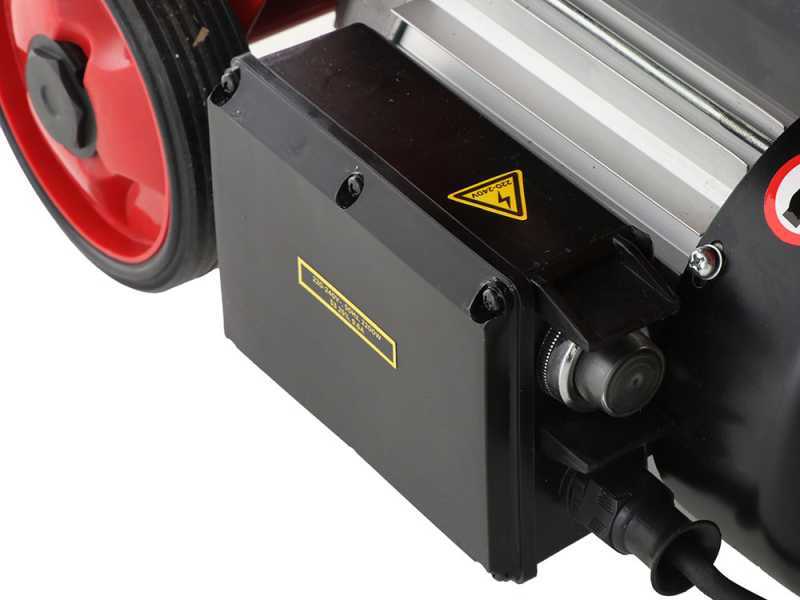

Focus on the switch

Support feet

Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V

Controls and other features

Two-hand operation:

1) The first hand must press the electric motor start button (which operates the pump).

2) The second hand pulls the piston drive lever to operate the splitting process.

Oil tank capacity: 3.5 L

Piston forward stroke: 8 sec (for splitting the log)

Piston return stroke: 6 sec

Piston head trunk push plate

Focus on the sturdy cutting wedge

The heavy-duty multi-welded wedge ensures great performance and long-lasting durability. It can easily split even hardwood.

Safety grid that ensures to the Operator high safety while working.

The handle and transport wheels guarantee high ease of transport.

Support feet

Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Free items & Standard equipment

Free items included

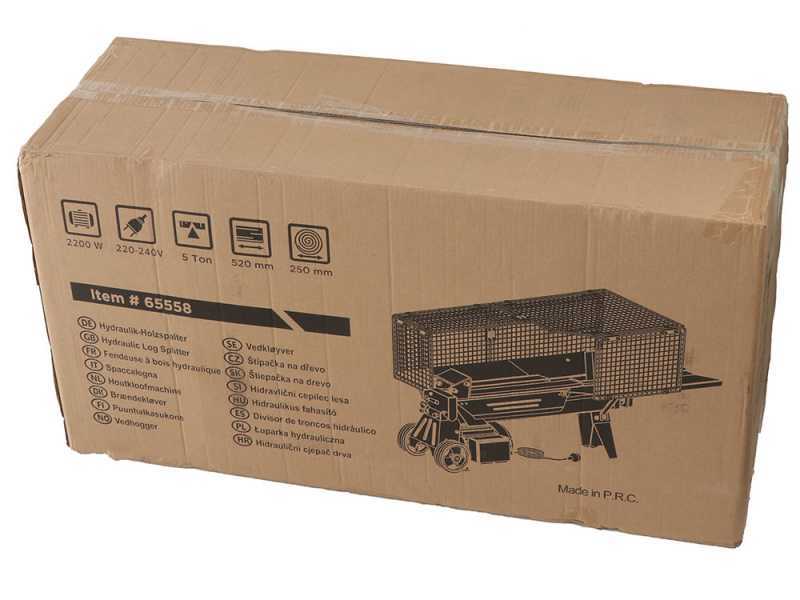

The machine is shipped in its original packaging on pallet.

The maintenance and instructions manual with assembly screws are included in the packaging.

Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V Blue Bird LS 65558 - Electric Log Splitter - Horizontal - 230V
