Blue Bird LS PTO 30000 - Tractor-mounted Log Splitter - Vertical

Add a question
ID: K608014

EAN: 8025518410020

MPN: 884350

8,1/10
After-sales assistance & Spare parts
Blue Bird LS PTO 30000 - Tractor-mounted Log Splitter - Vertical
FREE
Cotton glovesCotton gloves
Noise-canceling earmuffsNoise-canceling earmuffs
Protective gogglesProtective goggles
AgriEuro BandanaAgriEuro Bandana
Max. trunk diameter
40 cm
Piston stroke
94.8 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Operating mode
Tractor-driven PTO
Nominal splitting force
30 t
Tractor three-point hitch
Yes
Product Features
Model:
LS PTO 30000
Type:
Vertical
Double speed:
Yes
Operating mode:
Tractor-driven PTO
Nominal splitting force:
30 t
Piston stroke:
94.8 cm
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Power supply:
Tractor-driven PTO
Oil tank capacity:
30 L
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Hydraulic cylinder outer diameter:
133 mm
Piston diameter:
70 mm
Manufacturing country:
China
Cutting data
Max. trunk length:
110 cm
Max. trunk diameter:
40 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
Tractor three-point hitch:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
30
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics

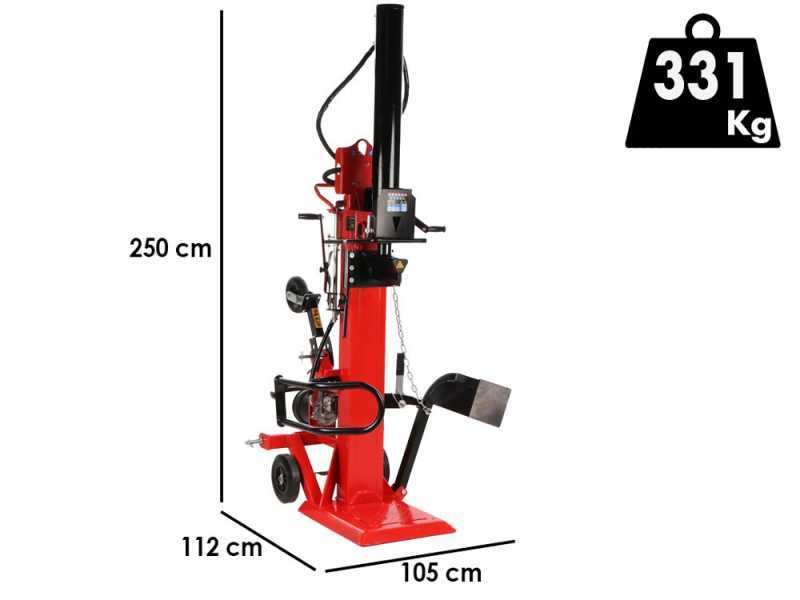

Product dimensions in cm (L x W x H):
112x105x250 cm
Net weight:
331 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
97x98x200 cm
Gross weight (packaging included) :
351 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
€ 3.042,40
Vat included
You're viewing:
Customers also viewed:
Description

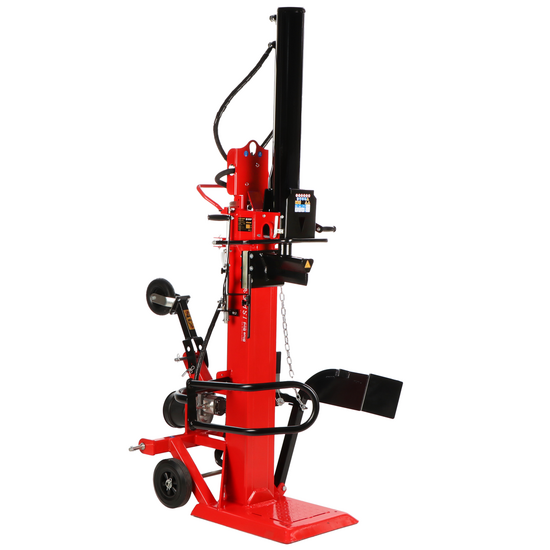

Blue Bird LS PTO 30000 Tractor-mounted Log Splitter

The Blue Bird LS PTO 30000 log splitter is designed specifically for forestry professionals, guaranteeing high-precision processing, considerable power, maximum safety and remarkable energy efficiency.

Main features of the LS PTO 30000 model:

  • Cutting Height: The high cutting capacity of up to 110 cm allows working with large logs. This eliminates the need to divide logs into smaller pieces before splitting, facilitating workflow and reducing manual workload.

  • Adjustable Column Stroke: It offers the flexibility to adapt the cylinder stroke to the specific dimensions of the logs to be processed. This allows targeted and customised splitting, optimising the use of the machine for different types of wood.

  • Thrust Force: The model has an impressive thrust force of 30 tons, positioning it as one of the most powerful in its segment. This power allows very hard or large wood to be split with ease and reliability.

  • Splitting Diameter: It is capable of handling logs with a maximum diameter of 400 mm, making it suitable for a wide range of applications, from the most robust to the thickest wood, ensuring versatility in splitting operations.

  • Pivoting Wheel: The presence of a pivoting wheel at the back of the unit facilitates the movement and positioning of the log splitter, increasing its practicality of use in various working environments, both in open spaces and in more confined areas. This feature makes transporting and manoeuvring the unit more agile and less tiring.

Tractor PTO cardan connection

This log splitter can be used by connecting it via Cardan joint to the tractor. Maximum speed <560 RPM.

Connection to the tractor is ensured by the robust three-point hitches with which the chassis is equipped.

The log splitter uses the action of a hydraulic pump that draws oil from the 30.0 L tank placed at the base of the machine body, and moves the hydraulic cylinder that acts as a pusher.

The frame of the machine structure itself acts as the hydraulic oil tank.

Focus on the gearbox multiplier.

This multiplier transfers drive torque from the tractor (via the Cardan joint) to the hydraulic pump.

Power take-off protective cover.

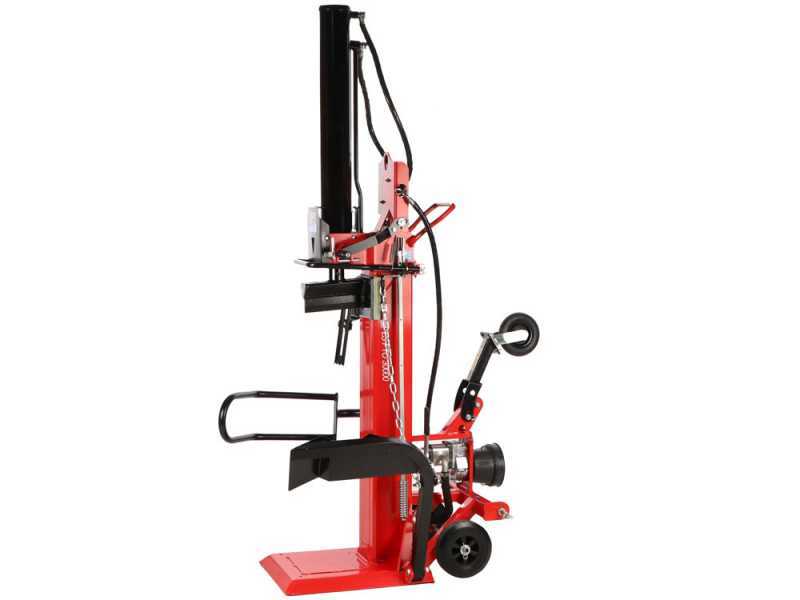

Wedge and piston

With its 30 tons splitting force, it can split boots with a diameter from 8 cm to 40 cm of up to max. 110 cm height.

Detail of the log splitter wedge, 26 cm long.

The internal piston is large, 70 mm thick, and thus able to withstand the 30-tons working pressure exerted by the machine.

The external piston is 133 mm in diameter.



Other features

Strain side support integrated in the machine and adjustable l via the adjustment mechanism.

Log lifting system, with associated locking system.

Detail of the rear handle used to tilt it and to move it, thanks to the lower wheels and the pneumatic wheel (adjustable in two positions) that make it easy and quick to move.

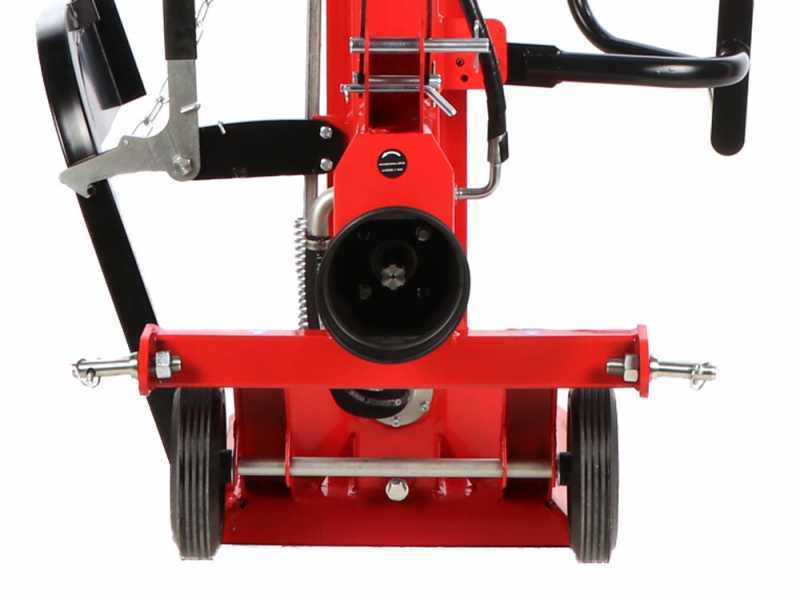

Detail of the three-point hitch for connection to the tractor, the diameter of the three points is 21 mm.

Detail of the support platform (Size L 67 x W 54 x H 6 cm).

Lever with adjustable pincers.

Operating handle

Focus on the lever for raising the piston and for double speed.

Free items & Standard equipment

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Standard equipment

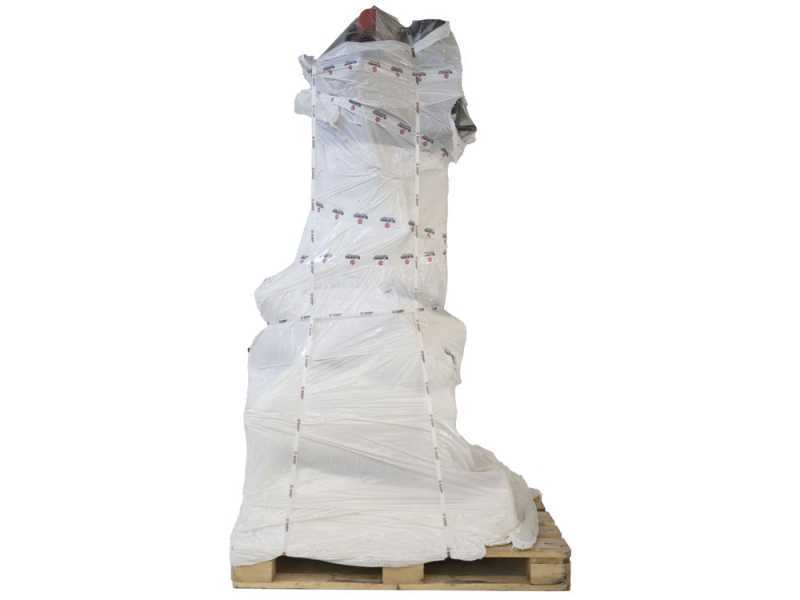

The log splitter is shipped carefully wrapped and placed on a pallet.

Maintenance and operating instructions manual included in the packaging.
