BLUE BIRD LSE 16000 - Petrol Log Splitter - Vertical - Loncin 196

Add a question
ID: K608039

EAN: 8025518376883

MPN: 884110

8,1/10
After-sales assistance & Spare parts
BLUE BIRD LSE 16000 - Petrol Log Splitter - Vertical - Loncin 196
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Cotton glovesCotton gloves
Noise-canceling earmuffsNoise-canceling earmuffs
Protective gogglesProtective goggles
AgriEuro BandanaAgriEuro Bandana
Max. trunk diameter
30 cm
Piston stroke
94.8 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G200F
Cubic capacity
196 cm³
Nominal power
6.5 HP
Nominal splitting force
16 t
Product Features
Model:
LSE 16000
Type:
Vertical
Double speed:
Yes
Operating mode:
Spark ignition
Nominal splitting force:
16 t
Piston stroke:
94.8 cm
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Motor speed:
3600 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
8 L
Oil tank capacity:
18 L
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Hydraulic cylinder outer diameter:
90 mm
Piston diameter:
45 mm
Manufacturing country:
China
Hydraulic oil qty.:
18 Litres
Cutting data
Max. trunk length:
110 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
4.00-8
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Oil bottle:
Yes
Instructions manual:
Yes
Dimensions and logistics

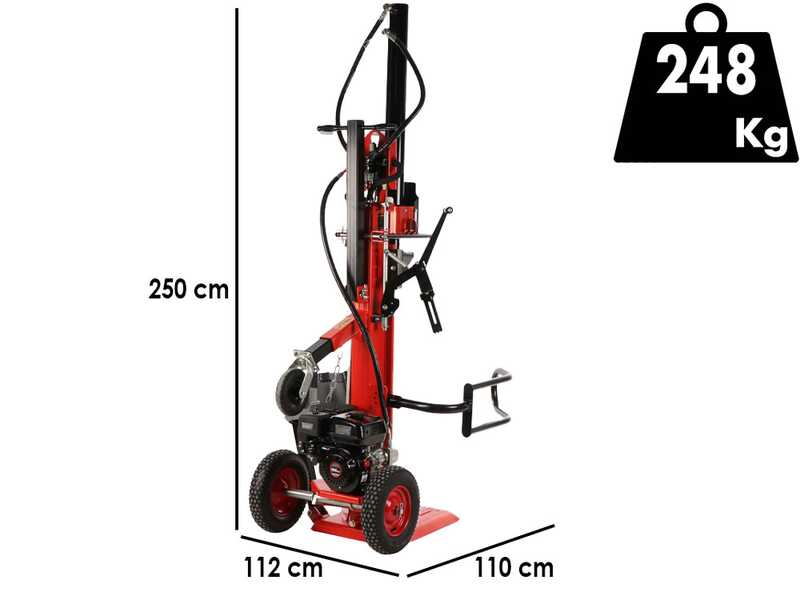

Product dimensions in cm (L x W x H):
112x105x250 cm
Net weight:
248 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
90x57x201 cm
Gross weight (packaging included) :
258 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
€ 2.087,43
Vat included
You're viewing:
Customers also viewed:
Description

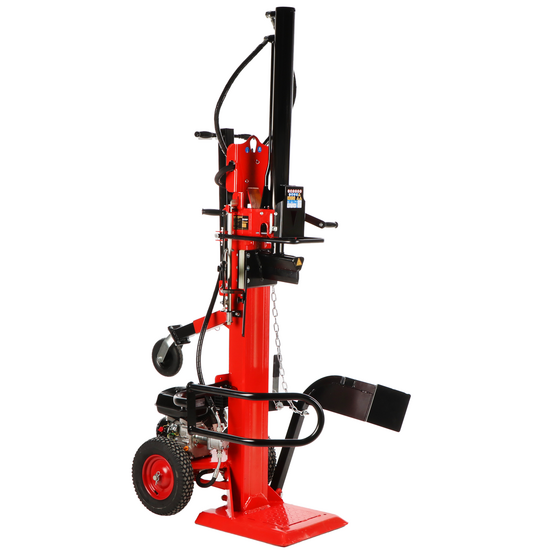

Blue Bird LSE 16000 Log Splitter

The Blue Bird LSE 16000 combustion log splitter is designed specifically for the forestry sector, guaranteeing high-precision work, considerable power, maximum safety and remarkable energy efficiency.

Main features of the LSE 16000 model:

  • Cutting Height: The high cutting capacity of up to 110 cm allows working with large logs. This eliminates the need to divide logs into smaller pieces before splitting, facilitating workflow and reducing manual workload.

  • Adjustable Column Stroke: It offers the flexibility to adapt the cylinder stroke to the specific dimensions of the logs to be processed. This allows targeted and customised splitting, optimising the use of the machine for different types of wood.

  • Thrust Force: The model features an impressive splitting force of 16 tons. This power allows very hard or large wood to be split with ease and reliability.

  • Splitting Diameter: It is capable of handling logs with a maximum diameter of 300 mm, making it suitable for a wide range of applications, from the most robust to the thickest wood, ensuring versatility in splitting operations.

  • Pivoting Wheel: The presence of a pivoting wheel at the back of the unit facilitates the movement and positioning of the log splitter, increasing its practicality of use in various working environments, both in open spaces and in more confined areas. This feature makes transporting and manoeuvring the unit more agile and less tiring.

Loncin 196cc Engine

The Loncin engine is high performance, suitable for work where high power is required, thanks to its high displacement of 196 cc.


Features:

Engine type:
4-Stroke - OHV - single cylinder
Cubic capacity
196 cm³
Power supply
Petrol

Latest generation 4-stroke engine (overhead valve shaft OHV) and automatic decompression start system.
Easy recoil starter thanks to the automatic fuel priming system.


WARNING!

The engine is PROVIDED WITHOUT OIL.
Make sure to carefully read the instructions manual before starting the unit.

Nominal Power: 6.5 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 5.5 Hp (at 2600 rpm)
Corresponds to the real power expressed at the drive shaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

Wedge and Piston

With its 16 tons splitting force it can split trunks with a diameter from 8 cm to 30 cm of up to max. 110 cm height.

Detail of the 21.5 cm long log splitter wedge.

The length of the piston stroke is 94.8 cm.

The internal piston is large, 45 mm thick, and thus able to withstand the 30-tons working pressure exerted by the machine.

The external piston is 90 mm in diameter.

Other Features

Strain side support integrated in the machine and adjustable l via the adjustment mechanism.

Log lifting system, with associated locking system.

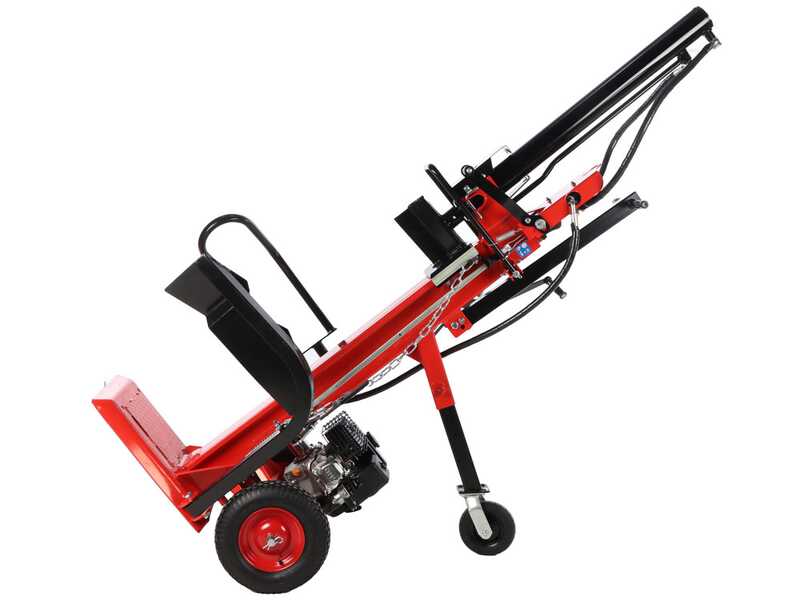

Detail of the rear handle used to tilt and to move the splitter, thanks to the lower wheels and the pneumatic wheel (adjustable in two positions) that make it easy and quick to move.

Detail of the support platform (Size L 57 x W 44 x H 6 cm).

Lever with adjustable pincers.

Operating handle

Focus on the lever for raising the piston and for double speed.

Adjustable limit control system

Free items & Standard equipment

COMPLIMENTARY: 2 Oil Bottles

TWO oil bottles for 4-stroke engines

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Standard Equipment

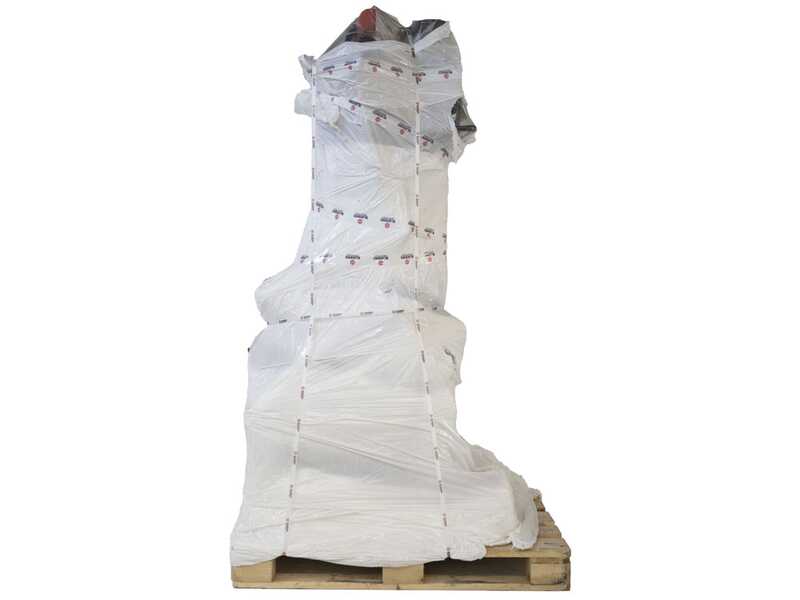

The log splitter is shipped carefully wrapped and placed on a pallet.

Maintenance and operating instructions manual included in the packaging.
