Blue Bird LSE 22000 - Petrol log splitter - Vertical - Loncin 302

Add a question
ID: K608265

EAN: 8025518376883

MPN: 884110

8,1/10
After-sales assistance & Spare parts

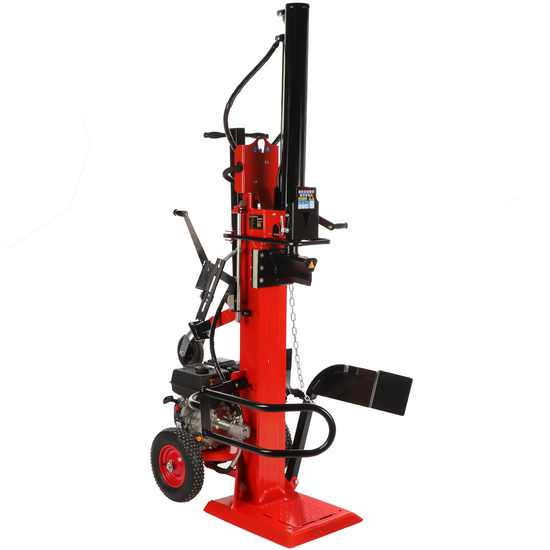

Blue Bird LSE 22000 - Petrol log splitter - Vertical - Loncin 302
FREE
2 bottles of 1 L oil each2 bottles of 1 L oil each
Cotton glovesCotton gloves
Noise-canceling earmuffsNoise-canceling earmuffs
Protective gogglesProtective goggles
AgriEuro BandanaAgriEuro Bandana
Max. trunk diameter
30 cm
Piston stroke
94.8 cm
Ground splitting system
Yes
Trunk lifting system
Yes
Retractable piston for transport
Yes
Double speed
Yes
Motor type
4-stroke
Motor brand
Loncin
Motor Model
G300F
Cubic capacity
302 cm³
Nominal power
10 HP
Nominal splitting force
22 t
Product Features
Model:
LSE 22000
Type:
Vertical
Double speed:
Yes
Operating mode:
Spark ignition
Nominal splitting force:
22 t
Piston stroke:
94.8 cm
Ground splitting system:
Yes
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G300F
Motor type:
4-stroke
Cubic capacity:
302 cm³
No. of cylinders:
1
Nominal power:
10 HP
Motor speed:
3600 RPM
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Tank capacity:
8 L
Oil tank capacity:
18 L
Manufacturing country:
China
Pump data
Pump type:
Hydraulic
Oil tank:
Yes
Hydraulic cylinder outer diameter:
90 mm
Piston diameter:
45 mm
Manufacturing country:
China
Hydraulic oil qty.:
18 Litres
Cutting data
Max. trunk length:
110 cm
Max. trunk diameter:
30 cm
Equipment
Frame:
Standard
Pump:
Standard
Vertical log splitter safety lever:
Yes
Retaining side arms:
Yes
Retaining side supports:
Yes
Trunk lifting system:
Yes
Retractable piston for transport:
Yes
CE-compliant safety switch:
CE-compliant
Wheeled trolley for transport:
Yes
Rear wheels size:
4.00-8
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Oil bottle:
Yes
Instructions manual:
Yes
Dimensions and logistics
Product dimensions in cm (L x W x H):
100x65x250 cm
Net weight:
300 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
120x79.5x218 cm
Gross weight (packaging included) :
330 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
30 minutes
Prompt Delivery
1 item in stock
Free Shipping
Estimated delivery: 15/04/2025 - 17/04/2025
Suggested price:
€ 2.633,82
€ 2.414,90
Vat included
You're viewing:
Customers also viewed:
Description

Blue Bird LSE 22000 Log Splitters

The Blue Bird LSE 22000 petrol flail mower is designed for high performance in all conditions. Ideal for both professional and hobby use.

Main features:

  • Adjustable cutting height of up to 110 cm: allows working with large logs without the need to split logs into smaller pieces.
  • Adjustable column stroke : allows the cylinder stroke to be adapted to the specific dimensions of the logs, ensuring targeted and customised splitting.
  • Thrust power : the model has a thrust force of 22 tonnes, allowing very hard or large wood to be split with ease.

The Blue Bird LSE 22000 offers a number of technical and operational advantages that set it apart in the market for petrol-driven flail mowers.

Operational benefits:

  • Improved efficiency : the adjustable cutting height of up to 110 cm optimises the workflow, reducing the manual workload.
  • Versatility: the adjustable column stroke allows optimizing the use of the machine for different types of wood, making it suitable for various applications.
  • Reliability: the pushing power of 22 tonnes ensures robust and reliable performance, even with the hardest wood.

Technical features:

  • Splitting diameter : the Blue Bird LSE 22000 handles logs with a maximum diameter of 350 mm, suitable for a wide range of applications.
  • Pivoting wheel : the presence of a pivoting wheel at the rear of the unit facilitates the movement and positioning of the mower.

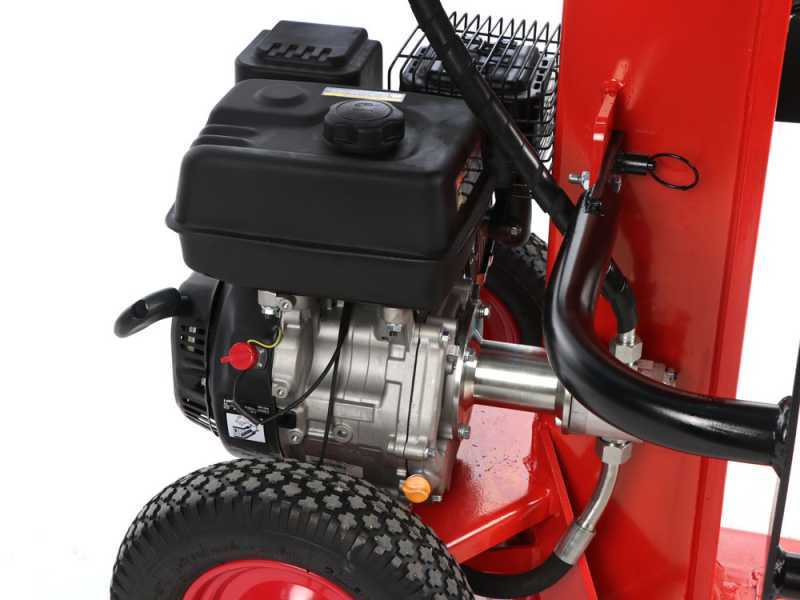

Loncin 302cc engine

The Loncin engine is high performance, suitable for work where high power is required, thanks to its high displacement of 302 cc.


Features:

Engine type
Single cylinder 4-stroke - OHV
Displacement
302 cm³
Power supply
Petrol

Latest generation 4-stroke engine (overhead valve shaft OHV) and automatic decompression start system.
Easy recoil starter thanks to the automatic fuel priming system.


WARNING!

The engine is PROVIDED WITHOUT OIL.
Read the instruction manual carefully before start-up.

Nominal Power: 10 Hp
The correct term would be "Commercial” Power, meaning the standard definition used until a few years ago by all well-known engine manufacturers

* This technical feature is the one indicated in the main sales channels, even if it is higher than the real power of the engine.

Rated power: 7.5 Hp (at 2600 rpm)
Corresponds to the real power expressed at the drive shaft. This is the power indicated as official in the engine instructions manual.

* this is a figure that can vary for the same engine model depending on the rpm the equipment manufacturer has decided to have the applied engine deliver

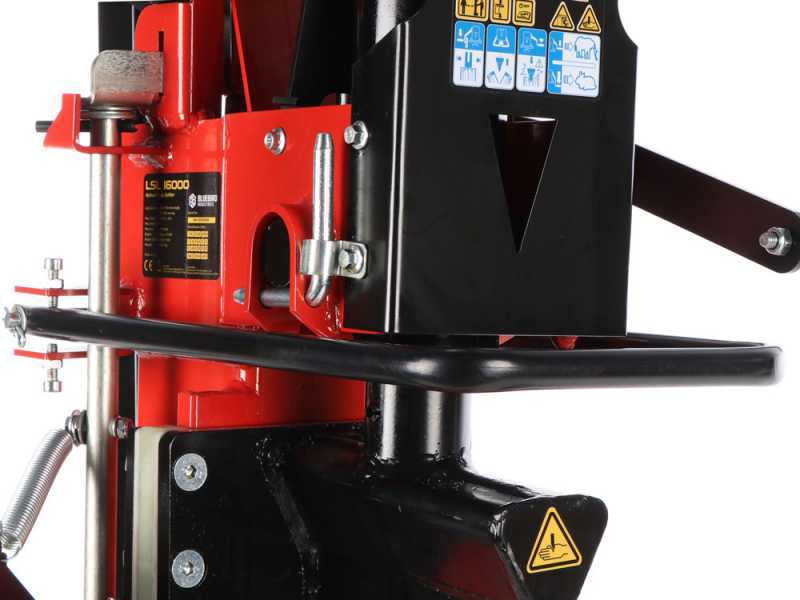

Wedge and Piston

With its 22 tons splitting force, it can split boots with a diameter from 8 cm to 30 cm of up to max. 110 cm height.

Detail of the 21.5 cm long log splitter wedge.

The length of the piston stroke is 94.8 cm.

The internal piston is large, 45 mm thick, and thus able to withstand the 30-tons working pressure exerted by the machine.

The external piston is 90 mm in diameter.

Other Features

Strain side support integrated in the machine and adjustable l via the adjustment mechanism.

Log lifting system, with associated locking system.

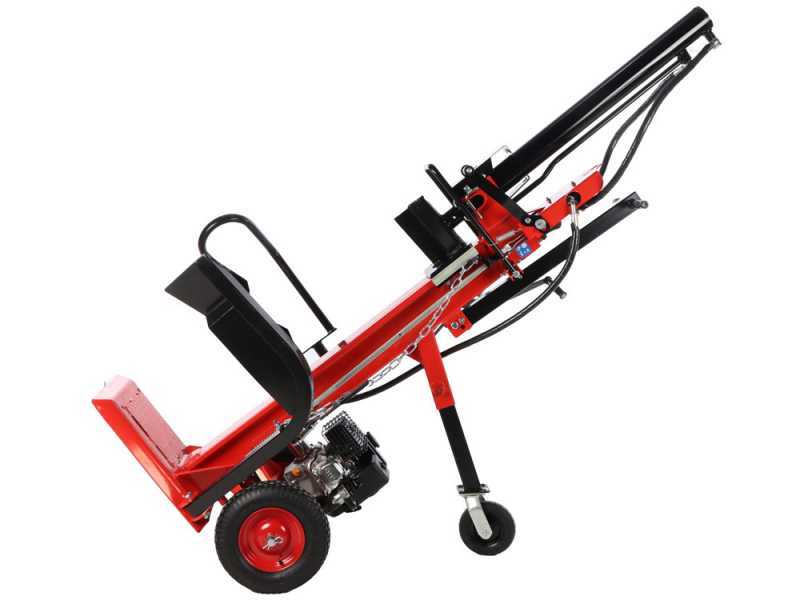

Detail of the rear handle used to tilt and to move the splitter, thanks to the lower wheels and the pneumatic wheel (adjustable in two positions) that make it easy and quick to move.

Detail of the support platform (Size L 57 x W 44 x H 6 cm).

Lever with adjustable pincers.

Operating handle

Focus on the lever for raising the piston and for double speed.

Adjustable limit control system

Free items & Standard equipment

Free Items Included

Complimentary:

2 bottles of 10W40 oil, specific for 4-stroke engines

GIFT: SAFETY KIT

SAFETY KIT

Noise-cancelling earmuffs to work with maximum comfort
Hearing protection must be performed correctly in every situation. In this case, the supplied earmuffs are specifically designed to educe machine noise.

Protective goggles that can be used as an alternative to the visor mask.
Protective mask goggles in polycarbonate with CE certificate, equipped with antifog and anti-scratch panoramic screen. The ventilation is ensured thanks to the holes made on the frame to avoid fogging and to improve comfort of use.

100% cotton Agrieuro bandana

Cotton gloves with rubber ripples for comfort and a secure and stable grip on equipment.

Standard Equipment

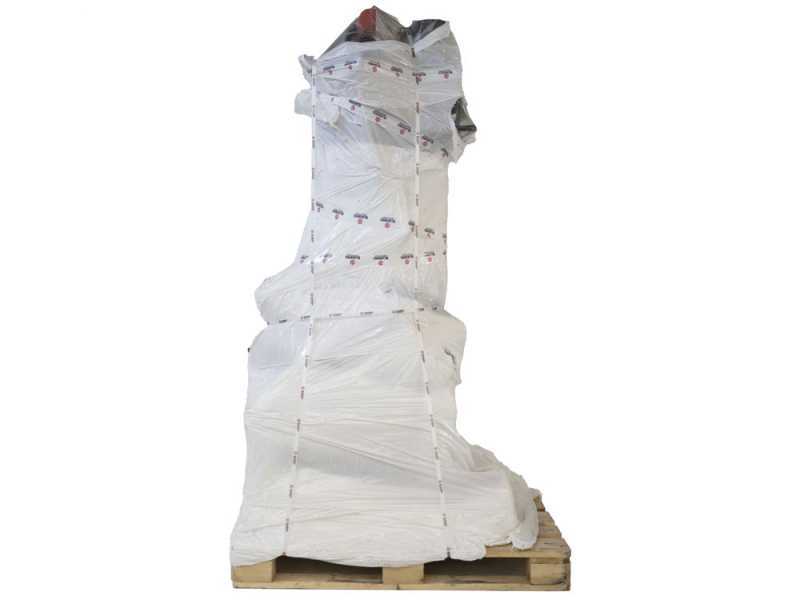

The log splitter is shipped carefully wrapped and placed on a pallet.

Maintenance and operating instructions manual included in the packaging.
