BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity

Semi-Pro
Add a question
ID: K601416

EAN: 8025518377194

MPN: 885160

Blue Bird
Catalog Blue Bird
8,1/10
After-sales assistance & Spare parts
74Pictures
2Videos
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
FREE
2 bottles of 600 ml engine oil each2 bottles of 600 ml engine oil each
Heavy-duty spark plug wrenchHeavy-duty spark plug wrench
FREE SPARK PLUGFREE SPARK PLUG
Foam air filterFoam air filter
Foam air filterFoam air filter
Load capacity
500 Kg
Barrow body type
Extendable sides
Body tipping
Hydraulic
Max. slope
20 %
Type
Tracked
Motor brand
Loncin
Motor Model
G200F
Motor type
4-stroke
Cubic capacity
196 cm³
Nominal power
6.5 HP
Gear shifting system
Mechanical gearbox
Gears
3+1
Assisted steering
Yes
Product Features
Model:
Transporter 500 H
Type :
Tracked
Self-propelling:
Yes
Load capacity:
500 Kg
Max. slope:
20 %
Barrow body type:
Extendable sides
Extendable body:
✔
Body tipping:
Hydraulic
Body dimensions:
102.5x62.5x32.5 cm
Extended box size:
115.5x88.5x32.5 cm
Effective inner height:
325 mm
Starting mode:
Recoil
Manufacturing country:
China
Motor data
Motor brand:
Loncin
Motor Model:
G200F
Motor type:
4-stroke
Cubic capacity:
196 cm³
No. of cylinders:
1
Nominal power:
6.5 HP
Fuel:
Petrol
Power supply:
Overhead valve OHV
Engine lubrication system:
Oil bath
Decompression system:
Automatic
Manufacturing country:
China
Transmission data
Gear shifting system:
Mechanical gearbox
Transmission type:
Gears in oil bath
Gearbox:
In oil bath
No. of forward speeds:
3
No. of reverse speeds:
1
Gears:
3+1
Operating mode:
Gear lever
Equipment
Hydraulic piston:
Yes
Side panels hand levers:
Yes
Box:
Extendable
Assisted steering:
Yes
Track width:
180 mm
Total rollers no.:
4
Recoil start system (with rope):
Yes
Free gifts/extra features
Engine oil bottle for free:
Yes
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics

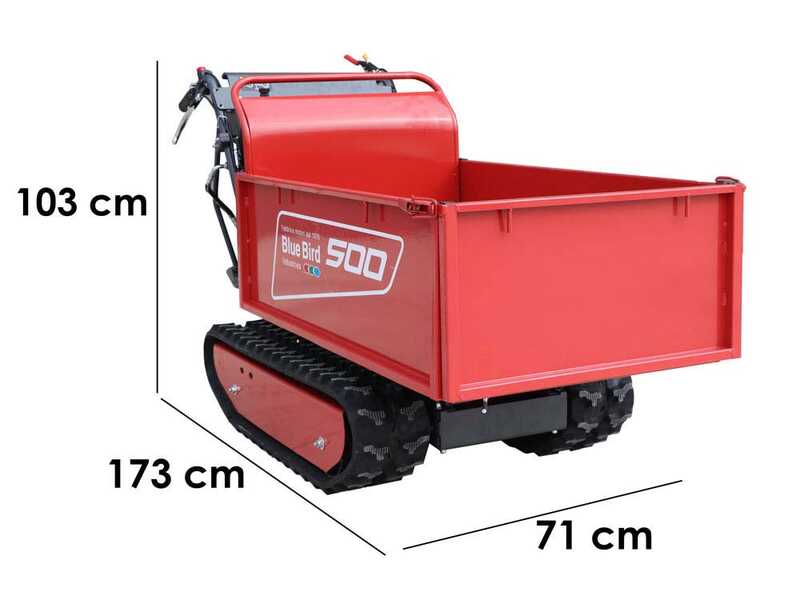

Product dimensions in cm (L x W x H):
173x71x103 cm
Net weight:
262 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
175x76x113 cm
Gross weight (packaging included) :
302 Kg
Unloading with hydraulic tail lift:
Yes
Assembly time:
15 minutes
Prompt Delivery
2 items in stock
Free Shipping
Estimated delivery: 16/01/2025 - 22/01/2025
Free returns (up to 30 days after receipt) *
Suggested price:
€ 3.019,66
€ 2.716,46
Vat included
5% off from the second item in your cart
Are you a business? Check out prices tailored to you!
You're viewing:
Customers also viewed:
Description

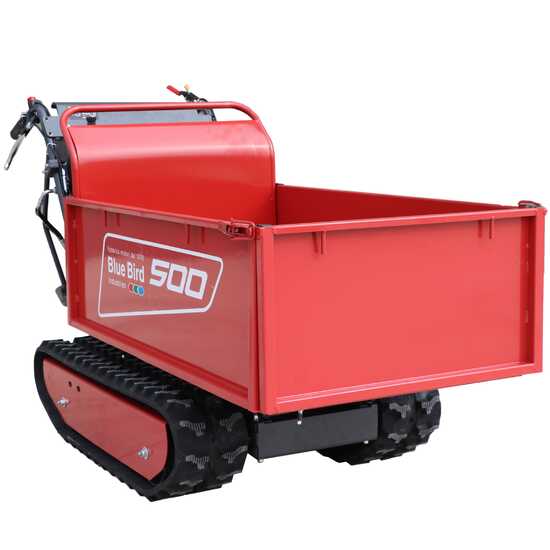

BLUE BIRD Transporter 500 H Tracked Power Barrow

Tracked power barrow equipped with extensible tipping barrow with an actual capacity of 500 kg.

Thanks to its tracks and to the Loncin engine this tracked power barrow is capable of carrying loads of 500 Kg also on sloping grounds, thus being an indispensable tool for each type of transport.

The robust steel frame and the gearbox with three forward and one back gear make this tracked power barrow versatile and efficient.

The machine with a Loncin G200Fengine with a displacement of 196cc. It is capable of emitting a nominal power of 6.5 HP.

It features extensible barrow which allows to greatly increase the load carrying capacity of this tracked power barrow.



BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity

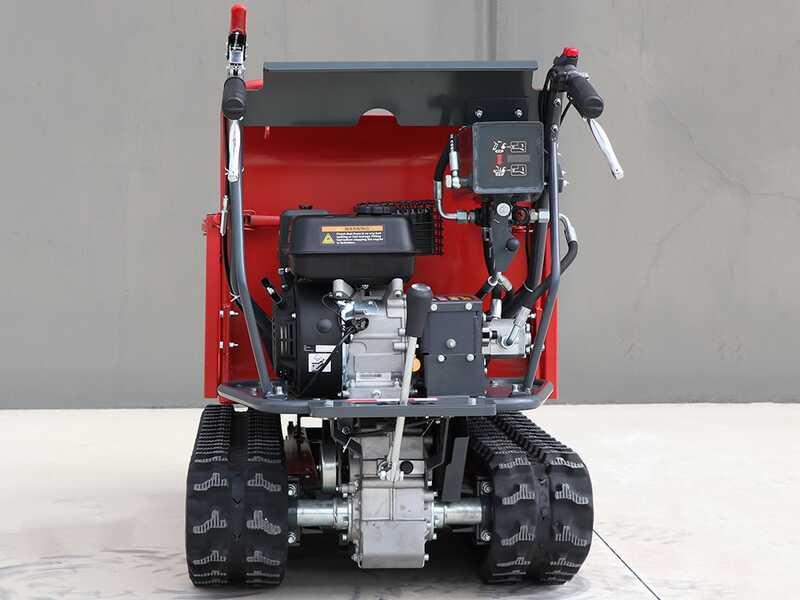

Loncion G200F Engine

TheLoncin G200F engine is suitable for works where a great power is required obtained thanks to the high displacement of 270 cc

Features:

Engine Type
4-Stroke
Cylinder type:
Cast iron
Cubic Capacity:
196 cm³
Fuel:
Petrol

4-Stroke petrol engine of the latest generation with overhead valve shaft “OHV “ starting with automatic decompresser.

Easy recoil start thanks to the automatic fuel priming system.

ATTENTION The engine is PROVIDED WITHOUT OIL. Make sure to carefully read the instructions manual before starting the unit.

Rated Power: 6.5 HP
The correct term would be "Commercial” Power, meaning the classic standard of definition of power officially used until a few years ago by all leading engine manufacturers.

* This figure is even more widespread and advertised in the leading commercial channels, although it is a matter that it is higher than the actual power
Effective power: 5.5 Hp
It corresponds to the real power expressed motor shaft. This is the power indicated as official in the manual or in the technical data of the motor manufacturer.

* This technical data may vary for the same engine model depending on the rotational speed supplied by the engine applied to the equipment.

BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity

Gearbox, Parking Brake and Transmission

Gearbox: large, reliable and accurate.

Speed:
3 forward gears
1 reverse gear

Parking brakes:
annexes to the gearbox, for greater stability and security.
These are automatically activated to release the command (leaving the car in neutral, even in strong gradient, the machine remains perfectly blocked)

Transmission:
Robust and resistant, it allows to manage the steering acting on the single track deactivating the rotation

The machine is supplied by the manufacturer with transmission oil level. Anyway, oil levels must ALWAYS be checked before operating the unit as specified in the instruction and maintenance manual.

BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity

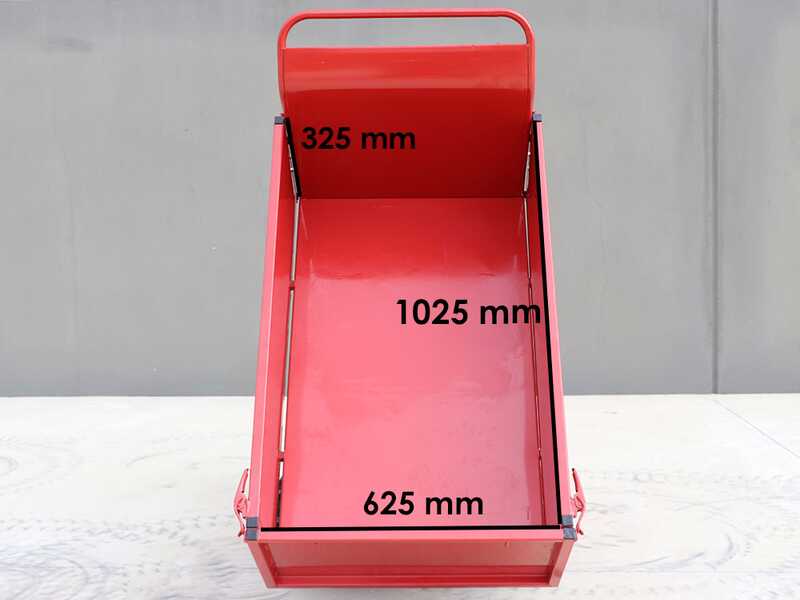

Extendable Tipping Barrow

Barrow made in high-resistance steel, is reinforced with tubular cross members in the lower part, which make it suitable for any load or stress. The loading platform is at the minimum distance from the ground to facilitate the operations of loading / unloading.

The loading capacity can be increased significantly due to extensible sides .
In addition to classic wing nut screws placed under the barrow, the tracked power barrow is provided with sturdy hinges which ensure the sides to one another.

An example of use is for the transport and the loading of the wood.

Barrow dimensions 1025x625x325 mm

Extended barrow dimensions: 1155x885x325 mm

BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity

Barrow with Hydraulic Lifting

Powerful hydraulic circuit characterized by:

- oversized hydraulic pump

- distributor has a lever to start the pump

- sturdy hydraulic cylinder fitted with a blocking valve that ensures the blocking of the tipping in the case of sudden pressure loss

- maximum tilting angle 80°

BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity

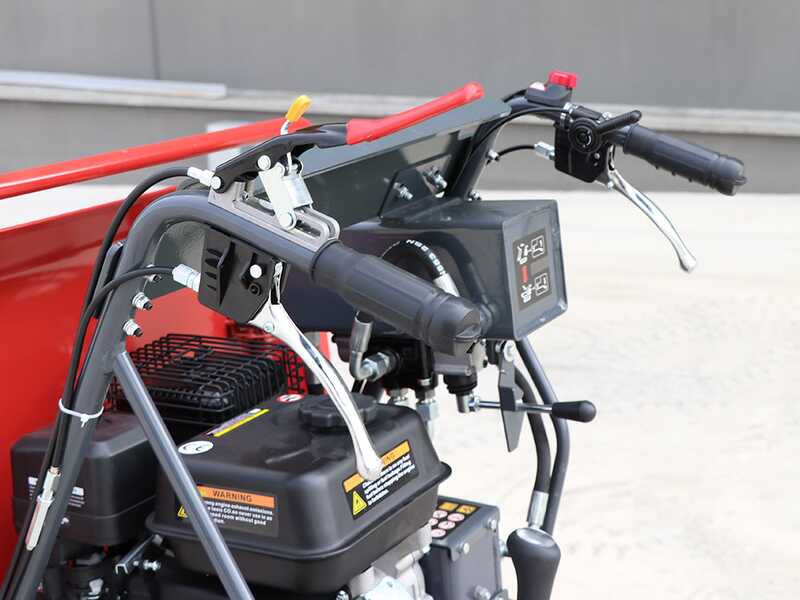

Controls

Control: easy to operate and ergonomic, they offer precision and can be controlled in the work

Large red lever for motion activation .

The two lower levers are for the steering, respectively right and left.

The steering is modulated as a function of the control lever and allows it to move smoothly. By partially pulling one or the other lever also the steering of the affected track, right or left, will be partial.
This allows the steering of the tracked power barrow in an extremely easy way, without causing any sudden movements.

Safety brake that allows the immediate arrest.

Accelerator lever

Power supply switch.

Barrow control lever

BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
Free items & Standard equipment

1° GIFT: Engine spare parts and maintenance kit

COMPLIMENTARY:

Spare parts set and accessories for the maintenance of the following engines.

  • Honda GX 120/GX 160/GX 200
  • Honda GP160/GP 200
  • Loncin 120/160/196 cc
  • Axo 120/160/196 cc
  • Briggs & Stratton 950 series

The set includes:

No. 1 GeoTech spark plug

No. 01 professional joint spark plug wrench specific for riding-on mowers, flail mowers and lawn mowers heavy-duty engines.

No. 01 Spare elliptical pleated paper air filter with sponge cover

No. 01 round foam air filter for engines with oil bath filter unit

WARNING: This kit can’t be used for other brands or models on the market. We don’t provide different kit from the ones offered on our website. We do not guarantee that this kit is valid on products not purchased on our website

BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity

2° GIFT: 600 ml Bottles of Engine Oil

COMPLIMENTARY: two 600 ml sae 15W 40 oil bottles. Specific lubricant for 4-stroke gardening machinery with up to 10 Hp of power. Good cleansing and dispersion.

BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity

Free Items Included

The tracked power barrow is provided in its original packaging .

Instruction manual and set of wrenches for adjusting and assembly

BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
BLUE BIRD Transporter 500 H Tracked Power Barrow - Extendable Barrow with 500Kg Capacity
