Name: Bomet Dorado Spring Tine Cultivator - 11 Tines - 170 cm Working Width
Brand: Bomet
Price: 1505.52 EUR
Availability: InStock
Rating: 5 (1 reviews)

Description

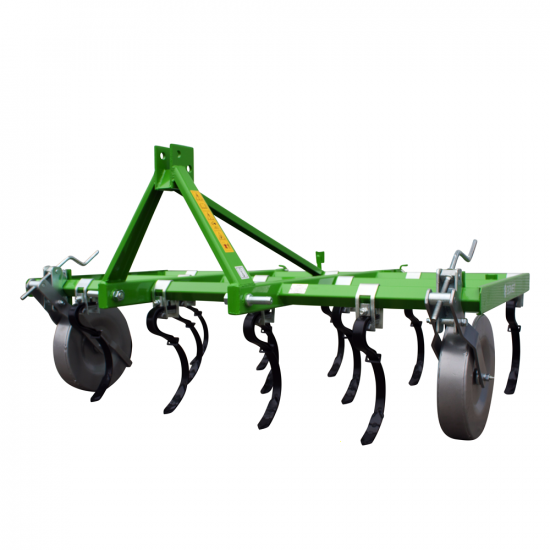

Bomet Dorado tractor-mounted spring tine cultivator

The Bomet Dorado spring tine cultivator with 11 tines is designed for loosening the soil, partially breaking up clumps, uprooting weeds and crabgrass and mixing mineral fertilisers into the soil. Cultivators are also recommended for use on stubble to stop water evaporation from the soil.

Unlike subsoilers or spring loaded tillers, the spring tine cultivator features a smaller working depth and less distance between the tines. The vibrating spring system also allows preparing the soil for seeding or removing overgrown weeds.

The frame features 3 rows and the distance between the tines is 14 cm. The tines end with an easily replaceable coulter.

It is also equipped with 2 supporting wheels that determine the working depth.

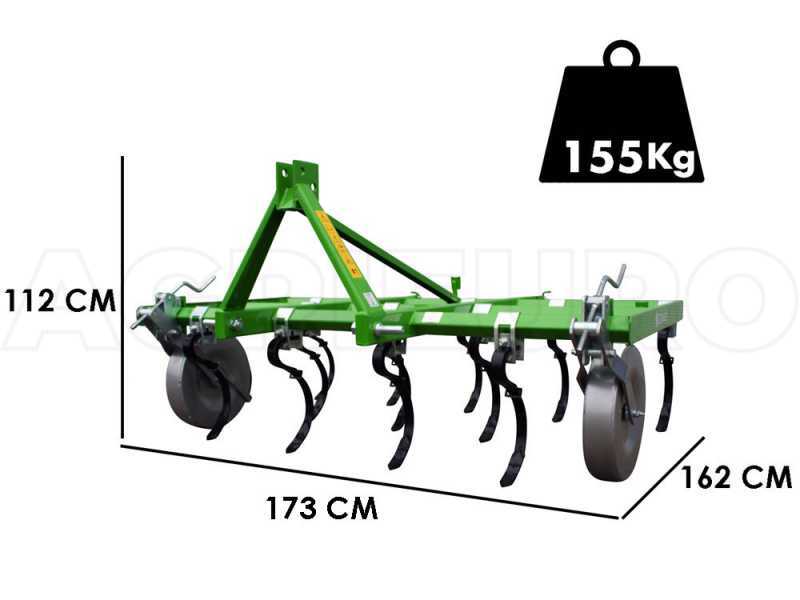

TECHNICAL FEATURES (IN SUMMARY):

Total width: 173 cm
Real operating width: 170 cm
Tractor power: 30 - 40 Hp
Working depth: 13 cm
Weight: 155 Kg
Frame width: 6 cm
Tine length: 46 cm
Tine tip width: 4.5 cm
Tine tip length: 20 cm

Bomet Dorado Spring Tine Cultivator - 11 Tines - 170 cm Working Width

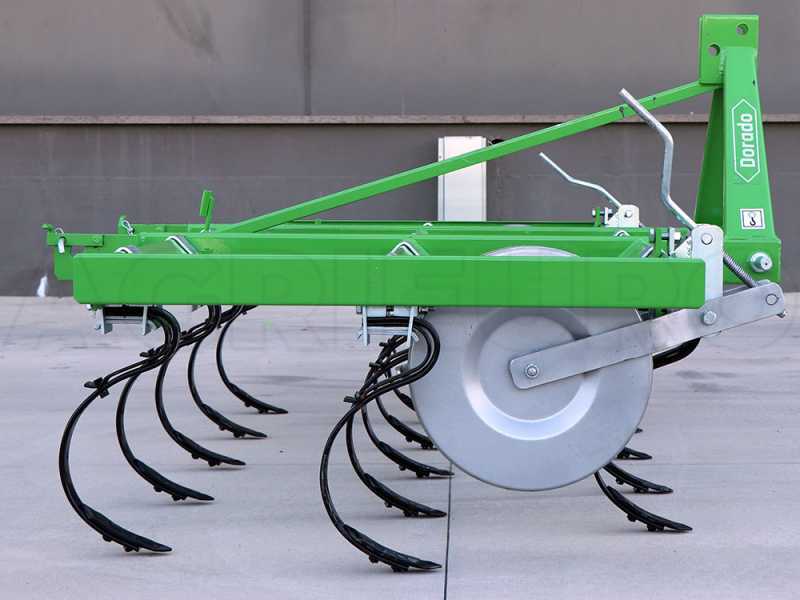

Preparing the soil for seeding

This cultivator features a great weight distribution, precision depth control and the ability to follow the ground contours of the machine so as to create the perfect seedbed on any type of soil.

With sturdy elastic springs, the cultivator ensure great performance on any type of soil. The spring tine cultivator is equipped with a sturdy frame featuring three rows of springs.

The adjustable wheels allow you to set the same working height as the cultivator.

This vibrating tine cultivator reaches a 13 cm working depth and it is attached to the tractor three-point hitch.

The tillage from the bottom up creates a certain amount of macro-porosity and crumbling in the soil, thus causing little or no change in the profile of the layers. In not very compact soils, the operation is in any case effective in breaking up clamps and improving water drainage.

Main features

The tines feature a leaf spring reinforcement, which gives them a vibrating effect, and the spring reinforcement helps avoiding the recoil effect of the tine in case it gets stuck in the ground.

The spring tine cultivator comes with the following items included on standard equipment:

Category 1 3-point hitch;
Safety bolt on each tine that protects the cultivator against damage in case of hitting a rock or a buried root. Indeed the bolt is designed to break on impact, preventing further damage.
Reversible and replaceable tine;

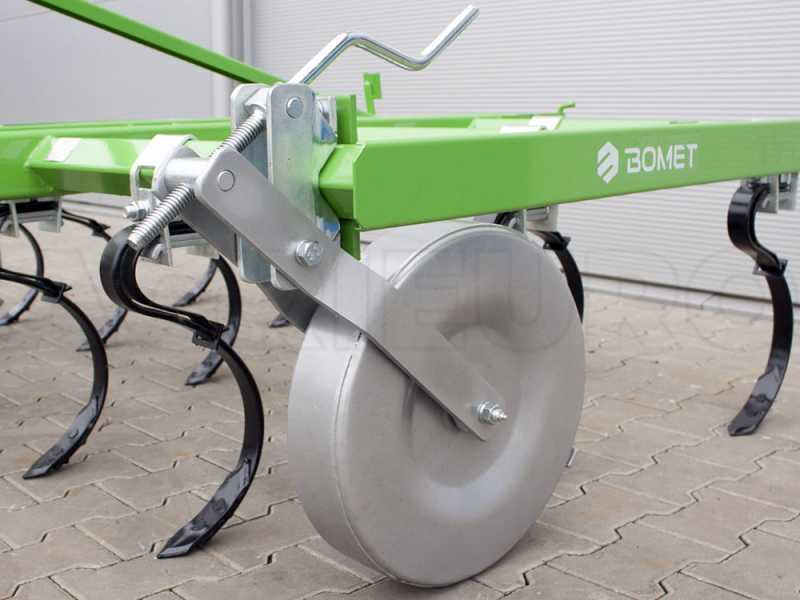

Pairs of iron depth wheels adjustable by means of a lever.

Pins size:
