BullMach AMBRA 6500-3 - 5.5 kW Wheeled Petrol Power Generator with AVR - DC 5 kW Three-phase

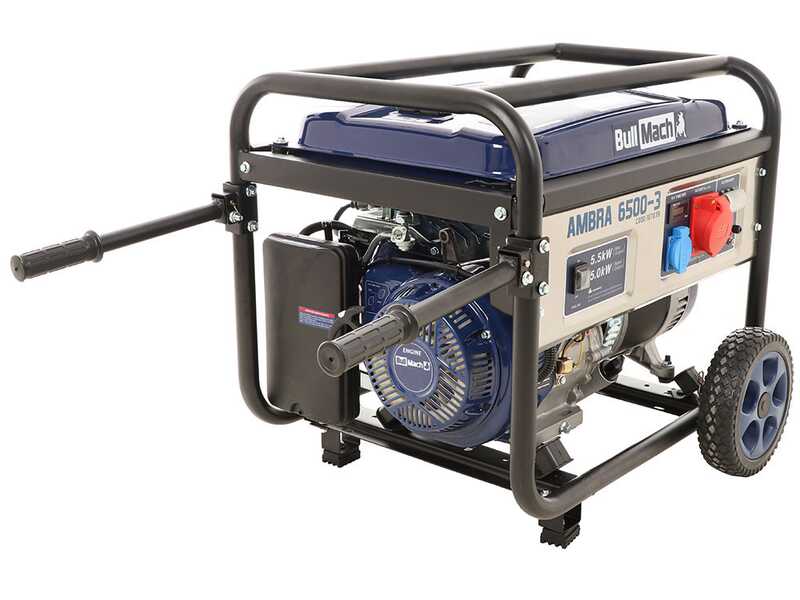

The BullMach AMBRA 6500- 3 three-phase electric generator is equipped with a alternator copper winding and can reach a maximum power of 5500 W.

It has a diesel4 stroke engine with a displacement of 420 cc capable of emitting a power of 11.4 Hp. The engine respects the European EURO 5 legislation.

The control panel is located on a stainless steel plate. The generator is equipped with two large wheels and handles, that can be closed, located on the upper part which allow to transport it very easily so to have it on hand wherever needed. The rubber support located under the engine are inclined to an angle of 45 degrees so to reduce even further the vibrations produced, even compared to the normal rubber supports that stand straight.

The fuel tank may contain 23 L. Equipped with AVR board: the generator has an circuit board that automatically adjusts the output voltage, keeping it constant under varying load conditions It is very easy to use thanks to its very simple commands and to its very compact shape it can be easily moved according a each need.

The generator is not designed for energy production, charging or maintaining batteries for the photovoltaic or solar panels systems (or similar); this can seriously damage the generator.

WARNING: all these models of generators that do not belong to the PROFESSIONAL series (considering the product level evaluation used by our website) are not intended for more than 3-4 hours continuous work in order not to reduce the alternator durability as well as that of one of the other machine components due to the unit overheating or wear. As regards a home or intensive use of these generators, it is important to follow the indications mentioned above. In all these conditions, we highly recommend focusing the attention on the purchase of generators renowned as PROFESSIONAL by the product level classification made in our website.

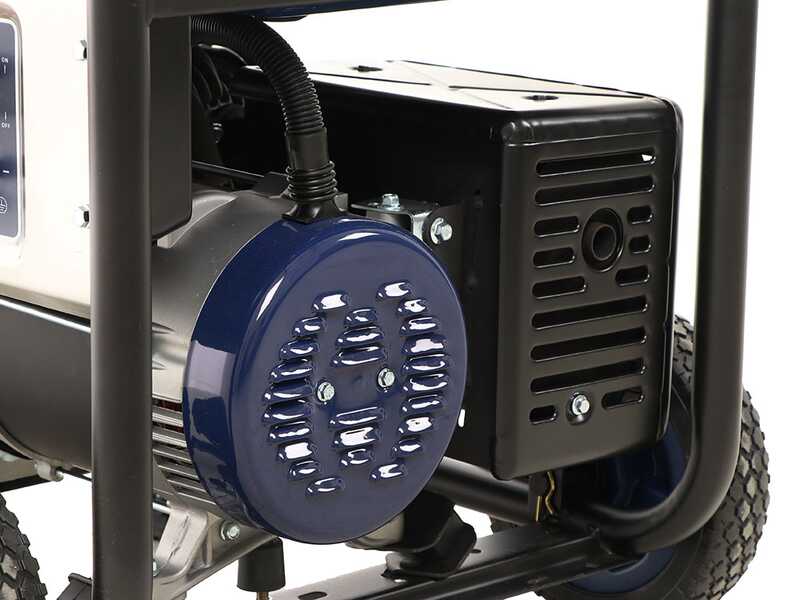

The alternator of the generator is built with copper winding

Maximum three-phase nominal power* emergency conditions LTP: 5,5 kw

Maximum single-phase nominal power* emergency conditions LTP: 1,8 kw

* in case of an emergency the generator can reach this maximum power

Nominal three-phase power* in continuous running PRP: 5,0 kw

Nominal single-phase power* in continuous running PRP: 1,7 Kw

*This is the data that should be taken into consideration as an effective and constant data for the generator output (it guarantees the product an infinite duration)

The BullMach generator is equipped with AVR board: an electric device which automatically regulates the output of tension, making it constant as the load varies.

It also comes with resistant grommets to ensure the alternator to the frame.

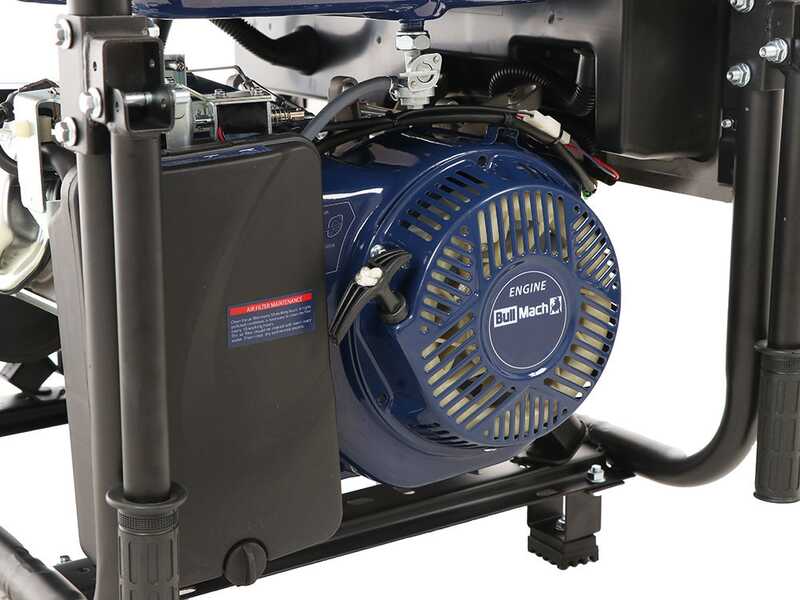

Engine specifications:

Model: PT190F
Type: 4 stroke, single cylinder
Displacement: 420 cc
Power: 11.4 Hp
Fuel: petrol
Tank: 23 L

Focus on the engine air filter

The engine is equipped with recoil starter

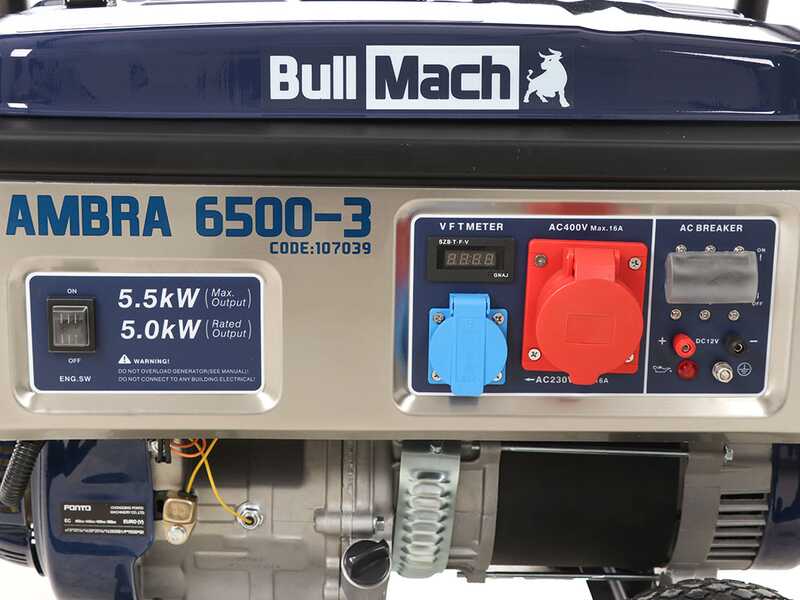

The control panel of the BullMach generator is complete and full of effective functions.

• 5in1 Digital display where you can view:
  • Voltage
  • Amperage
  • Frequency
  • Power
  • Starting time

• Voltmeter to see the current voltage output on the outlet and the frequency in Hz.
• This generator is also equipped with battery charger suitable for charging of all the 12 volts batteries. WARNING: This is not a 12 volts power delivery system for operating equipment at 12 volts. We reiterate that this is a standard charger .
• 16A Schuko power outlet
• 16 A Three-phase socket
• General switch

Tank plug

Porthole for the fuel tank level

Rear grommets

Transportation handles

• Voltage: 400 Volts
• Frequency: 50 Hz
• Tank capacity: 23 L
• Noise level: 97 dB(A)/7m

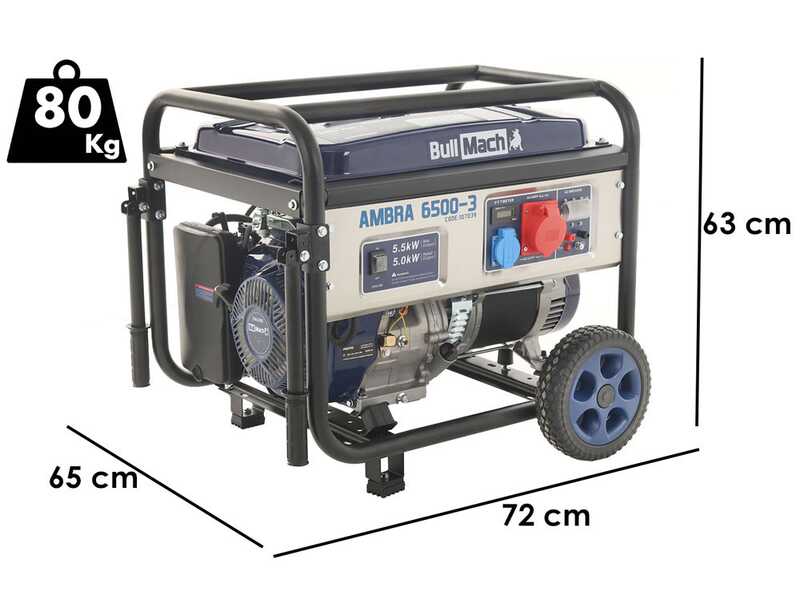

• Size: 72x65x63 cm
• Weight: 80 Kg

As far as the needed power is concerned, we now provide you with an handy chart to help you navigate among consumption, starting coefficients and watt.

The best criteria is to pinpoint first which are the instruments we need to power with the generator and, consequently perform a simple calculation, as explained below, to identify the needed power that the generator need to eject.

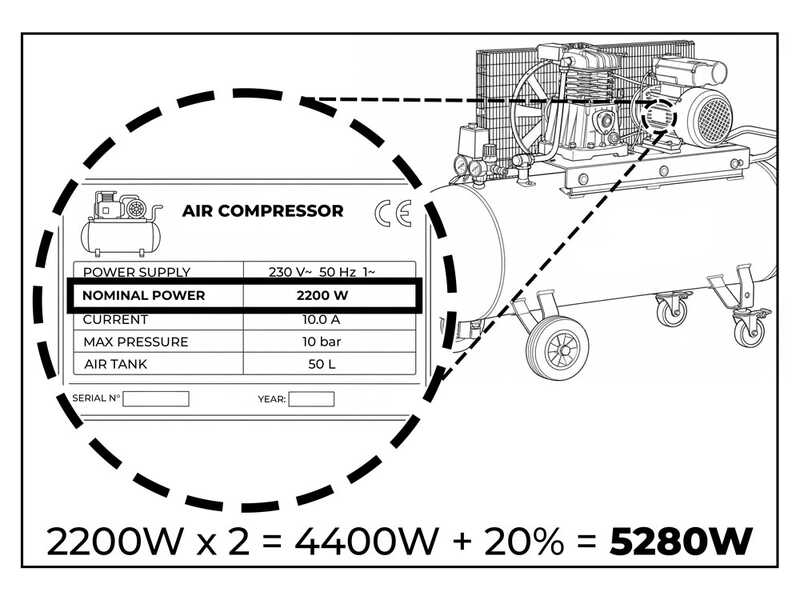

Power required = Electric appliance consumption X Breakaway starting coefficient

The starting coefficient is a fundamental characteristic of any instrument which works with electric current because it indicates how much the consumption of the object increases. Therefore, this is needed to concretely determine how many WATT are necessary during the start up operations.

Example: Compressor (1500 Watt ) X Starting coefficient (2) = 3000 Watt Hence you should orientate towards a generator which has a WATT power equal or superior to the result (*)

Check the consumption of the appliance on the instruction and maintenance manual or on the plate attached to the machine.

WARNING: the chart is purely indicative. Thanks to the formula above you can easily calculate the power a generator should deliver to connect and start some specific products and select the model of generator which best suits your needs.

• The generator can be exclusively used to power single electrical appliances (with respect to the produced KW power in relation to the absorption during the starting phase that must be lower than the power supplied by the generator).


• The generator can be used to power household device in emergency conditions (no current service provided by the domestic household), exclusively on the models that are specifically provided with ATS (Automatic Transfer Switch) device (specifically designed for this purpose and provided with connecting systems to your household electrical power).


• The generator was NOT designed for PROFESSIONAL use, it is therefore apt for occasional use (not frequent). The working sessions must no be over 3-4 continuous hours (which would cause the alternator to overheat and wear, especially in its internal components rotor and stator) If you need a generator for frequent use (for example once a week), the user should look towards another type of generator, specifically intended for a frequent use and precisely a PROFESSIONAL or even INDUSTRIAL quality-level generator (that is not provided with a standard 3000 rpm alternator as this models is, but one which is designed with a professional alternator with low speed; 1500 rpm - with liquid-cooled engine and alternator - which have a level of specific characteristic and price point very different from this model’s);

The generator is not designed to be installed in photovoltaic or solar energy systems for energy production nor for the recharging or maintenance of batteries of these specific or other electric systems. Indeed, it may damage seriously the generator on its internal components (alternator, engine and electrical component). Each photovoltaic system requires a generator for INDUSTRIAL use (not for domestic use as this present model), specifically designed and manufactured for this purpose. WE DO NOT PROVIDE WARRANTY on generators connected to photovoltaic systems, as this entails an IMPROPER USE OF THE UNIT.
