BullMach BM-DDH 60 Diesel Hot Air Generator - Direct Combustion - Wheeled - 60 kW

Questions & Answers (1)
ID: 108504

EAN: 8054141544369

MPN: BM-DDH 60

9,0/10
After-sales assistance & Spare parts
BullMach BM-DDH 60 Diesel Hot Air Generator - Direct Combustion - Wheeled - 60 kW
Power supply
Diesel-powered
Max. heat output
60 kW
Body material
Enamelled steel
Thermostat
Yes
Starting mode
Electric
Standard trolley
Yes
Product Features
Model:
BM-DDH 60
Power supply:
Diesel-powered
Body material:
Enamelled steel
Type:
Direct
Operating mode:
Electric 230 V
Start:
manual
Max. heat output:
60 kW
Nominal heat output:
60 kW
Power Btu/h:
222.000 approx.
Power Kcal/h:
56.000 approx.
Air flow:
1100 m3/h
Absorption:
1 A
Tank capacity:
45 L
Thermostat:
Yes
Fuel consumption:
4 kg/h
Starting mode:
Electric
Recommended for open spaces:
Yes
Manufacturing country:
China
Equipment
Thermal-protected motor:
Yes
Over-heating thermostat:
Yes
Adjustable heat:
Yes
Tank level indicator:
yes
Standard trolley:
Yes
Free gifts/extra features
Wooden pallet (safe shipping):
Yes
Instructions manual:
Yes
Dimensions and logistics

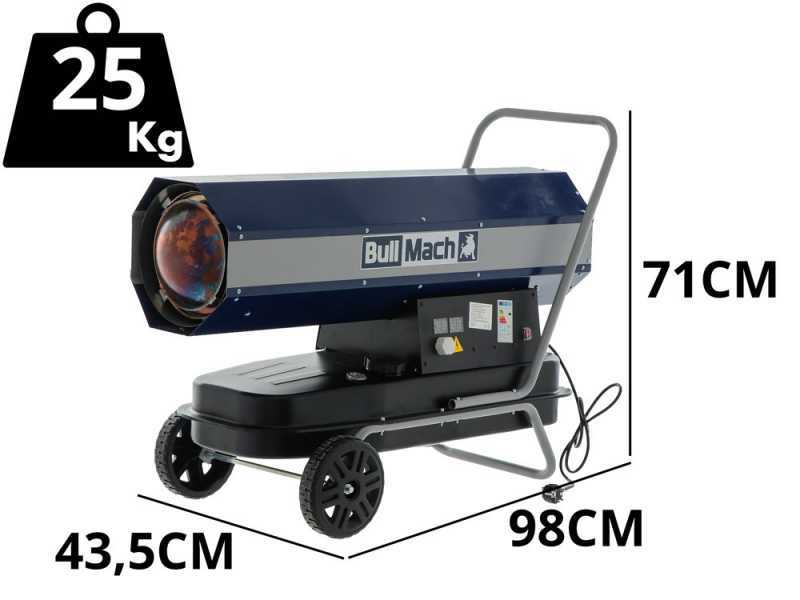

Product dimensions in cm (L x W x H):
98x43,5x71cm
Net weight:
25 Kg
Packaging:
On pallet
Original packaging/s dimensions in cm (L x W x H):
97x39,5x54,5 cm
Gross weight (packaging included) :
26 Kg
Assembly time:
15 minutes
Prompt Delivery
28 items in stock
Free Shipping
Estimated delivery: 08/07/2024 - 10/07/2024
€ 429,12
VAT Included

You're viewing:
Customers also viewed:
Description

BullMach BM-DDH 60 Diesel hot air generator

Highly-efficient hot air generator which can heat the surroundings quickly. Recommended for heating large areas difficult to heat with traditional heating systems such as workshops, construction sites, greenhouses, garages and farms.

The BullMach BM-DDH 60 diesel hot air generator is a cost-effective solution for anyone who wants to heat an outdoor environment, and is also recommended for use in closed but well-ventilated spaces (carefully read the instruction manual).

Easy to transport thanks to the trolley equipped with handle and wheel supplied.

One of its main features is the direct combustion, i.e. all the combustion products are expelled together with the hot air produced by the heater. For this reason, adequate ventilation must be ensured during its use.

Thanks to the 60 kW thermal power and large 1100m3/h air flow rate, the heater can produce a high flow of warm air.

Equipped with digital display that shows the set temperature and that of the surrounding environment.

The full-level indicator on the machine allows to easily check the fuel level into the fuel tank.

It requires very easy and immediate maintenance, allowing you to heat different types of rooms quickly.

Technical specifications and other details

Other Features:

  • Power supply: Diesel
  • Generator power: 60kW
  • Fuel Tank Capacity: 45 L
  • Air flow rate: 1100 m³/h
  • Max. surface: 345 m²
  • Fuel consumption: 4Kg/h
  • Power absorption: 1A
  • Weight: 25 kg

The supporting frame and handle are easy to assemble and keep the generator balanced, making it easy to move by means the two wheels.

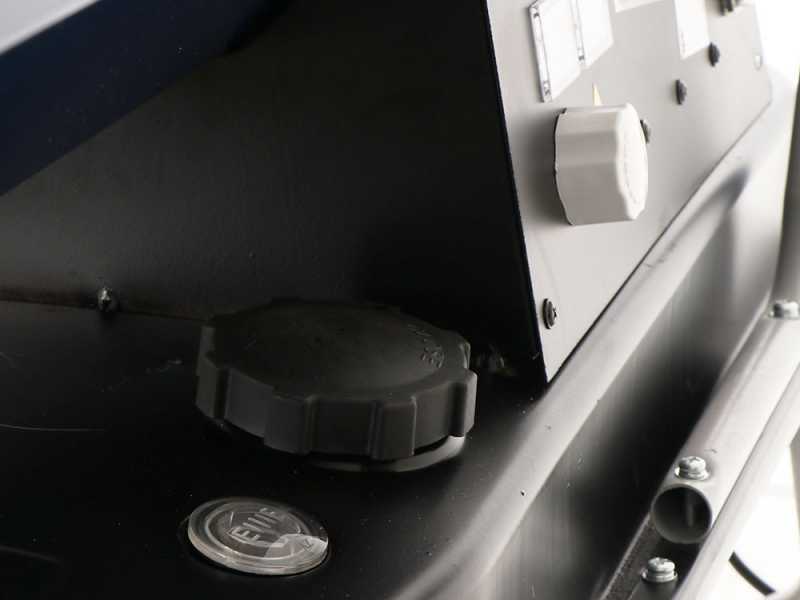

Focus on the fuel tank where it is possible to check the fuel level.

Focus on the controls including thermostat and digital display.

How to select the ideal hot air generator

Important features that the Operator has to consider in order to choose the ideal gas heater which best suits his requirements according to the room that has to be heated up:

  • Dimensions of the area that has to be heated up [V]
  • The ideal temperature [ΔT] that has to be reached
  • Room thermal insulation [K]

High thermal insulation: k = 1

Medium levels thermal insulation: k = 2

Low levels thermal insulation: k = 3

No thermal insulation: k = 4

Therefore, the heat requirements can be also calculated by using the following formula:

V x ΔT x K [kcal/h]

For example:

V = width 4 m width, 12 m length, 3 m height, room volume = 144 m³

ΔT = outdoor temperature -5ºC, room required temperature +18ºC, room temperature = 23ºC

K = 4 not-insulated room

The formula above mentioned brings to the following result: 144 x 23 x 4 = 13 248 kcal / h, which has to be compared with the data written on the machine serial no. plate, which highlights this heater functionality being able to produce larger volumes of instant heat compared to that one needed.

Converting to kW is easy, just multiply the result by 0.001163, so 13248 x 0.001163 = 15.4 KW

Free items & Standard equipment

Free items included

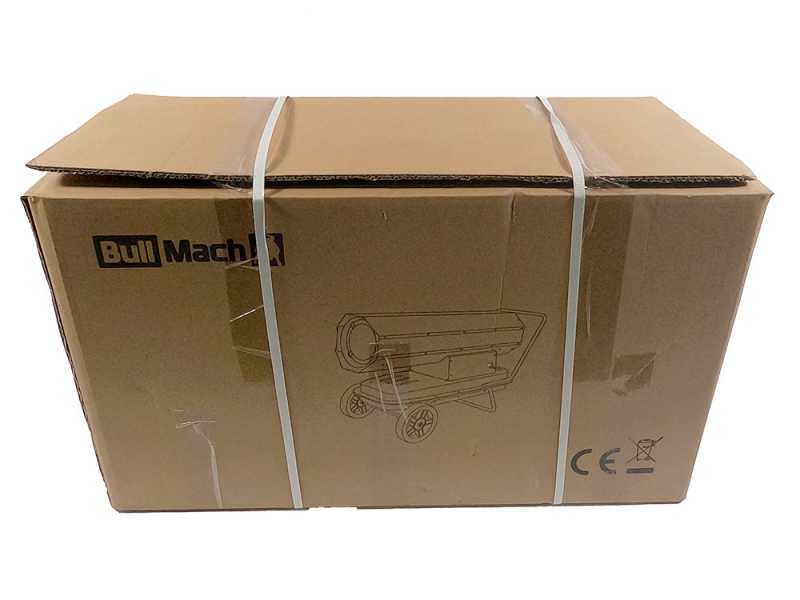

The hot air generator is shipped in its original packaging. The instructions manual is included in the package.
